Инженерный чертеж
Основные параметры

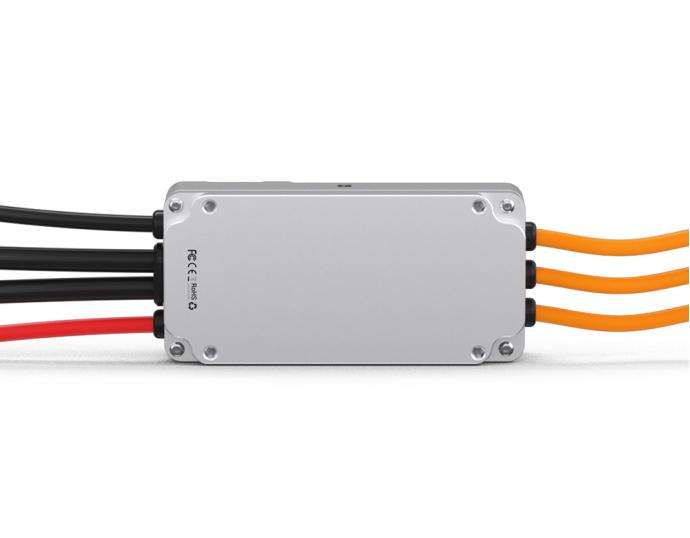

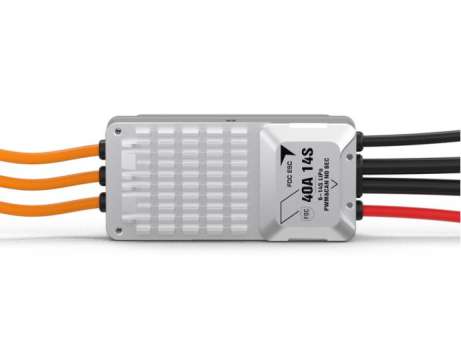

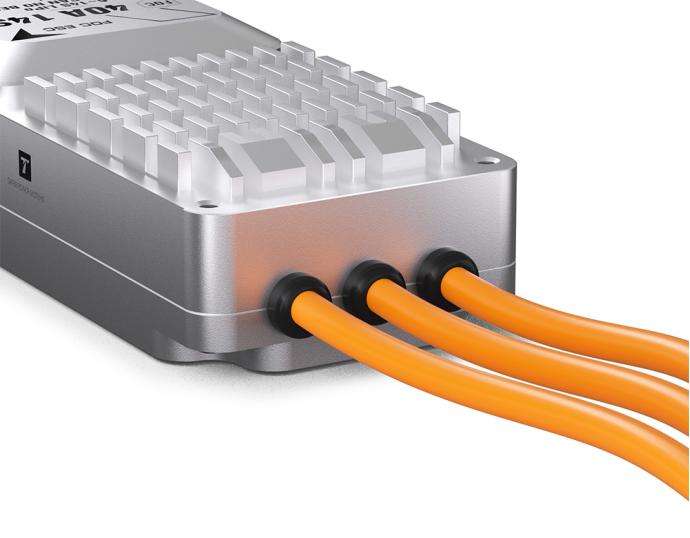

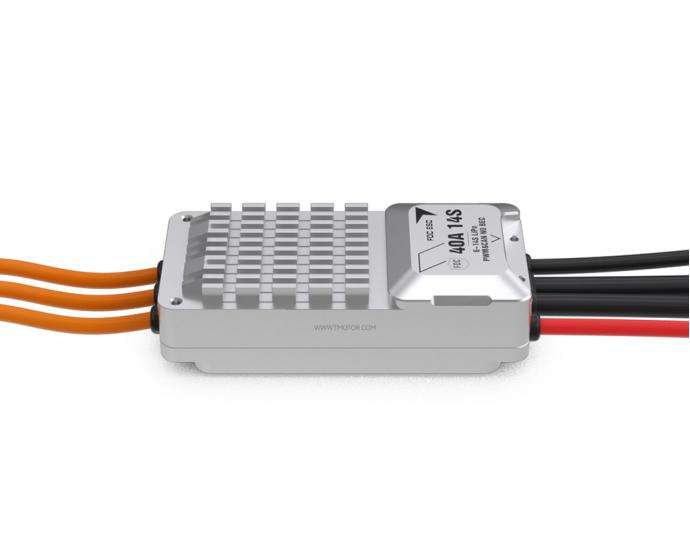

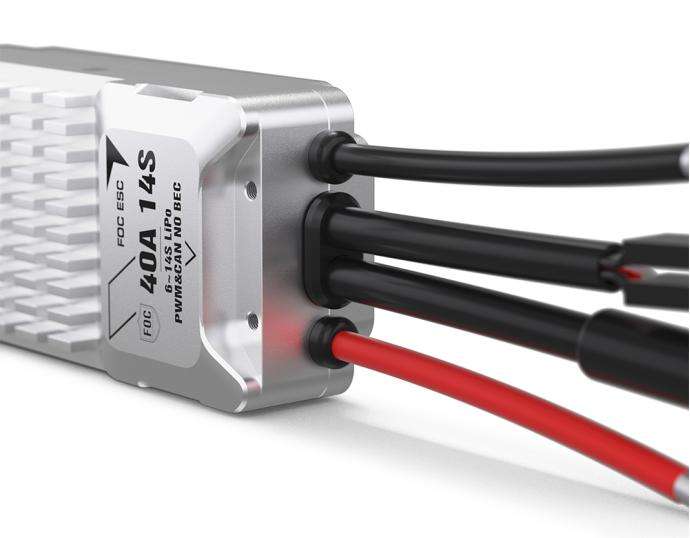

| Model No. | V40A 14S | Power Cable | Silicone wire-red/black-14AWG-150mm |
| Size | 62*30*18mm (L*W*H) | Signal Cable | Shielded cables-Black-OD4.2-5C -300mm-JP-3P*2-Black blank white -green yellow gray |
| Weight(Incl. cables) | 69g | Encoder cables | / |
| Motor Cable | Silicone wire-orange-16AWG-65mm | Protocol | PWM/CAN |
| Support Voltage | 18~60V (6~14S) | BEC | NO |
| Continuous Current | 20A | Throttle Pos. Range | 1040-1940μs |
| Peak Current(<10s) | 40A | Throttle Refresh Frequency | 50-500HZ |
| Standby Consumption | ≤50mA@48V | Throttle Response Speed | 300ms |
| Производитель: | T-Motor |
