Инженерный чертеж
Основные параметры

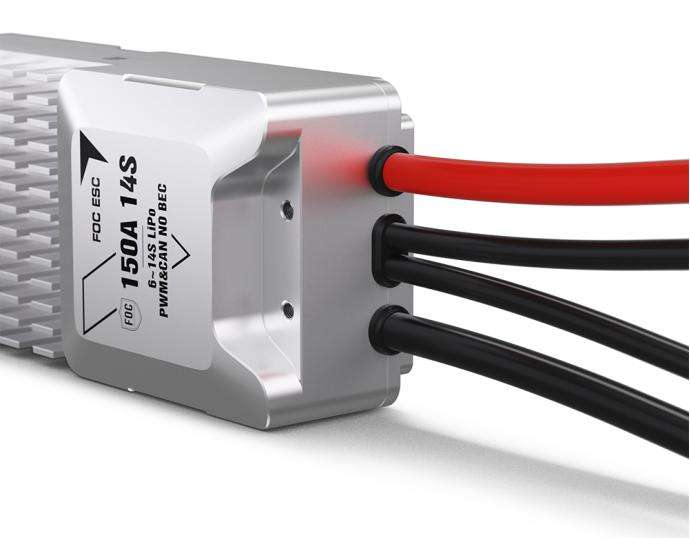

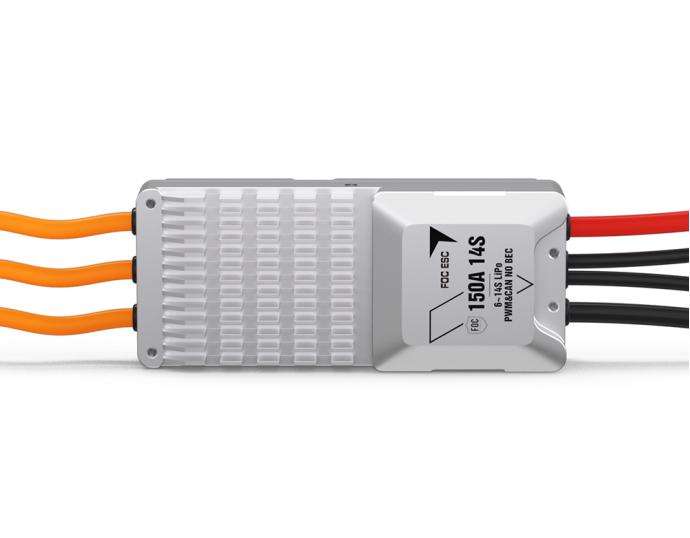

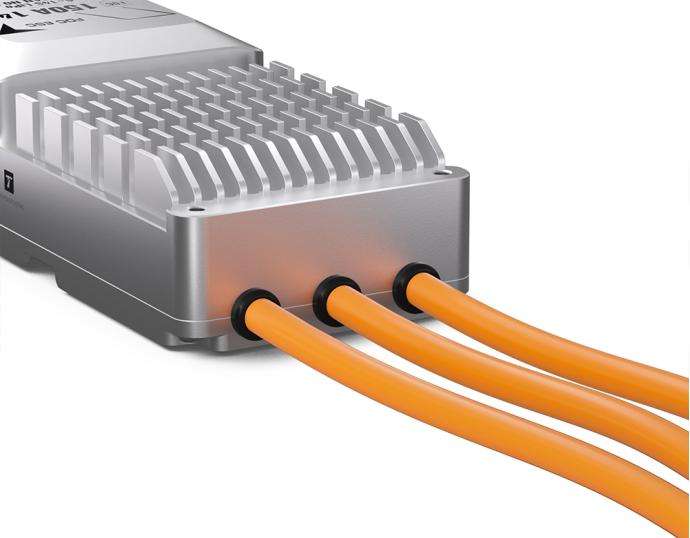

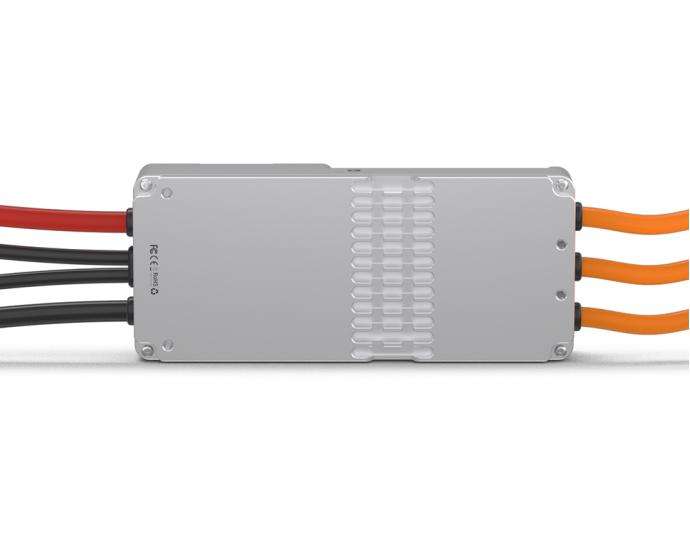

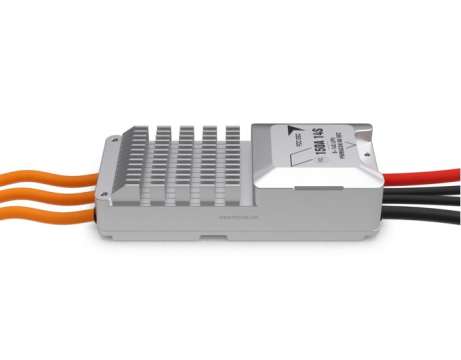

| Model No. | V150A 14S | Power Cable | Silicone wire-red/black -10AWG-200mm |
| Size | 116*49*31mm (L*W*H) | Signal Cable | Shielded cables-Black-OD4.2-5C -500mm-JP-3P*2-Black blank white-green yellow gray |
| Weight(Incl. cables) | 295g | Encoder cables | Shielded cables-Black-24AWG-5C -450mm-M6 aviation connector |
| Motor Cable | Silicone wire-orange-10AWG-150mm | Protocol | PWM/CAN |
| Support Voltage | 18~60V (6~14S) | BEC | NO |
| Continuous Current | 70A | Throttle Pos. Range | 1040-1940 |
| Peak Current(<10s) | 160A | Throttle Refresh Frequency | 50-500HZ |
| Standby Consumption | ≤50mA@48V | Throttle Response Speed | 300ms |
| Производитель: | T-Motor |
