Features

1. Use mainstream STM32F405 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. With TAKER H80_BLS 80A 4IN1 ESC, Dual MOS, high current, silky flight
8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9. [email protected] + 5V@3A dual independent BEC

Specifications

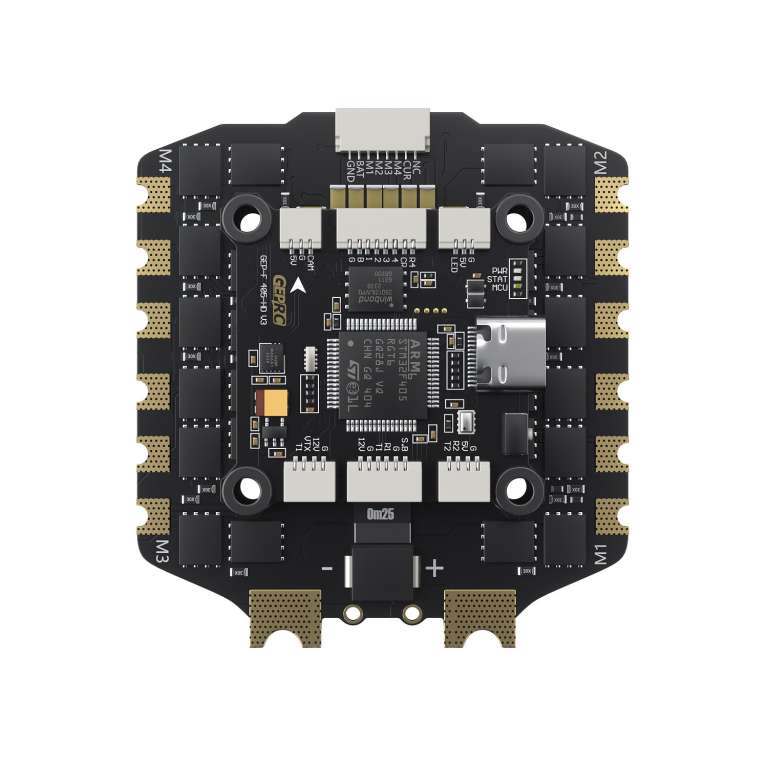

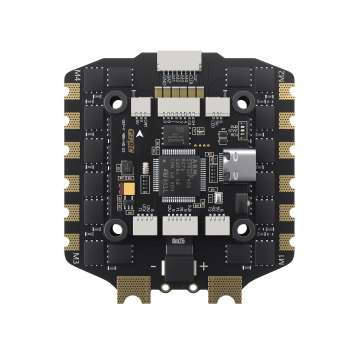

GEP-F405-HD V3 Flight Controller

• MCU：STM32F405
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• Barometer: support
• Motor outputs：M1-M6
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,[email protected] dual BEC
• Firmware Target：GEPRCF405
• Size：37.15×37.15mm
• Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
• Input Voltage：3-6S LiPo
• UART：6 UARTs
• Power Filter：Integrated LC filter
• Weight：7.3g

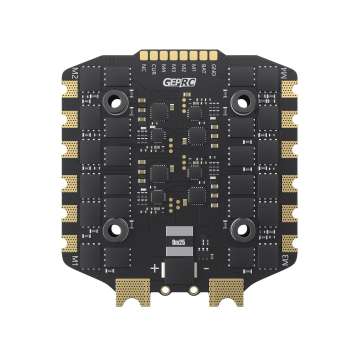

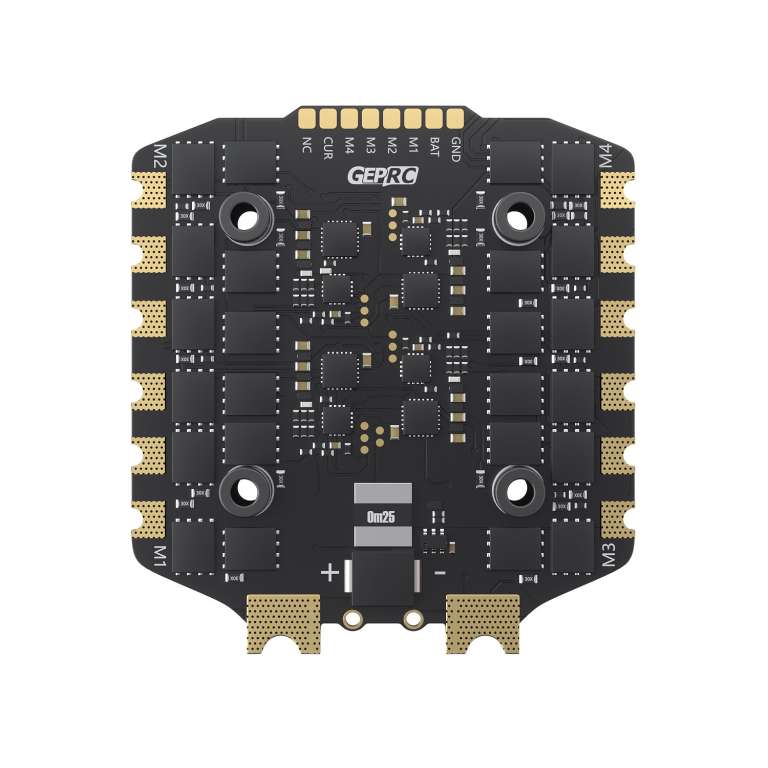

TAKER H80_BLS 80A 4IN1 ESC

• Input Voltage: 3-6S Lipo
• Ammeter: Support
• Continue Current：80A
• Burst Current：85A（5 second）
• Support Protocol: Dshot 150/300/600
• Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 28.1g
• Target: B_X_30
