Feature

1. Self-contained MOS heat sink for efficient cooling under high current loads, ensuring more stable performance.
2. Wide battery voltage compatibility, with high-quality MOS for stable operation under high power.
3. Compatible with BLHeli_S and BlueJay firmware — switch freely for more versatile flight options.
4. Custom-molded heat-dissipating case with a hollow design to enhance cooling efficiency.

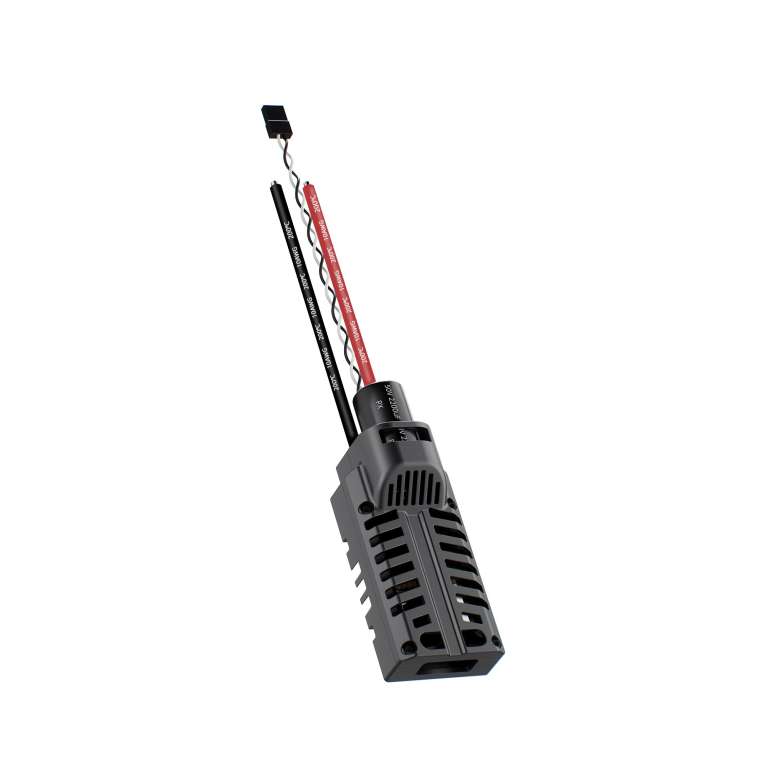

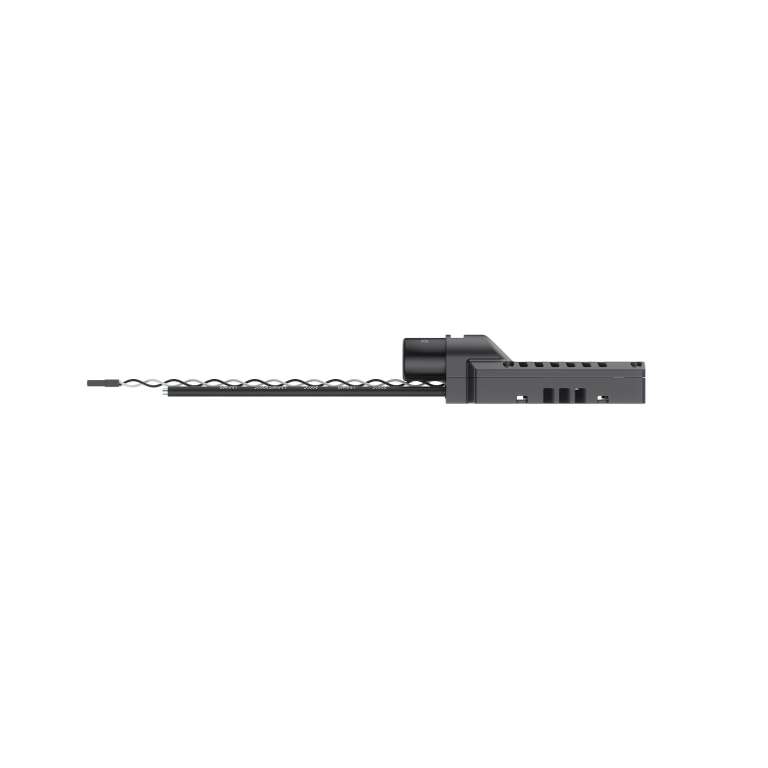

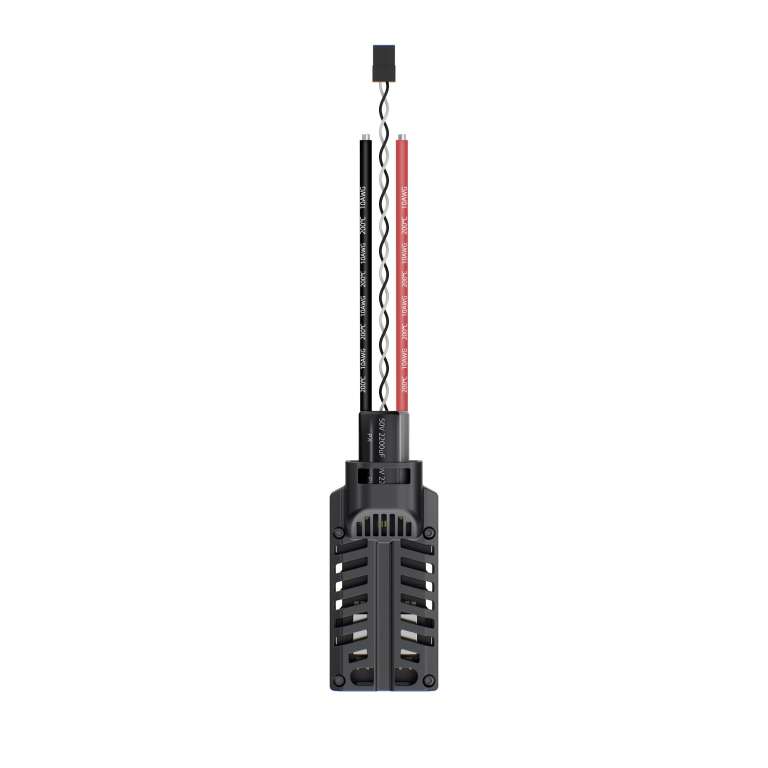

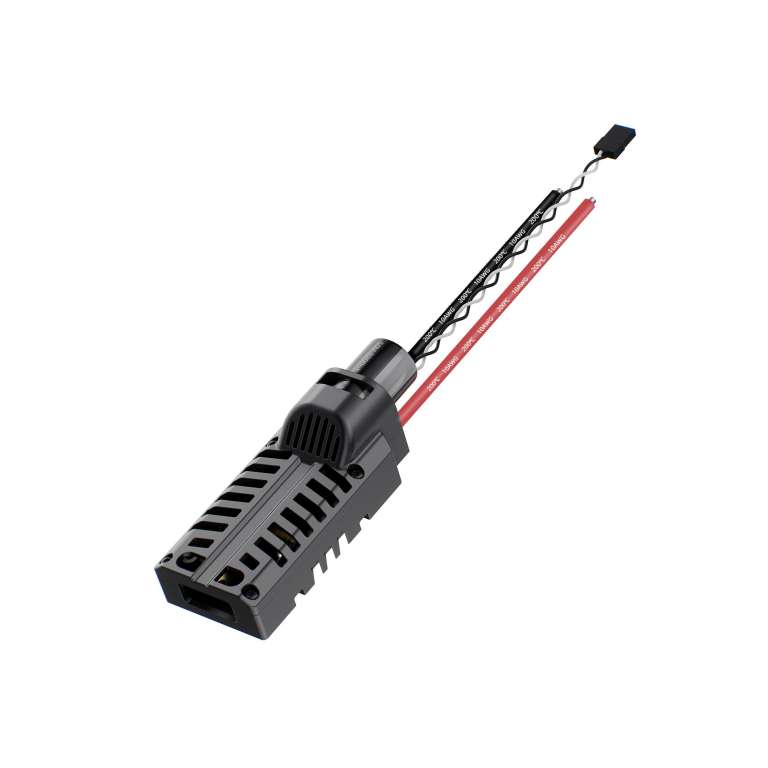

GEPRC TAKER S80 BLS 80A ESC (With Case Version)

Specifications

• Input Voltage: 3-8S Lipo
• Ammeter: Not Supported
• Continuous Current: 80A
• Burst Current: 85A(5 seconds）
• Protocols Supported: Dshot 150/300/600
• ESC Dimension: 32.5x55mm
• Mounting Holes: 29.6×48.5mm
• Case Material: PC
• Case Dimension: 36x76mm
• Weight: 68.8g

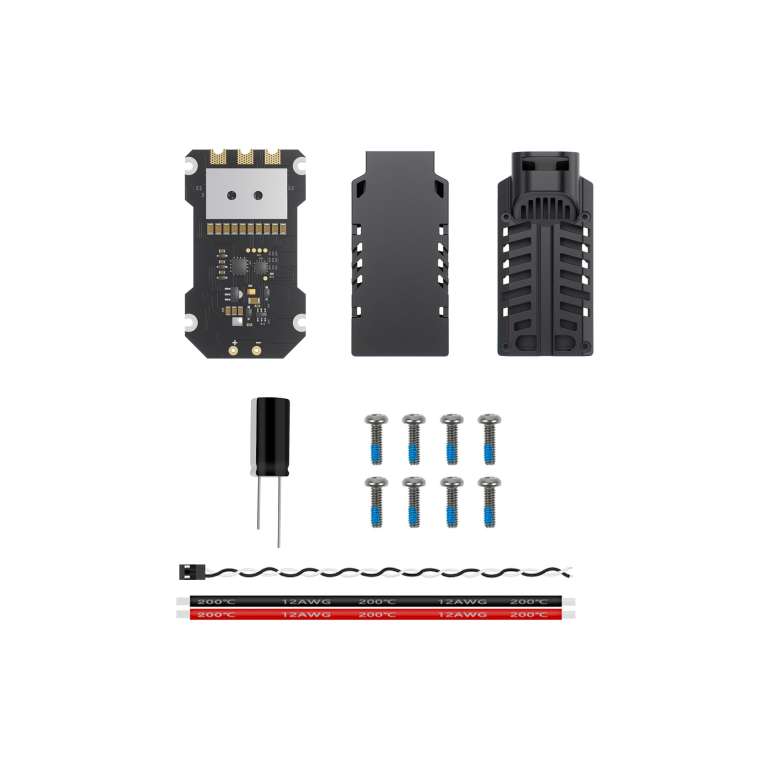

Includes

1 x TAKER S80 8S BLS 80A ESC

1 x 50V 2200μF Capacitor

1 x 10AWG (3.4mm²) Black Silicone Wire (240mm)

1 x 10AWG (3.4mm²) Red Silicone Wire (240mm)

1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (110mm)

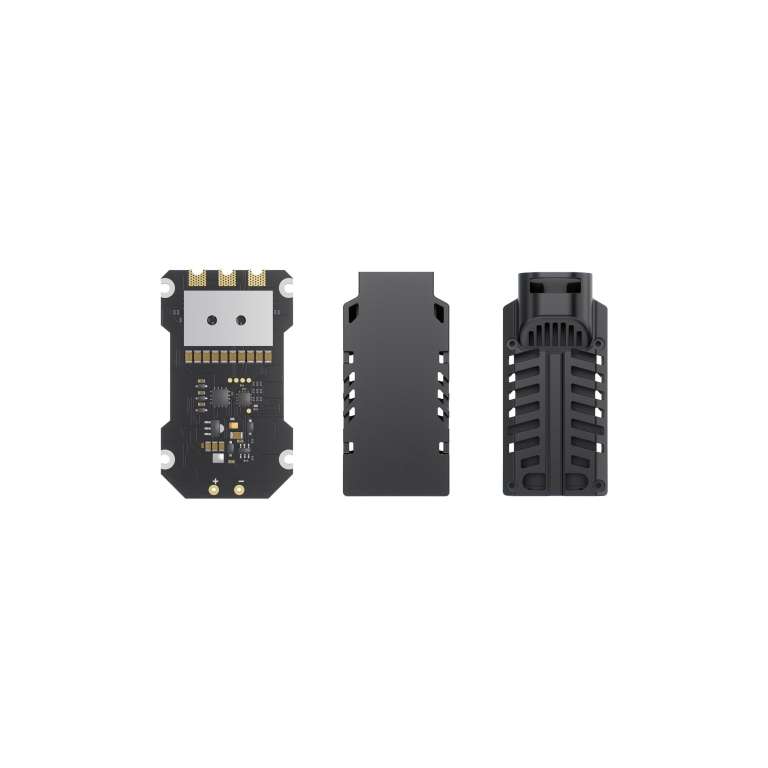

1 x Single ESC Top Case (Black) Molded Part

1 x Single ESC Bottom Case (Black) Molded Part

8 x Grade 12.9 Round Head Hex Socket Screws, Black Nickel Plated — M2*7 [Pre-applied Glue]

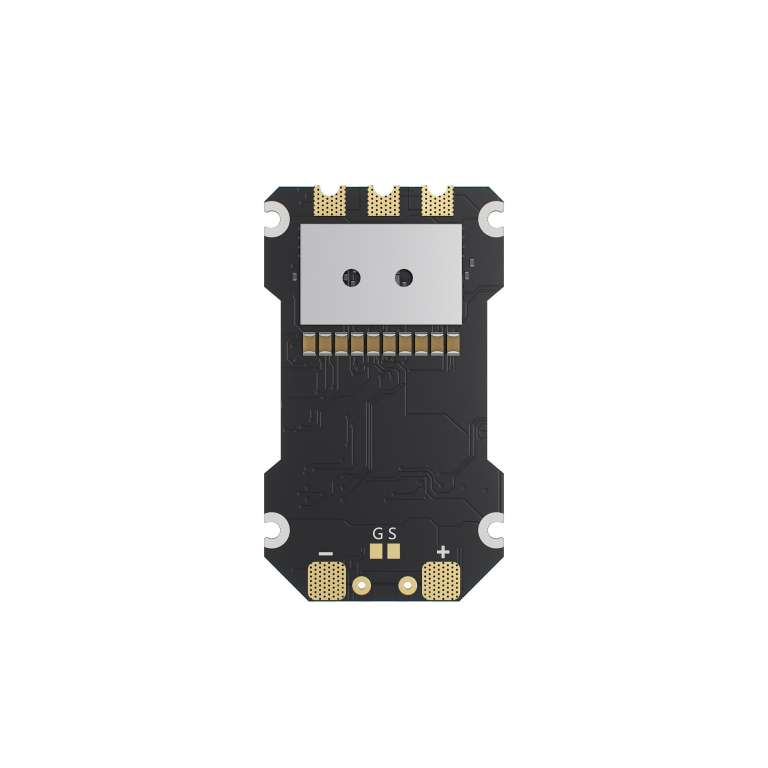

GEPRC TAKER S80 8S BLS 80A ESC

Specifications

• Input Voltage: 3-8S Lipo
• Ammeter: Not Supported
• Continuous Current: 80A
• Burst Current: 85A(5 seconds）
• Protocols Supported: Dshot 150/300/600
• Dimension: 31.55×54.6mm
• Mounting Holes: 29.6×48.55mm
• Weight:13.7g

Includes

1 x TAKER S80 8S BLS 80A ESC

1 x 50V 2200μF Capacitor

1 x Black Power Cable (10AWG 240mm)

1 x Red Power Cable (10AWG 240mm)

1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)
