Доставка в течение 2–3 недель.

Main Feature:

• Copper thickness:4OZ*4(Power Layer）+2OZ*2
• MCU: STM32F051K86(32bit 48mHz)
• TDK ceramic capacitors
• Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
• Continuous Current: 50A
• Reasonable layout, Easy installation

Specifications:

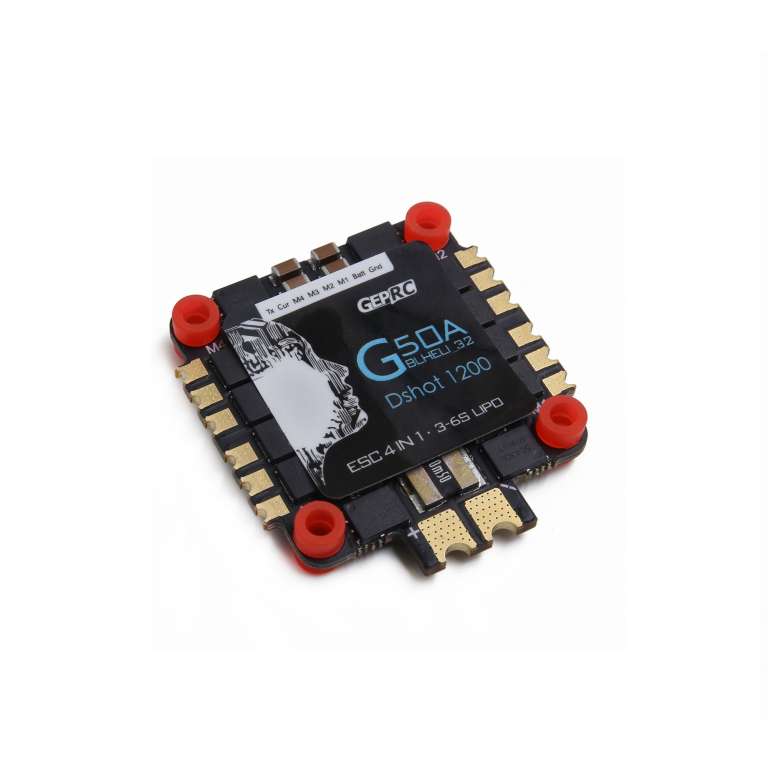

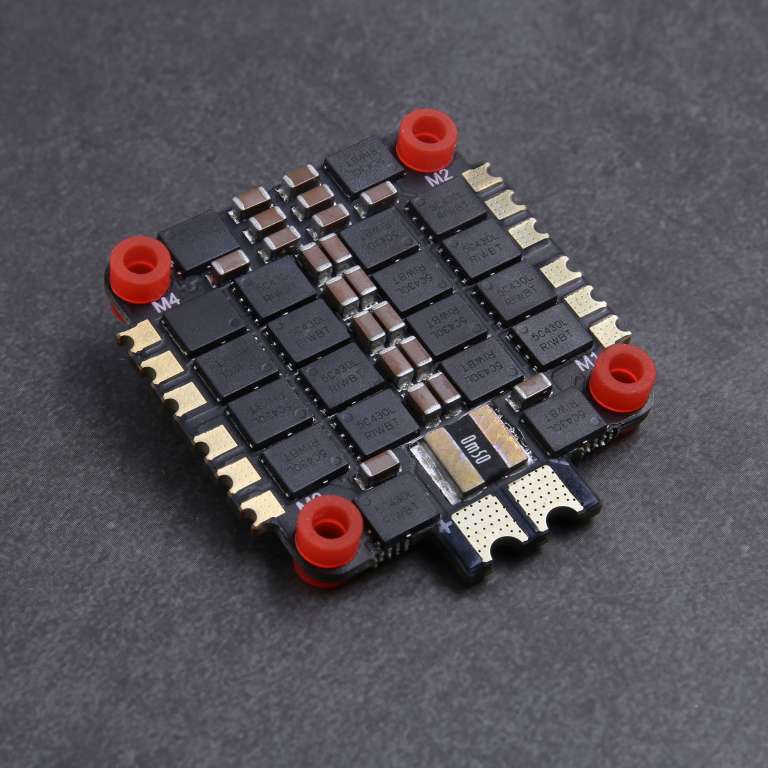

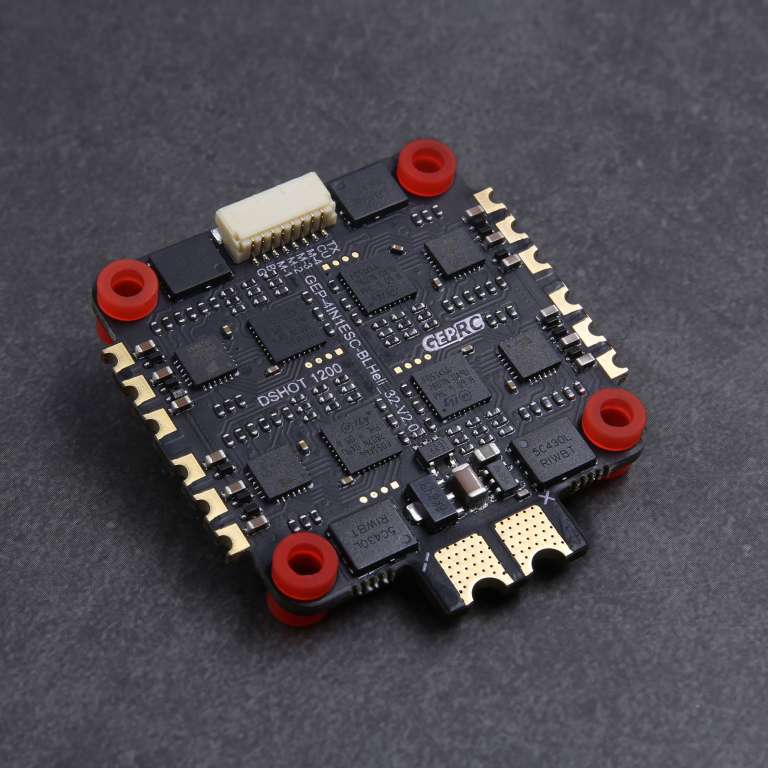

• Model:GEP-BL32-G50A-4IN1-ESC
• MCU: STM32F051K86(32bit 48mHz)
• Continuous Current: 50A
• Peak Current: 55A (5S)
• BEC:NO
• Current sensor: YES
• Telemetry：Supported
• Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
• Firmware Version:GEPRC-BL32-4IN1
• Size: 43x40mm board, φ4mm with Grommets φ3mm
• Mounting Holes: 30.5*30.5mm/Φ3mm
• Input Voltage: 3-6S Lipo
• Weight:14.5g

BLHeliSuite download:

http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file

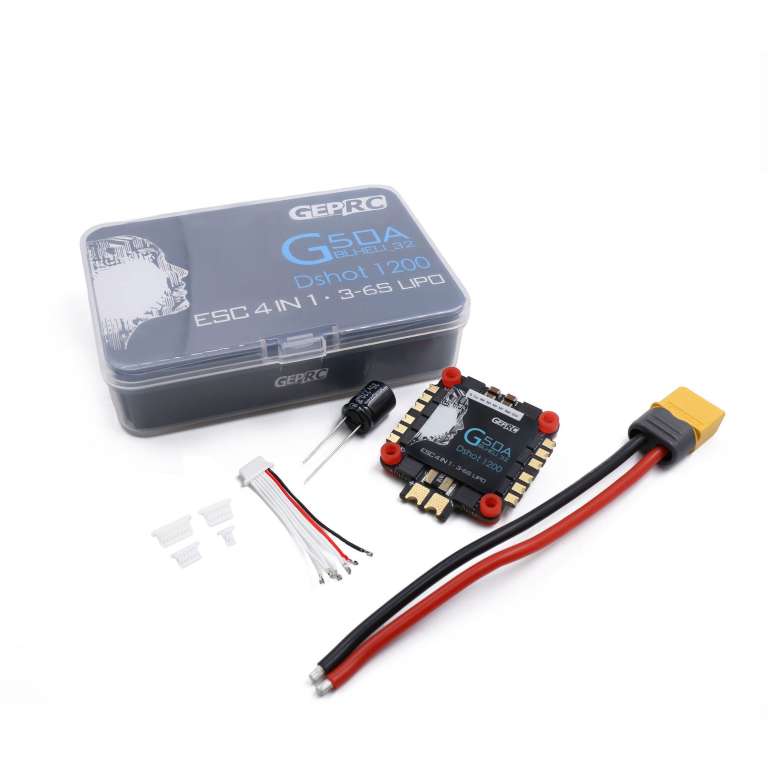

Package Included:

• 1x GEP-BL32-G50A-4IN1-ESC
• 1x 8pin cable
• 1x 35v 220uf Capacitor
• 1x XT60 Lead
• 4x Silicon grommets M4 to M3
