Summary:

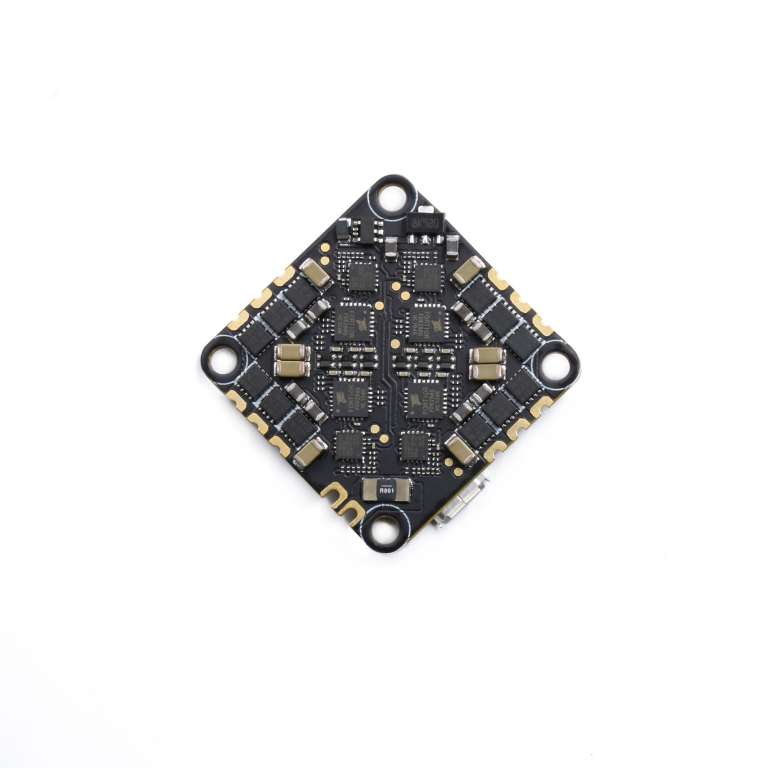

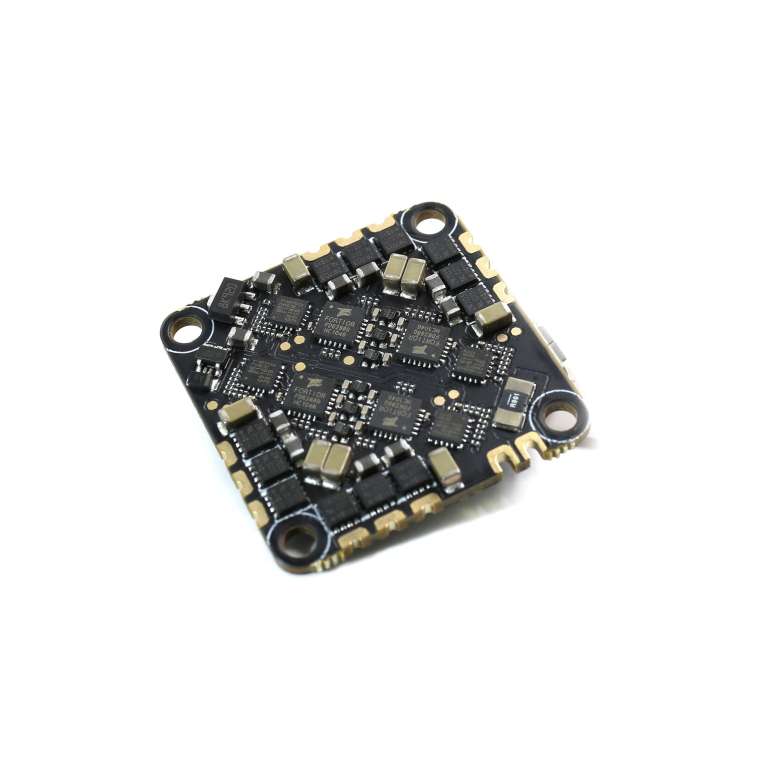

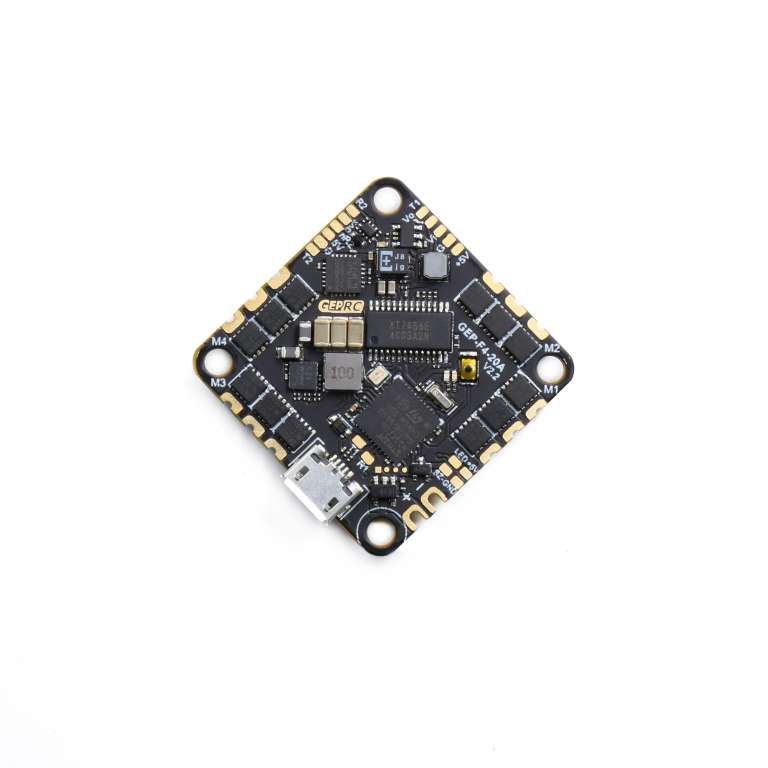

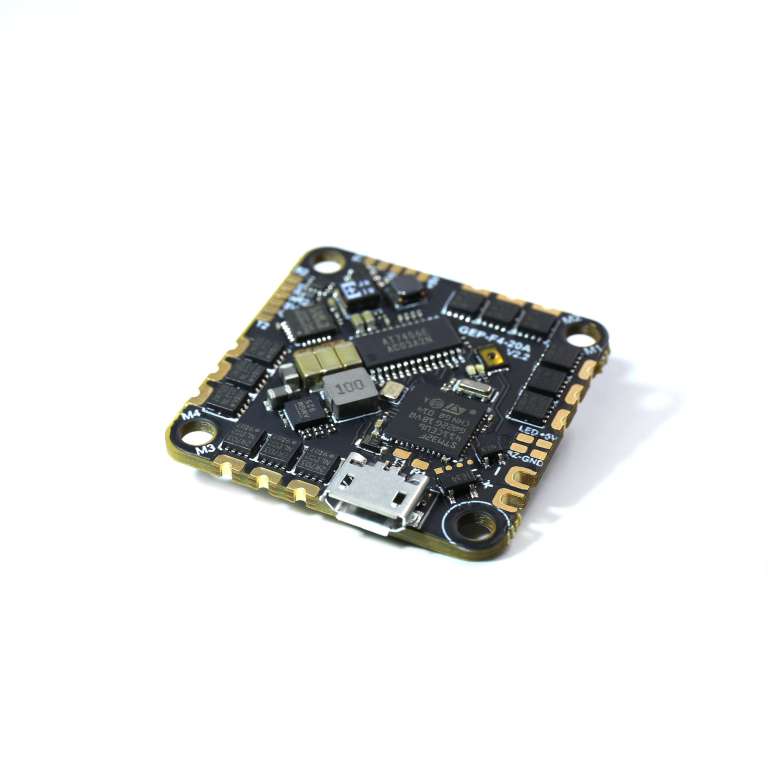

The new high performance AIO brushless FC, GEP-20A-F4 was added to the toothpick drone

Compared with the previous 12A version, the new GEP-20A-F4 can achieve a continuous current of 20A and a burst current of 30A.Maximum 4S battery support, recommended to use 12xx-15xx motor, with 3″-5″ size blade.This GEP-20A-F4 has strong flight performance, OSD input, extremely light weight, let your new toothpick to build a higher flight performance through the aircraft.

Changelog:

June 14th,2022: Gyro updated to BMI270/42688

Specifications:

• Model Name:GEP-20A-F4
• MCU: STM32F411
• IMU: BMI270/42688 gyro/accelerometer (SPI)
• FC Firmware target:GEPRCF411
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro:NO
• Current Monitoring : Support
• Betaflight OSD : Support
• External Buzzer : Support
• LED : Support
• USB Port: MicroUSB
• BEC Output: 5V@1A
• Integrated LC Filter
• ESC MCU: 8BB21F16G
• Continuous current: 20A
• Peak current: 30A
• Input voltage:2-4s lipo
• Supports Dshot600 ,Oneshot,Multishot
• Current meter: 210
• Target: G_H_30
• Size: 32x32mm board,26.5mm mounting holes (M2)
• Installing Hole: 26.5×26.5mm, M2

Receiver Support:

1. Frsky XM/XM+/R-XSR
2. Futaba Receiver
3. DSM/DSMX
4. FlySky Receive
5. TBS Crossfire Receiver
6. AC900
7. Most receivers that support SBUS

Feature:

• Strong performance, cont.current 20A, burst current 30A
• BLhelis_S 20A, maximum support 4S battery,Built-in current sensor
• Compatible with 12xx-15xx motor installation, with 3″-5″ size propeller
• STM32F411 flight control, Super-high Running Frequency
• BMI270/42688 gyroscope
• External Buzzer : Support
• LED Control : Support
• Designed with silica gel shock absorbing column, it can reduce the high frequency vibration caused by frame and motor, allowing the flight control to operate in a noiseless environment
• The overall weight is about 7.3g

Include：

– 1 x GEP-20A-F4
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone

Manual:

GEP-F411-20A AIO USER MANUAL.pdf
