Summary

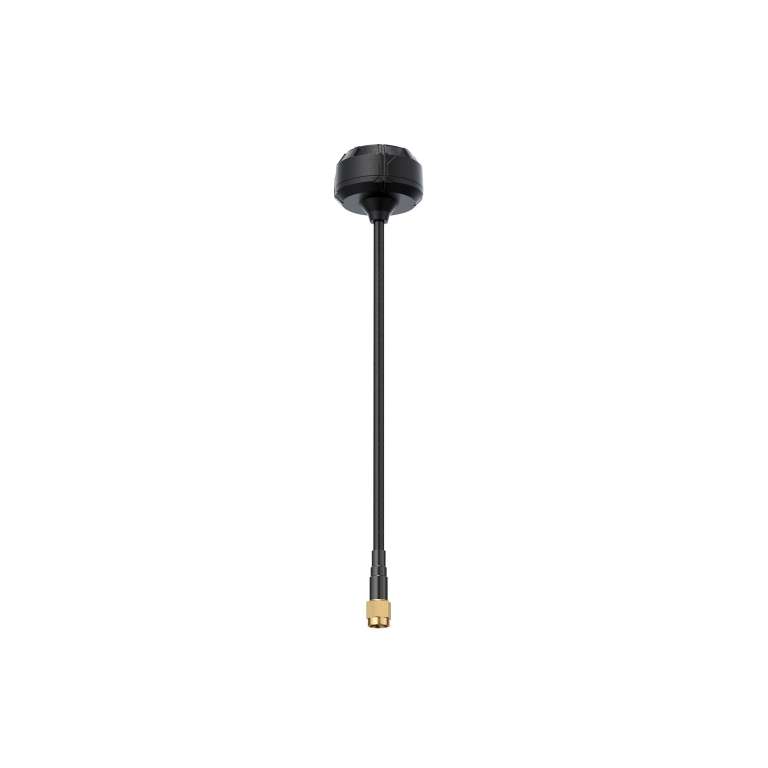

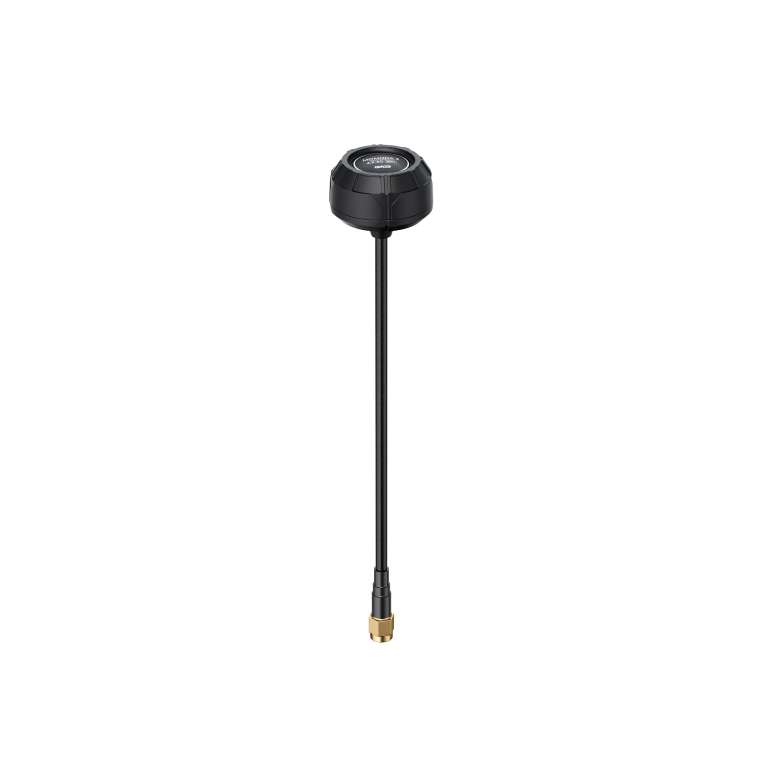

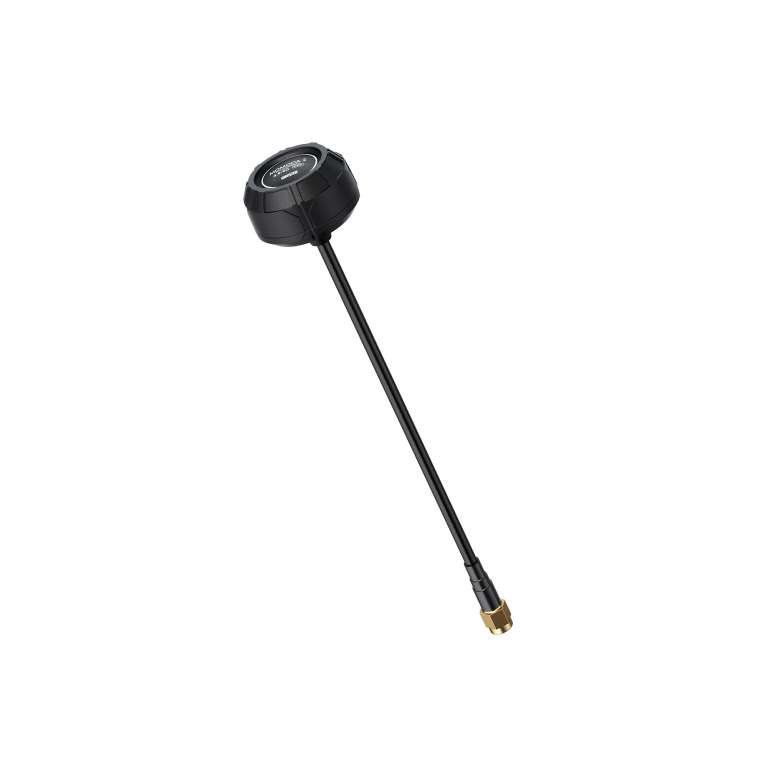

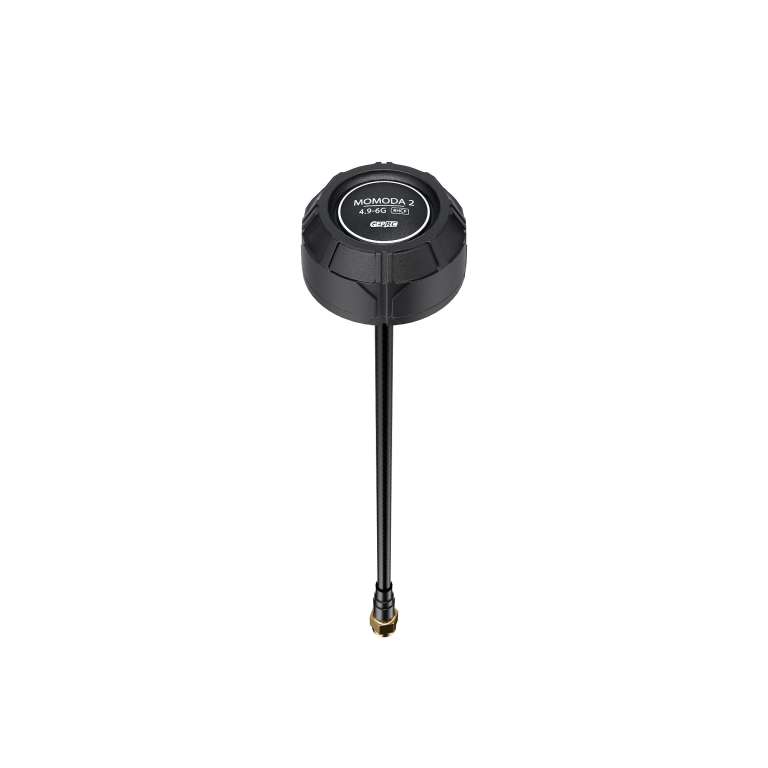

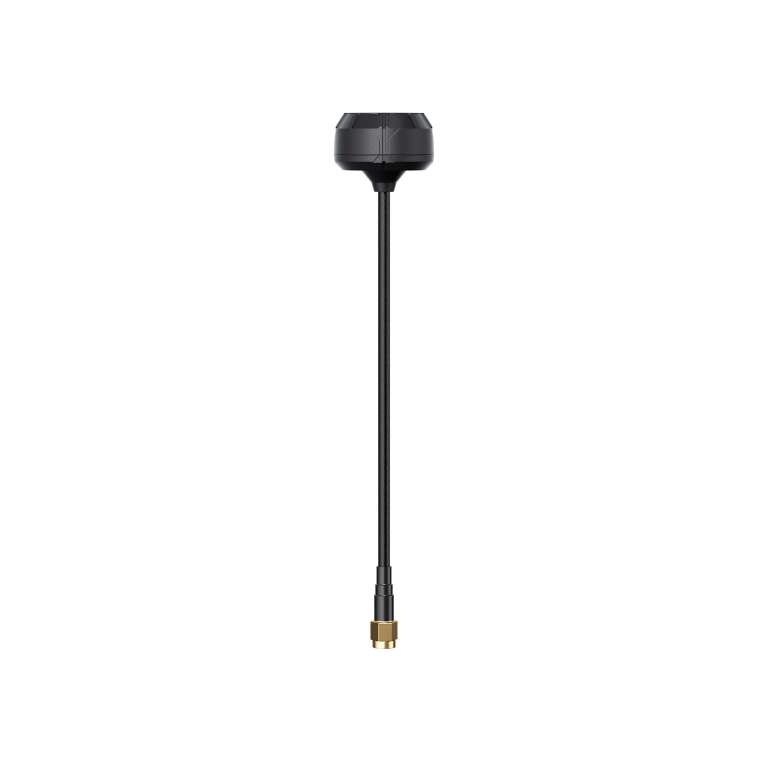

The GEPRC Momoda2 4.9G-6G antenna offers omnidirectional signal coverage. With a high-gain design, it achieves up to 3.55dBi gain at the 5150MHz frequency, enhancing signal reception, transmission range, and stability. The ABS shell provides excellent durability, making it crash-resistant, corrosion-resistant, and highly sealed.

Features

1. Wider operating frequency range with high parameter consistency across frequency points, compatible with HD and analog signals.
2. Uses thick RG141 cable and an ABS shell for reliability and durability.
3. High-quality SMA connector minimizes signal transmission loss.
4. Each antenna undergoes strict spectrum analyzer testing before shipping to ensure VSWR stays within standard limits.

Specification

• Model: GEPRC Momoda2 4.9G-6G antenna
• Center Frequency: 5450MHz
• Bandwidth: 4900MHz～6000MHz
• Polarization: RHCP
• Gain: 3.55dbi
• Axial Ratio: ≤3
• VSWR: ≤1.28
• Radiation Efficiency: 88%
• Cross Polarization Suppression: -25dB

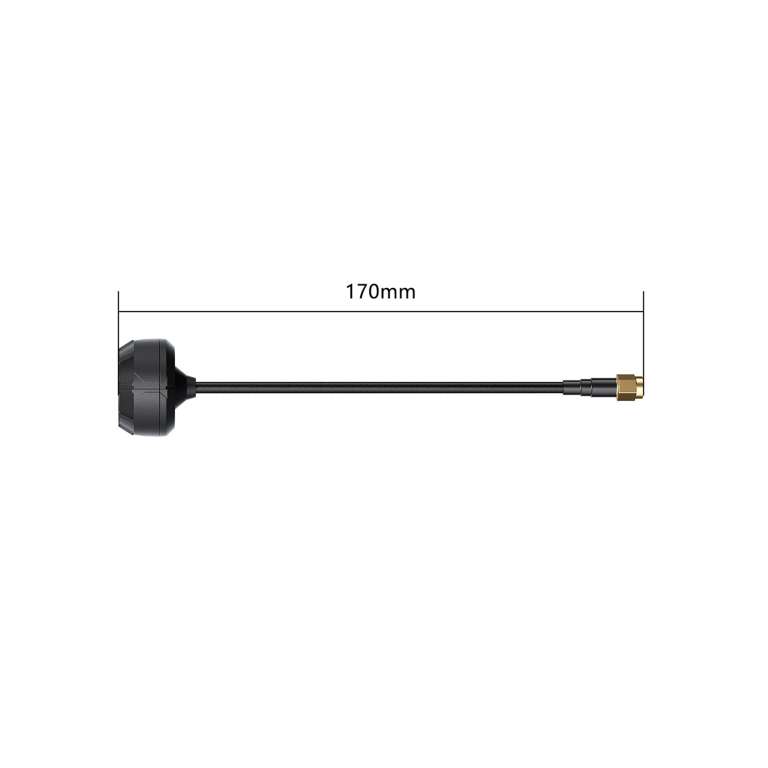

• Length: 170mm
• Cable：RG141 Line
• Antenna Weight: 14.7g （±0.3g）
• Enclosure Material: ABS
• Connector Type: SMA

Includes

1 x GEPRC Momoda2 4.9G-6G antenna
