Summary

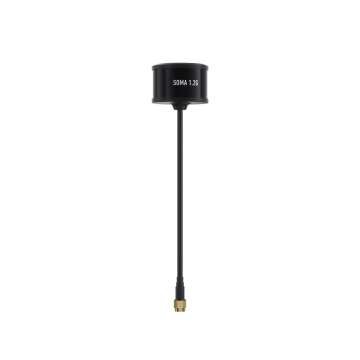

The GEPRC SOMA 1.2G/1.3G antenna utilizes flexible PCB material, delivering up to 2dbi gain. It ensures wide signal coverage, maintaining robust communication even amidst significant angular variations. Its outstanding cross-polarization suppression capability effectively minimizes interference, making it ideal for use even in environments with strong electromagnetic fields.

Features

1. Two-bandwidth design:1.2G band spans 1140-1260MHz and 1.3G band spans 1260-1360MHz.
2.  Narrower bandwidth results in higher gain, reaching up to 2dbi.
3. Utilizes robust RG141 coaxial cable with a durable plastic casing.
4.  Features high-quality SMA connectors to minimize signal loss.
5.  Each antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.

Specifications

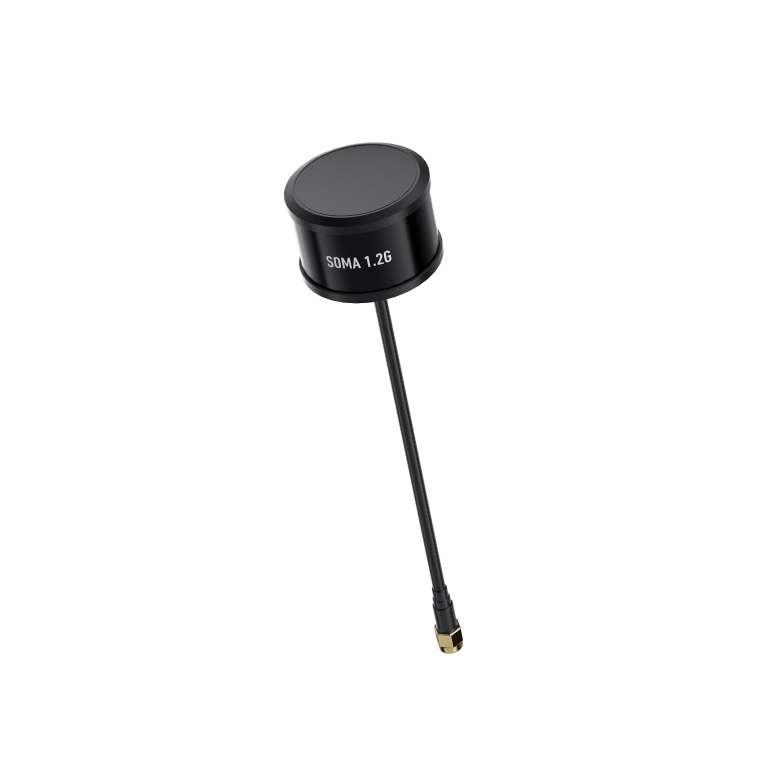

Model: GEPRC SOMA 1.2G antenna

• 1.2G Center Frequency: 1200MHz
• 1.2G Bandwidth: 1140MHz～1260MHz
• Polarization: RHCP
• Gain: 2dbi
• Axial Ratio: ≤3
• VSWR: ≤1.5
• Radiation Efficiency: 75%
• Cross Polarization Suppression: -25dB
• Length: 170mm
• Antenna Design: FPC+PCB
• Antenna Weight: 17.6g
• Enclosure Material: ABS
• Connector Type: SMA

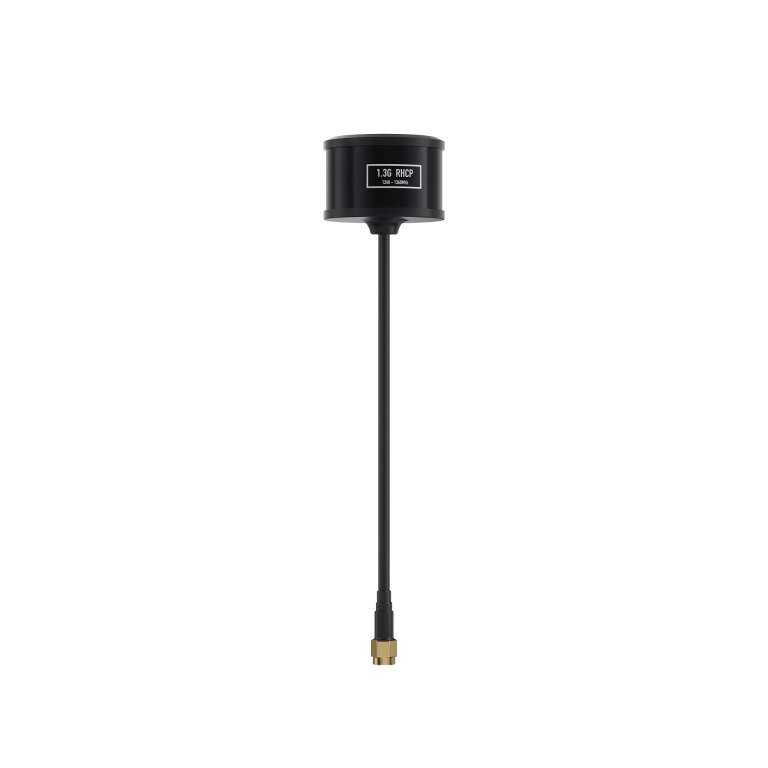

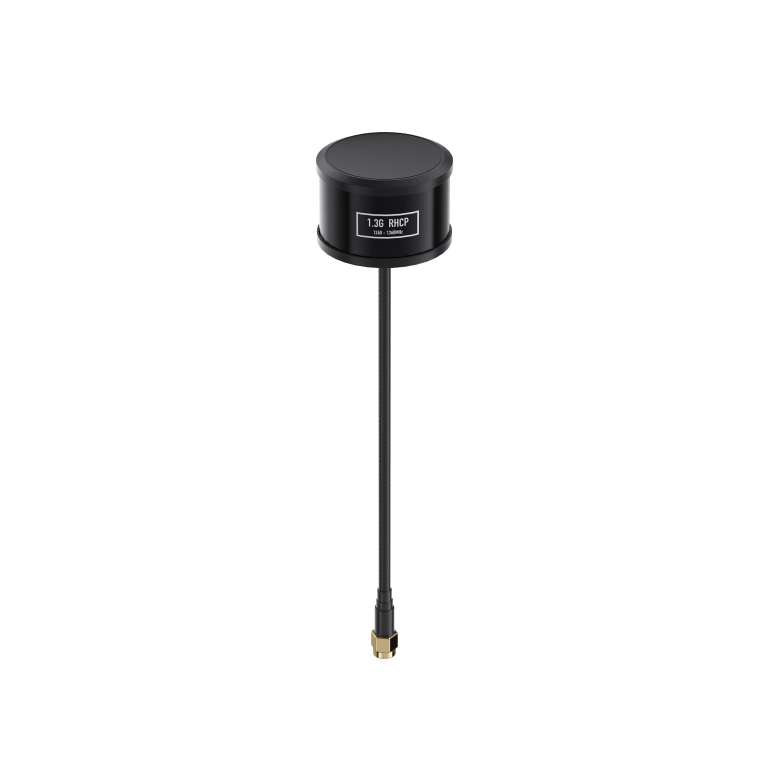

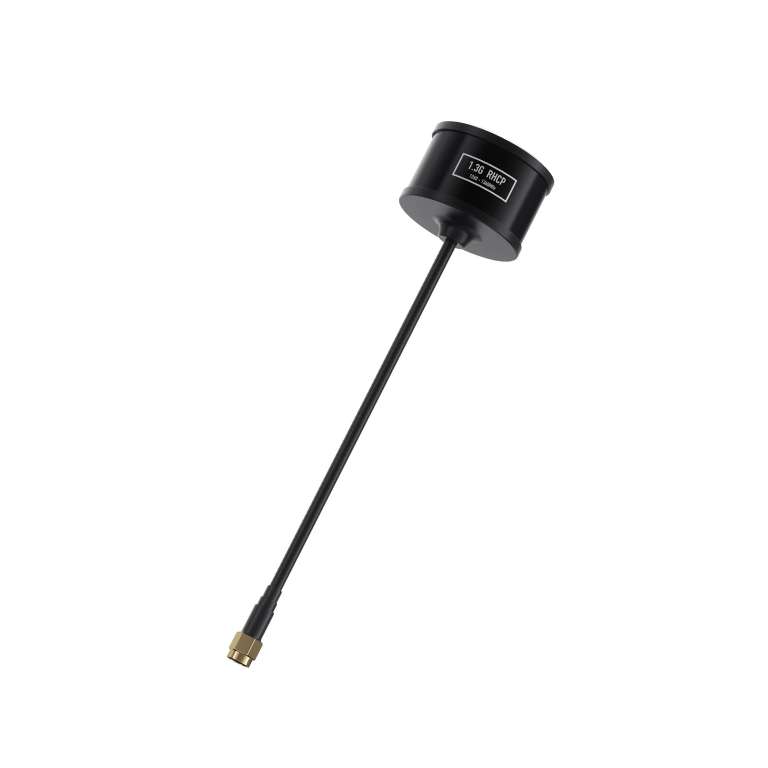

Model: GEPRC SOMA 1.3G antenna

• 1.3G Center Frequency: 1310MHz
• 1.3G Bandwidth: 1260MHz～1360MHz
• Polarization: RHCP
• Gain: 2dbi
• Axial Ratio: ≤3
• VSWR: ≤1.5
• Radiation Efficiency: 75%
• Cross Polarization Suppression: -25dB
• Length: 170mm
• Antenna Design: FPC+PCB
• Antenna Weight: 17.6g
• Enclosure Material: ABS
• Connector Type: SMA

Includes

1 x GEPRC SOMA 1.2G/1.3G antenna
