GEPRC MATEN 5.8G 10W VTX PRO

9493.02 грн.

Код товара: gr146

Доставка в течение 2–3 недель.

Summary

The MATEN 5.8G 10W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With four adjustable power options, it delivers up to 10W of power. The frequency range is 4884-6184MHz, and it supports direct frequency input by the configurator, ensuring stable signal transmission and excellent penetration.

Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 10W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance. Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD.

It operates within a voltage range of 12-36V and includes temperature protection to prevent overheating and damage. With 104 transmission channels and two mounting options, 20x20mm (M2) and 30.5×30.5mm (M3), it’s the perfect VTX for any build.

Feature

Four adjustable power levels, up to 10W, ideal for long-range flights.
The high-strength CNC aluminum alloy shell aids in heat dissipation.
The built-in micro turbofan actively dissipates heat.
Wide voltage input range, supporting 12V-36V.

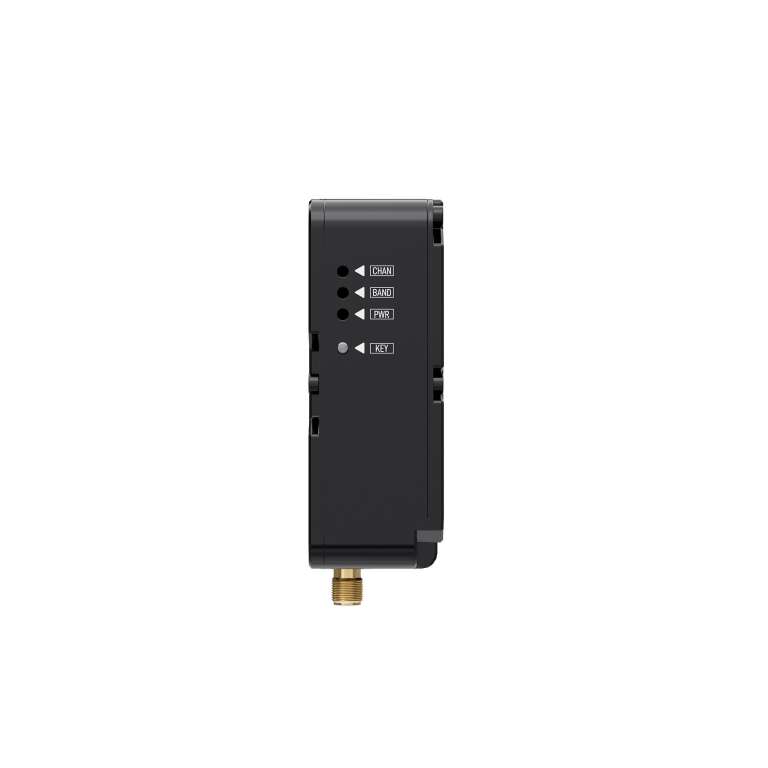

One function adjustment button and three indicator lights for easy operation.
Supports the IRC Tramp VTX control protocol for OSD parameter adjustment.
Temperature protection function prevents overheating.
Supports 104 transmission channels.
Supports enter frequency directly in the configurator.
Compatible with 20x20mm (M2) and 30.5×30.5mm(M3) mounting hole sizes.

Specifications

Model: GEPRC MATEN 5.8G 10W VTX PRO
Dimension: 78.5×43.6×25.3mm
Mounting Hole Size:20x20mm(M2),30.5×30.5mm(M3)
Output Power: 25mW/2.5W/5W/10W/Pit mode
Frequency：4884-6184MHz
Channels: 104CH
Enter Frequency Directly: Support
Protocol: IRC Tramp
Input Voltage: DC12-36V（3-8S Battery）
Peak Operating Current：3.5A
Output Voltage: 5V@600mA
Antenna Connector: SMA
Cable Connector:PH2.0 2pin,GH1.25 5pin
Weight: 110g（VTX only）

Notes

Installing antenna before use.
Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

Includes

1 x MATEN 5.8G 10W VTX PRO

1 x Power cable(PH1.25 2pin 150mm)

1 x FC cable(GH1.25 5pin 150mm)

6 x M2*5 screw

6 x M3*5 screw

1 x Manual
