Summary

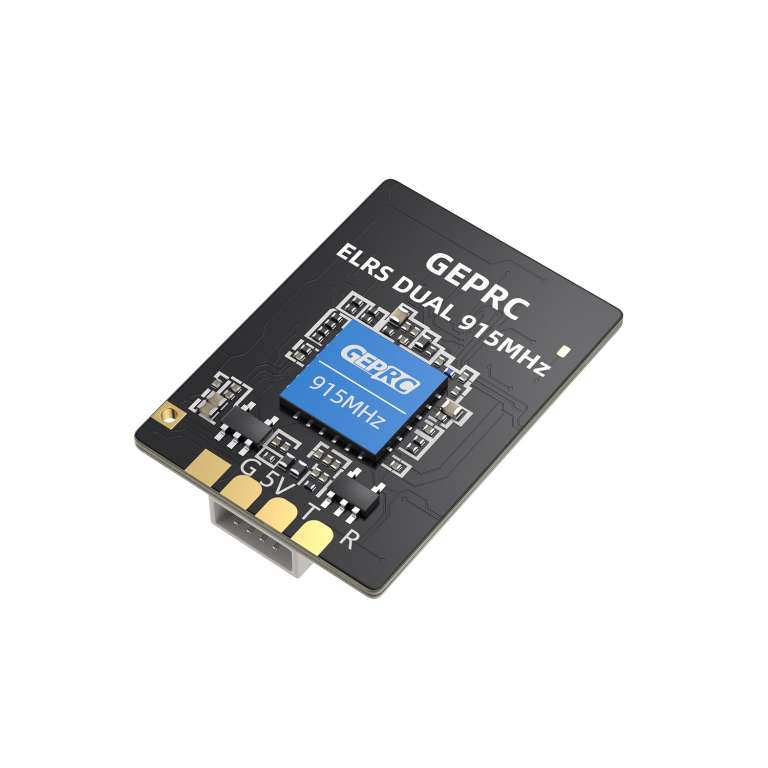

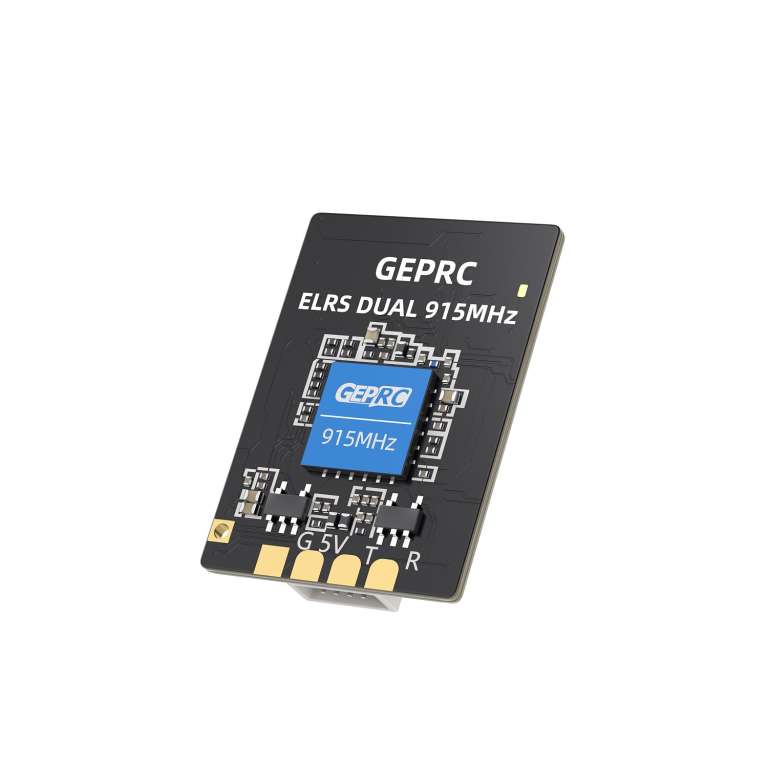

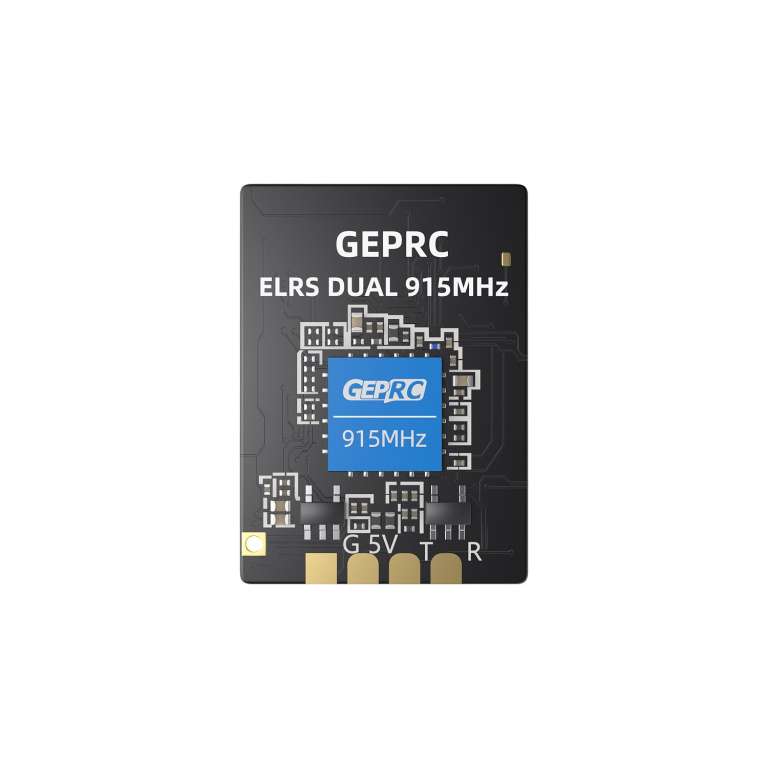

GEPRC ELRS DUAL 915M Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 200Hz refresh rate, and low price.

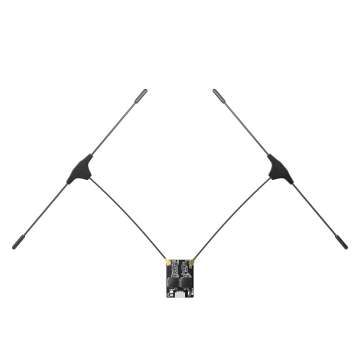

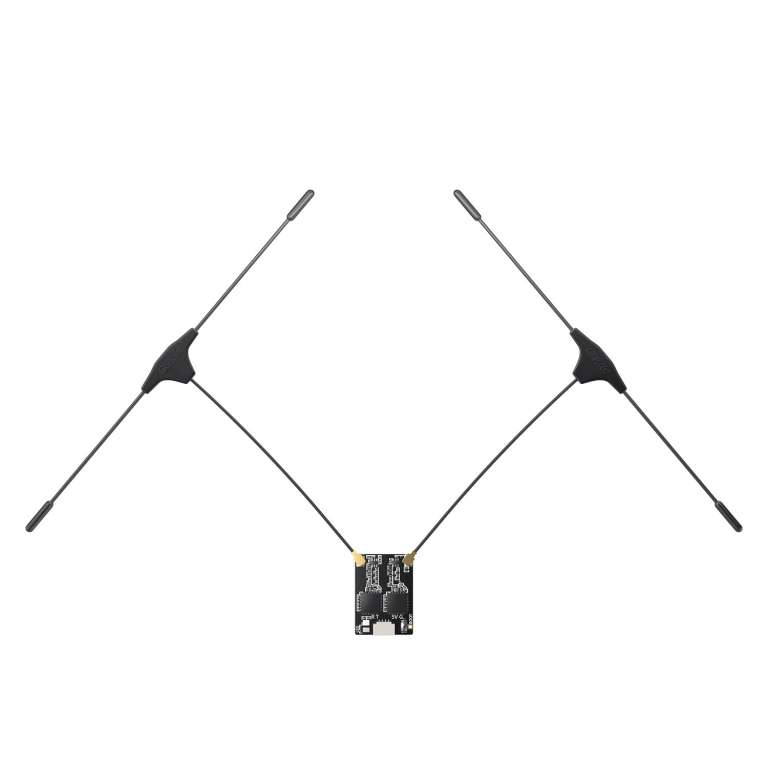

The ELRS DUAL 915M Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes and the telemetry power is up to 50mW.Built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.

Features

1. Compact size of 18x25x5.5mm
2. Weighing only 1.7g
3.  WIFI firmware upgrade
4.  ELRS open-source project, long-range remote control
5.  Maximum refresh rate of 200Hz
6.  Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations
7.  Equipped with an sh1.0 connector for easy installation

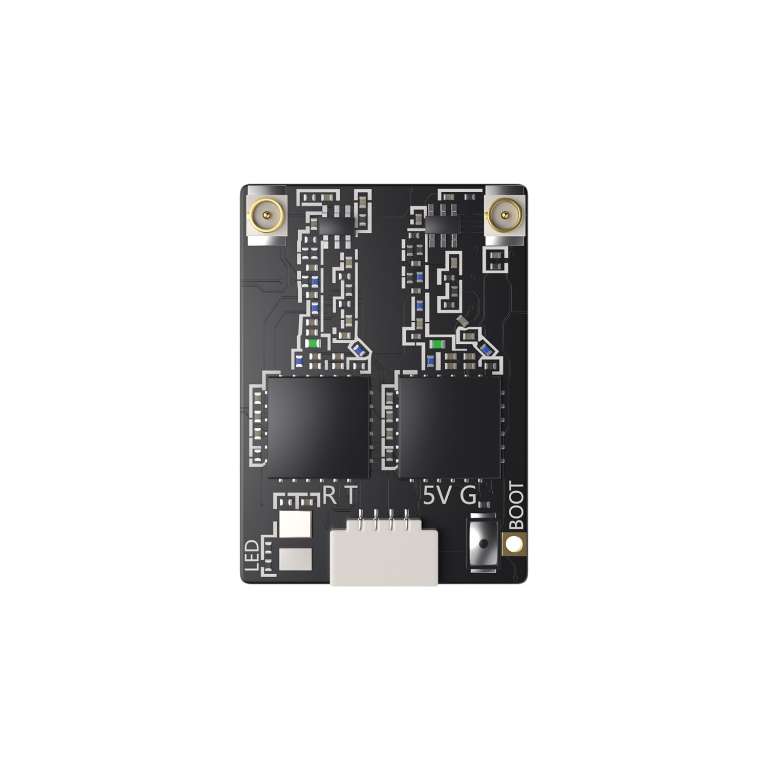

8.  Two independent RF receiving links, true diversity receiver

Specifications

• Model: GEPRC ELRS DUAL 915M Diversity Receiver
• Dimension: 18x25x5.5mm
• Weight: 1.7g (RX only)
• Chips: ESP32-PICO-D4, SX1276
• Crystal Oscillator: TCXO
• Frequency Band: 915MHz FCC/868MHz EU
• Refresh Rate: 25Hz-200Hz
• Operating Voltage: 5V
• Antenna Connector: ipex1
• TLM Power: 50mW
• Firmware: GEPRC True Diversity 900MHz RX

Includes

1 x ELRS Receiver
2 x Antenna
1 x Heat shrink tube
1 x 4pin silicone cable
1 x User manual
