Note: The MATEN 5.8G 2.5W VTX PRO has now been upgraded, adding the 4.9G X Group and Enter Frequency Directly.
The latest version will be shipped by default from now on.

Summary

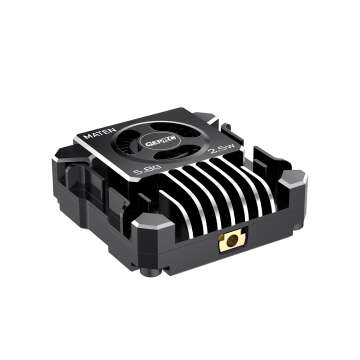

The MATEN 5.8G 2.5W VTX PRO, a high-power image transmission newly developed by the GEPRC team is now officially released. It possesses powerful performance and comes up with 5 different adjustable power options and a maximum power of 2500mW. The transmission signal is stable and the penetration ability is excellent.

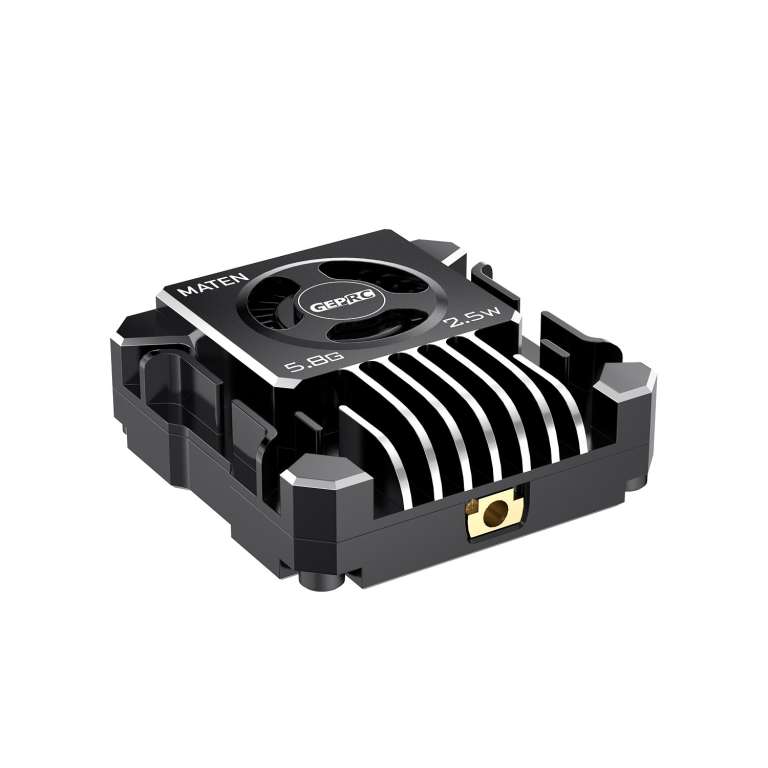

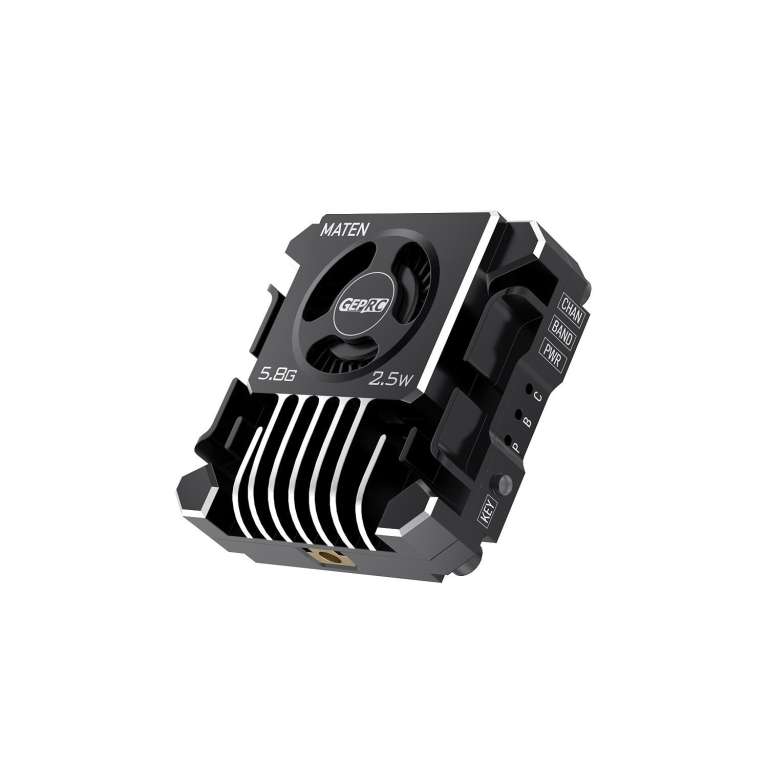

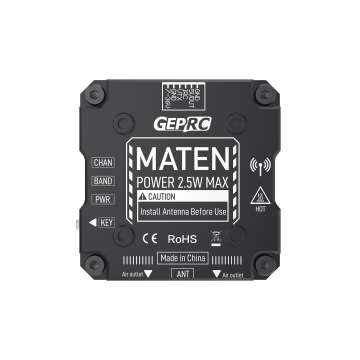

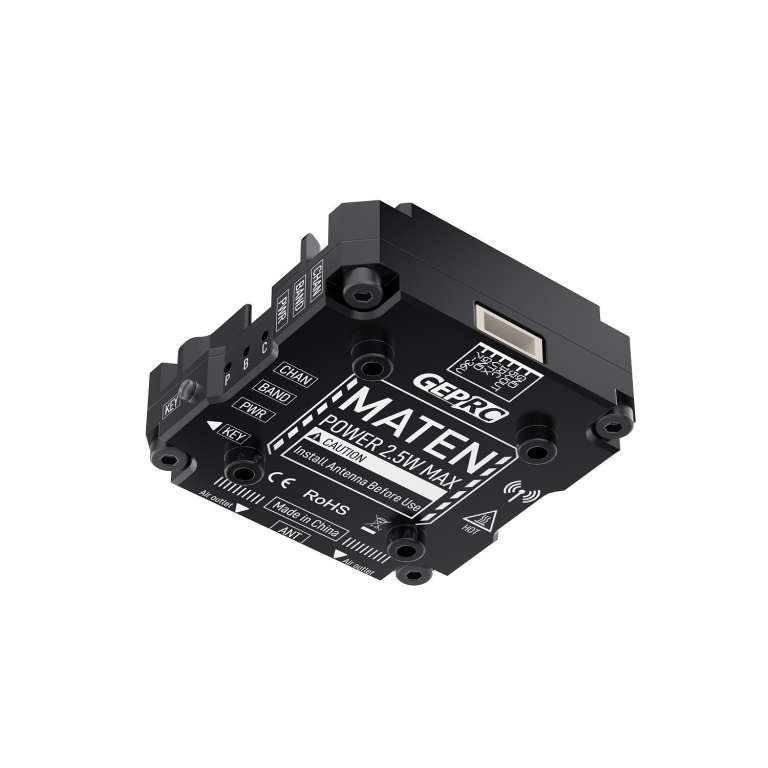

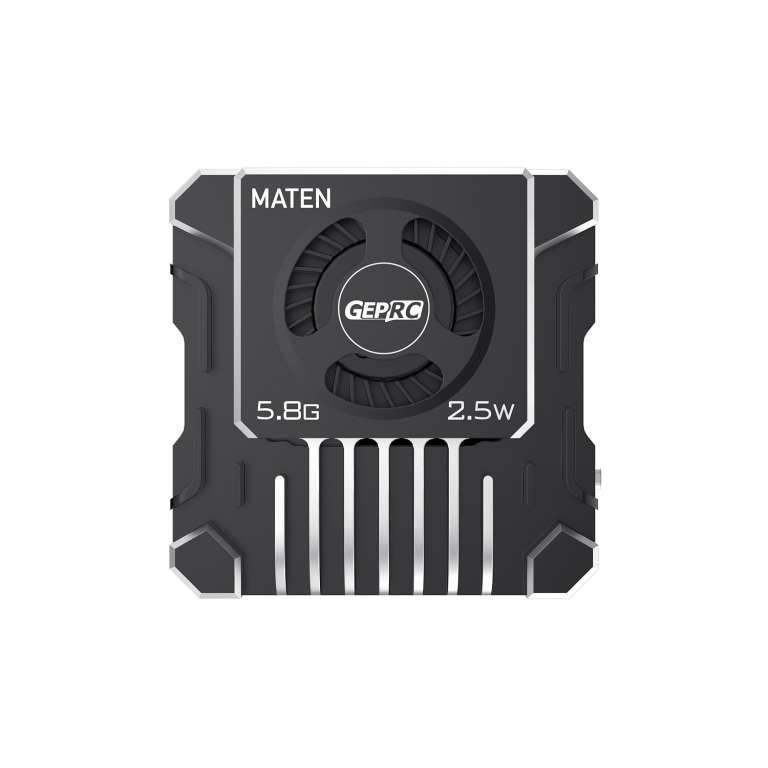

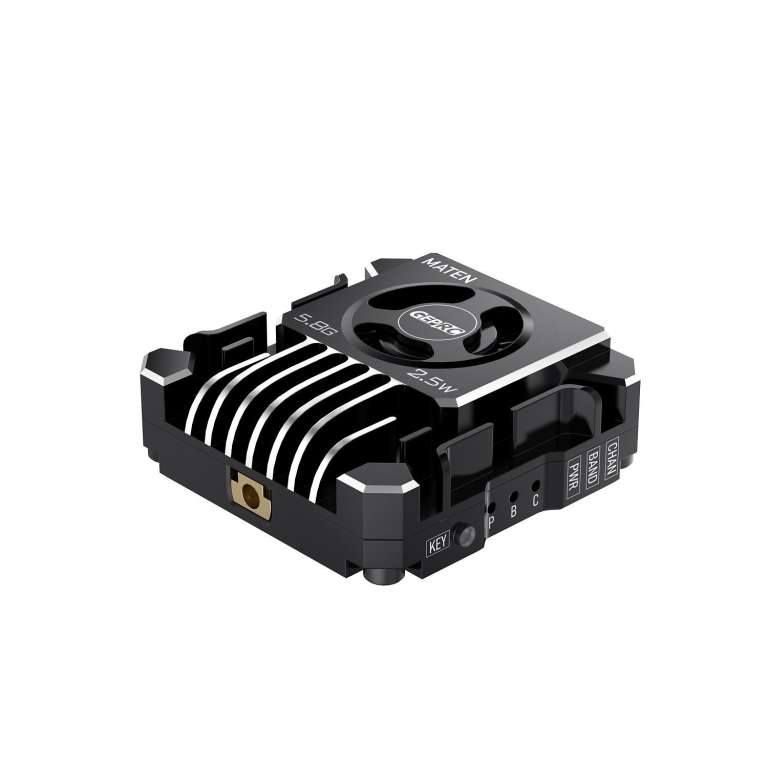

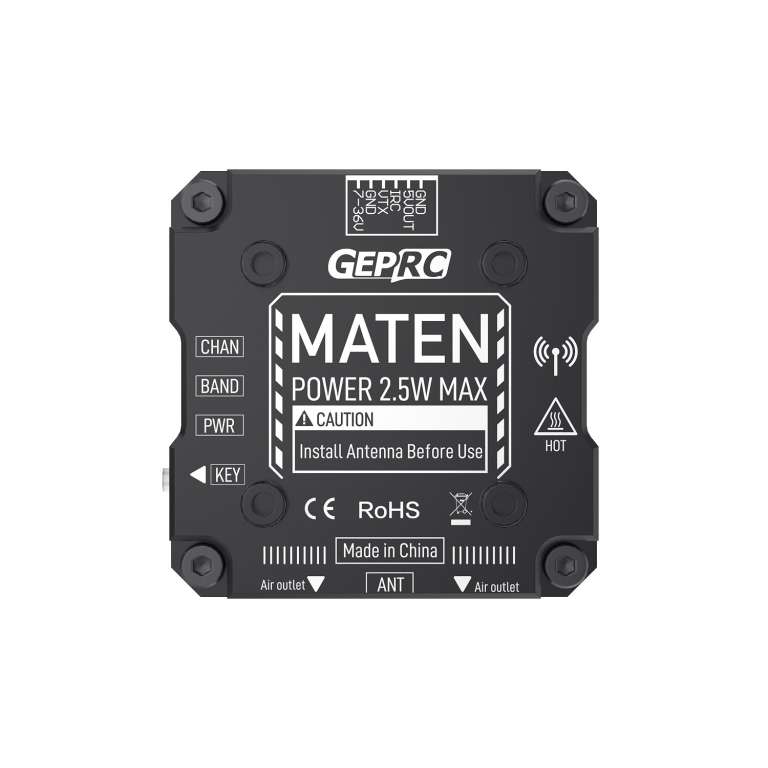

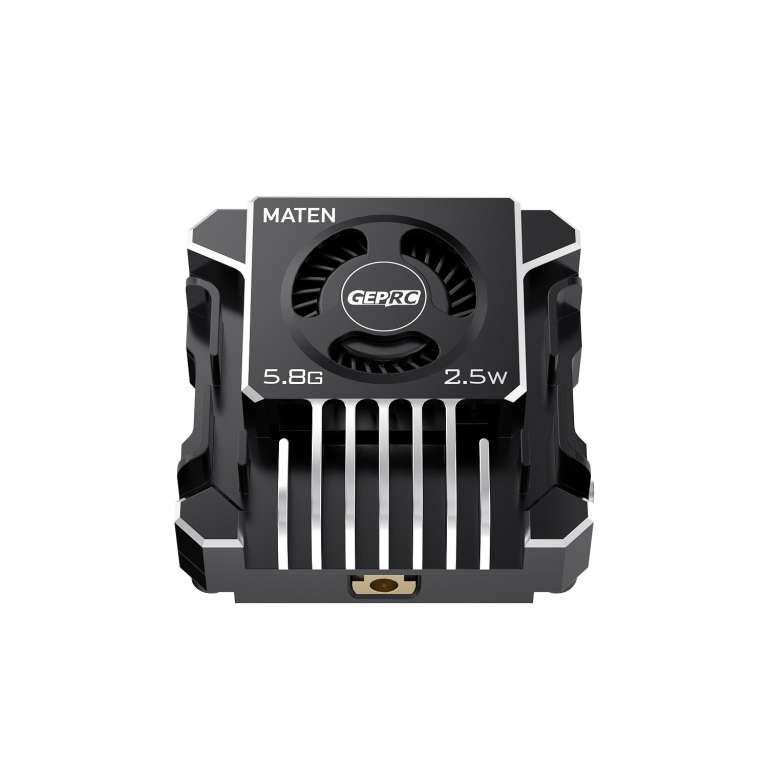

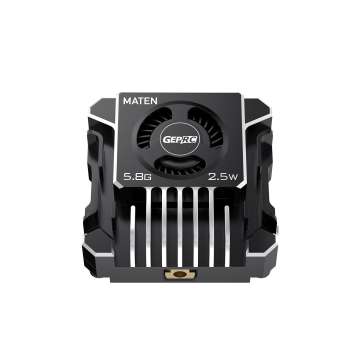

MATEN 5.8G 2.5W VTX PRO adopts a high-strength aluminum alloy CNC shell to assist heat dissipation. The unique appearance design and fan cooling function provide better impact resistance and better heat dissipation. It supports the IRC Tramp protocol and can use the OSD to adjust parameters immediately. The built-in microphone can transmit the sound of the FPV drone in real-time.

It has a voltage input of 7-36V and a temperature control protection function to prevent overheating and burning. It supports 80 transmission channels and it supports direct frequency input by the configurator. Two different mounting hole sizes: 20x20mm(M2) and 30.5×30.5mm(M2).

Changelog

January 12, 2024: Channel changed from 48CH to 72CH.

March 8, 2024: The red Version has stopped production and updated to silver version for better performance in heat dissipation.

November 27, 2025: Adding the 4.9G X Group and Enter Frequency Directly.

Feature

1.  Five levels of adjustable power, up to 2500mW, suitable for long range flight.
2. The well-chosen high-strength aluminum alloy CNC shell assist heat dissipation.
3. The built-in micro turbofan dissipates heat actively.
4. Wide voltage input supports 7V-36V voltage input.

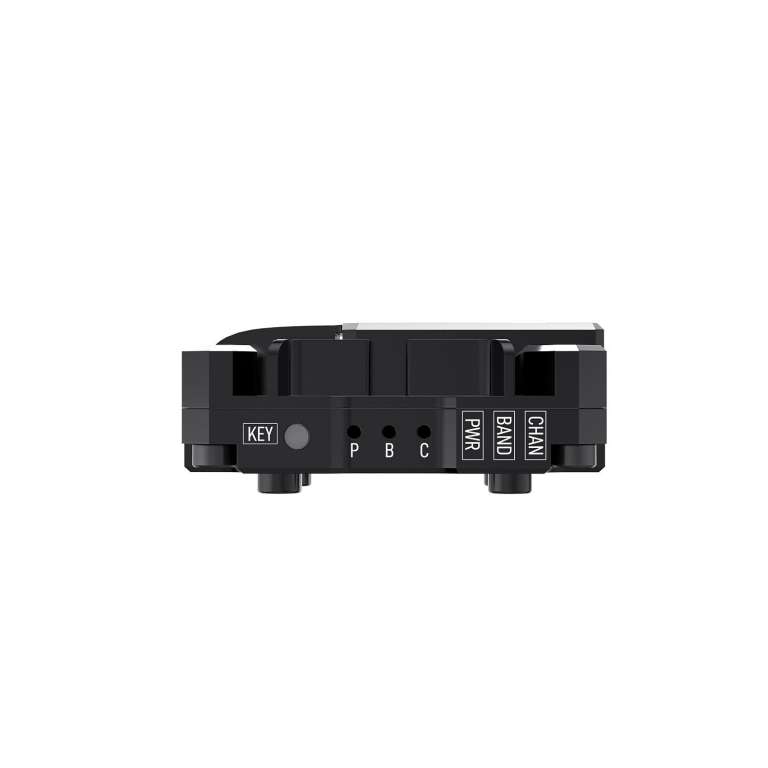

5. One function adjustment buttons, three indicator lights, easy to operate.
6. VTX control protocol IRC Tramp supports OSD parameter adjustment.
7. Temperature control protection function prevent overheat.
8. VTX built in microphone, real-time transmission of sounds.
9. Supports 80 transmission channels.
10. Supports enter frequency directly in the configurator.
11. Support 20x20mm(M2) and 30.5×30.5mm(M2) two different mounting hole sizes.

Specifications

• Model: GEPRC MATEN 5.8G 2.5W VTX PRO
• Size: 36.3×36.3×15.1mm
• Mounting hole: 20x20mm(M2),30.5×30.5mm(M2)
• Output power: 25mW/200mW/600mW/1600mW/2500mW/Pit mode
• Frequency: 4884-6184MHz
• Channel: 80CH
• Input voltage: DC7-36V（2-8S Battery）
• Output voltage: 5V@600mA
• Protocol: IRC Tramp
• Antenna interface: MMCX
• Cable interface: SH1.0 6pin
• Video format: PAL/NTSC
• Microphone: Built in microphone
• Weight: 20g

Notes

1. Installing antenna before use.
2. Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
3. The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

Includes

1 x MATEN 5.8G 2.5W VTX PRO

1 x MMCX Copper tube antenna

1 x MMCX to SMA connector(75mm)

1 x Connecting cable(sh1.0 6pin 150mm)

6 x M2*5 screw

4 x M2*12 screw
