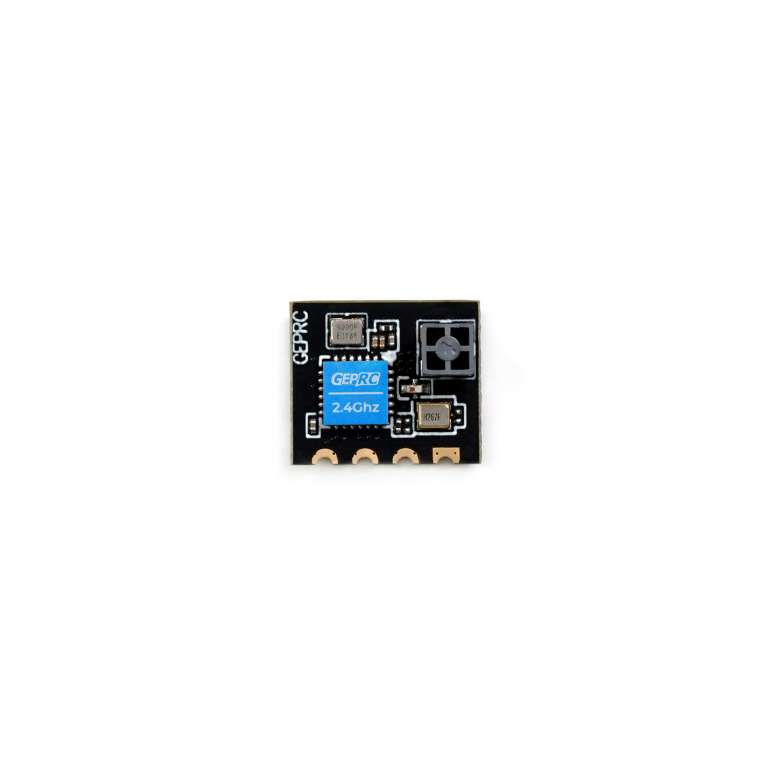

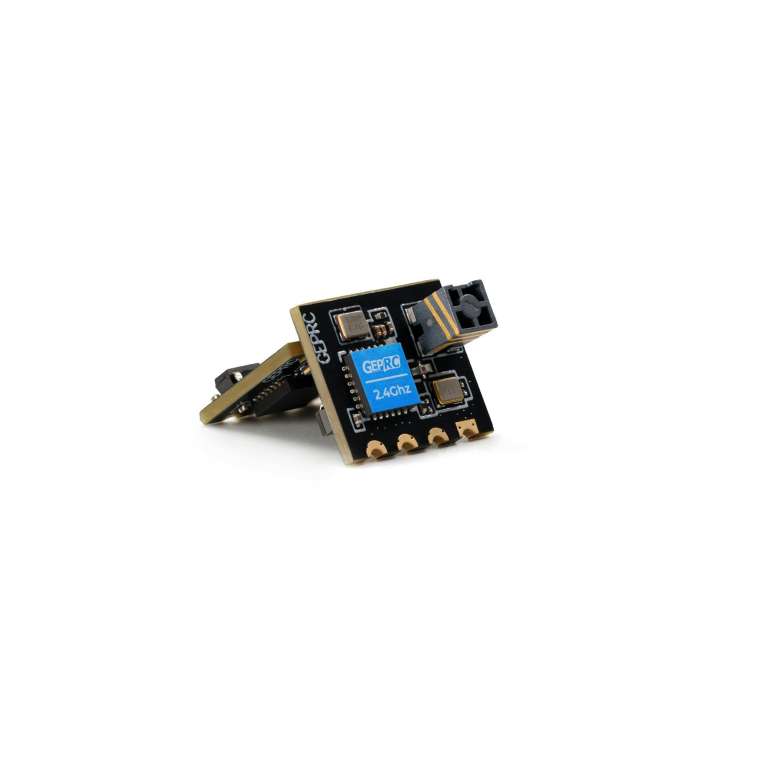

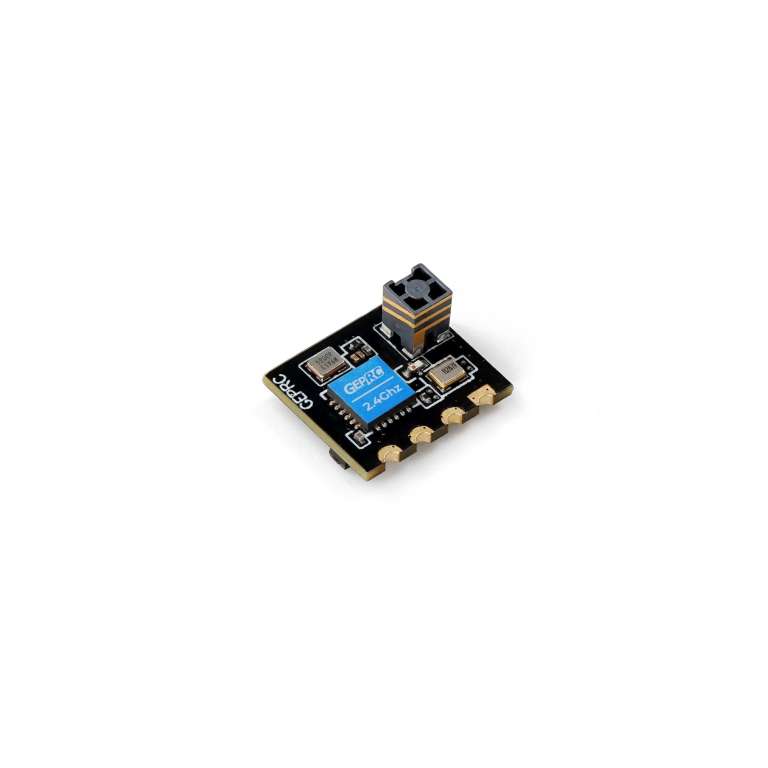

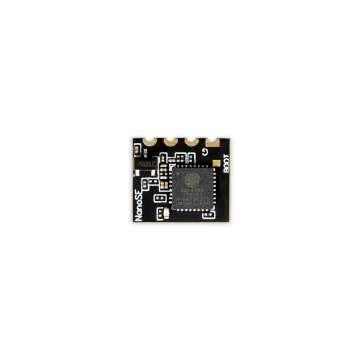

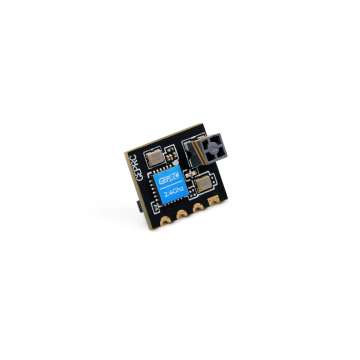

GEPRC ELRS NanoSE receiver is a new generation remote control system developed based on the ExpressLRS open source project. ExpressLRS sets new standartds for long-range connection, low latency and Maximum refresh rate of 500Hz.

GEPRC ELRS NanoSE receiver operates at a frequency of 2.4 GHz. Compared with Nano receiver, NanoSE receiver uses an Integrated SMD ceramic antenna, which further reduces its size while ensuring signal reception, making it more suitable for use on drones with limited space and light weight.

Note：ELRS products now shipping have been pre-flashed with 2.x firmware. 2.x is not compatible with version 1.x, so you need to upgrade the transmitter to 2.x for proper frequency matching.

Specifications

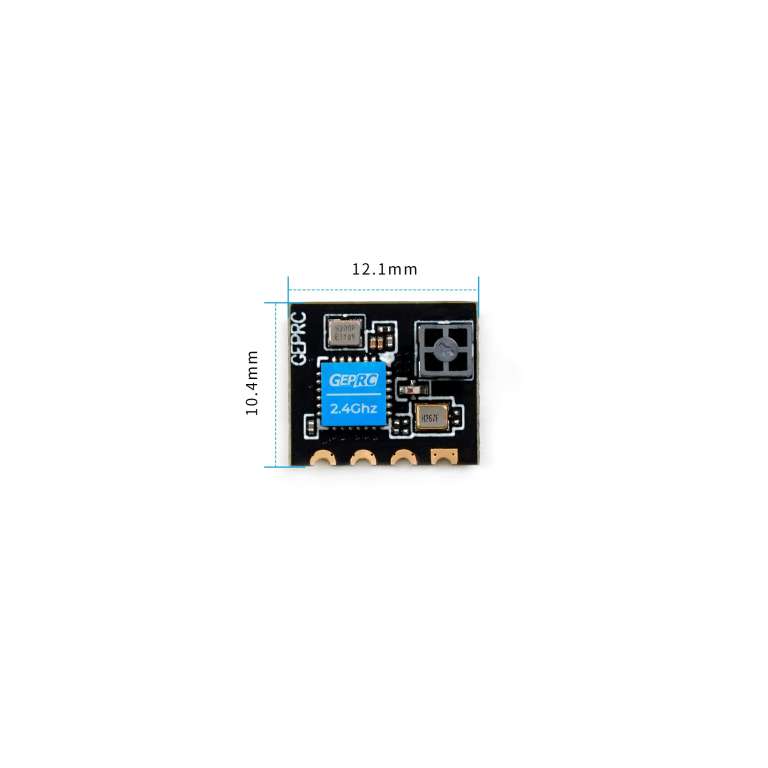

Size:12.1mm*10.4mm

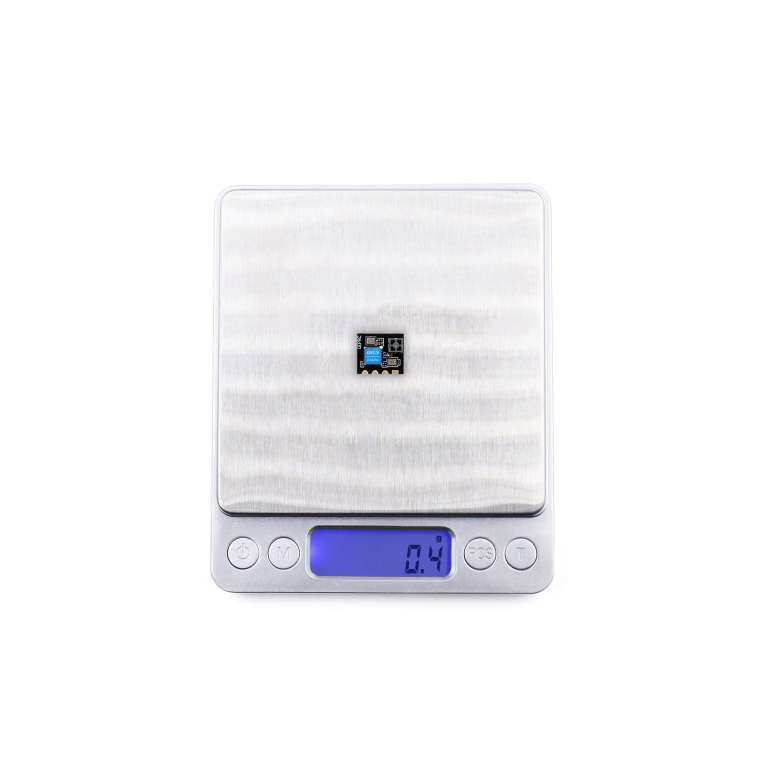

Weight:0.4g

Chips:ESP8285,SX1281

Frequency band:2.4GHz ISM

Refresh rate:25Hz-500Hz

Input voltage:5V

Antenna:Integrated SMD Ceramic Antenna

Feature

• Small size
• 0.4g weight
• WIFI Upgrade firmware
• ELRS open source project, remote control
• Integrated SMD Ceramic Antenna
• Maximum refresh rate of 500Hz
• The operation is simple

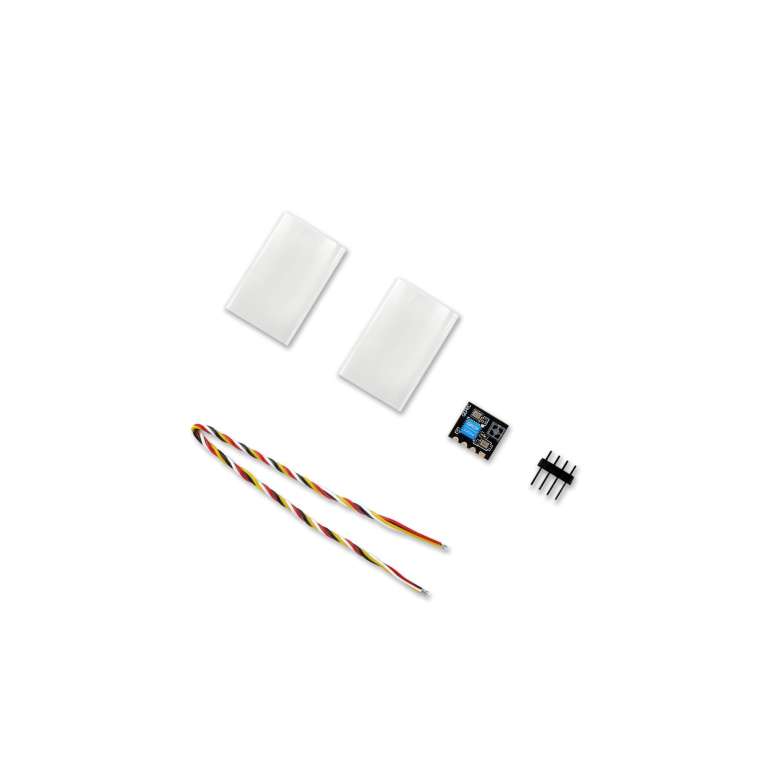

1 x NanoSE receiver

2 x Heat shrink tube

4 x Silicone cable（black, red, yellow, green）

1 x Pin (4pin)

1 x Instruction manual

1 x Sticker
