Summary

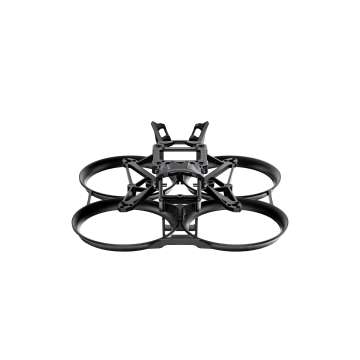

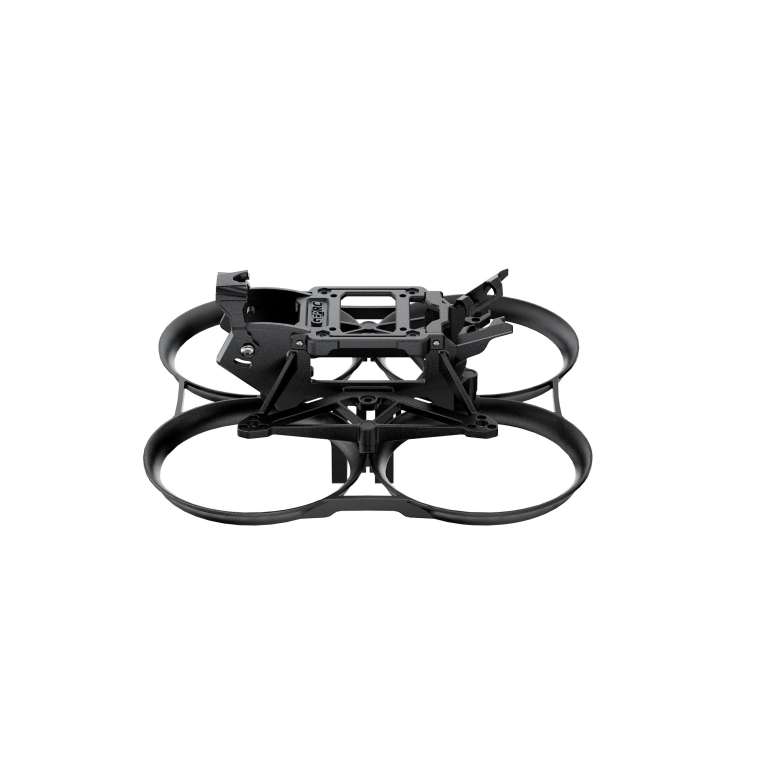

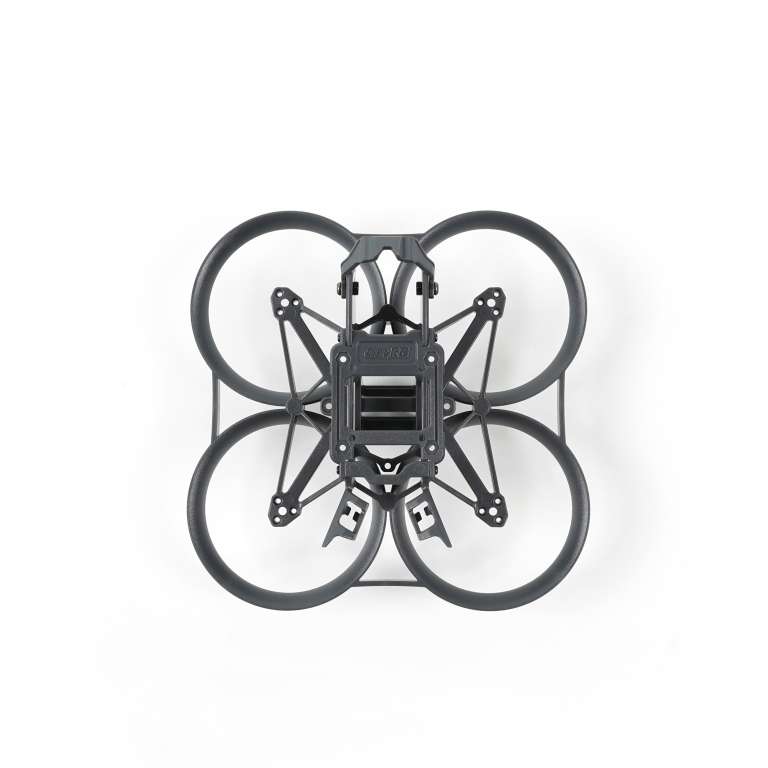

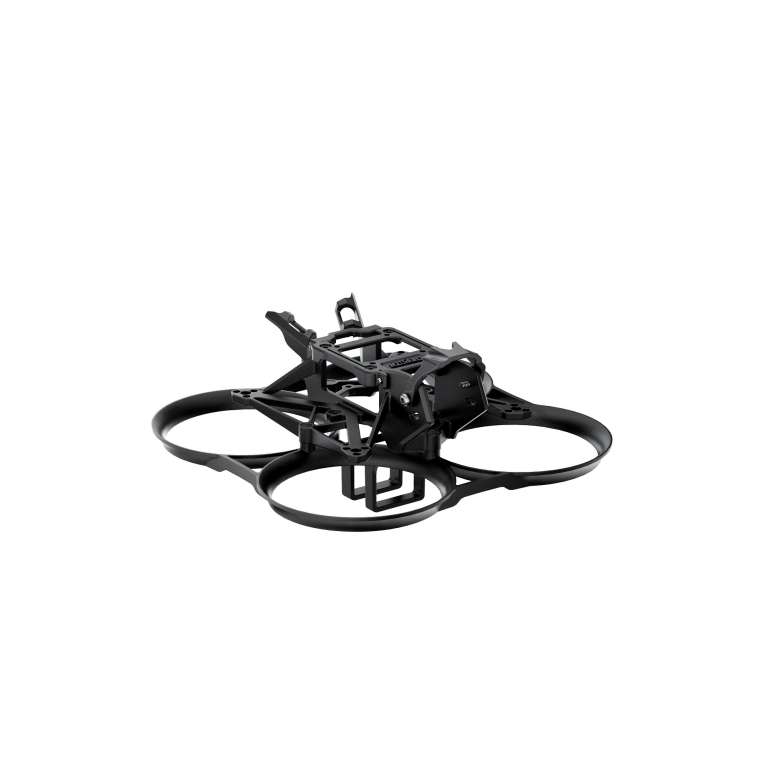

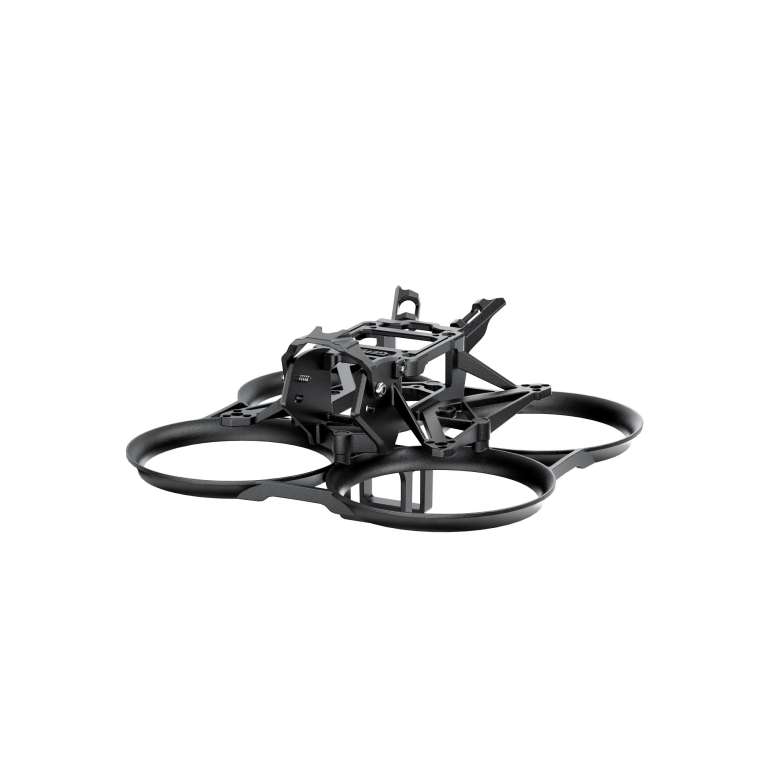

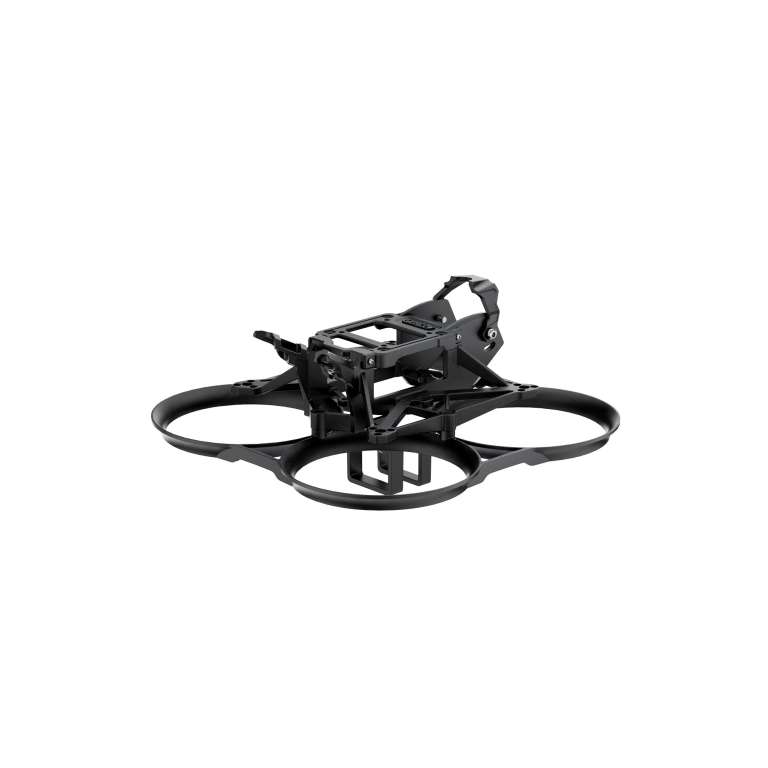

GEP-DS20 is a 2-inch lightweight frame compatible with O3 Air Unit, Link and analog video transmission. It is injection molded using high-quality materials with both toughness and strength. The GEP-DS20 is available in five colors, white ,pink, gray, black and blue.The GEP-DS20 arm axis is combined with a multi-directional triangular support frame to ensure good frame rigidity. Frame-type battery compartment makes it easier to disassemble and install batteries. The frame wheelbase is 90mm and is suitable for 1003/1102 motors with a three-hole base.

Feature

1.  New design concept, lightweight fully injection molded body and multi-directional triangular support frame to ensure strength.
2.  Modular structure, easy to assemble.

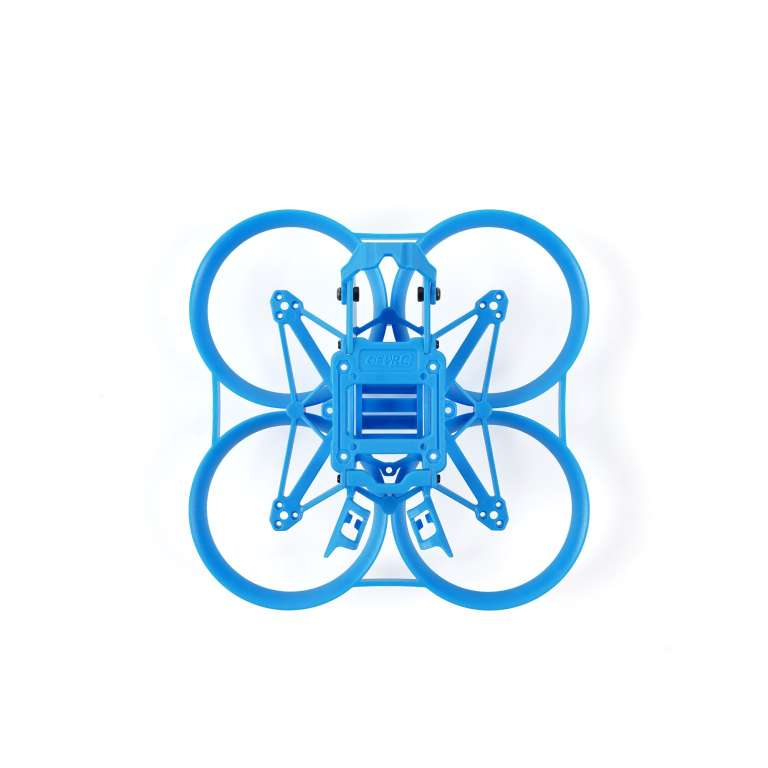

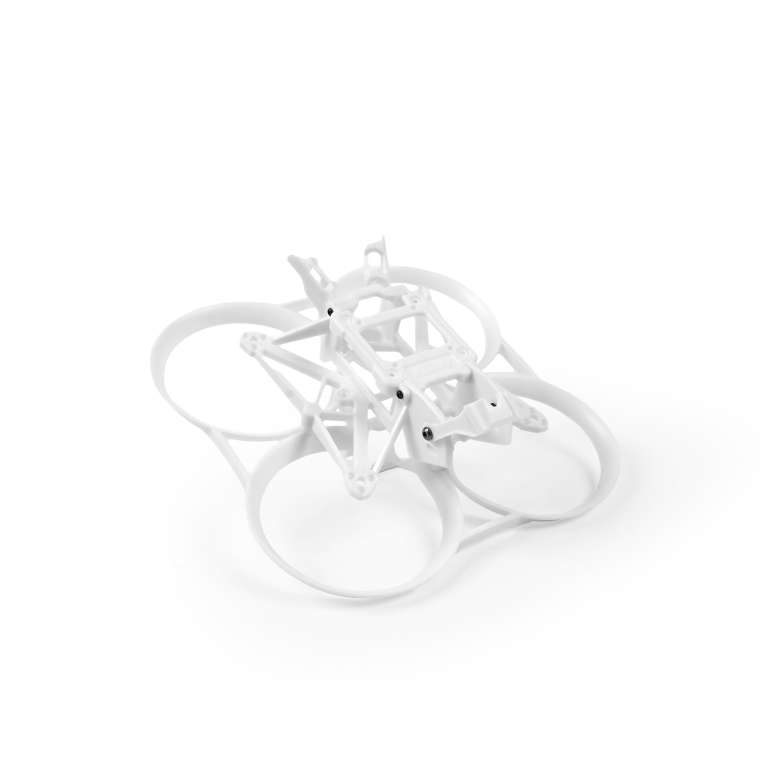

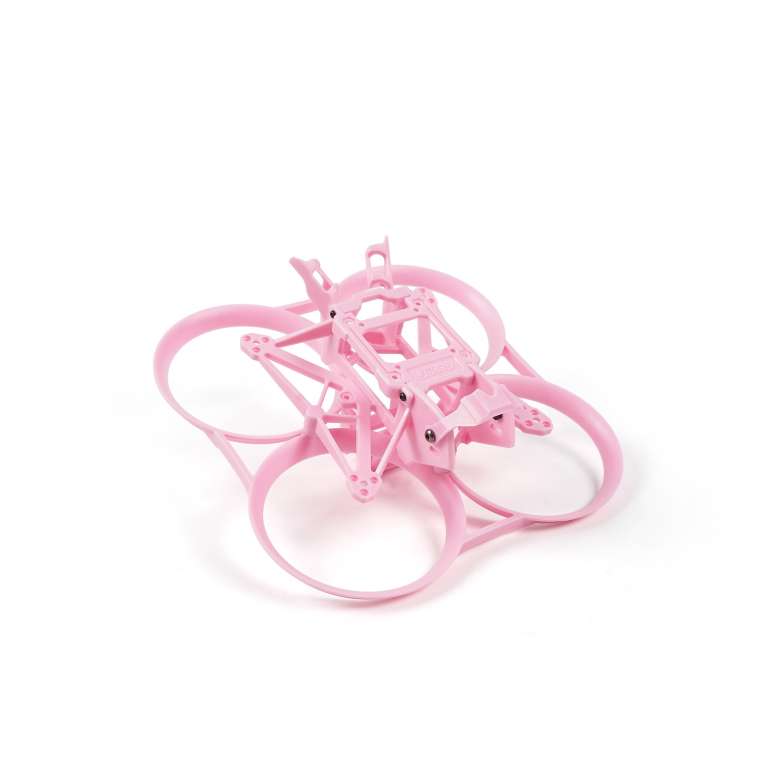

3.  Five colors available: white, pink, gray, black, and blue.
4.  Adapted to O3 AIR Unit, Link, and analog image transmission.
5.  Compatible with 1003 and 1102 motors.
6.  The antenna fixed shield is carefully designed to be both practical and beautiful.
7.  Frame-type battery compartment makes it easier to disassemble and install batteries.

• Model:GEP-DS20 Frame
• Dimension:126mm*126mm*57mm
• Wheelbase:90mm
• FC Mount:25.5mm*25.5mm
• VTX Mount:20mm*20mm/25.5mm*25.5mm
• Motor Mount:3-M1.4-φ6.6mm
• Camera size:19mm/20mm
• Battery Slot Width:17.3mm*13.5mm
• Colors:white/pink/gray/black/blue
• Propellers:2 inch
• Weight:26g

Includes

1 x Integrated Protective Frame

1 x Main Frame

1 x VTX Mounting Plate

1 x Camera Protective Cap

1 x Screw Pack

2 x VTX Antenna

1 x 1.5mm L-type Screwdriver

1 x Torx Screwdriver
