Summary

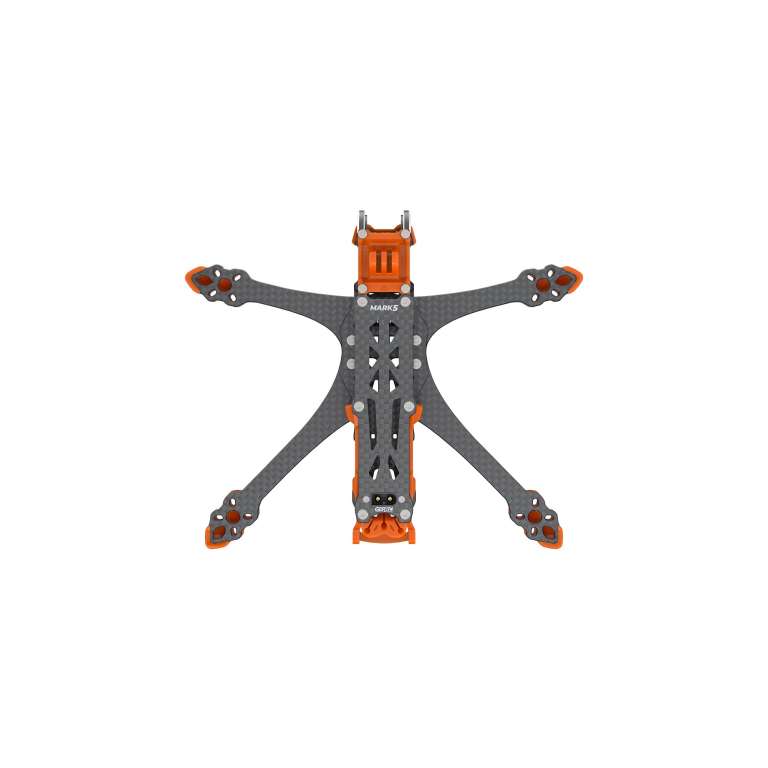

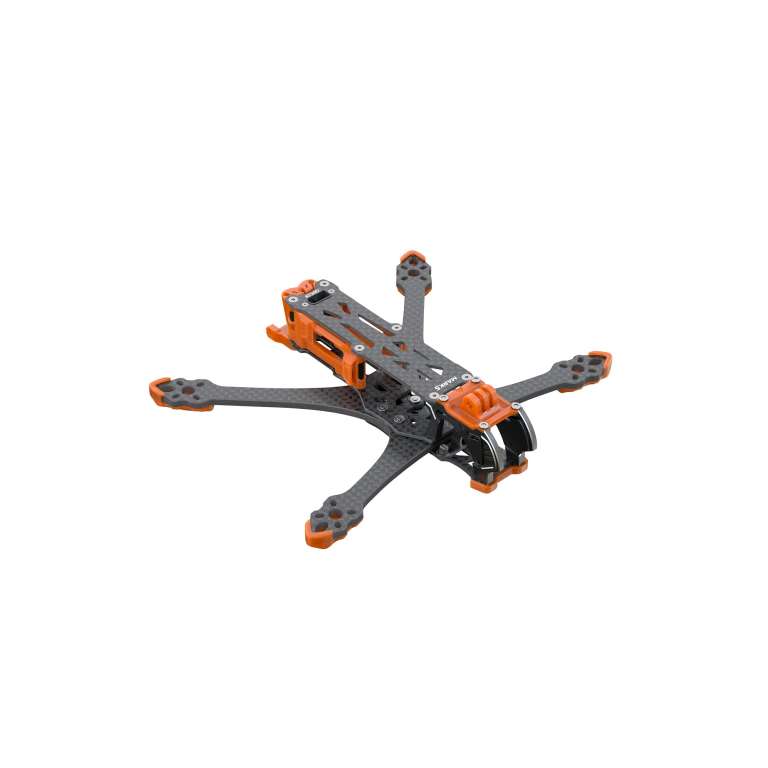

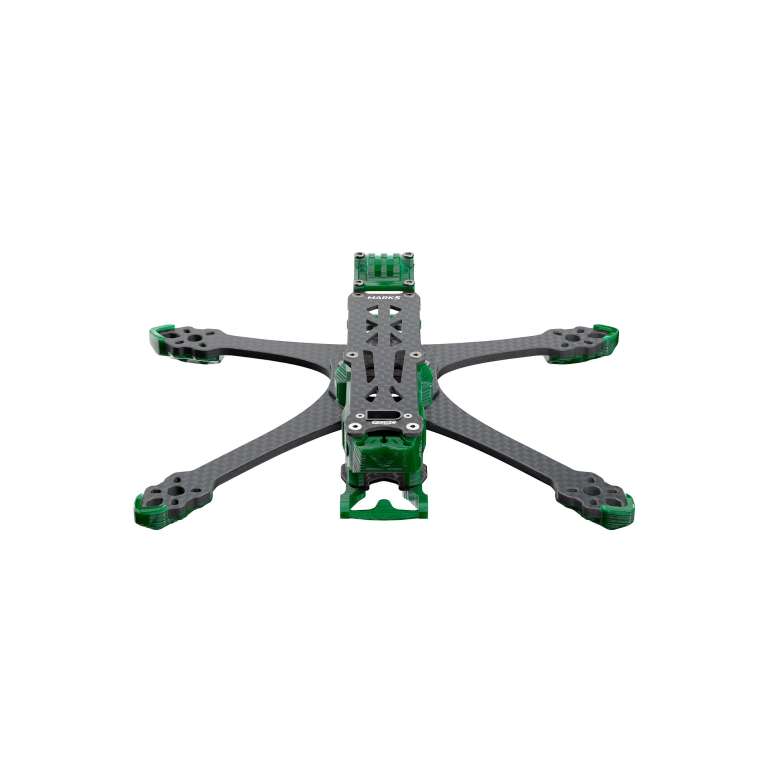

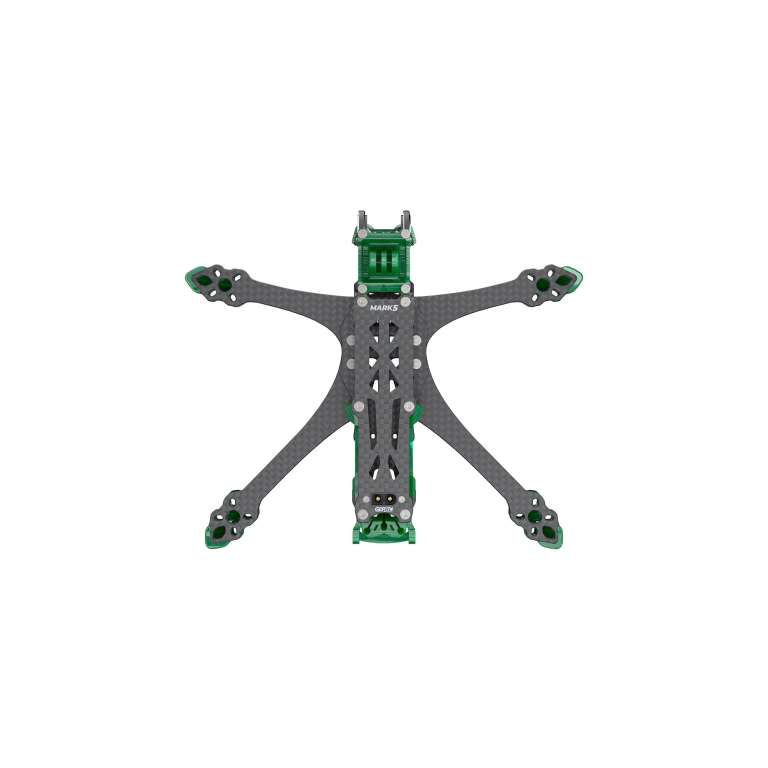

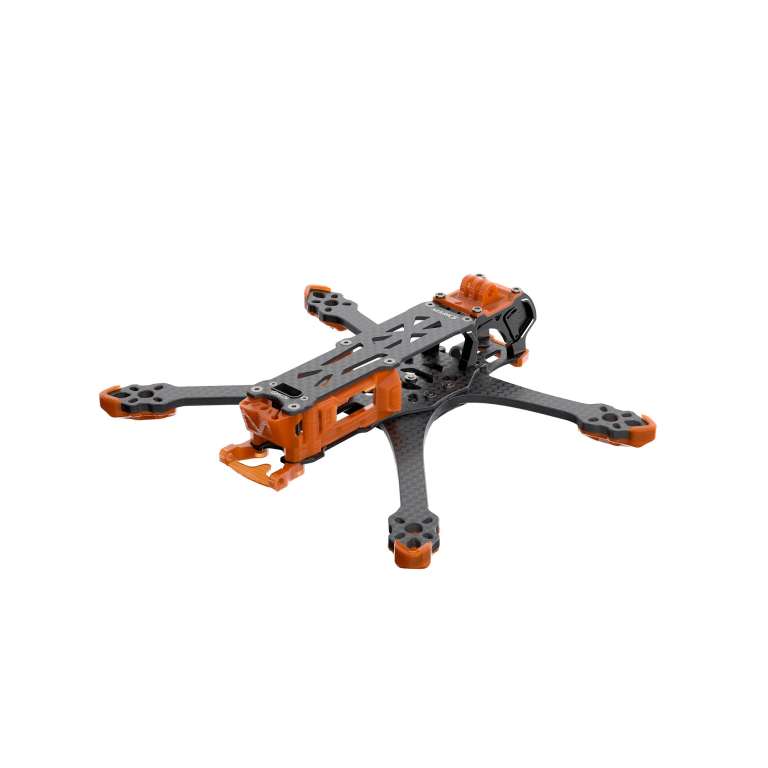

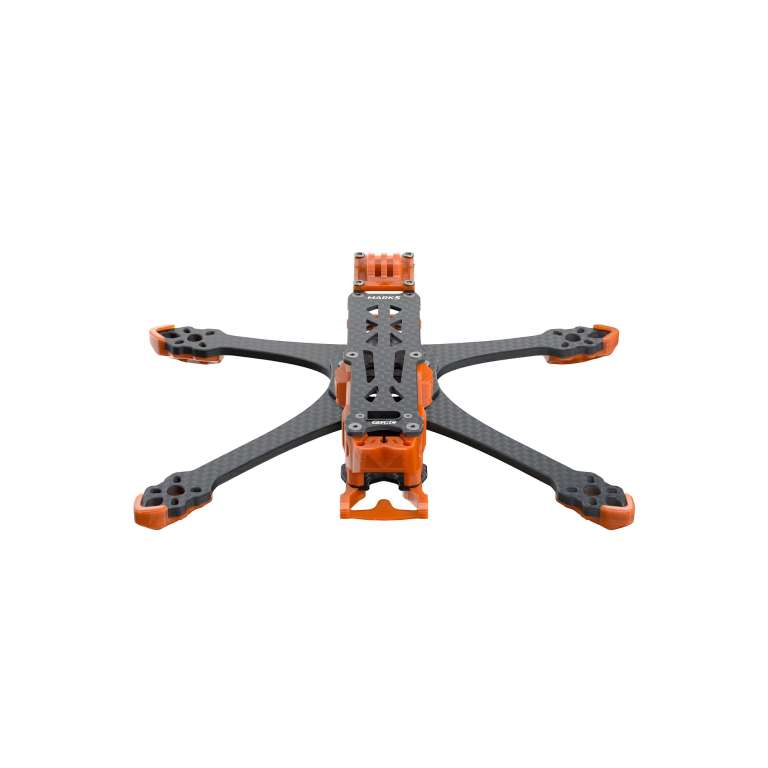

The GEPRC MARK5 O4 Pro frame is designed specifically for the DJI O4 Air Unit Pro.
It features a redesigned camera mount and custom shock-absorbing silicone, improving compatibility and vibration resistance for a more stable flight experience.

Features

1. Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.

2. DC and wide X shapes, fit for a variety of flying situations.

3. Two TPU camera mounts, compatible with all action cameras.

4. Quick-release arms with just two screws for easy swapping.

5. 3K carbon fiber frame that is lighter, stronger, and more durable.

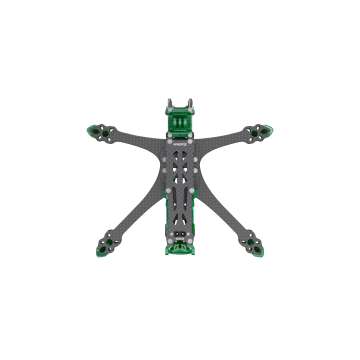

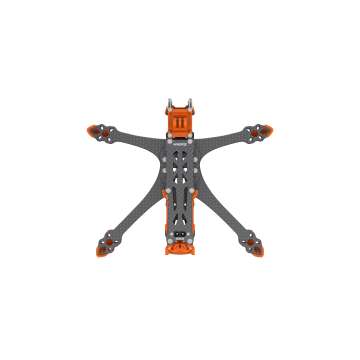

DC Specifications

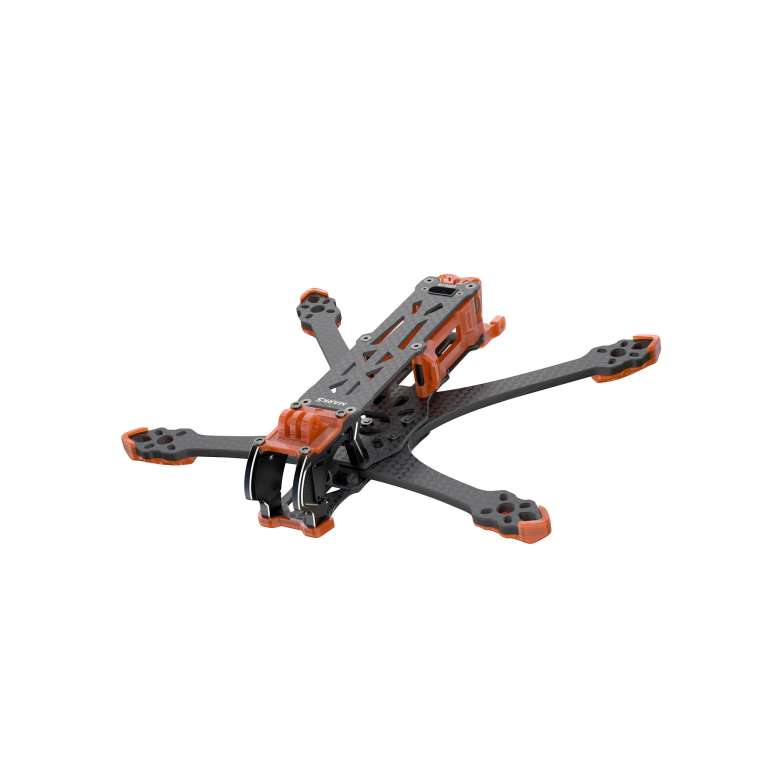

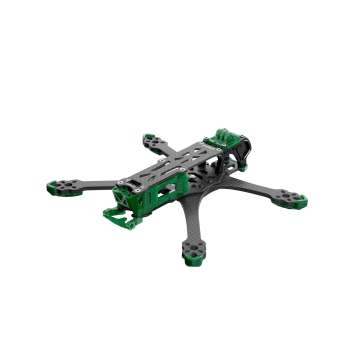

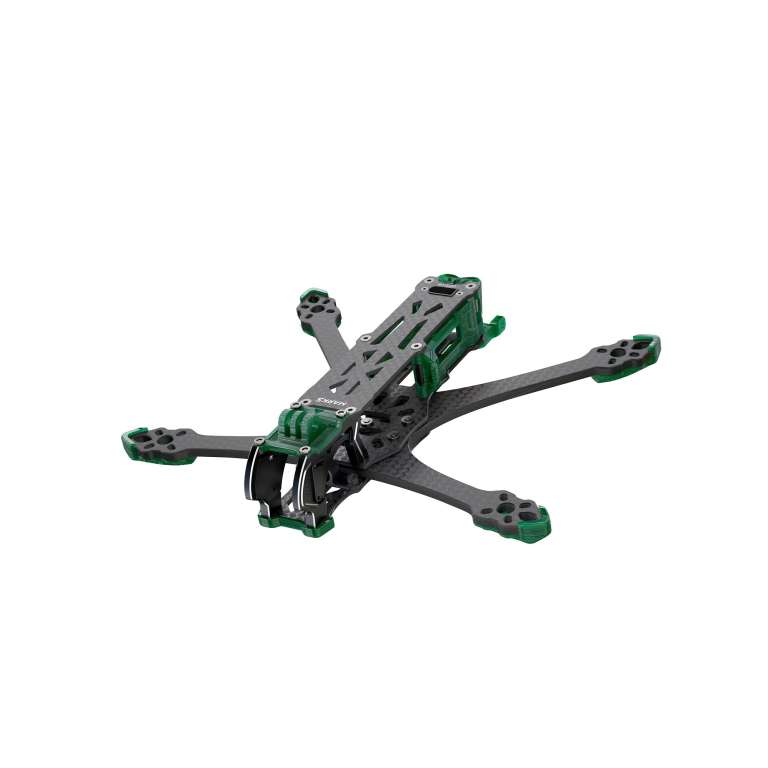

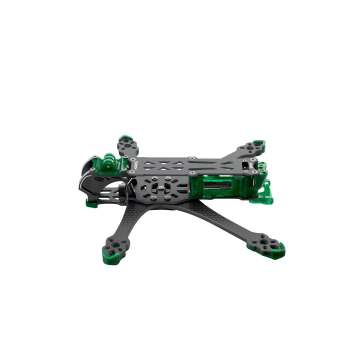

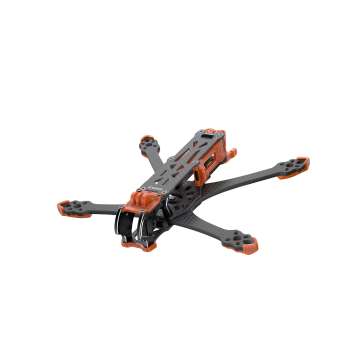

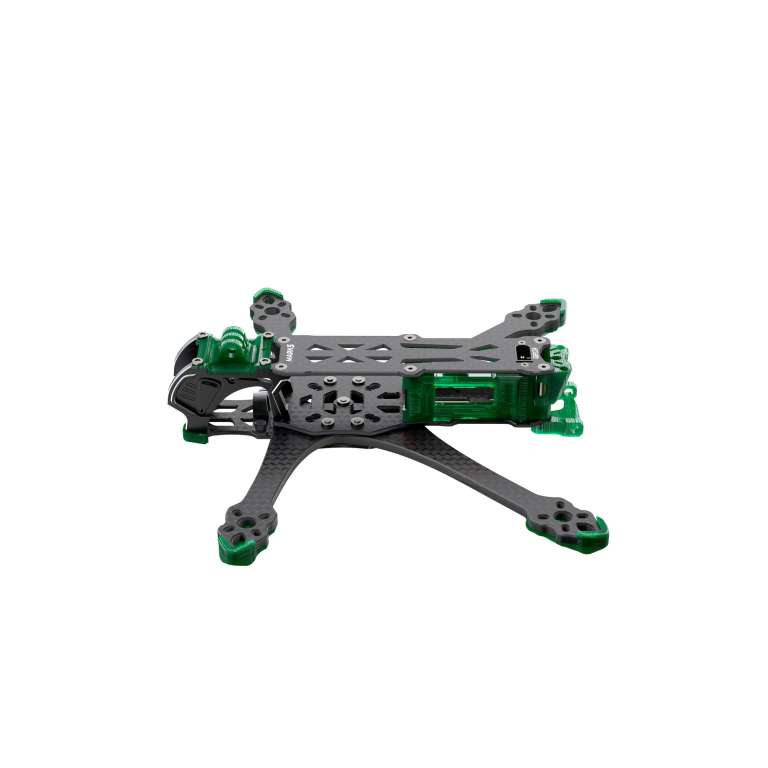

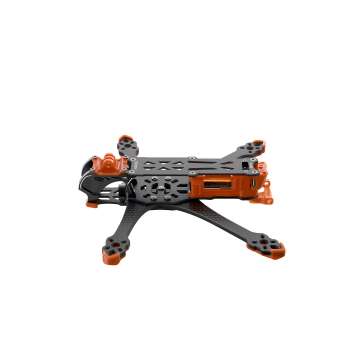

• Model: GEP-MK5 O4 Pro DC  Frame
• Wheelbase: 230mm
• Weight: 197.0g ± 10g
• Color: emerald green / coral orange
• Top Plate Thickness: 2.5mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Pattern: 30.5mm * 30.5mm
• VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm
• Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm
• Camera Mounting Pattern: 20mm
• Recommended Prop：5-inch

Wide X Specifications

• Model: GEP-MK5 O4 Pro wide X Frame
• Wheelbase: 225mm
• Weight: 165.1g ± 10g
• Color: emerald green/coral orange
• Top Plate Thickness: 2.5mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Pattern: 30.5mm * 30.5mm
• VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm
• Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm
• Camera Mounting Pattern: 20mm
• Recommended Prop：5-inch

Includes

1 x GEP-MK5 O4 Pro Frame

1 x 15*250mm heavy-duty Velcro straps

2 x Battery anti-slip pads

1 x 3D printouts pack

2 x 20*250mm rubber anti-slip straps

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2mm

1 x L-shaped screwdriver 3mm

1 x M8 wench

1 x Screw pack
