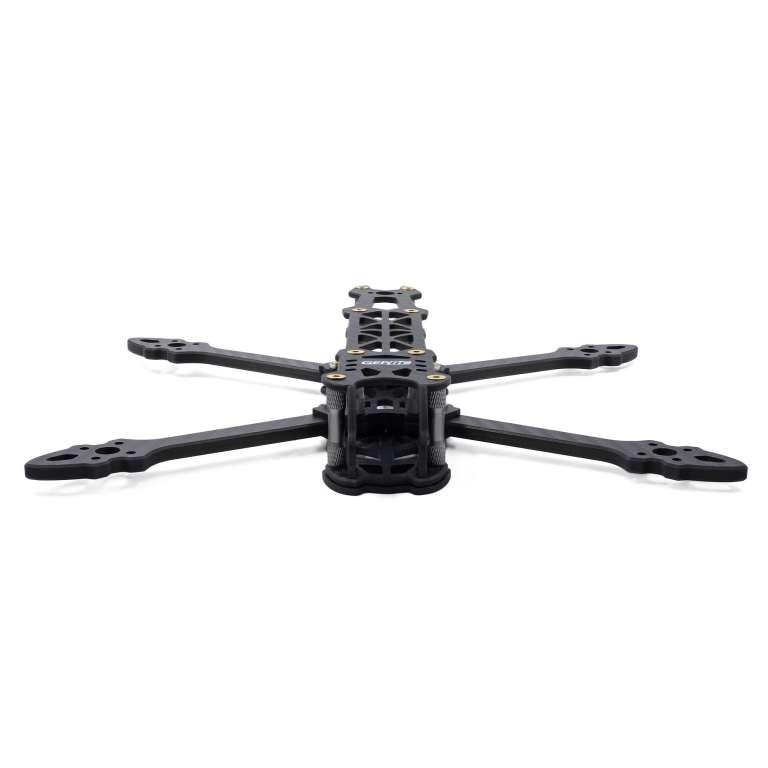

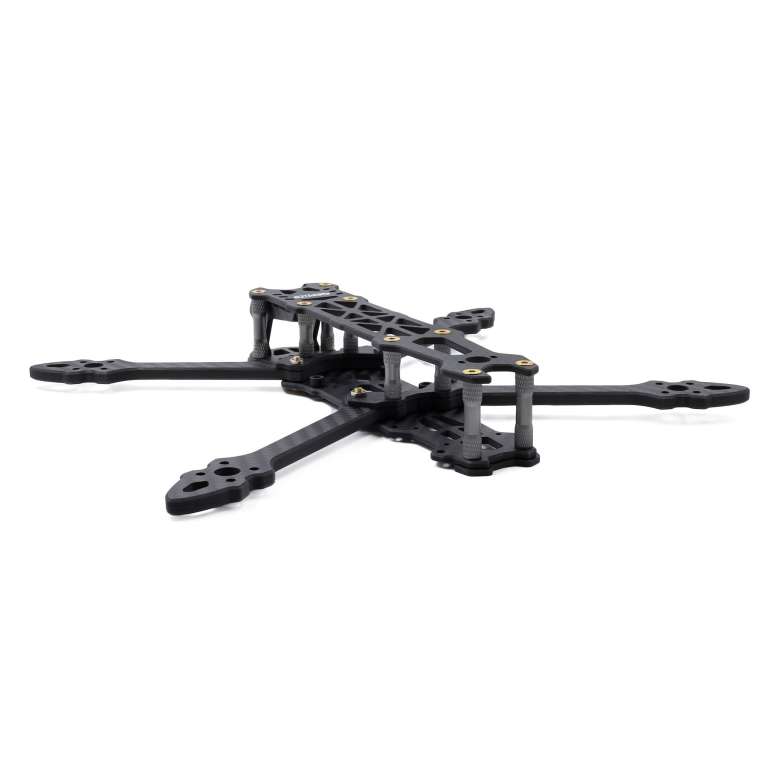

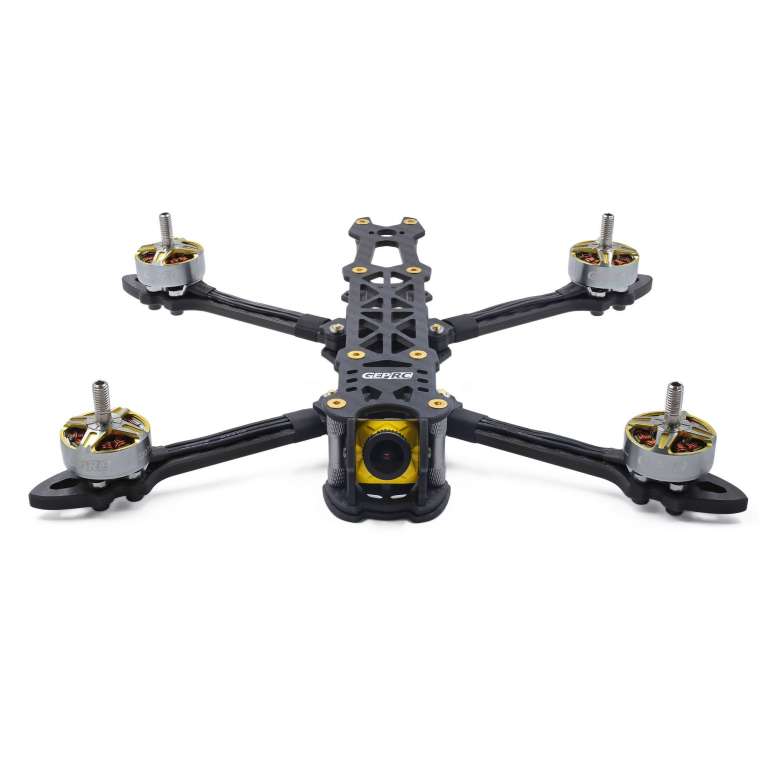

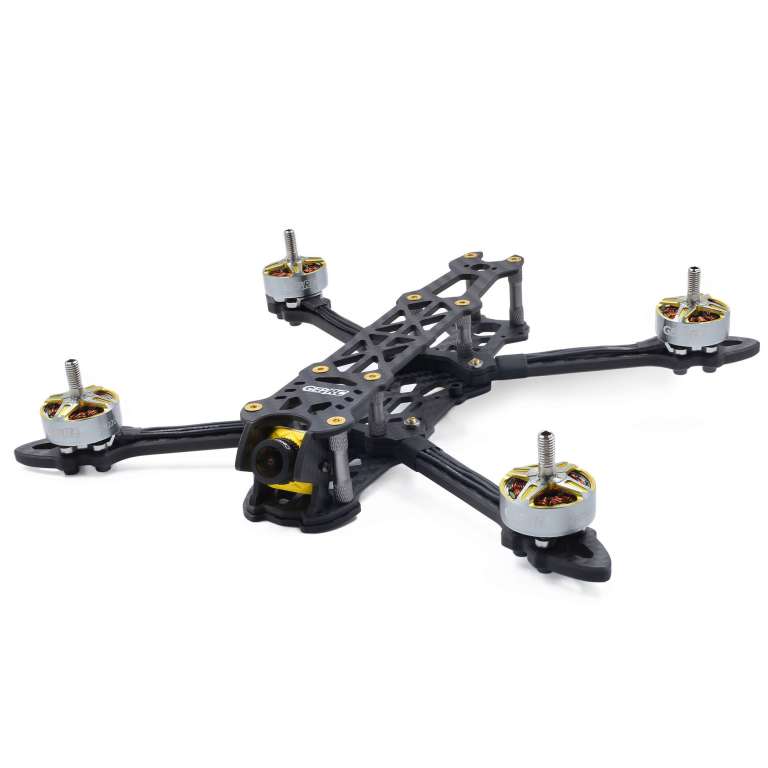

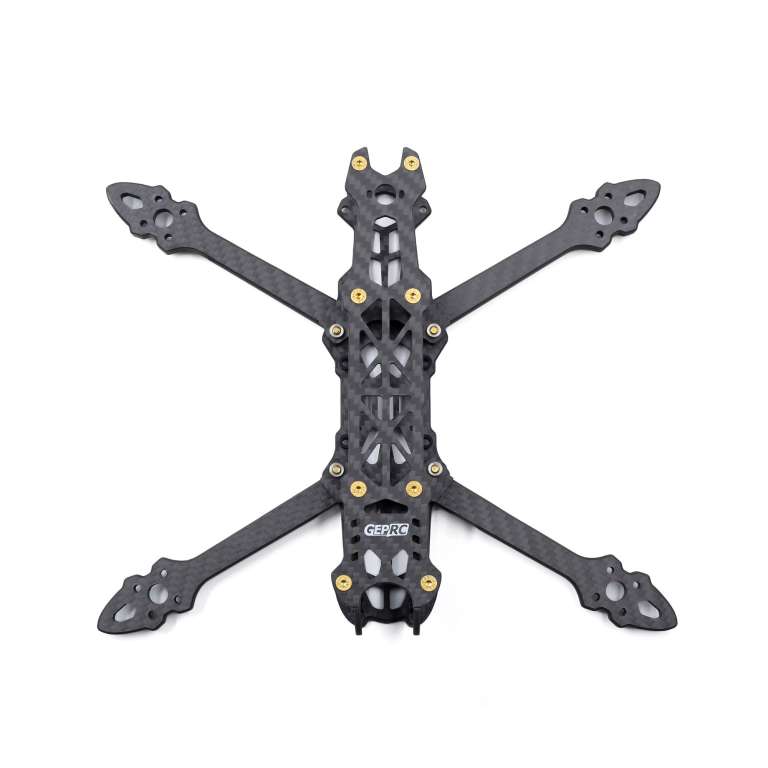

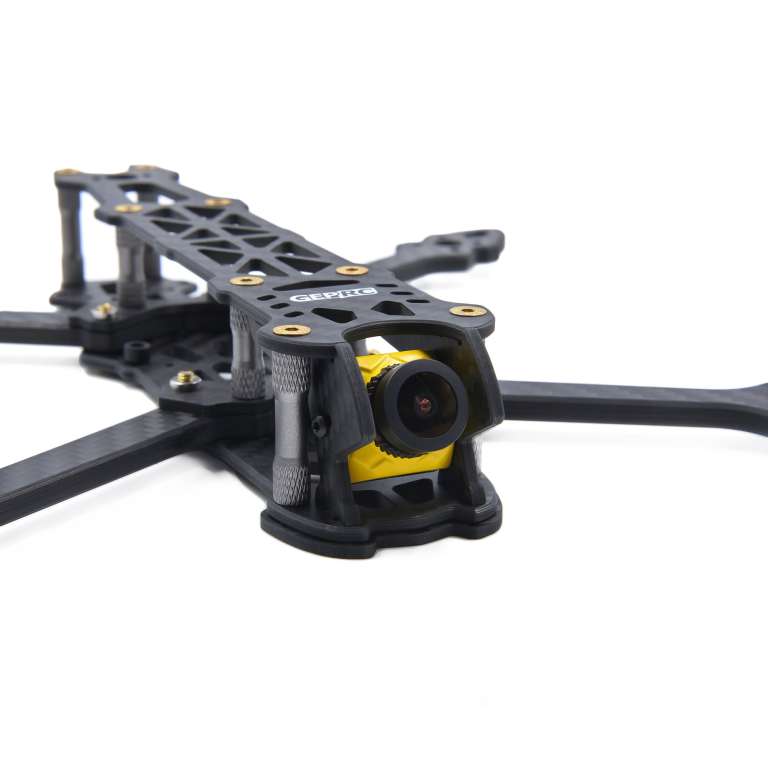

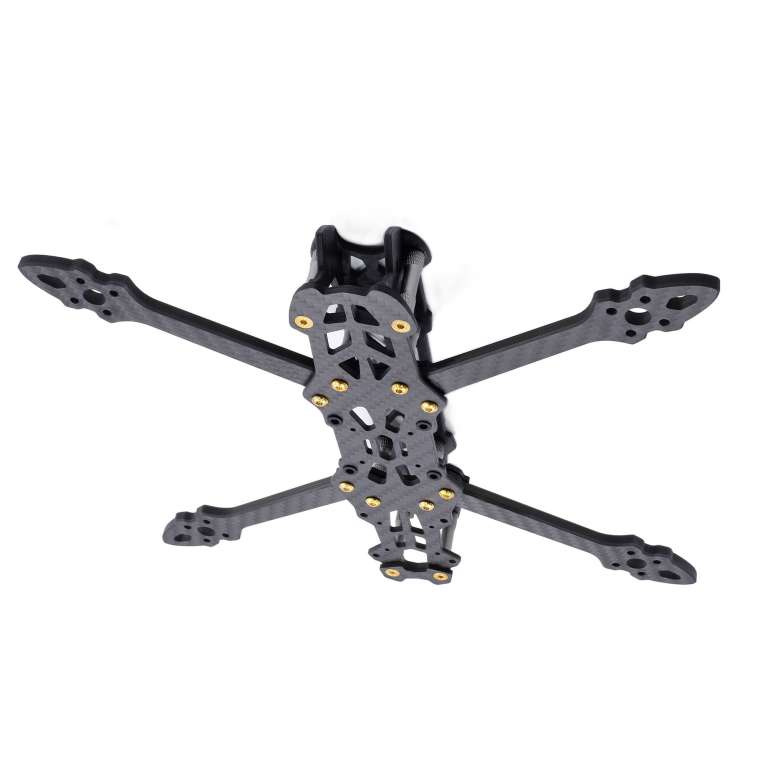

GEP-Mark4 Frame

3411.38 грн.

Рассрочка online

Нашли дешевле?
Получите цену ниже!

Код товара: gr211
Версия для печати Задать вопрос о товаре

Поделиться:

Доставка в течение 2–3 недель.

Summary:
I want freestyle frame to show more performance in flight,a Super lightweight Freestyle frame,more convenient installation of electronic devices and more balanced center of gravity, so as to achieve better Smooth flight shooting, These ideas build the freestyle frame Mark4.

Mark4 5inch Specifications:

  • Brand name:GEPRC
  • Item name:Mark 4-5
  • Frame type:H type
  • Propeller : 5inch
  • Motor to motor:225mm
  • Size:145*172mm
  • Weight:102g
  • Arms plate : 5mm
  • Side plate : 2.5mm
  • Top plate : 2.5mm
  • Bottom plate : 2.5mm
  • Protect plate : 2mm

Mark4 6inch Specifications:

  • Brand name:GEPRC
  • Item name:Mark 4-6
  • Frame type:H type
  • Propeller : 6inch
  • Motor to motor:260mm
  • Size:162*203mm
  • Weight:111g
  • Arms plate : 5mm
  • Side plate : 2.5mm
  • Top plate : 2.5mm
  • Bottom plate : 2.5mm
  • Protect plate : 2mm



Mark4 7inch Specifications:

  • Brand name:GEPRC
  • Item name:Mark 4-7
  • Frame type:H type
  • Propeller : 7inch
  • Motor to mot or:295mm
  • Size:193*223mm
  • Weight:121g
  • Arms plate : 5mm
  • Side plate : 2.5mm
  • Top plate : 2.5mm
  • Bottom plate : 2.5mm
  • Protect plate : 2mm



Mark4 Includes

  • 4 x 5mm 5inch Arms plate
  • 2 x 2.5mm side plate
  • 1 x 2.5mm top plate
  • 1 x 2.5mm Bottom plate
  • 2 x 2mm Bumpers plate
  • 2 x 2mm Reinforce plate
  • 1 x Lipo silicone pad



Hardware:

  • 8 x M3*25mm  Alu6061 Srandoff New  Titanium color
  • 4 x M3*18mm  Alu6061 Srandoff New  Titanium color
  • 8 x M3*8 YFS  Flat Screw
  • 4 x M3*10 YFS  Flat Screw
  • 4 x M3*12 YFS  Button Screw
  • 4 x M3*14 YFS  Button Screw
  • 4 x M3*20 YFS  Button Screw
  • 4 x M3  Flight control  silicone
  • 4 x M3  Nylon nut
  • 4 x 5*150  Nylon tie
  • 2 x 20*220 GEPRC Lipo strap
  • 1 x 15*250 GEPRC Lipo strap
  • 1 x 2.4g Antenna fixed tube



5inch Recommended

  • Flight Controller:RF/Kiss/F3/F4/F7
  • Motor: 2205/2206/2207/2207.5/2305/2306
  • ESC:30A-50A
  • Propeller:5inch
  • Lipo: 4S 1500mAh ~ 6S 1150mAh



6inch Recommended

  • Flight Controller:RF/Kiss/F3/F4/F7
  • Motor: 2207.5/2305/2306/2407
  • ESC:35A-60A
  • Propeller:6inch
  • Lipo: 4S 1500mAh ~ 6S 1300mAh



7inch Recommended

  • Flight Controller:RF/Kiss/F3/F4/F7
  • Motor: 2207.5/2305/2306/2408/2507
  • ESC:40A-60A
  • Propeller:7inch
  • Lipo: 4S 1800mAh ~ 6S 2200mAh



Features:

  • Super lightweight Freestyle frame
  • Beautiful appearance design,durable in crashing

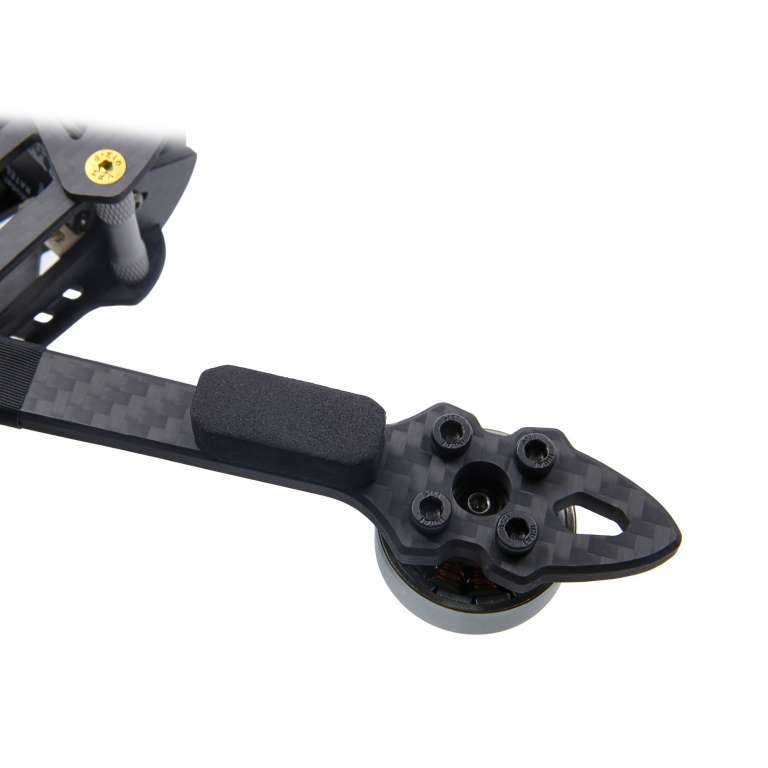

  • Quick maintenance Arms and replacement of equipment

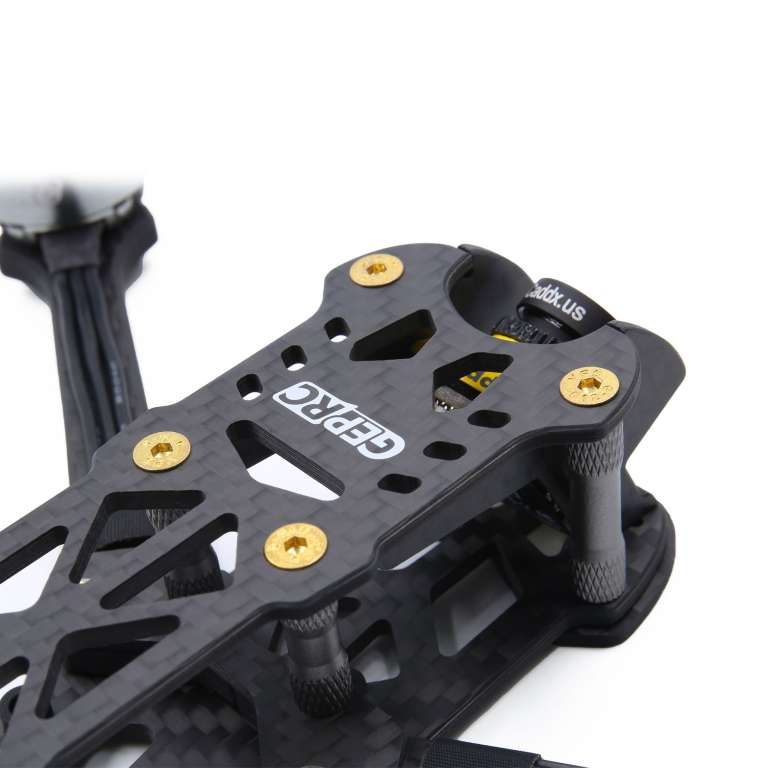

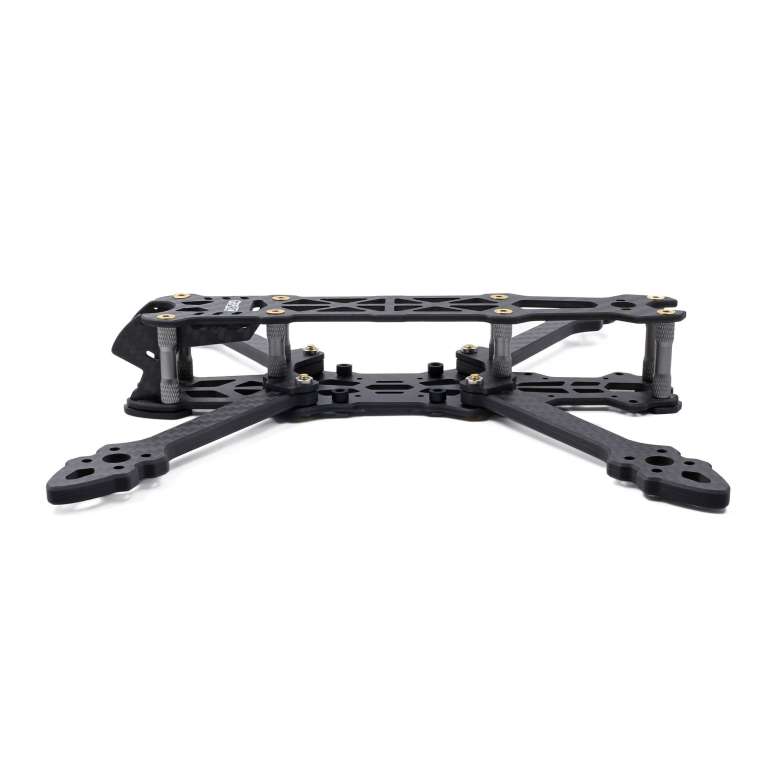

  • 25mm standoffs for better height and CG relation,Ample space for electronic installation

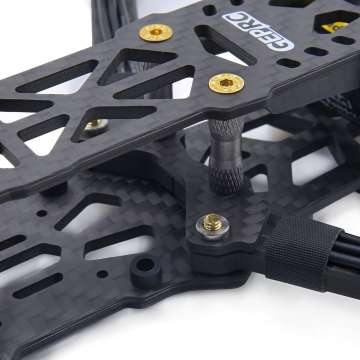

  • Alu6061 Srandoff New , Strengthen the hardness
  • There are 30.5*30.5 and 20*20 flight control holes , Stack can fit in the center or the rear.
  • High quality 3K twill carbon fiber plate, high precision CNC processing
  • YFS screw, 12.9 grade strength, non-slip teeth, anti-rust,Durable steel hardware

Weight150 g
Dimensions300 × 200 × 100 mm
Size

5inch, 6inch, 7inch, 4inch
