Summary

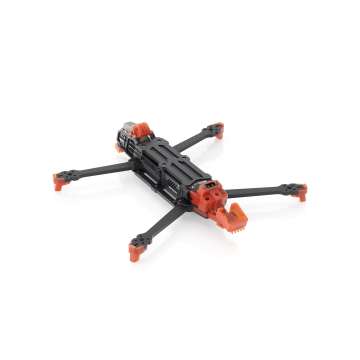

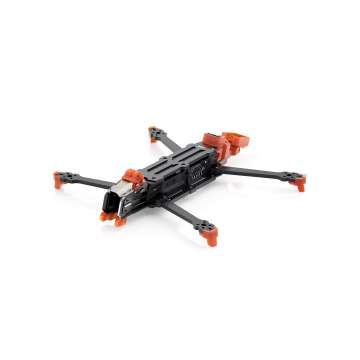

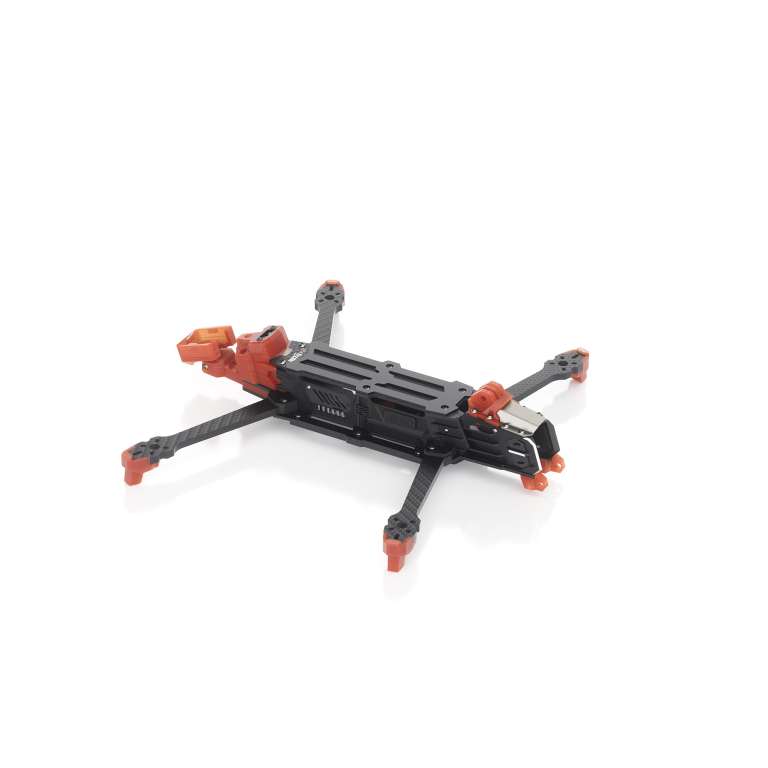

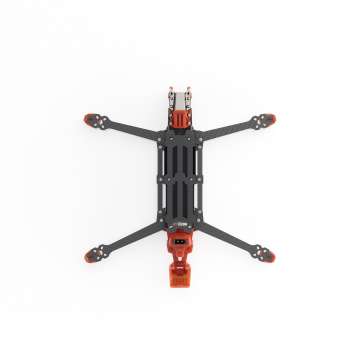

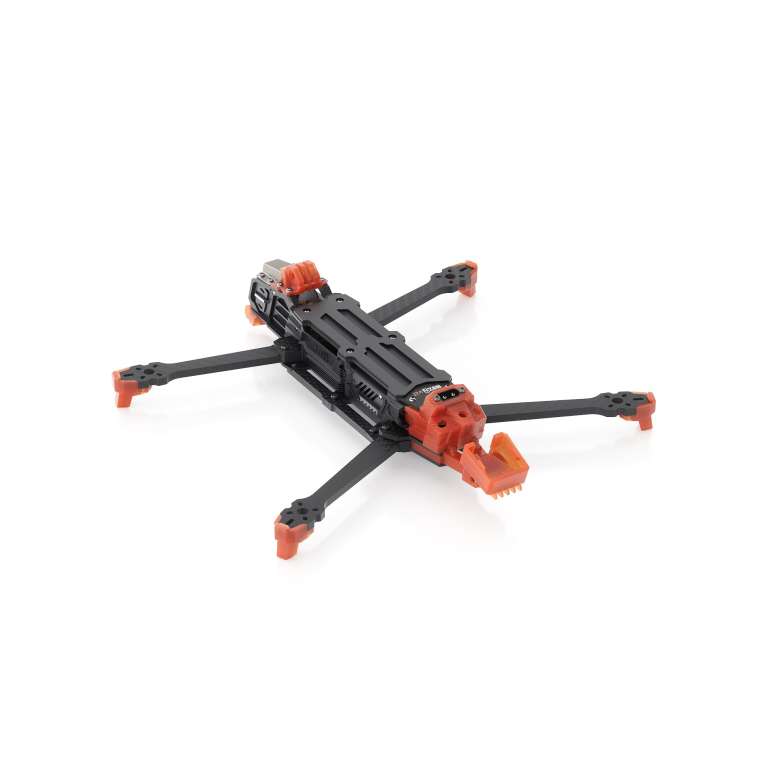

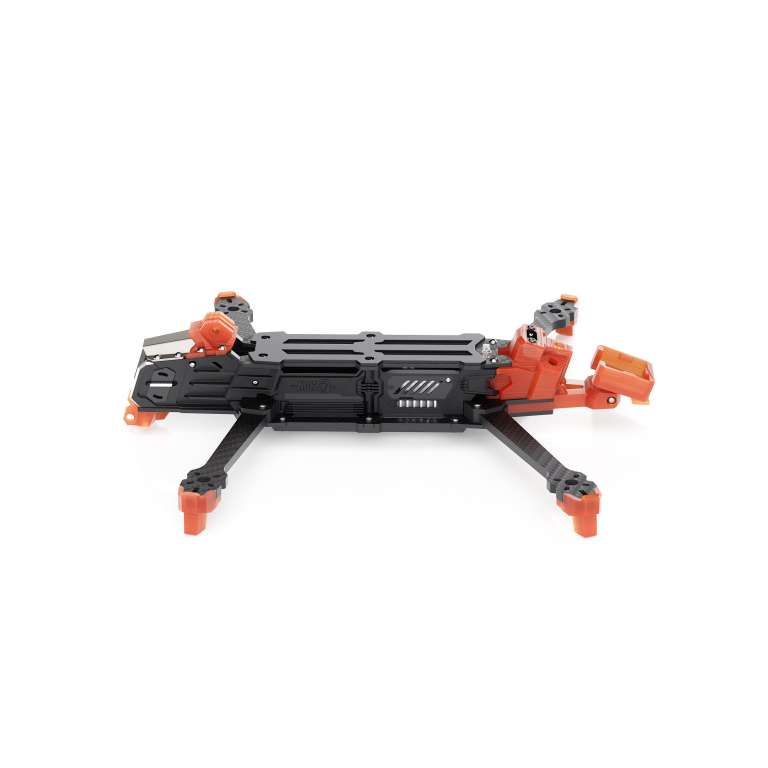

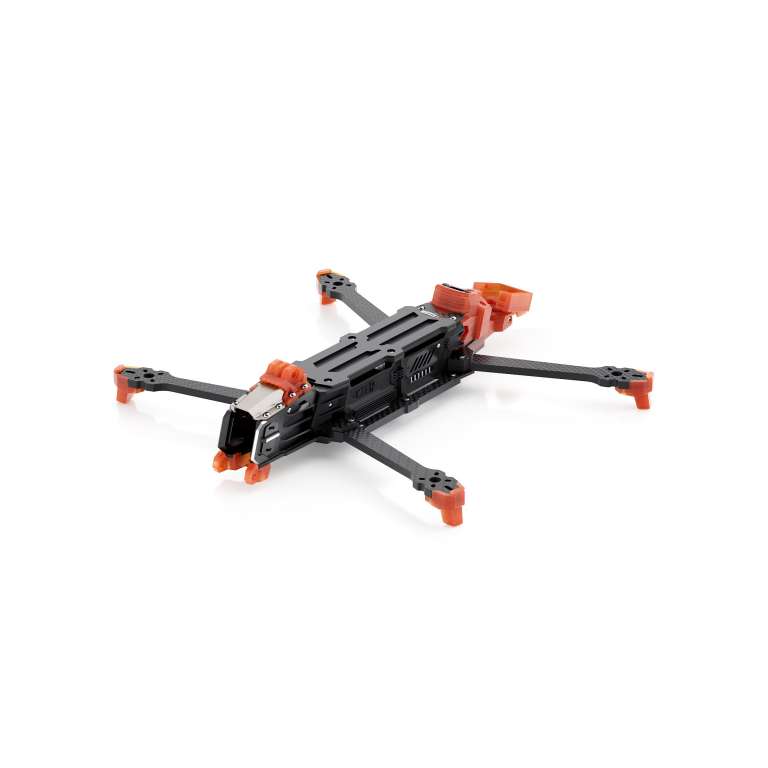

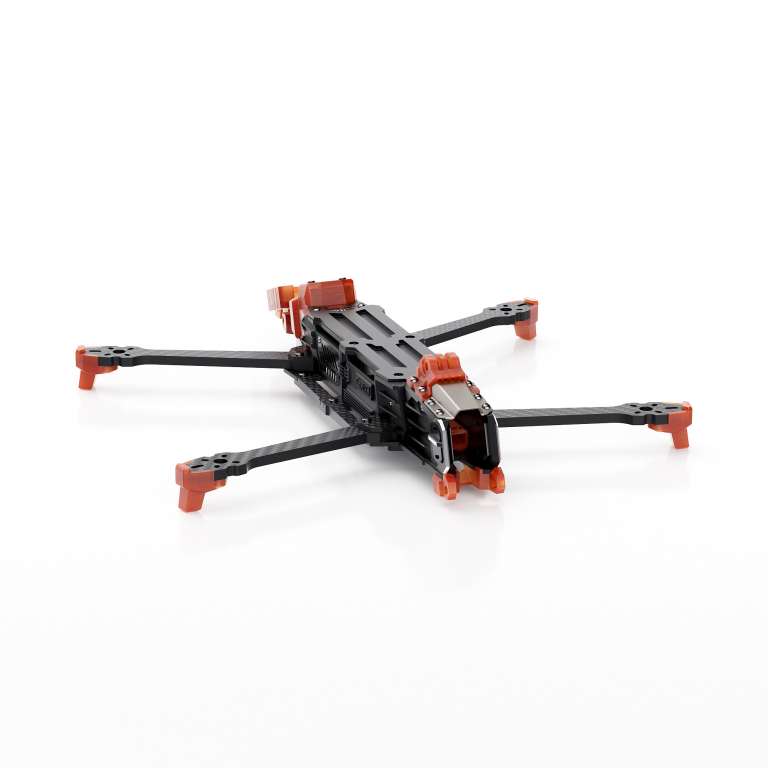

The GEP-MOZ7 V2 is a 7.5-inch long-range frame designed for the O4 Air Unit Pro HD VTX. It also supports 8-inch propellers and a wide range of compatible electronics setups.

Its extended front design ensures a clear, unobstructed view when using the O4 Pro VTX. The metal top plate protects the camera lens, while reinforced side arms increase rigidity and support bottom-mounted battery configurations. The VTX mount accommodates larger heat sinks for improved cooling performance, and the GPS mount supports M1025-series GPS units.

GEPRC remains committed to the FPV industry, continuously releasing high-quality, reliable products to enhance the user experience.

Features

1. Compatible with the O4 Air Unit Pro HD VTX, with no props visible in the camera view.
2. Tech-inspired design featuring aerospace-grade aluminum camera mounts and a metal top plate for lens protection.
3. Vertical reinforcement structure and 6mm-thick arms ensure flight stability and support for bottom-mounted batteries.
4. O4 Air Unit Pro heat sink with fin and vent design for efficient cooling.
5. Adjustable 25x25mm GPS antenna mount, supports larger GPS units for faster satellite lock.
6. Front T-shaped antenna mount and rear vertical antenna for dual-frequency reception.
7. Action camera mount is interchangeable with metallic canopy for center of gravity adjustment.
8. Durable landing gear prevents the bottom plate from scraping during landings.

Specification

• Model: GEP-MOZ7 V2 Frame
• Dimension: 376mm × 303mm × 35.5mm
• Weight: 270g ± 5g
• Wheelbase: 336mm
• Top Plate Thickness: 2.5mm
• Bottom Plate Thickness: 2.5mm
• Arm Thickness: 6mm
• Clamp Plate Thickness: 3mm
• FC Mounting Holes: 30.5×30.5mm（M3) , 25.5×25.5mm (M2) , 20x20mm (M3)
• VTX Mounting Holes: 25.5×25.5mm（M2），20x20mm（M2）
• Motor Mounting Holes: 16x16mm / 19x19mm (M3)
• Lens Mounting Holes: 20mm (M2)

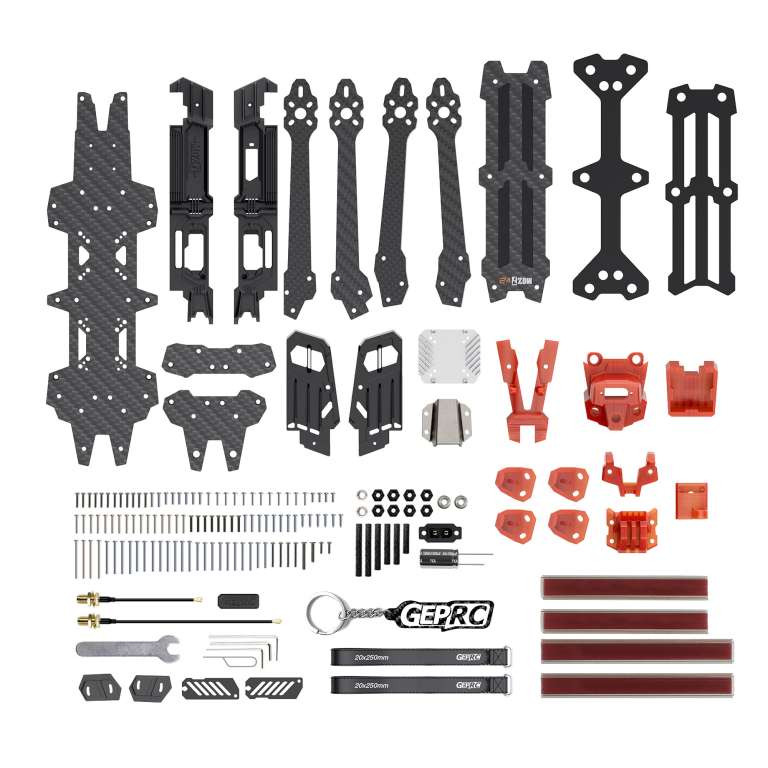

Includes

1 x GEP-MOZ7 V2 Frame Kit

2 x M20*300mm battery straps

1 x Upper battery anti-slip pad

1 x Lower battery anti-slip pad

1 x Printed parts pack

1 x 1.5mm L-shaped screwdriver

2 x 2mm L-shaped screwdrivers

1 x 3mm L-shaped screwdriver

1 x M8 wrench

1 x Screw pack
