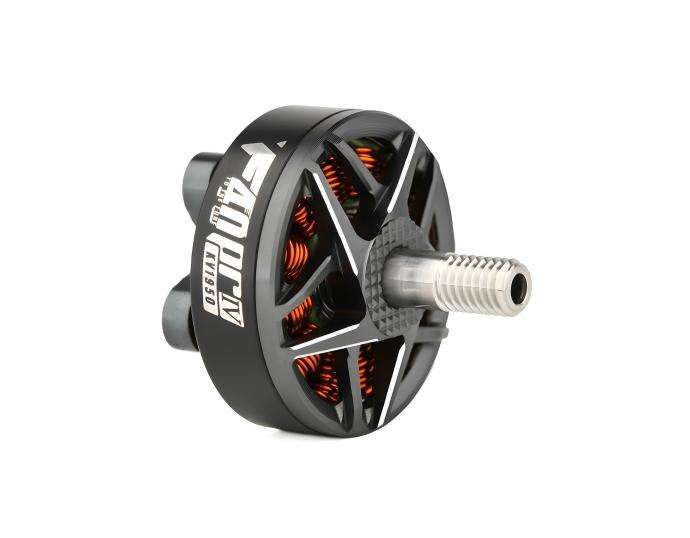

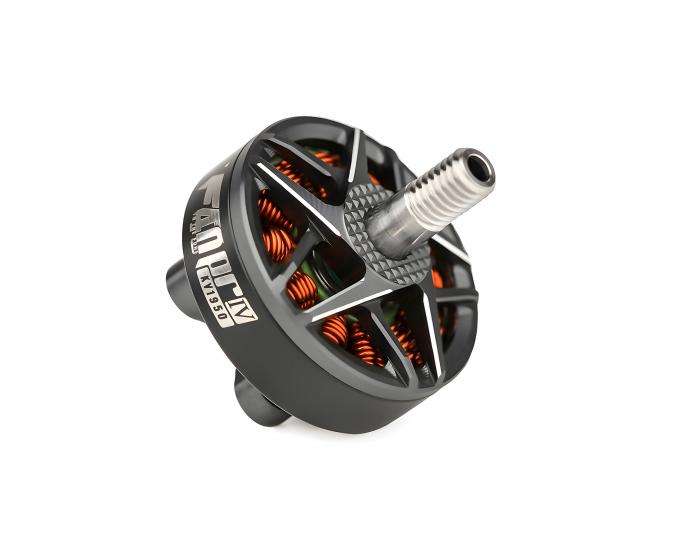

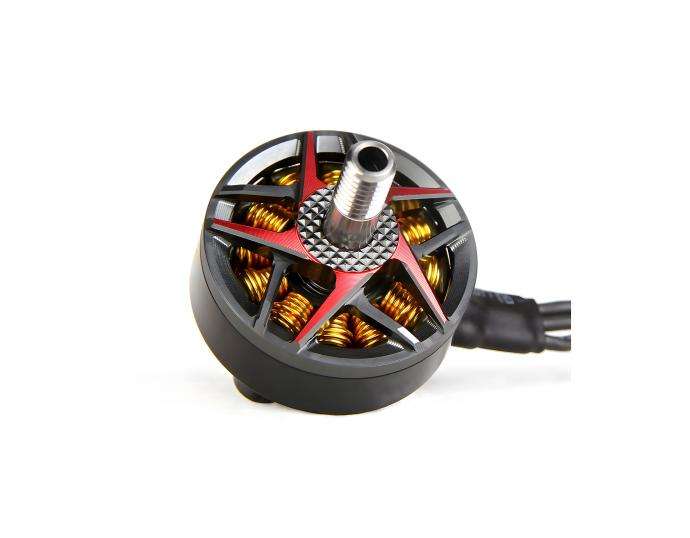

About T-HOBBY F40 Pro IV Racing Drone Motor

The F40 PRO IV motor model is 2306, suitable for 5-inch freestyle and racing. Compared with the F40 PRO III, the weight is reduced by 9%, only 29.5g.

It has high torque, strong explosive power and high efficiency, and the maximum pulling force can reach 1.62kg.

F40 Pro IV Hightlight:

The F40 PRO-IV continues the lineage of great FPV brushless motors by T-HOBBY. The F40 PRO-IV is lighter and agile compared to its predecessor, 9% less weight compared to the F40 PRO III.

We has worked very hard to improve the user experience by crafting and enhancing every detail of the F40 PRO IV to help reduce its weight.

Things that were considered were the internal motor pinhole, 12mm titanium shaft, silicon steel sheet and customized silicone wire. The 2306 size suitable for 5 inch freestyle and racing

Packing List Includes:

1x T-HOBBY F40 PRO IV Motor (Choose 1950KV or 2400KV)

1x Hardware Kit

Matching Guide:

F7 Flight controller

F55A Pro II ESC

T5146 FPV Drone propeller

Technical Drawing

Specification

Test Item	KV1950	Weight(Incl.Cable)	30.8g
Motor Dimensions	Φ27.9*29.8mm	Internal Resistance	65mΩ
Lead	20#AWG 150mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	4-6S
Idle Current(10V)	1.3A	Peak Current(60s)	42A
Max. Power(60s)	1012W

Test Item	KV2400	Weight(Incl.Cable)	30.6g
Motor Dimensions	Φ27.9*29.8mm	Internal Resistance	45mΩ
Lead	20#AWG 150mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	4S
Idle Current(10V)	1.6A	Peak Current(60s)	42.9A
Max. Power(60s)	666W

Test Data

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F40PRO Ⅳ 1950	T5146 Tri- Blade	50%	642.34	24.14	7.47	18862	180.43	3.56	94 (Ambient Temperature: 30℃)
		55%	749.86	24.11	9.48	20210	228.63	3.28
		60%	866.36	24.07	11.67	21604	280.90	3.08
		65%	990.68	24.02	14.38	23089	345.47	2.87
		70%	1100.91	23.97	17.31	24296	415.01	2.65
		75%	1181.98	23.92	19.87	25349	475.31	2.49
		80%	1284.96	23.88	22.97	26221	548.43	2.34
		85%	1380.92	23.82	26.09	27150	621.47	2.22
		90%	1476.19	23.77	29.32	27950	696.89	2.12
		95%	1511.67	23.71	32.56	28781	771.87	1.96
		100%	1767.92	23.57	40.48	31359	954.28	1.85
	T5147 Tri- Blade	50%	644.95	24.13	7.82	18547	188.66	3.42	96 (Ambient Temperature: 30℃)
		55%	754.38	24.09	10.00	19916	240.90	3.13
		60%	877.19	24.05	12.52	21413	301.20	2.91
		65%	994.88	24.01	15.13	22665	363.22	2.74
		70%	1111.05	23.95	18.14	23849	434.53	2.56
		75%	1204.06	23.90	20.92	24883	500.13	2.41
		80%	1291.79	23.85	23.95	25728	571.35	2.26
		85%	1384.57	23.80	26.95	26591	641.50	2.16
		90%	1476.69	23.75	30.11	27371	715.09	2.07
		95%	1560.69	23.69	33.66	28125	797.36	1.96
		100%	1856.72	23.53	43.01	30782	1011.81	1.84
	T5150 Tri- Blade	50%	661.52	24.13	7.78	18696	187.86	3.52	96 (Ambient Temperature: 30℃)
		55%	773.86	24.10	10.00	19843	241.03	3.21
		60%	894.71	24.05	12.54	21576	301.64	2.97
		65%	994.40	24.01	14.96	22838	359.08	2.77
		70%	1101.26	23.96	17.74	24091	425.02	2.59
		75%	1209.21	23.90	20.85	25057	498.32	2.43
		80%	1297.18	23.85	23.86	25894	569.12	2.28
		85%	1397.89	23.80	26.97	26733	641.92	2.18
		90%	1489.89	23.75	30.20	27498	717.31	2.08
		95%	1558.41	23.70	33.35	28037	790.32	1.97
		100%	1902.32	23.53	43.03	30869	1012.67	1.88
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F40PRO Ⅳ 2400	T5146 Tri- Blade	50%	512.08	16.11	8.39	17057	135.16	3.79	88 (Ambient Temperature: 30℃)
		55%	591.18	16.07	10.40	18274	167.16	3.54
		60%	663.68	16.03	12.76	19485	204.61	3.24
		65%	762.30	15.99	15.39	20675	246.02	3.10
		70%	852.57	15.94	18.22	21792	290.29	2.94
		75%	943.62	15.89	21.42	22565	340.23	2.77
		80%	1030.63	15.83	24.74	23702	391.59	2.63
		85%	1093.43	15.78	27.77	24506	438.17	2.50
		90%	1158.04	15.73	30.67	25239	482.49	2.40
		95%	1230.50	15.67	34.24	26095	536.52	2.29
		100%	1424.39	15.55	41.36	27649	643.23	2.21
	T5147 Tri- Blade	50%	510.01	16.11	8.65	16737	139.32	3.66	90 (Ambient Temperature: 30℃)
		55%	594.75	16.07	10.91	18006	175.30	3.39
		60%	674.62	16.02	13.29	19125	212.87	3.17
		65%	755.99	15.98	15.93	20240	254.53	2.97
		70%	849.54	15.93	18.95	21395	301.92	2.81
		75%	932.24	15.88	21.92	22342	348.12	2.68
		80%	1009.97	15.82	25.27	23313	399.66	2.53
		85%	1089.77	15.76	28.78	24096	453.58	2.40
		90%	1162.54	15.71	32.09	24739	504.07	2.31
		95%	1246.35	15.64	35.62	25467	557.24	2.24
		100%	1435.42	15.53	42.95	25704	666.80	2.15
	T5150 Tri- Blade	50%	514.30	16.10	8.52	16635	137.14	3.75	90 (Ambient Temperature: 30℃)
		55%	597.06	16.07	10.75	17854	172.73	3.46
		60%	688.88	16.02	13.30	19146	213.05	3.23
		65%	774.62	15.98	16.01	20321	255.88	3.03
		70%	864.35	15.93	18.88	21395	300.76	2.87
		75%	951.82	15.88	21.96	21854	348.59	2.73
		80%	1031.82	15.82	25.32	23353	400.50	2.58
		85%	1110.90	15.76	28.80	24092	453.86	2.45
		90%	1182.48	15.70	32.08	24754	503.76	2.35
		95%	1256.16	15.64	35.48	25129	555.12	2.26
		100%	1448.38	15.53	42.91	27272	666.32	2.17
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
