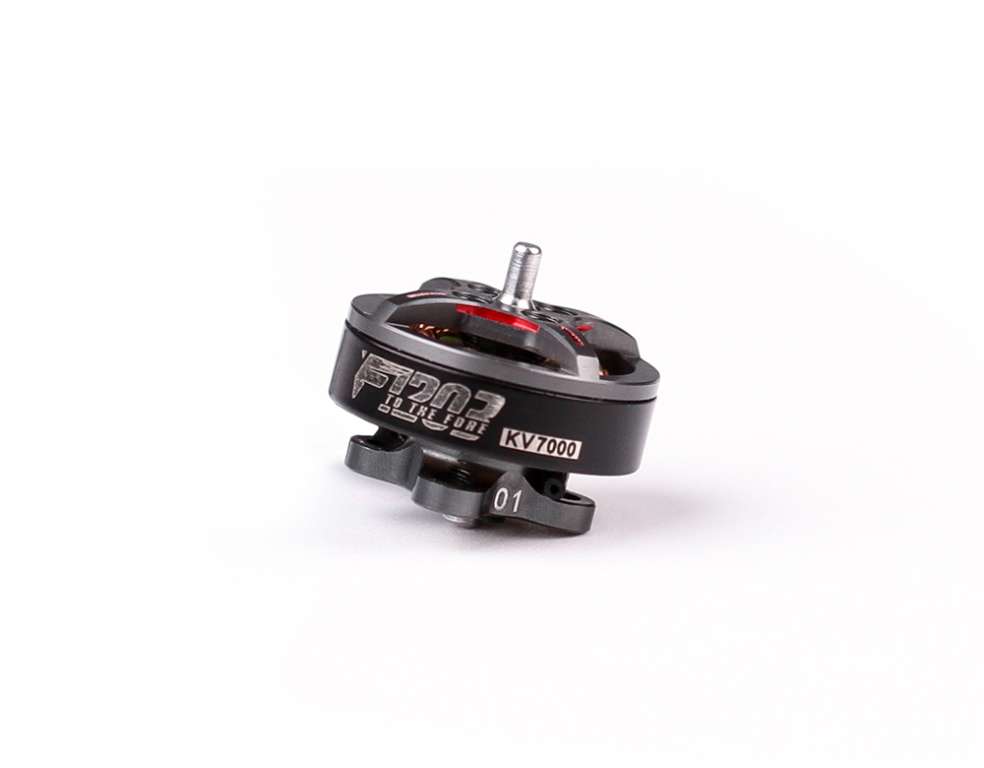

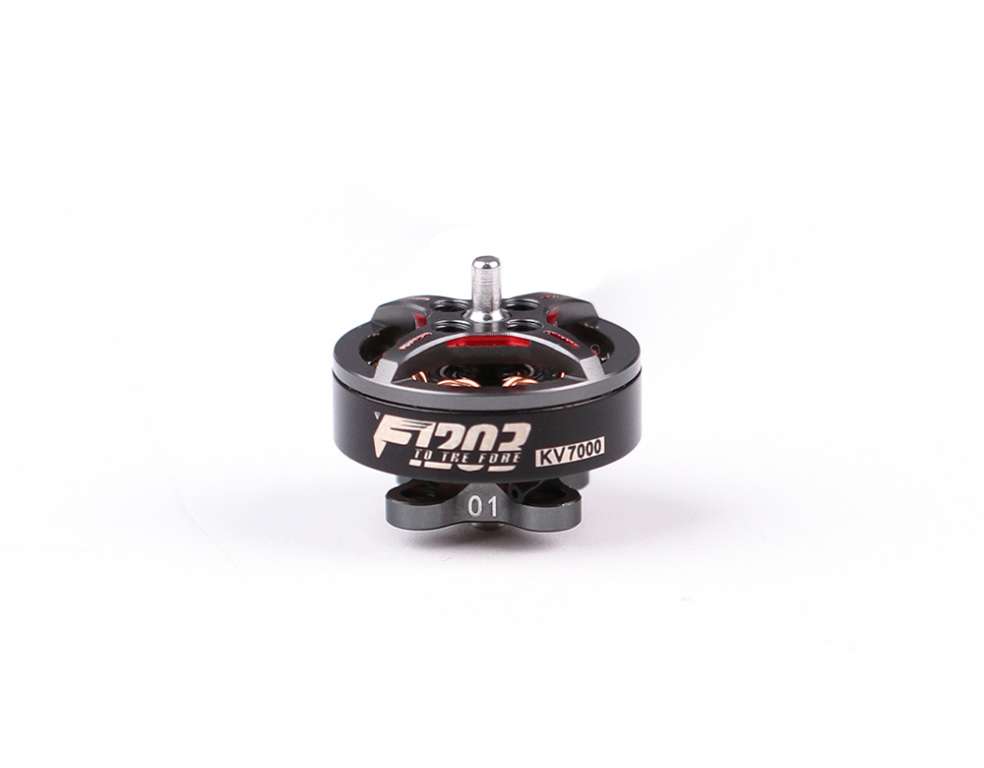

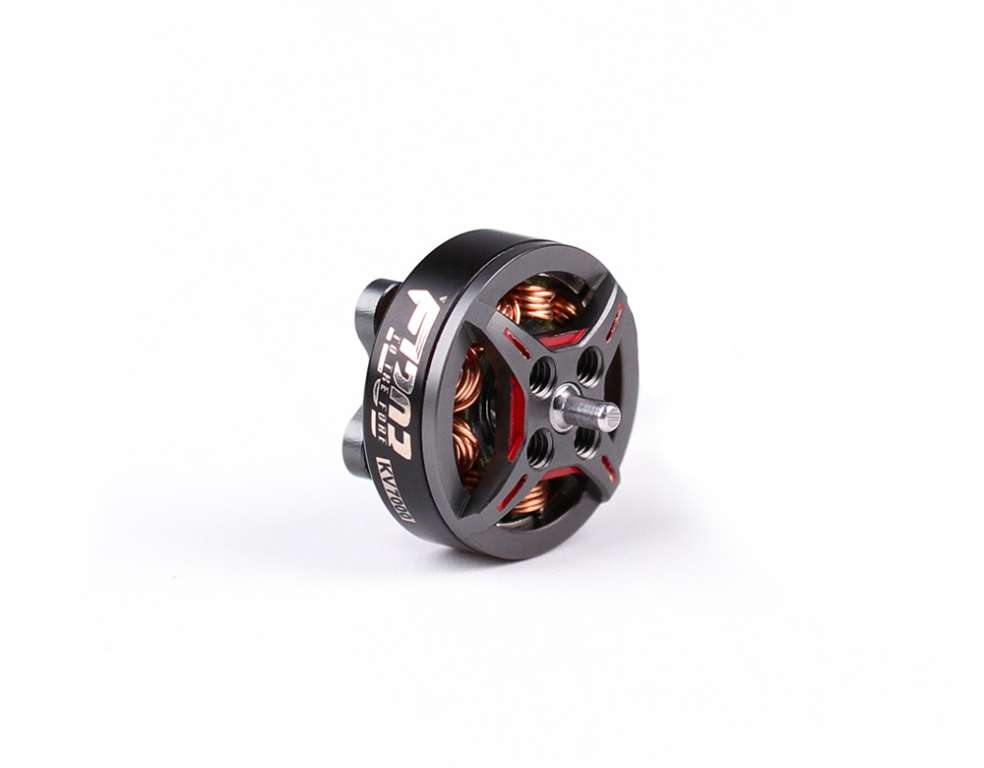

T-HOBBY F1203 Tinywhoop FPV motor 2-3S KV7000 T-Motor

987.04 грн.

Код товара: lgr8

Доставка в течение 2 недель.

About T-HOBBY F1203 2-3 Inch Tinywhoop Drone Motor

Enjoy a smooth flight with the T-HOBBY F1203 7000KV fpv motors.

The F1203 motor has a 1.5mm shaft and comes with a 9x9 mounting pattern so you can have more options for props and frames in the market!

This brushless but powerful motor is suitable for 2-3 inch ultralight quadcopters!

F1203 Hightlight:

The F1203 motor is suitable for 2-3 inch ultra-light toothpick FPV drones. The shaft length is 1.5mm and equipped with 9x9 mounting holes.

It has more prop and frame options on the market. Equipped with a small high-definition camera, the world is in the palm of your hand.

Packing List Includes:

1 x T-HOBBY F1203 7000KV Motor

1 x Screws

Matching Frame:

2-3 Inch Tinywhoop

Matching Guide:

Updating

Technical Drawing

Specification

Test ltem	7000	Configuration	9N12P
Internal Resistance	198mΩ	Motor Dimensions	Φ15.5*14.05mm
Shaft Diameter	2mm	Lead	28# black75mm
Weight (lncl. Cable)	5.25g	Weight (Excl.Cable)	4.45g
Rated Voltage (Lipo)	2~3S	Idle Current (10V)	0.64A
Max. Power (60s)	192W	Peak Current (60s)	10.85A

Test Data

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F1203 KV7000	GF 2023-3	50%	36.36	8.44	2.23	21697	18.82	1.93	52 (Ambient Temperature: 21℃)
		55%	43.87	8.43	2.61	23640	22.00	1.99
		60%	49.55	8.43	3.00	25221	25.29	1.96
		65%	57.27	8.43	3.38	26856	28.49	2.01
		70%	65.68	8.42	3.81	28296	32.08	2.05
		75%	75.09	8.42	4.21	29501	35.45	2.12
		80%	83.24	8.42	4.63	30586	38.98	2.14
		85%	88.78	8.41	5.05	31828	42.47	2.09
		90%	92.80	8.41	5.51	33247	46.34	2.00
		95%	99.08	8.40	6.10	34442	51.24	1.93
		100%	105.40	8.39	6.79	35830	56.97	1.85
	GF 2023-3	50%	58.35	12.62	3.31	27208	41.77	1.40	60 (Ambient Temperature: 21℃)
		55%	72.42	12.62	3.87	29371	48.84	1.48
		60%	82.03	12.61	4.48	31323	56.49	1.45
		65%	90.44	12.60	5.08	33535	64.01	1.41
		70%	100.60	12.60	5.75	35546	72.45	1.39
		75%	107.68	12.59	6.35	37391	79.95	1.35
		80%	120.27	12.58	7.02	39387	88.31	1.36
		85%	131.20	12.57	7.79	41075	97.92	1.34
		90%	141.37	12.56	8.66	42827	108.77	1.30
		95%	149.38	12.55	9.57	44421	120.10	1.24
		100%	157.81	12.55	10.56	45398	132.53	1.19
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
1203 KV7000	GF 2020-4	50%	43.02	8.40	2.39	20298	20.08	2.14	54 (Ambient Temperature: 21℃)
		55%	49.93	8.40	2.78	21861	23.35	2.14
		60%	57.79	8.39	3.19	23605	26.76	2.16
		65%	66.66	8.39	3.63	24973	30.46	2.19
		70%	72.86	8.39	4.03	26319	33.81	2.15
		75%	79.89	8.38	4.43	27533	37.12	2.15
		80%	86.96	8.38	4.84	28588	40.56	2.14
		85%	93.32	8.37	5.30	29890	44.36	2.10
		90%	100.80	8.37	5.83	31204	48.80	2.07
		95%	109.74	8.36	6.44	32341	53.84	2.04
		100%	118.08	8.35	7.16	33777	59.79	1.98
	GF 2020-4	50%	67.86	12.57	3.36	25238	42.24	1.61	67 (Ambient Temperature: 21℃)
		55%	78.57	12.57	3.94	27125	49.53	1.59
		60%	87.95	12.57	4.54	29034	57.07	1.54
		65%	101.04	12.57	5.18	30965	65.11	1.55
		70%	113.09	12.56	5.81	33001	72.97	1.55
		75%	126.72	12.56	6.48	34954	81.39	1.56
		80%	140.76	12.55	7.21	36751	90.49	1.56
		85%	155.92	12.53	8.05	38499	100.87	1.55
		90%	168.19	12.53	8.92	40269	111.77	1.50
		95%	181.88	12.51	9.84	41812	123.10	1.48
		100%	192.57	12.51	10.85	43123	135.73	1.42
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
1203 KV7000	GFD 63-3	50%	62.55	8.40	3.37	15749	28.31	2.21	57 (Ambient Temperature: 21℃)
		55%	70.32	8.40	3.92	16650	32.93	2.14
		60%	77.67	8.40	4.51	17527	37.88	2.05
		65%	86.25	8.39	5.12	18285	42.96	2.01
		70%	94.42	8.38	5.82	19155	48.77	1.94
		75%	103.12	8.37	6.46	19924	54.07	1.91
		80%	109.25	8.37	7.09	20735	59.34	1.84
		85%	116.10	8.35	7.79	21294	65.05	1.78
		90%	122.48	8.34	8.56	22051	71.39	1.72
		95%	130.79	8.34	9.28	22598	77.40	1.69
		100%	138.97	8.38	10.13	23244	84.89	1.64
	G 3018-2	50%	65.51	8.40	2.65	18916	22.26	2.94	62 (Ambient Temperature: 21℃)
		55%	75.25	8.40	3.13	20378	26.29	2.86
		60%	86.78	8.40	3.64	21574	30.58	2.84
		65%	97.67	8.39	4.11	22835	34.48	2.83
		70%	106.02	8.39	4.53	23931	38.01	2.79
		75%	115.10	8.39	4.99	24914	41.87	2.75
		80%	126.63	8.38	5.53	25789	46.34	2.73
		85%	135.60	8.37	6.07	26814	50.81	2.67
		90%	145.85	8.37	6.72	27776	56.25	2.59
		95%	154.59	8.36	7.41	28657	61.95	2.50
		100%	165.51	8.34	8.27	29447	68.97	2.40
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
