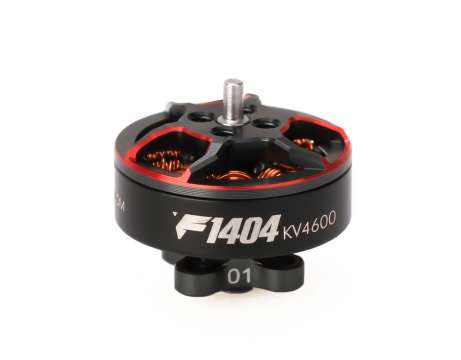

T-HOBBY F1404 Micro Long-range Motor 3-6S KV2900/KV3800/KV4600 T-Motor

1119.53 грн.

Код товара: lgr11

Доставка в течение 2 недель.

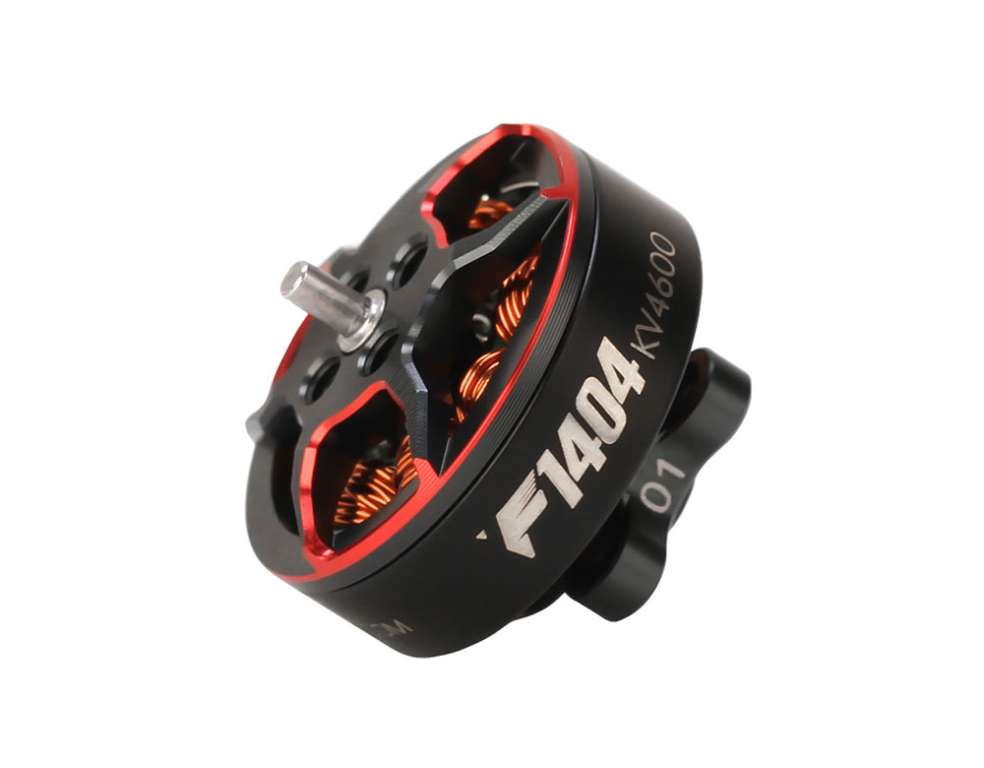

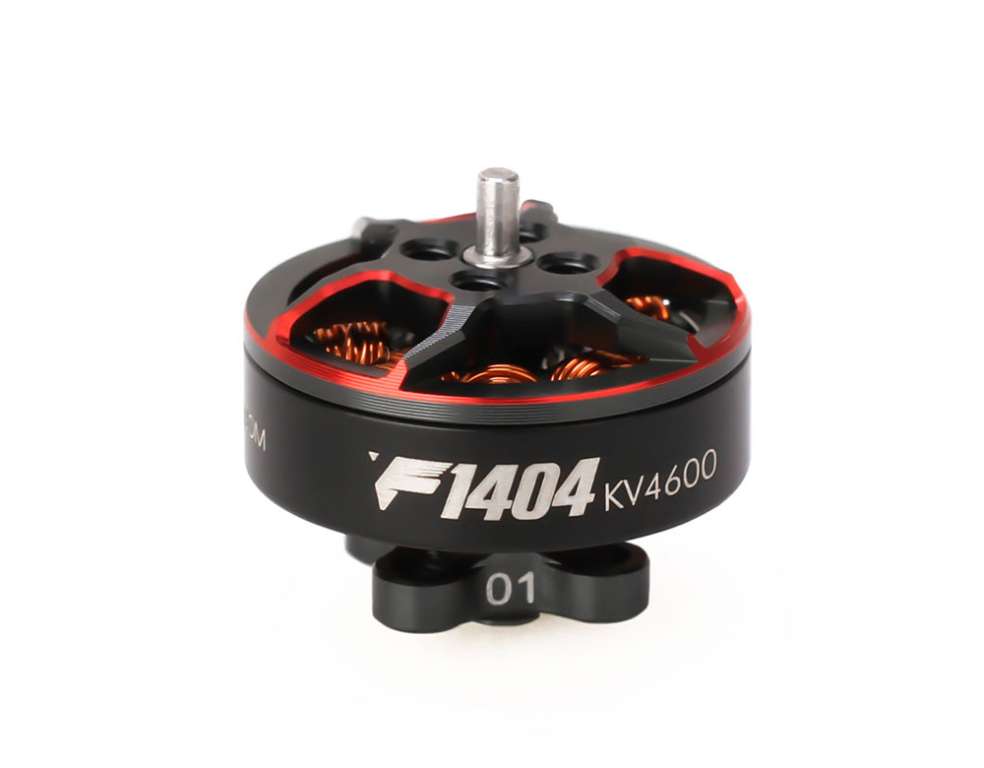

About T-HOBBY F1404 Micro Long-range Motor

Get micro long-range motor with the T-HOBBY F1404 2900KV/3800KV/4600KV Motor!

The F1404 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for 2.5-4 inch fpv builds!

F1404 Hightlight:

F1404 is a micro long-range motor with two KV options of 3800KV/4600KV. The 4600KV is specially designed for racing training and has stable power output.

With an ultra-light design, the 3800KV is suitable for 3-inch long-range freestyle and has a higher efficiency ratio.

The motor features a new sleek design and is made with high-quality components, making it ideal for 2.5-4 inch frames.

Packing List Includes:

1 x T-HOBBY F1404 2900KV/3800kv/4600KV Motor

1 x Parts Bag

Matching Frame:

2.5-4 Inch

Matching Guide:

Updating

Technical Drawing

Specification

Test Item	KV2900	Weight(Incl.Cable)	9.34g
Motor Dimensions	Φ17.9*16.6mm	Internal Resistance	310mΩ
Lead	24#AWG 150mm	Configuration	9N12P
Shaft Diameter	2mm	Rated Voltage(Lipo)	4-6S
Idle Current(10V)	0.4A	Peak Current(60s)	10.45A
Max.Power(60s)	262W

Test Item	KV3800	Weight(Incl.Cable)	9.34g
Motor Dimensions	Φ17.9*16.6mm	Internal Resistance	195mΩ
Lead	24#AWG 150mm	Configuration	9N12P
Shaft Diameter	2mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	0.5A	Peak Current(60s)	19A
Max.Power(60s)	304W

Test Item	KV4600	Weight(Incl.Cable)	9.34g
Motor Dimensions	Φ17.9*16.6mm	Internal Resistance	138mΩ
Lead	24#AWG 150mm	Configuration	9N12P
Shaft Diameter	2mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	0.6A	Peak Current(60s)	20A
Max.Power(60s)	316W

Test Data

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F1404 KV2900	GF 3028-3	50%	101.14	16.79	1.49	18626	25.02	4.04	49.5 (Ambient Temperature:24℃)
		55%	116.37	16.78	1.81	20037	30.37	3.83
		60%	133.92	16.78	2.16	21386	36.24	3.69
		65%	152.76	16.78	2.55	22764	42.79	3.57
		70%	170.61	16.78	3.00	24257	50.34	3.39
		75%	188.96	16.77	3.45	25447	57.86	3.27
		80%	209.26	16.76	3.93	26608	65.87	3.18
		85%	230.60	16.76	4.49	27892	75.25	3.06
		90%	253.06	16.75	5.10	29113	85.43	2.96
		95%	276.26	16.74	5.78	30312	96.76	2.86
		100%	294.98	16.73	6.38	31327	106.74	2.76
	HQ 3520-3	50%	137.20	16.77	1.96	16954	32.87	4.17	52 (Ambient Temperature:24℃)
		55%	158.88	16.77	2.42	18273	40.58	3.91
		60%	181.41	16.76	2.92	19408	48.94	3.71
		65%	201.38	16.76	3.45	20554	57.82	3.48
		70%	225.94	16.75	4.10	21611	68.68	3.29
		75%	250.33	16.74	4.76	22663	79.68	3.14
		80%	272.03	16.73	5.48	23645	91.68	2.97
		85%	291.77	16.72	6.18	24486	103.33	2.82
		90%	310.66	16.72	6.90	25303	115.37	2.69
		95%	332.24	16.70	7.71	26102	128.76	2.58
		100%	350.22	16.69	8.49	26739	141.70	2.47
	GF4023-3	50%	170.51	16.78	2.57	15090	43.12	3.95	56 (Ambient Temperature:24℃)
		55%	194.68	16.77	3.16	16226	52.99	3.67
		60%	217.53	16.76	3.81	17046	63.86	3.41
		65%	239.54	16.76	4.49	17831	75.25	3.18
		70%	260.85	16.75	5.19	18686	86.93	3.00
		75%	282.41	16.74	5.93	19409	99.27	2.84
		80%	304.33	16.73	6.71	19992	112.26	2.71
		85%	321.46	16.72	7.50	20606	125.40	2.56
		90%	337.24	16.71	8.30	21052	138.69	2.43
		95%	350.34	16.70	9.13	21450	152.47	2.30
		100%	361.95	16.70	9.90	21765	165.33	2.19
	GF4024-2	50%	158.42	16.82	2.25	16242	37.85	4.19	58 (Ambient Temperature:24℃)
		55%	184.12	16.82	2.78	17406	46.76	3.94
		60%	210.68	16.81	3.38	18446	56.82	3.71
		65%	236.43	16.81	4.01	19488	67.41	3.51
		70%	262.59	16.80	4.71	20469	79.13	3.32
		75%	289.41	16.79	5.48	21363	92.01	3.15
		80%	313.81	16.78	6.24	22153	104.71	3.00
		85%	336.89	16.77	7.06	22867	118.40	2.85
		90%	357.90	16.75	7.90	23547	132.33	2.70
		95%	377.11	16.74	8.70	24098	145.64	2.59
		100%	393.15	16.74	9.53	24573	159.53	2.46
	GF3028-3	50%	153.69	21.05	2.01	22275	42.31	3.63	60 (Ambient Temperature:24℃)
		55%	180.08	21.04	2.45	24011	51.55	3.49
		60%	207.63	21.04	3.01	25597	63.33	3.28
		65%	226.24	21.03	3.47	27086	72.97	3.10
		70%	250.98	21.02	4.06	28470	85.34	2.94
		75%	276.05	21.02	4.67	29959	98.16	2.81
		80%	305.71	21.01	5.34	31475	112.19	2.72
		85%	334.99	21.00	6.08	32893	127.68	2.62
		90%	363.73	20.99	6.89	34244	144.62	2.52
		95%	386.68	20.98	7.72	35483	161.97	2.39
		100%	413.56	20.97	8.59	36383	180.13	2.30
	HQ3520-3	50%	185.74	21.02	2.67	19884	56.12	3.31	64 (Ambient Temperature:24℃)
		55%	214.21	21.02	3.29	21321	69.16	3.10
		60%	243.77	21.01	4.00	22568	84.04	2.90
		65%	274.35	21.00	4.76	23722	99.96	2.74
		70%	301.01	20.99	5.55	24855	116.49	2.58
		75%	322.66	20.98	6.35	25777	133.22	2.42
		80%	345.46	20.97	7.14	26619	149.73	2.31
		85%	368.79	20.96	7.96	27383	166.84	2.21
		90%	388.26	20.95	8.81	28160	184.57	2.10
95%		408.37	20.94	9.72	28698	203.54	2.01
100%		421.77	20.93	10.57	29036	221.23	1.91
GF3028-3	50%	183.71	25.20	2.51	25035	63.25	2.90	68 (Ambient Temperature:24℃)
	55%	210.96	25.19	3.09	26682	77.84	2.71
	60%	239.65	25.18	3.70	28369	93.17	2.57
	65%	268.22	25.17	4.37	30036	109.99	2.44
	70%	301.44	25.17	5.05	31788	127.11	2.37
	75%	333.89	25.16	5.81	33425	146.18	2.28
	80%	368.79	25.15	6.57	35044	165.24	2.23
	85%	406.59	25.14	7.60	36664	191.06	2.13
	90%	436.56	25.13	8.59	37964	215.87	2.02
	95%	462.43	25.12	9.57	39075	240.40	1.92
	100%	480.22	25.10	10.44	39783	262.04	1.83
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F1404 KV3800	GF3016	50%	158.01	15.96	4.28	22759	68.24	2.32	48 (Ambient Temperature:8℃)
		55%	184.56	15.95	5.37	24844	85.71	2.15
		60%	206.52	15.94	6.54	26555	104.25	1.98
		65%	229.16	15.92	7.73	28392	123.02	1.86
		70%	245.54	15.90	8.91	29967	141.76	1.73
		75%	263.84	15.88	10.14	31502	160.99	1.64
		80%	275.66	15.87	11.20	32843	177.78	1.55
		85%	290.17	15.84	12.31	34148	195.00	1.49
		90%	304.36	15.82	13.49	35355	213.38	1.43
		95%	315.45	15.79	14.74	36507	232.84	1.35
		100%	324.52	15.76	16.19	37705	255.08	1.27
	HQ333	50%	187.04	15.95	5.92	19767	94.41	1.98	45 (Ambient Temperature:8℃)
		55%	214.50	15.92	7.45	21382	118.65	1.81
		60%	232.18	15.90	8.71	22438	138.53	1.68
		65%	248.93	15.88	9.74	23265	154.64	1.61
		70%	259.14	15.87	10.98	23950	174.18	1.49
		75%	269.46	15.84	12.28	24750	194.64	1.38
		80%	278.38	15.82	13.86	25735	219.19	1.27
		85%	282.22	15.79	15.12	26322	238.79	1.18
		90%	291.97	15.76	16.49	26994	259.98	1.12
		95%	294.61	15.73	17.67	27103	277.87	1.06
		100%	301.03	15.70	19.40	27887	304.72	0.99
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F1404 KV4600	GF3016	50%	184.21	15.93	5.23	26532	83.28	2.21	50 (Ambient Temperature:8℃)
		55%	210.22	15.91	6.37	28299	101.26	2.08
		60%	233.36	15.88	7.64	30006	121.40	1.92
		65%	254.72	15.85	8.85	31559	140.28	1.82
		70%	268.50	15.84	10.01	32770	158.49	1.69
		75%	287.60	15.81	11.32	34340	178.95	1.61
		80%	300.59	15.78	12.50	35813	197.32	1.52
		85%	316.02	15.75	13.70	37190	215.83	1.46
		90%	330.89	15.71	14.98	38436	235.41	1.41
		95%	340.24	15.68	16.24	39376	254.54	1.34
		100%	344.73	15.64	17.54	40053	274.32	1.26
	HQ333	50%	207.43	15.93	6.79	21921	108.07	1.92	45 (Ambient Temperature:8℃)
		55%	233.33	15.91	8.32	23260	132.39	1.76
		60%	248.36	15.88	9.53	24001	151.37	1.64
		65%	265.25	15.85	10.59	24791	167.85	1.58
		70%	277.23	15.84	11.96	25622	189.36	1.46
		75%	284.98	15.81	13.20	26175	208.75	1.37
		80%	288.18	15.78	14.55	26641	229.65	1.25
		85%	292.27	15.75	15.87	27260	249.92	1.17
		90%	302.37	15.71	17.29	27956	271.60	1.11
		95%	307.61	15.68	18.65	28299	292.41	1.05
		100%	310.57	15.64	20.23	28771	316.25	0.98
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
