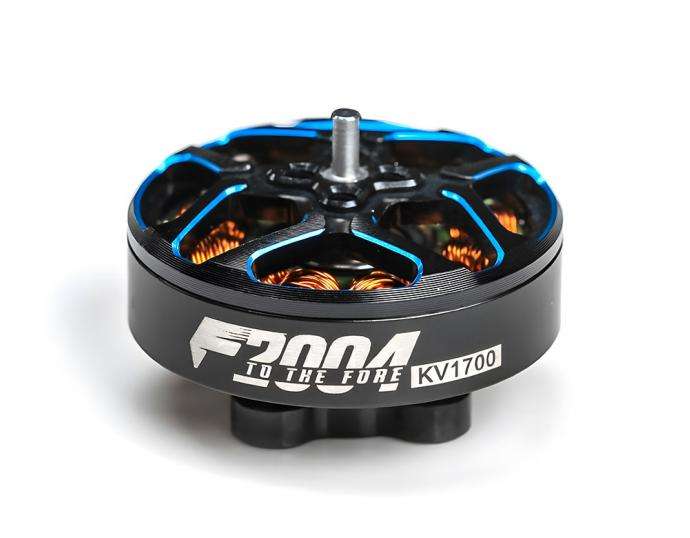

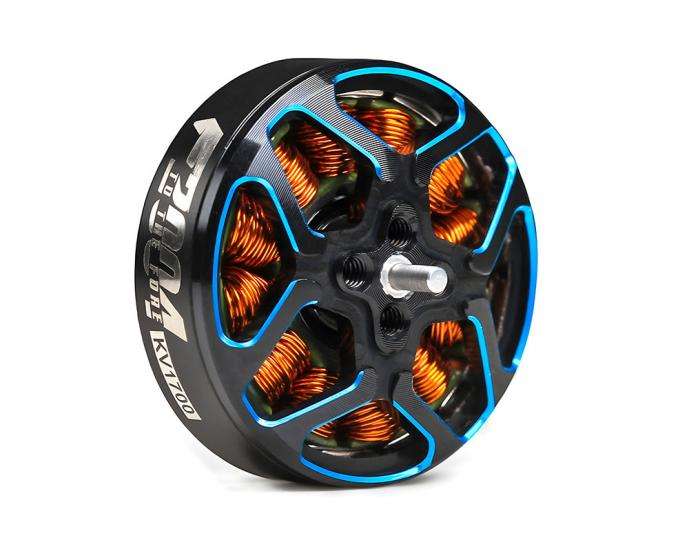

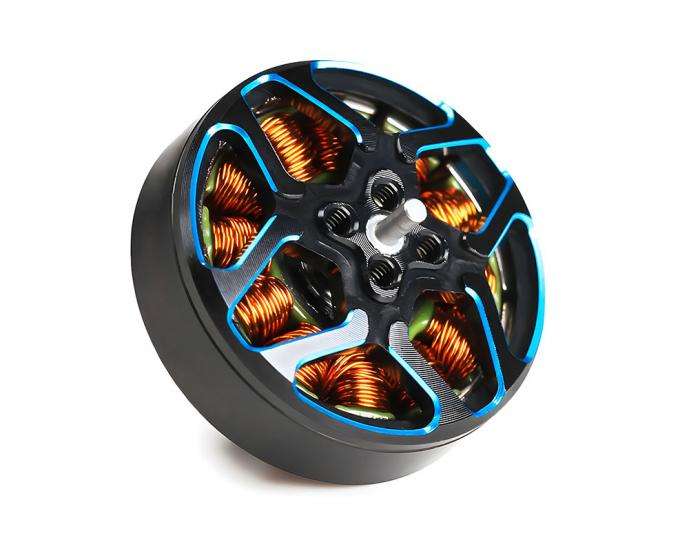

T-HOBBY F2004 FPV 3-5 Inch Cinewhoop Motor 3-6S KV1700/KV3000 T-Motor

1384.51 грн.

Код товара: lgr13

Доставка в течение 2 недель.

About T-HOBBY F2004 Cinewhoop/Cinematic Drone Motor

Get fpv long-range motor with the T-HOBBY F2004 1700KV/3000KV Motor!

The F2004 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game!

Great for freestyle and racing drones, like 3 inch cinewhoops and 4-5 inch quad builds or ultralight drones!

F2004 Hightlight:

Suitable for 3-inch cinewhoop and 4-5 inch toothpick/ultralight drone, made of new appearance and high-quality raw materials.

T-Mount locking propeller design, 1.5mm shaft, small body accumulates a lot of energy, its stable explosive power and good controllability make your flying posture clean and neat.

Packing List Includes:

1 x T-HOBBY F2004 1700KV/3000KV Motor

Matching Frame:

3-5 Inch

Matching Guide:

Mini F7 flight controller

Mini F45A 6s 4in1 ESC

F7 35A Aio flight controller

Technical Drawing

Specification

Test Item	KV1700	Weight(Incl.Cable)	16.4g
Motor Dimensions	Φ24.3*17.25mm	Internal Resistance	221mΩ
Lead	24#AWG 130mm	Configuration	12N14P
Shaft Diameter	3mm	Rated Voltage(Lipo)	6S
Idle Current(10V)	0.38A	Peak Current(60s)	21.2A
Max.Power(60s)	503W

Test Item	KV3000	Weight(Incl.Cable)	16.4g
Motor Dimensions	Φ24.3*17.25mm	Internal Resistance	90mΩ
Lead	24#AWG 130mm	Configuration	12N14P
Shaft Diameter	3mm	Rated Voltage(Lipo)	4-5S
Idle Current(10V)	0.88A	Peak Current(60s)	30.1A
Max.Power(60s)	460W

Test Data

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F2004 KV1700	GF4023	50%	224.70	23.98	2.38	20595	57.13	3.93	65 (Ambient Temperature: 8℃)
		55%	269.47	23.97	3.25	22734	77.92	3.46
		60%	321.74	23.95	4.29	24683	102.83	3.13
		65%	381.72	23.94	5.34	26569	127.87	2.99
		70%	424.27	23.92	6.15	28055	147.05	2.89
		75%	493.59	23.90	7.71	29998	184.17	2.68
		80%	555.63	23.87	9.27	31890	221.31	2.51
		85%	608.12	23.85	10.66	33052	254.29	2.39
		90%	650.62	23.83	12.03	34274	286.57	2.27
		95%	701.11	23.80	14.06	35525	334.66	2.09
		100%	857.41	23.77	18.19	39541	432.37	1.98
	GT5125	50%	309.73	23.95	3.35	18454	80.19	3.86	67 (Ambient Temperature: 8℃)
		55%	371.42	23.93	4.45	20267	106.47	3.49
		60%	428.96	23.91	5.61	21758	134.06	3.20
		65%	495.36	23.88	6.91	23402	165.07	3.00
		70%	558.66	23.83	8.28	24385	197.34	2.83
		75%	614.19	23.81	9.78	25736	232.95	2.64
		80%	664.74	23.79	11.14	26889	265.05	2.51
		85%	712.35	23.77	12.82	27590	304.63	2.34
		90%	750.23	23.73	14.52	28461	344.55	2.18
		95%	794.03	23.69	16.73	29201	396.41	2.00
		100%	929.72	23.67	20.63	32253	488.25	1.90
	T4944	50%	334.53	23.95	3.63	18204	87.03	3.84	69 (Ambient Temperature: 8℃)
		55%	390.41	23.92	4.74	19980	113.48	3.44
		60%	447.47	23.91	5.86	21283	140.01	3.20
		65%	509.13	23.88	7.08	22793	169.04	3.01
		70%	570.09	23.84	8.41	23838	200.53	2.84
		75%	628.69	23.82	10.02	25281	238.59	2.64
		80%	681.82	23.79	11.48	26230	273.09	2.50
		85%	725.17	23.77	13.10	26936	311.45	2.33
		90%	765.52	23.73	14.83	27897	351.92	2.18
		95%	803.27	23.70	17.02	28334	403.23	1.99
		100%	945.44	23.66	21.27	31604	503.10	1.88
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F2004 KV3000	GF D76	50%	252.92	15.86	5.45	22447	86.49	2.92	63 (Ambient Temperature: 8℃)
		55%	293.93	15.82	6.99	24355	110.54	2.66
		60%	336.20	15.79	8.38	26029	132.38	2.54
		65%	379.70	15.77	9.55	27551	150.51	2.52
		70%	420.14	15.72	10.96	28769	172.32	2.44
		75%	479.02	15.68	13.03	30393	204.32	2.34
		80%	527.04	15.65	14.96	32003	234.14	2.25
		85%	574.19	15.59	17.12	33236	266.99	2.15
		90%	604.76	15.56	18.88	34462	293.68	2.06
		95%	649.57	15.49	21.62	35367	334.93	1.94
		100%	794.52	15.43	26.55	39050	409.71	1.94
	GF4023	50%	281.13	15.91	4.94	23132	78.51	3.58	68 (Ambient Temperature: 8℃)
		55%	330.10	15.87	6.34	25157	100.58	3.28
		60%	382.64	15.84	7.73	26865	122.42	3.13
		65%	440.47	15.80	9.12	28595	144.21	3.05
		70%	479.70	15.78	10.41	29886	164.21	2.92
		75%	544.83	15.74	12.36	31568	194.60	2.80
		80%	609.44	15.69	14.45	33319	226.77	2.69
		85%	650.18	15.66	16.19	34186	253.48	2.57
		90%	695.66	15.61	18.29	35738	285.51	2.44
		95%	737.42	15.57	20.73	36583	322.66	2.29
		100%	890.03	15.51	25.46	40309	394.93	2.25
	GF5125	50%	347.95	15.84	6.29	19417	99.63	3.49	72 (Ambient Temperature: 8℃)
		55%	403.42	15.79	7.93	21091	125.27	3.22
		60%	486.64	15.73	10.48	23039	164.83	2.95
		65%	554.75	15.63	13.57	24401	212.01	2.62
		70%	587.89	15.58	15.10	24912	235.35	2.50
		75%	625.25	15.60	15.61	25811	243.56	2.57
		80%	673.25	15.57	17.31	26954	269.45	2.50
		85%	723.05	15.51	19.55	27723	303.19	2.38
		90%	766.25	15.45	22.14	28811	341.91	2.24
		95%	804.38	15.38	25.01	29351	384.81	2.09
		100%	951.24	15.32	29.85	32718	457.20	2.08
	T76	50%	214.40	15.90	3.99	24197	63.40	3.38	61 (Ambient Temperature: 8℃)
		55%	261.45	15.87	5.26	26703	83.43	3.13
		60%	308.73	15.84	6.57	28691	104.01	2.97
		65%	355.65	15.82	7.84	30906	123.94	2.87
		70%	391.56	15.79	9.00	32212	142.00	2.76
		75%	450.25	15.76	10.64	34389	167.70	2.68
		80%	504.09	15.72	12.38	36039	194.74	2.59
		85%	548.46	15.68	14.17	37332	222.26	2.47
		90%	587.94	15.64	15.97	38846	249.85	2.35
		95%	627.19	15.60	18.29	40088	285.37	2.20
		100%	767.72	15.56	22.61	43870	351.87	2.18
	T4944	50%	365.46	15.82	6.69	18922	105.84	3.45	71 (Ambient Temperature: 8℃)
		55%	403.59	15.79	7.94	20147	125.30	3.22
		60%	476.12	15.73	10.11	21861	159.02	2.99
		65%	564.70	15.64	13.03	23849	203.88	2.77
		70%	599.67	15.57	15.28	24434	237.87	2.52
		75%	638.39	15.56	16.29	25440	253.50	2.52
		80%	680.47	15.55	17.63	26323	274.12	2.48
		85%	722.42	15.49	19.67	26952	304.65	2.37
		90%	761.90	15.43	22.23	27823	342.86	2.22
		95%	800.62	15.36	25.09	28427	385.38	2.08
		100%	946.11	15.29	30.12	31723	460.51	2.05
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
