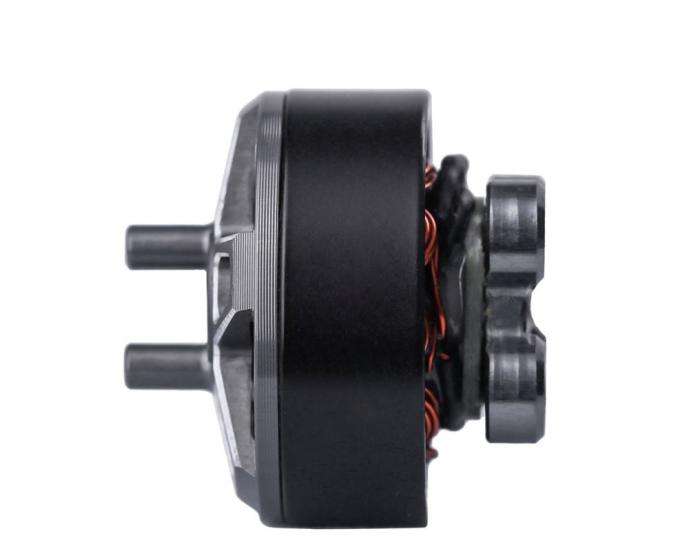

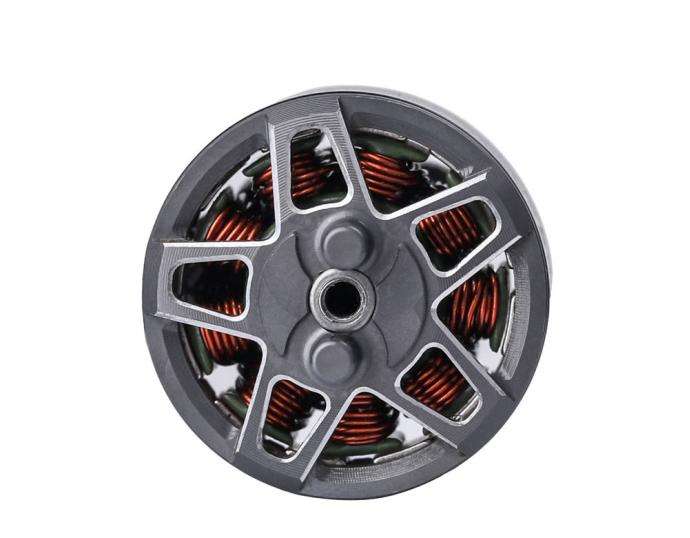

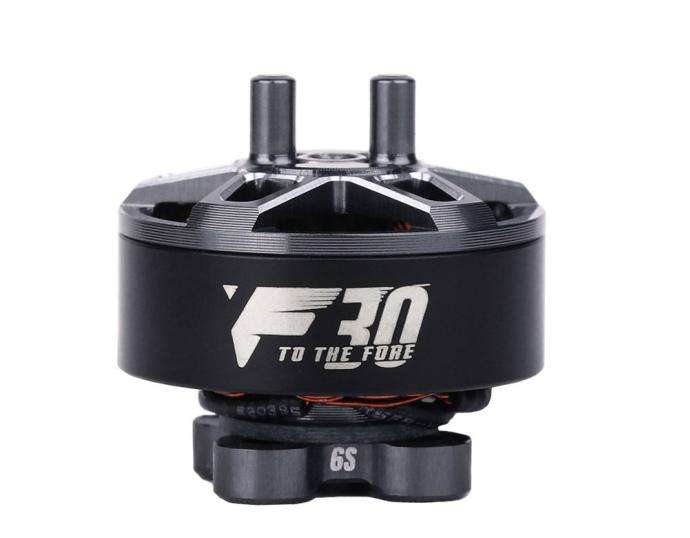

T-HOBBY F30 3/4/6S 3'' Racing Motor with Max. Thrust of 300g T-Motor

5027.96 грн.

Купить

Рассрочка online

Нашли дешевле?
Получите цену ниже!

Код товара: lgr16

Доставка в течение 2 недель.

POWERFUL
NEW RACING BENCHMARK

RAPID RESPONSE,
EFFORTLESS CONTROL

RELIABLE AND DURABLE

INNOVATIVE DESIGN
TO DIVERSE NEEDS

Technical Drawing

Specification

Type	F30	Motor Dimension	Φ17.9*17.4mm
Magnet	Nickel plated arc magnet	Coil insulation test	300V withstand voltage test
Waterproof anddustproof class	/	Configuration	9N12P
Dynamic balancerequirements standards	≤5Mg	Bearings	Imported MR63ZZ
Shaft Diameter	2mm	Lead	20AWG*150mm
Screw Diameter	Φ9-M2-4	Prop Adapter Shaft Thread	Φ5-Φ2mm-shaft
Packing Size	Φ68*35.0mm	Packing Weight	70g

Tech Specs
KV/Recommended Voltage	6S	Idle Current(10V)	0.62A
Max Power(1s)	273W	Internal Resistance	268mΩ
Rated Voltage (Lipo)	24V	Peak Current(1s)	11A
Max Thrust	432g	Weight (incl.cable)	9.8g

KV/Recommended Voltage	4S	Idle Current(10V)	0.8A
Max Power(1s)	205W	Internal Resistance	152mΩ
Rated Voltage (Lipo)	16V	Peak Current(1s)	13A
Max Thrust	351g	Weight (incl.cable)	9.8g

KV/Recommended Voltage	3S	Idle Current(10V)	0.99A
Max Power(1s)	176W	Internal Resistance	112mΩ
Rated Voltage (Lipo)	12V	Peak Current(1s)	15A
Max Thrust	312g	Weight (incl.cable)	9.8g

Recommended
Motor	T-HOBBY F30 6S*4PCS	Frame Type	X4
Prop	GF3020/HQ3018-3	Lipo Cells	6S
ESC	T-HOBBY F7 AIO 6S 35A	Recommended takeoff weight range	Within 150g
FC	T-HOBBY F7 AIO 6S 35A	Max Takeoff Weight	500g

Motor	T-HOBBY F30 4S*4PCS	Frame Type	X4
Prop	GF3020/HQ3018-3	Lipo Cells	4S
ESC	T-HOBBY F4 AIO 4S 20A	Recommended takeoff weight range	Within 150g
FC	T-HOBBY F4 AIO 4S 20A	Max Takeoff Weight	500g

Motor	T-HOBBY F30 3S*4PCS	Frame Type	X4
Prop	GF3020/HQ3018-3	Lipo Cells	3S
ESC	T-HOBBY F4 AIO 4S 20A	Recommended takeoff weight range	Within 150g
FC	T-HOBBY F4 AIO 4S 20A	Max Takeoff Weight	500g

Test Data

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
F30 6S	GF 3020-3	24.01	10%	0.16	7136	6	4	1.52	0.00	93.3 (Ambient temperature: 24℃)
		24.01	20%	0.47	13737	27	11	2.38	0.00
		24.00	30%	0.98	19502	60	23	2.55	0.01
		23.99	40%	1.75	25231	105	42	2.50	0.01
		23.98	50%	2.81	30462	152	67	2.26	0.01
		23.96	60%	3.94	34487	201	94	2.13	0.02
		23.94	70%	5.46	38472	266	131	2.04	0.02
		23.91	80%	7.16	42344	321	171	1.88	0.03
		23.88	90%	9.21	45523	380	220	1.73	0.03
		23.85	100%	11.48	48180	433	274	1.58	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 6S	HQ 3018-3	24.01	10%	0.15	7173	5	4	1.30	0.00	82.6 (Ambient temperature: 24℃)
		24.01	20%	0.45	13841	22	11	2.07	0.00
		24.00	30%	0.92	20076	53	22	2.38	0.00
		23.99	40%	1.62	25860	92	39	2.38	0.01
		23.98	50%	2.55	30918	135	61	2.21	0.01
		23.96	60%	3.65	35421	185	87	2.12	0.01
		23.94	70%	4.99	39910	241	119	2.01	0.02
		23.92	80%	6.58	43881	296	157	1.88	0.02
		23.89	90%	8.43	47697	351	201	1.74	0.03
		23.86	100%	10.56	50785	406	252	1.61	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 6S	GF 3016-3	24.01	10%	0.15	7137	5	4	1.48	0.00	85.2 (Ambient temperature: 24℃)
		24.01	20%	0.44	13733	25	11	2.41	0.00
		24.00	30%	0.93	19955	57	22	2.55	0.00
		23.98	40%	1.65	25713	98	40	2.47	0.01
		23.98	50%	2.63	30741	143	63	2.28	0.01
		23.96	60%	3.67	35160	190	88	2.16	0.01
		23.94	70%	4.91	38999	239	118	2.03	0.02
		23.91	80%	6.75	43415	304	161	1.88	0.02
		23.89	90%	8.70	46836	359	208	1.72	0.03
		23.86	100%	10.83	49919	408	258	1.58	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 4S	GF 3020-3	16.03	10%	0.21	6547	5	3	1.63	0.00	67.3 (Ambient temperature: 24℃)
		16.02	20%	0.57	12464	20	9	2.25	0.00
		16.00	30%	1.17	18172	46	19	2.45	0.00
		15.98	40%	2.06	23322	80	33	2.42	0.01
		15.95	50%	3.28	28089	121	52	2.31	0.01
		15.92	60%	4.61	31720	159	73	2.17	0.01
		15.88	70%	6.22	35507	206	99	2.09	0.02
		15.82	80%	8.35	39021	258	132	1.95	0.02
		15.77	90%	10.48	42020	305	165	1.85	0.03
		15.70	100%	13.08	44782	351	205	1.71	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 4S	HQ 3018-3	16.03	10%	0.19	6557	4	3	1.20	0.00	61.5 (Ambient temperature: 24℃)
		16.02	20%	0.54	12565	17	9	1.94	0.00
		16.01	30%	1.11	18302	40	18	2.23	0.00
		15.99	40%	1.93	23665	70	31	2.27	0.01
		15.96	50%	3.02	28598	107	48	2.22	0.01
		15.93	60%	4.24	32520	142	67	2.11	0.01
		15.89	70%	5.69	36717	185	90	2.05	0.02
		15.85	80%	7.41	40340	228	117	1.94	0.02
		15.79	90%	9.51	43909	275	150	1.83	0.02
		15.73	100%	11.94	47016	319	188	1.70	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 4S	GF 3016-3	16.03	10%	0.20	6418	4	3	1.13	0.00	60.6 (Ambient temperature: 24℃)
		16.02	20%	0.58	12257	19	9	2.03	0.00
		16.00	30%	1.18	17833	44	19	2.33	0.00
		15.99	40%	2.00	22997	75	32	2.37	0.01
		15.96	50%	3.08	27761	113	49	2.30	0.01
		15.92	60%	4.36	31613	148	69	2.13	0.01
		15.89	70%	5.76	35485	190	92	2.08	0.02
		15.84	80%	7.61	39037	234	121	1.95	0.02
		15.78	90%	9.85	42767	286	155	1.84	0.02
		15.72	100%	12.10	45173	322	190	1.69	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 3S	GF 3020-3	12.02	10%	0.24	6355	4	3	1.49	0.00	58.4 (Ambient temperature: 24℃)
		12.01	20%	0.67	12117	18	8	2.25	0.00
		11.99	30%	1.42	17432	42	17	2.47	0.00
		11.96	40%	2.47	22387	73	30	2.47	0.01
		11.93	50%	3.84	26873	109	46	2.38	0.01
		11.89	60%	5.45	30433	145	65	2.23	0.01
		11.84	70%	7.28	33948	185	86	2.15	0.02
		11.78	80%	9.50	37154	226	112	2.02	0.02
		11.72	90%	12.12	40194	269	142	1.89	0.02
		11.64	100%	15.18	42781	313	177	1.77	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 3S	HQ 3018-3	12.02	10%	0.24	6375	4	3	1.44	0.00	55.3 (Ambient temperature: 24℃)
		12.01	20%	0.65	12224	17	8	2.10	0.00
		11.99	30%	1.33	17710	38	16	2.36	0.00
		11.97	40%	2.32	22780	65	28	2.36	0.01
		11.93	50%	3.59	27495	99	43	2.30	0.01
		11.90	60%	5.02	31279	130	60	2.18	0.01
		11.86	70%	6.71	35113	168	80	2.12	0.01
		11.80	80%	8.71	38503	206	103	2.00	0.02
		11.74	90%	11.12	41847	247	131	1.89	0.02
		11.67	100%	13.92	44830	287	162	1.77	0.02
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 3S	GF 3016-3	12.02	10%	0.24	6395	5	3	1.84	0.00	51.4 (Ambient temperature: 34.5℃)
		12.01	20%	0.68	12240	19	8	2.38	0.00
		11.99	30%	1.39	17646	43	17	2.59	0.00
		11.96	40%	2.42	22752	74	29	2.55	0.01
		11.93	50%	3.75	27245	110	45	2.46	0.01
		11.89	60%	5.23	30898	144	62	2.32	0.01
		11.85	70%	6.99	34646	183	83	2.21	0.01
		11.79	80%	9.11	37939	225	107	2.09	0.02
		11.73	90%	11.62	41156	265	136	1.94	0.02
		11.66	100%	14.52	43946	306	169	1.81	0.02
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

Analysis Chart

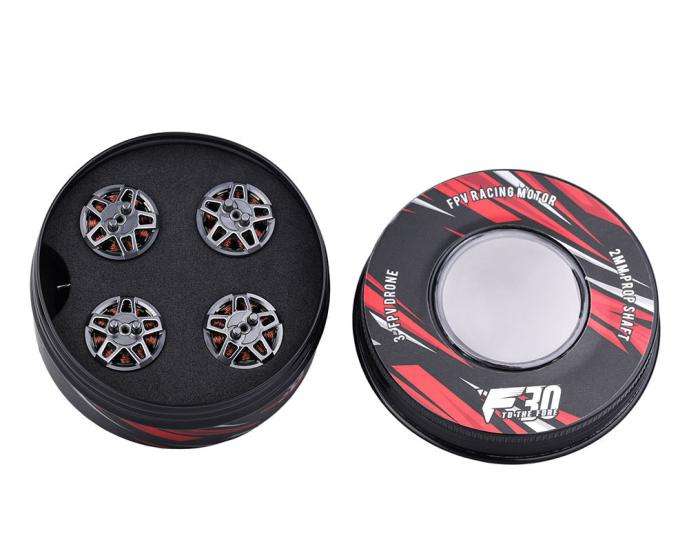

Packing List

Производитель:

Ligpower
