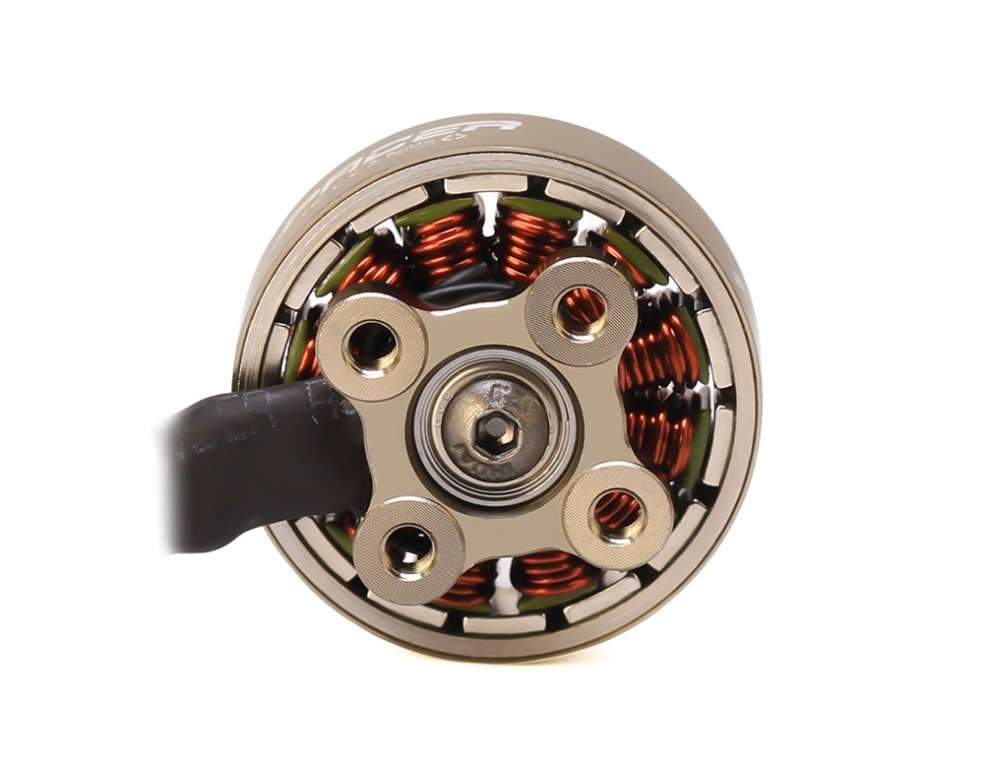

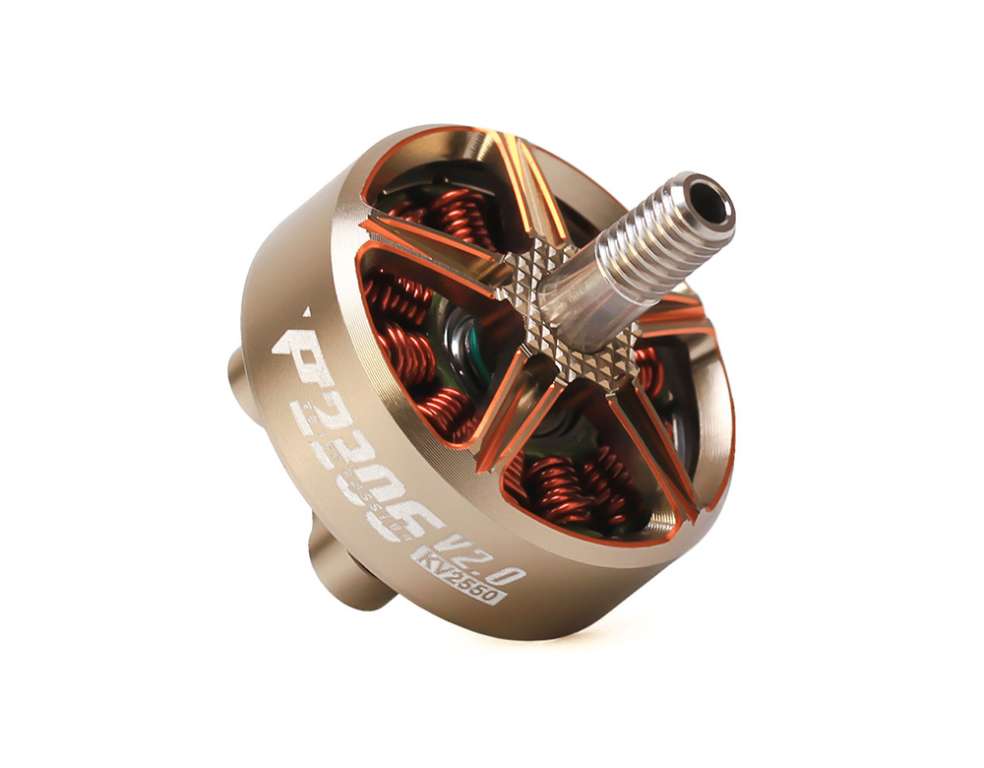

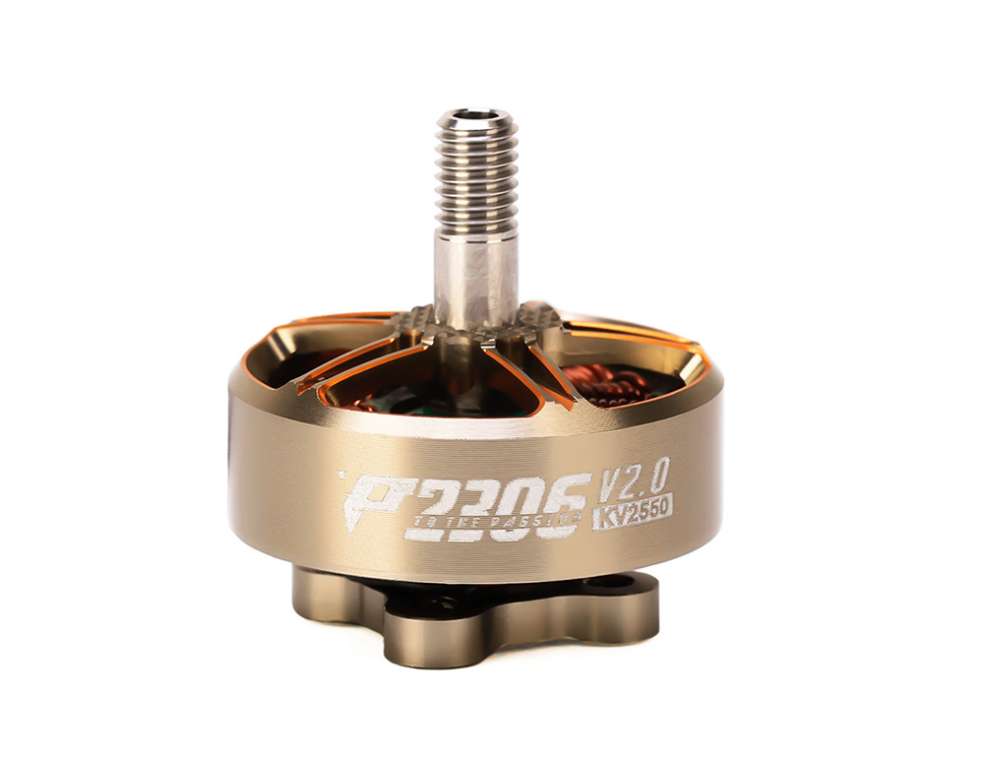

T-HOBBY PACER V2 P2306 Powerful Freestyle Motor KV1950/KV2550 T-Motor

1450.76 грн.

Код товара: lgr22

Доставка в течение 2 недель.

About T-HOBBY P2306 V2 5" FPV Freestyle Motor

The Pacer motors have become one of the most popular motors in the market, so T-HOBBY has updated and upgraded their motor to V2!

The 2306 version of the Pacer V2 is smoother than the P2207 and features a lower throttle to give your freestyle quadcopter a smooth and stable feel. Excellent motor when flying close to objects!

P2306 V2 Hightlight:

The Pacer 2306 V2 brushless motor is suitable for 5" freestyle drone. The motor uses the single winding design and titanium shaft, unibell design, making the motor more durable.

Suitable freestyle movements: knife edge gaps, hit gaps, orbit etc. Have two KV can choose: 1950KV for 6S and 2550KV for 4S

Packing List Includes:

1xT-HOBBY PACER V2 P2306 Powerful Freestyle 1950KV/2550KV Motor

1x Hardware Set

Matching Frame:

5 Inch

Matching Guide:

F55A PROⅡ 6S 4IN1

F7 flight controller / Pacer F7 flight controller

P49436 Propeller / T5143s Propeller

Technical Drawing

Specification

Test Item	1950	Configuration	12N14P
Internal	63mΩ	Motor Dimensions	Φ28.6*30mm
Shaft Diameter	4mm	Lead	20#150mm
Weight (Incl. Cable)	31.7g	Weight (Excl.Cable)	28.4g
Rated Voltage(Lipo)	5~6S	Idle Current(10V)	1.25A
Max. Power(60s)	949W	Peak Current(60s)	39.7A

Test Item	2550	Configuration	12N14P
Internal	43mΩ	Motor Dimensions	Φ28.6*30mm
Shaft Diameter	4mm	Lead	20#150mm
Weight (Incl. Cable)	31.7g	Weight (Excl.Cable)	28.4g
Rated Voltage(Lipo)	4~6S	Idle Current(10V)	2.05A
Max. Power(60s)	628W	Peak Current(60s)	40A

Test Data

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
P2207V2 KV1950	T5143S	50%	622.6	25.05	8.64	20207	216.4	2.88	84 (Ambient Temperature:8℃)
		55%	740.69	25.06	10.93	21847	273.74	2.71
		60%	851.82	25.01	13.39	23325	334.74	2.54
		65%	959.86	24.95	16.03	24662	400.02	2.4
		70%	1059.47	24.9	18.59	25796	462.81	2.29
		75%	1151.16	24.84	21.23	26803	527.28	2.18
		80%	1231.86	24.78	23.89	27663	592.04	2.08
		85%	1330.92	24.71	27.03	28616	668.08	1.99
		90%	1413.62	24.65	30.06	29605	741.08	1.91
		95%	1487.12	24.58	33.4	30172	820.98	1.81
		100%	1560.25	24.51	36.83	31003	902.84	1.73
	T5146	50%	730.61	24.7	9.4	19575	232.17	3.15	89 (Ambient Temperature:8℃)
		55%	859.07	24.66	11.85	21110	292.19	2.94
		60%	982.82	24.6	14.58	22560	358.64	2.74
		65%	1097.01	24.55	17.21	23711	422.53	2.6
		70%	1211.5	24.49	20.14	24915	493.13	2.46
		75%	1315.11	24.43	23.09	25659	564.03	2.33
		80%	1393.37	24.37	25.8	26478	628.98	2.22
		85%	1487.36	24.32	28.7	27168	697.87	2.13
		90%	1578.96	24.25	32.02	28268	776.32	2.03
		95%	1615.64	24.18	35.43	28943	856.46	1.89
		100%	1668.62	24.11	38.56	29569	929.61	1.79
	T5147	50%	721.43	24.5	9.78	19321	239.64	3.01	90 (Ambient Temperature:8℃)
		55%	844.61	24.45	12.2	20763	298.32	2.83
		60%	976.07	24.4	15.04	22105	366.97	2.66
		65%	1099.59	24.34	17.93	23217	436.53	2.52
		70%	1212.45	24.28	20.91	24449	507.73	2.39
		75%	1311.84	24.22	23.63	25285	572.2	2.29
		80%	1409.9	24.15	26.99	26090	651.92	2.16
		85%	1477.04	24.1	29.47	26567	710.08	2.08
		90%	1577.14	24.03	32.83	27431	788.83	2
		95%	1654.09	23.96	36.49	28022	874.11	1.89
		100%	1700.98	23.89	39.76	28587	949.94	1.79
	T4943	50%	526.43	24.27	6.22	20571	150.99	3.49	84 (Ambient Temperature:8℃)
		55%	649.61	24.22	8.64	22013	209.28	3.1
		60%	781.07	24.17	11.48	23355	277.47	2.82
		65%	904.59	24.11	14.37	24467	346.56	2.61
		70%	1017.45	24.05	17.35	25699	417.31	2.44
		75%	1116.84	23.99	20.07	26535	481.37	2.32
		80%	1214.9	23.92	23.43	27340	560.55	2.17
		85%	1282.04	23.87	25.91	27817	618.33	2.07
		90%	1382.14	23.8	29.27	28681	696.55	1.98
		95%	1459.09	23.73	32.93	29272	781.25	1.87
		100%	1505.98	23.66	36.2	29837	856.57	1.76
P2207V2 KV2550	T5143S	50%	430.77	15.43	8.28	16721	127.7	3.37	85 (Ambient Temperature:8℃)
		55%	530.06	15.84	10.61	18426	168.12	3.15
		60%	613.08	15.82	12.83	19648	202.95	3.02
		65%	701.6	15.77	15.35	20874	242.14	2.9
		70%	782.98	15.72	18	22015	282.89	2.77
		75%	863.91	15.66	20.95	23106	327.95	2.63
		80%	933.49	15.6	23.88	23985	372.54	2.51
		85%	993.39	15.55	26.5	24689	412.08	2.41
		90%	1064.03	15.49	29.28	25555	453.6	2.35
		95%	1136.68	15.42	32.72	26297	504.57	2.25
		100%	1206.98	15.34	36.39	27200	558.35	2.16
	T5146	50%	504.39	15.41	9.11	17023	140.49	3.59	87 (Ambient Temperature:8℃)
		55%	605.12	15.62	11.43	18501	178.54	3.39
		60%	687.12	15.58	13.78	19611	214.75	3.2
		65%	773.47	15.53	16.34	20736	253.84	3.05
		70%	867.28	15.47	19.2	21720	296.97	2.92
		75%	959.02	15.41	22.35	22781	344.3	2.79
		80%	1041.67	15.34	25.54	23596	391.76	2.66
		85%	1109.85	15.27	28.63	24382	437.24	2.54
		90%	1183.57	15.22	31.5	25037	479.25	2.47
		95%	1259.3	15.15	34.71	25787	525.82	2.39
		100%	1330.38	15.06	38.59	26403	581.23	2.29
	T5147	50%	534.8	16.22	10.04	16781	162.87	3.28	89 (Ambient Temperature:8℃)
		55%	627.49	16.28	12.37	18077	201.28	3.12
		60%	712.09	16.23	14.89	19230	241.76	2.95
		65%	793.49	16.19	17.44	20174	282.26	2.81
		70%	888.02	16.12	20.42	21352	329.12	2.7
		75%	976.65	16.06	23.31	22243	374.34	2.61
		80%	1066.86	15.99	26.83	23075	429.07	2.49
		85%	1140.92	15.92	30.09	23724	479.09	2.38
		90%	1202.1	15.86	33.04	24387	524.01	2.29
		95%	1270.58	15.79	36.24	24822	572.25	2.22
		100%	1350.85	15.71	40.02	25489	628.65	2.15
	T4943	50%	339.8	16.01	10.15	16902	162.52	2.09	82 (Ambient Temperature:8℃)
		55%	432.49	16.07	12.48	18198	200.45	2.16
		60%	517.09	16.02	15	19351	240.4	2.15
		65%	598.49	15.98	17.55	20295	280.36	2.13
		70%	693.02	15.91	20.53	21473	326.59	2.12
		75%	781.65	15.85	23.42	22364	371.19	2.11
		80%	871.86	15.78	26.94	23196	425.17	2.05
		85%	945.92	15.71	30.2	23845	474.49	1.99
		90%	1007.1	15.65	33.15	24508	518.8	1.94
		95%	1075.58	15.58	36.35	24943	566.35	1.9
		100%	1155.85	15.5	40.13	25610	621.96	1.86
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
