T-HOBBY Мотор для дрона V2207.5 V2 5" FPV Freestyle&Racing 4-6S KV1750/1950/2550 T-Motor

1159.28 грн.

Код товара: lgr29

Доставка в течение 2 недель.

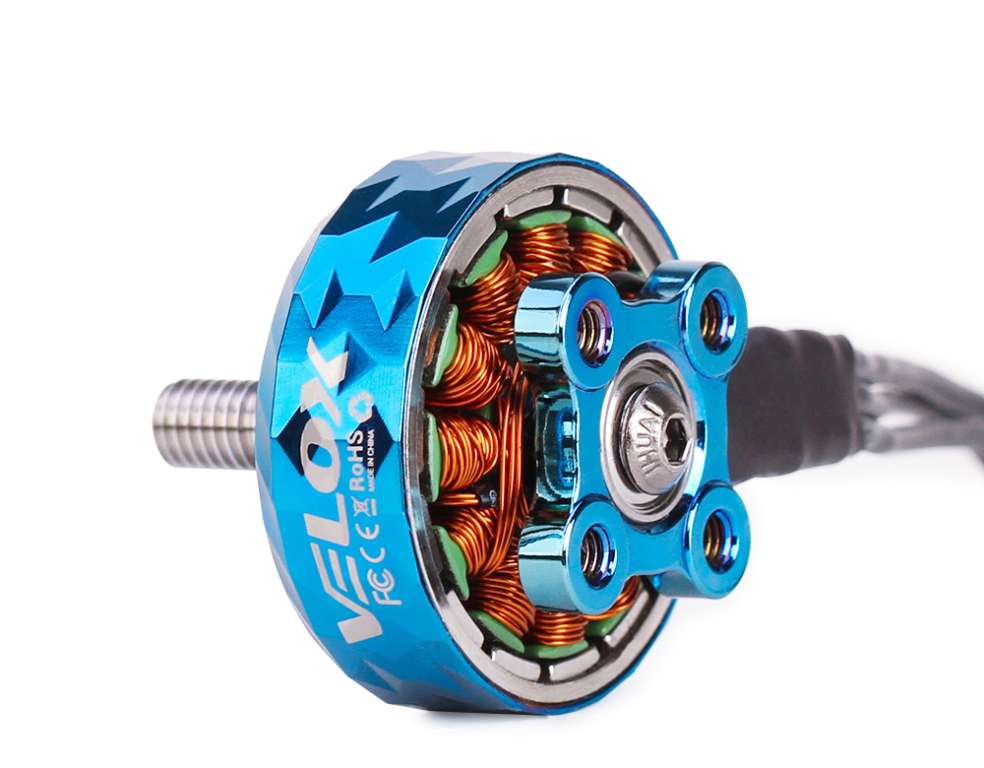

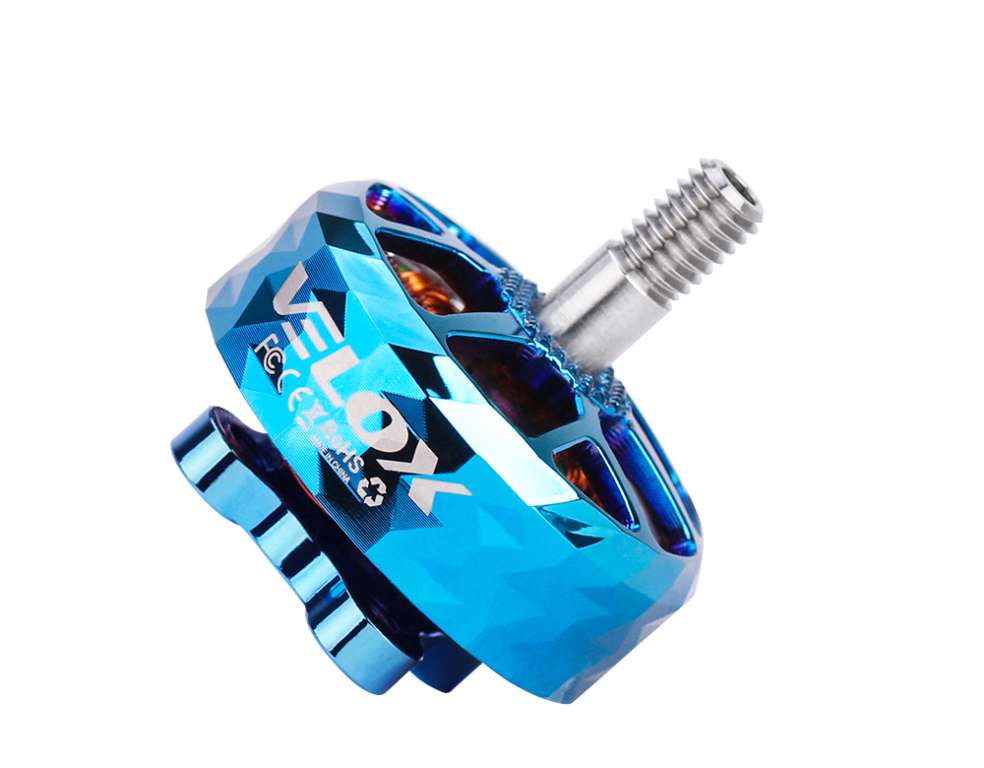

О моторе T-HOBBY Velox V2207.5 V2 Racing&freestyle FPV

Velox Veloce — это надежный и эстетичный 5-дюймовый мотор для FPV. Он обладает изысканным внешним видом и отличными техническими характеристиками.

Дизайн Unibell, титановый вал и дугообразные магниты N52 делают этот мотор гораздо более долговечным.

Он обеспечит вам лучший опыт в 5-дюймовых гонках, фристайле, а также в кинематографических полетах.

Особенности Velox V2207.5 V2:

Мотор Velox V2 получил конструкцию с цельной верхней крышкой, а вал из титанового сплава стал легче и устойчивее к повреждениям при столкновениях.

Общий вес снижен на 2-3 грамма, что позволяет наслаждаться более плавным и в то же время агрессивным полетом.

Линейка включает модели 2306.5, 2307, 2207.5, 2208 для 4-6S, чтобы удовлетворить любые потребности пилотов.

Комплектация включает:

1x Мотор T-HOBBY VELOX V2207.5 V2 (выберите KV)

1x Набор крепежа

Подходящая рама:

5 дюймов

Рекомендуемое оборудование:

Полетный контроллер F7 / Pacer F7

Регулятор скорости F55A Pro II 6S 4IN1 ESC

Пропеллеры P49436 FPV / T5143s FPV

Technical Drawing

Specification

Test Item	1750	Configuration	12N14P
Internal Resistance	74mΩ	Motor Dimensions	Φ27.6*31.45mm
Shaft Diameter	4mm	Lead	20#、150mm
Weight(Incl.Cable)	34.6g	Weight(Excl.Cable)	30.8g
Rated Voltage(Lipo)	6S	Idle Current(10V)	1.15A
Max.Power(60s)	794W	Peak Current(60s)	35.7A

Test Item	1950	Configuration	12N14P
Internal Resistance	53.5mΩ	Motor Dimensions	Φ27.6*31.45mm
Shaft Diameter	4mm	Lead	20#、150mm
Weight(Incl. Cable)	35.3g	Weight(Excl.Cable)	31.5g
Rated Voltage(Lipo)	6S	Idle Current(10V)	1.42A
Max. Power(60s)	873W	Peak Current(60s)	39A

Test Item	2550	Configuration	12N14P
Internal Resistance	41mΩ	Motor Dimensions	Φ27.6*31.45mm
Shaft Diameter	4mm	Lead	20#、150mm
Weight(Incl. Cable)	35.6g	Weight(Excl.Cable)	31.6g
Rated Voltage(Lipo)	4-5S	Idle Current(10V)	1.95A
Max. Power(60s)	557W	Peak Current(60s)	38.1A

Test Data

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
V2207.5 V2 KV1750	T5143S 6S	50%	547.12	23.77	5.85	18761	139.03	3.94	72 (Ambient Temperature: 12℃)
		55%	633.74	23.69	7.62	20257	180.61	3.51
		60%	741.30	23.58	9.93	21863	234.31	3.16
		65%	841.86	23.48	12.24	23230	287.24	2.93
		70%	944.17	23.38	14.72	24649	344.13	2.74
		75%	1062.06	23.27	17.68	25911	411.53	2.58
		80%	1141.31	23.17	19.98	26916	462.90	2.47
		85%	1250.35	23.02	23.11	28172	532.09	2.35
		90%	1343.98	22.86	26.21	29146	599.21	2.24
		95%	1428.31	22.67	29.60	30122	671.07	2.13
		100%	1507.96	22.51	33.17	31106	746.43	2.02
	T5146 6S	50%	632.15	23.75	5.66	18278	134.45	4.70	76 (Ambient Temperature: 12℃)
		55%	729.22	23.67	7.66	19783	181.42	4.02
		60%	849.46	23.54	10.07	21174	236.95	3.58
		65%	964.88	23.43	12.65	22477	296.37	3.26
		70%	1085.68	23.32	15.50	23933	361.33	3.00
		75%	1205.89	23.20	18.62	24995	431.90	2.79
		80%	1317.41	23.07	21.79	26145	502.65	2.62
		85%	1414.12	22.94	24.48	27086	561.57	2.52
		90%	1524.52	22.74	28.22	28068	641.58	2.38
		95%	1557.36	22.54	31.61	28909	712.51	2.19
		100%	1637.28	22.34	35.06	29463	783.31	2.09
	T5147 6S	50%	621.04	23.74	5.82	18128	138.16	4.50	78 (Ambient Temperature: 12℃)
		55%	725.32	23.66	7.97	19523	188.60	3.85
		60%	845.25	23.56	10.42	20907	245.48	3.44
		65%	974.59	23.45	13.24	22211	310.41	3.14
		70%	1087.75	23.29	16.10	23610	374.99	2.90
		75%	1200.91	23.16	19.15	24703	443.49	2.71
		80%	1315.07	23.01	22.40	25780	515.46	2.55
		85%	1401.42	22.89	25.02	26496	572.82	2.45
		90%	1515.53	22.68	28.81	27479	653.43	2.32
		95%	1585.78	22.48	31.68	28017	712.08	2.23
		100%	1681.89	22.26	35.70	29042	794.76	2.12
	T5150 6S	50%	637.04	23.75	5.78	18175	137.39	4.64	77 (Ambient Temperature: 12℃)
		55%	736.80	23.65	7.83	19549	185.25	3.98
		60%	854.92	23.54	10.27	20933	241.74	3.54
		65%	973.16	23.43	12.95	22341	303.47	3.21
		70%	1100.49	23.29	16.04	23609	373.58	2.95
		75%	1214.38	23.17	19.07	24749	441.96	2.75
		80%	1319.32	23.03	22.21	25722	511.49	2.58
		85%	1408.50	22.90	24.85	26650	568.99	2.48
		90%	1492.80	22.69	28.64	27336	649.87	2.30
		95%	1599.58	22.50	32.00	28214	719.87	2.22
		100%	1680.28	22.31	34.59	29031	771.55	2.18
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
V2207.5 V2 KV1950	T4943 6S	50%	511.29	23.42	8.03	19543	187.99	2.72	86 (Ambient Temperature: 12℃)
		55%	588.84	23.35	9.84	20982	229.83	2.56
		60%	679.03	23.27	12.06	22364	280.65	2.42
		65%	769.42	23.18	14.45	23782	334.94	2.30
		70%	857.96	23.08	17.04	25060	393.38	2.18
		75%	946.15	22.98	19.66	26257	451.78	2.09
		80%	1025.25	22.88	22.13	27265	506.41	2.02
		85%	1119.09	22.76	25.19	28402	573.18	1.95
		90%	1201.38	22.62	28.18	29548	637.47	1.88
		95%	1285.51	22.45	31.59	30455	709.12	1.81
		100%	1460.24	22.27	35.93	30991	800.30	1.82
	T5143S 6S	50%	600.95	23.75	8.68	20392	206.19	2.91	88 (Ambient Temperature: 12℃)
		55%	698.88	23.70	10.72	21901	254.17	2.75
		60%	786.39	23.65	12.95	23396	306.22	2.57
		65%	895.21	23.60	15.54	24817	366.62	2.44
		70%	970.56	23.54	17.99	26105	423.45	2.29
		75%	1035.81	23.49	20.42	27130	479.83	2.16
		80%	1154.46	23.43	23.46	28114	549.56	2.10
		85%	1227.26	23.36	26.19	29273	611.92	2.01
		90%	1333.15	23.28	29.62	30155	689.71	1.93
		95%	1395.02	23.21	32.67	31274	758.14	1.84
		100%	1470.85	23.10	36.51	32070	843.20	1.74
	T5146 6S	50%	693.98	23.10	9.08	19887	209.61	3.31	90 (Ambient Temperature: 12℃)
		55%	797.02	23.05	11.40	21439	262.74	3.03
		60%	908.39	23.00	13.93	22844	320.40	2.84
		65%	1008.74	22.93	16.72	24252	383.44	2.63
		70%	1138.07	22.87	19.72	25239	451.06	2.52
		75%	1212.95	22.81	22.52	26343	513.71	2.36
		80%	1299.63	22.75	25.37	27187	577.00	2.25
		85%	1393.64	22.67	28.66	28135	649.59	2.15
		90%	1491.53	22.58	31.96	28844	721.90	2.07
		95%	1578.86	22.49	35.36	29589	795.21	1.99
		100%	1635.16	22.37	39.04	30285	873.13	1.87
	T5147 6S	50%	707.00	22.53	9.80	19533	220.90	3.20	89 (Ambient Temperature: 12℃)
		55%	823.39	22.48	12.28	20971	276.02	2.98
		60%	911.93	22.43	14.82	22461	332.30	2.74
		65%	1017.92	22.37	17.52	23822	391.80	2.60
		70%	1126.18	22.30	20.69	24987	461.40	2.44
		75%	1236.95	22.24	23.56	25801	523.87	2.36
		80%	1305.65	22.17	26.39	26646	584.99	2.23
		85%	1367.60	22.10	29.30	27557	647.54	2.11
		90%	1474.00	22.02	32.72	28088	720.46	2.05
		95%	1567.45	21.92	36.10	28936	791.35	1.98
		100%	1612.27	21.80	39.49	29683	860.97	1.87
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
V2207.5 V2 KV2550	T4943 4S	50%	405.96	16.48	7.22	17700	118.97	3.41	84 (Ambient Temperature: 12℃)
		55%	478.84	16.40	9.34	18800	153.26	3.12
		60%	561.16	16.31	11.75	19878	191.58	2.93
		65%	635.57	16.16	14.34	20958	231.70	2.74
		70%	729.28	16.04	17.29	21886	277.41	2.63
		75%	813.39	15.91	20.19	22904	321.27	2.53
		80%	896.58	15.77	23.30	23603	367.58	2.44
		85%	964.14	15.63	26.45	24571	413.42	2.33
		90%	1027.45	15.47	29.54	25236	456.88	2.25
		95%	1086.64	15.30	32.48	25743	496.85	2.19
		100%	1137.72	15.10	36.24	26110	547.23	2.08
	T5143S 4S	50%	466.60	16.04	8.15	17138	130.68	3.57	86 (Ambient Temperature: 12℃)
		55%	536.32	15.97	9.97	18293	159.14	3.37
		60%	614.07	15.88	12.14	19560	192.76	3.19
		65%	698.89	15.79	14.54	20823	229.53	3.04
		70%	783.35	15.69	17.19	21936	269.74	2.90
		75%	858.27	15.58	20.00	22952	311.60	2.75
		80%	923.26	15.47	22.89	24001	354.05	2.61
		85%	988.92	15.36	25.45	24734	390.85	2.53
		90%	1038.40	15.18	27.89	25321	423.54	2.45
		95%	1120.70	15.02	31.05	26147	466.33	2.40
		100%	1226.90	14.83	34.29	26792	508.75	2.41
	T5146 4S	50%	530.97	15.96	8.80	16800	140.43	3.78	88 (Ambient Temperature: 12℃)
		55%	606.31	15.87	10.89	17924	172.83	3.51
		60%	691.75	15.78	13.32	19022	210.22	3.29
		65%	776.58	15.68	15.88	20183	248.96	3.12
		70%	866.01	15.51	18.72	21159	290.39	2.98
		75%	939.30	15.39	21.39	22188	329.19	2.85
		80%	1023.72	15.25	24.67	23039	376.27	2.72
		85%	1107.32	15.11	28.09	23848	424.33	2.61
		90%	1156.54	14.98	30.51	24564	457.09	2.53
		95%	1217.32	14.81	33.58	25187	497.43	2.45
		100%	1264.50	14.61	37.11	25638	542.24	2.33
	T5147 4S	50%	557.27	15.98	9.16	16512	146.37	3.81	91 (Ambient Temperature: 12℃)
		55%	630.15	15.90	11.28	17612	179.44	3.51
		60%	712.47	15.81	13.69	18690	216.37	3.29
		65%	786.88	15.66	16.28	19770	254.91	3.09
		70%	880.59	15.54	19.23	20698	298.92	2.95
		75%	964.70	15.41	22.13	21716	341.08	2.83
		80%	1047.89	15.27	25.24	22415	385.55	2.72
		85%	1115.45	15.13	28.39	23383	429.55	2.60
		90%	1178.76	14.97	31.48	24048	471.14	2.50
		95%	1237.95	14.80	34.42	24555	509.32	2.43
		100%	1289.03	14.60	38.18	24922	557.43	2.31
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List
