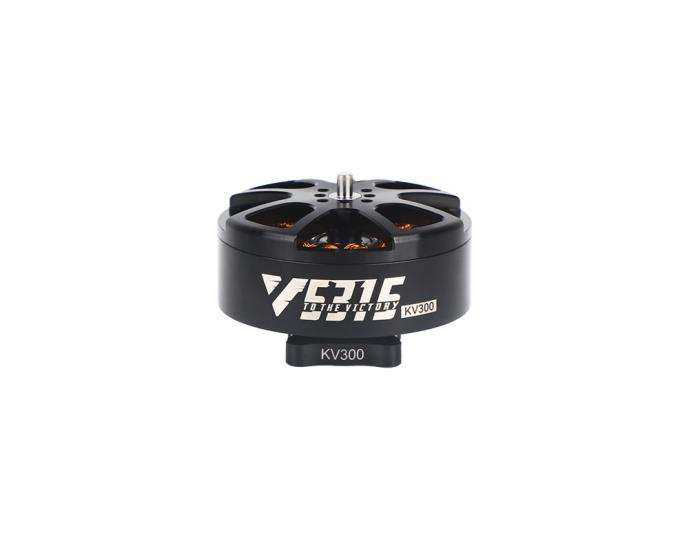

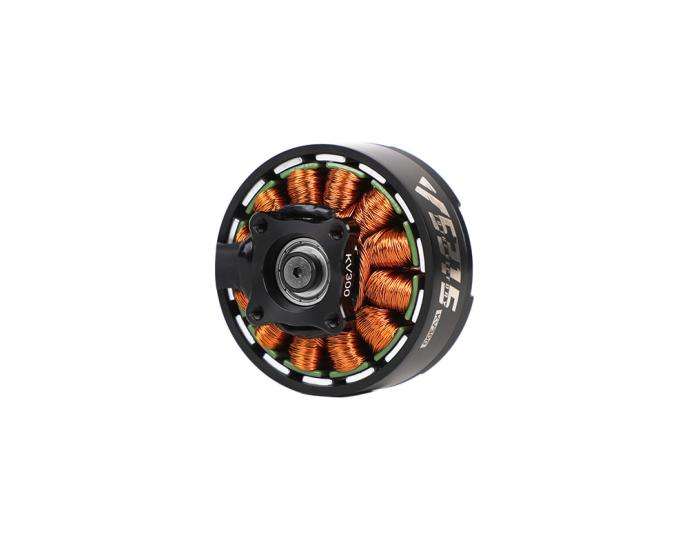

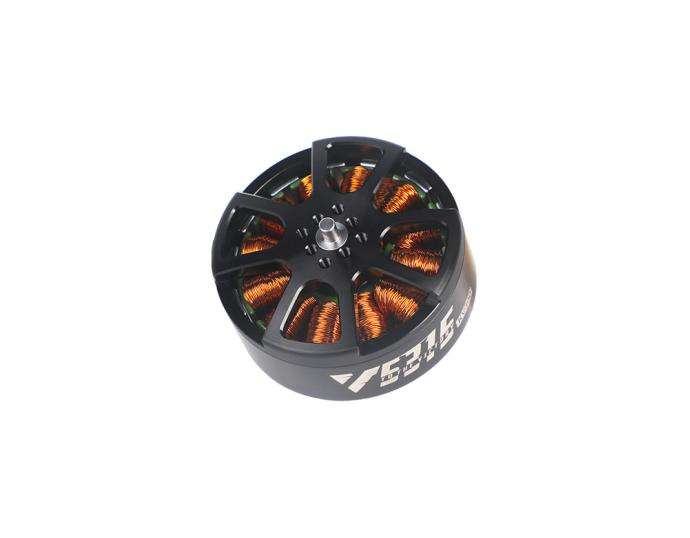

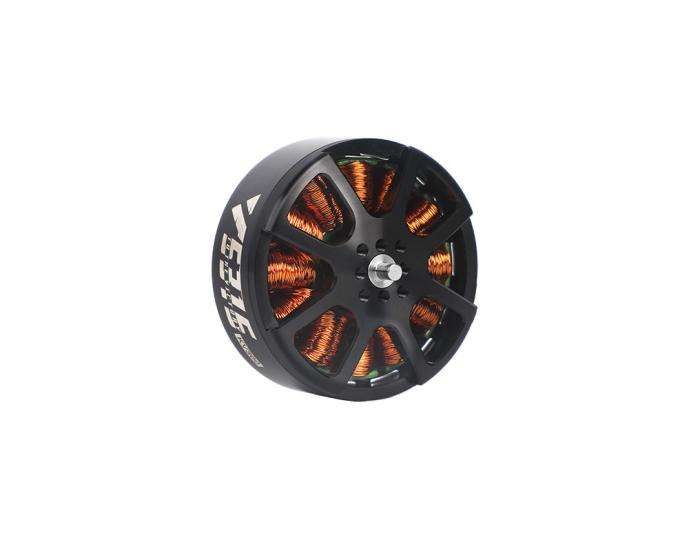

T-HOBBY V5315 Тяжелый мотор для кинематографических дронов T-Motor

5027.96 грн.

Купить

Рассрочка online

Нашли дешевле?
Получите цену ниже!

Код товара: lgr40

Доставка в течение 2 недель.

Robust Power,
Effortless Heavy Loads

Suitable for 13-inch X4 or X8 cinematic drones.
Delivering a maximum thrust of over 6.5kg and a continuous
thrust of 3-6kg, easily handles with high load requirements.
Well-suited for scenarios with high power demands,
like cinematic filming.

The King of Range Under Large Load

Unique electromagnetic optimization design enables it to achieve an outstanding range of over 15km even with a load of 7kg, ensuring the efficiency and smoothness of filming. For X4 drone at 15.2kg takeoff weight: V5315 300KV motors, Cine1510-3 props, 12S 20,000mAh battery → 15min flight time, 15km range (7kg payload)

Innovative Design,
Superior Compatibility

The unique top bell design is suitable for Cine13-15 inch props and also provides a prop adapter compatible with traditional M6 single-hole props. It features M4 screw holes and non-protruding locking shaft screws in motor base, allowing it to perform well in various scenes and frame configurations.

Cine 13-15

PROPS

M6 SINGLE-HOLE

PROPS

Technical Drawing

Specification

Type	V5315	Motor Dimension	Φ62*44.7mm
Magnet	Galvanized Arc Magnet	Coil insulation test	500V withstand voltage test(3s)
Waterproof and dustproof class	/	Configuration	12N14P
Dynamic balance requirements standards	≤5mg	Bearings	Imported 606-ZZ
Shaft Diameter	4mm	Lead	14AWG*600mm
Screw Diameter	Φ30-M4-4	Prop Adapter Shaft Thread	Φ15/Φ12-M3-4/M6 (with prop adaptor)
Packing Size	12010045mm	Packing Weight	420g

Tech Specs
Recommended Voltage	KV300	Idle Current(10V)	1.8A
Max Power(1s)	5252W	Internal Resistance	32mΩ
Rated Voltage (Lipo)	12S	Peak Current(1s)	116A
Max Thrust	8600g	Weight (incl.cable)	390g

Recommended Voltage	KV500	Idle Current(10V)	2.9A
Max Power(1s)	3070W	Internal Resistance	15mΩ
Rated Voltage (Lipo)	8S	Peak Current(1s)	116A
Max Thrust	8166g	Weight (incl.cable)	390g

Recommended
Motor	V5315 KV300	Frame Type	15 Inch X4
Prop	Cine1510	Lipo Cells	12S
ESC	C80A 5-12S Single ESC	Recommended takeoff weight range	Within 9kg
FC	F7 Pro+BEC (12S to 8S below)	Max Takeoff Weight	16kg
Test Data:	1、10000mAh 12S battery (5200g), load weight 3000g, AUW 11200g, flight time 28 minutes. 2、20000mAh 12S battery (5200g), load weight 5000g, AUW 13200g, flight time 20 minutes. 3、8000mAh 12S battery (5200g), load weight 7000g, AUW 15200g, flight time 15 minutes.

Motor	V5315 KV500	Frame Type	15 Inch X4
Prop	Cine1508	Lipo Cells	8S
ESC	V-70A-4IN1-8S/ C-80A-4IN1-8S	Recommended takeoff weight range	Within 10kg
FC	Velox F7 SE 8S/F7 Pro	Max Takeoff Weight	18kg
Test Data:	1、10000mAh 8S battery (3400g), load weight 3000g, AUW 9400g, flight time 20 minutes. 2、20000mAh 8S battery (3400g), load weight 5000g, AUW 11400g, flight time 16 minutes. 3、8000mAh 8S battery (3400g), load weight 7000g, AUW 13400g, flight time 10 minutes.

Test Data

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
V5315 KV300	T-HOBBY P15*5	48.09	10%	0.32	1286	68	16	4.41	0.02	70℃ (Ambient temperature: 25℃)
		48.07	20%	0.94	2697	344	45	7.62	0.07
		48.05	30%	2.14	4010	829	103	8.05	0.15
		47.99	40%	4.37	5293	1485	210	7.08	0.26
		47.90	50%	7.88	6559	2317	377	6.14	0.41
		47.78	60%	12.61	7736	3257	603	5.40	0.57
		47.61	70%	19.74	8940	4393	940	4.68	0.77
		47.41	80%	27.91	10006	5556	1323	4.20	0.98
		47.17	90%	37.80	10963	6741	1783	3.78	1.20
		46.88	100%	49.85	11798	7906	2337	3.38	1.42
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV300	T-HOBBY Cine1508	48.07	10%	0.41	1240	127	20	6.46	0.05	144℃ (Ambient temperature: 25℃)
		48.05	20%	1.48	2531	608	71	8.56	0.16
		47.98	30%	3.94	3725	1392	189	7.37	0.35
		47.87	40%	8.54	4885	2433	409	5.95	0.60
		47.71	50%	15.15	5915	3620	723	5.01	0.88
		47.45	60%	25.83	6983	5094	1225	4.16	1.24
		47.12	70%	39.43	7875	6523	1858	3.51	1.60
		46.46	80%	66.31	8478	7606	3081	2.47	1.88
		45.73	90%	95.80	8636	7972	4381	1.82	1.96
		45.20	100%	116.19	8920	8601	5252	1.64	2.12
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV300	T-HOBBY Cine1312	48.09	10%	0.39	1250	89	19	4.70	0.04	76℃ (Ambient temperature: 25℃)
		48.07	20%	1.35	2583	460	65	7.09	0.13
		48.02	30%	3.33	3807	1039	160	6.51	0.28
		47.93	40%	7.16	5015	1811	343	5.28	0.48
		47.80	50%	12.63	6114	2703	604	4.48	0.71
		47.58	60%	21.17	7216	3765	1007	3.74	1.00
		47.33	70%	31.65	8190	4863	1498	3.25	1.30
		46.94	80%	47.73	9165	6111	2240	2.73	1.65
		46.31	90%	73.15	9802	7025	3388	2.07	1.91
		45.81	100%	92.94	10196	7636	4258	1.79	2.09
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV300	T-HOBBY P20x6	32.07	10%	0.28	831	78	9	8.94	0.03	56℃ (Ambient temperature: 25℃)
		32.05	20%	1.02	1754	396	33	12.08	0.10
		32.01	30%	2.77	2633	957	89	10.81	0.22
		31.94	40%	5.61	3440	1666	179	9.29	0.36
		31.83	50%	9.98	4236	2544	318	8.01	0.55
		31.69	60%	15.97	4957	3505	506	6.93	0.75
		31.49	70%	23.90	5650	4584	753	6.09	0.98
		31.27	80%	33.41	6276	5698	1044	5.46	1.21
		31.00	90%	44.48	6839	6807	1379	4.94	1.45
		30.68	100%	57.31	7339	7892	1758	4.49	1.69
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV300	T-HOBBY P18x6.1	32.07	10%	0.26	847	63	8	7.67	0.02	48℃ (Ambient temperature: 25℃)
		32.06	20%	0.92	1779	324	29	11.05	0.08
		32.02	30%	2.43	2678	798	78	10.28	0.18
		31.96	40%	4.89	3502	1413	156	9.05	0.31
		31.87	50%	8.61	4325	2167	274	7.90	0.47
		31.75	60%	13.71	5069	3017	435	6.93	0.64
		31.58	70%	20.60	5791	3964	651	6.09	0.84
		31.37	80%	29.08	6450	4988	912	5.47	1.05
		31.14	90%	38.77	7055	5979	1207	4.95	1.26
		30.87	100%	49.78	7606	6965	1536	4.53	1.47
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV300	T-HOBBY Cine1510	44.42	10%	0.42	939	61	19	3.28	0.08	168℃ (Ambient temperature: 25℃)
		44.37	20%	1.50	2268	574	67	8.62	0.18
		44.30	30%	4.07	3322	1256	180	6.96	0.39
		44.18	40%	7.75	4227	2132	342	6.23	0.61
		43.99	50%	14.91	5274	3308	656	5.05	0.96
		43.71	60%	23.57	6120	4505	1030	4.37	1.29
		43.38	70%	34.23	6888	5705	1485	3.84	1.66
		42.92	80%	49.77	7681	7001	2136	3.28	2.10
		42.09	90%	77.49	8290	8250	3261	2.53	2.44
		41.22	100%	105.71	8559	8793	4357	2.02	2.64
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV500	T-HOBBY P15*5	29.65	10%	0.37	916	4	11	0.37	0.04	37℃ (Ambient temperature: 25℃)
		29.63	20%	1.23	2459	164	36	4.50	0.07
		29.58	30%	2.76	3693	587	82	7.19	0.13
		29.51	40%	5.28	4761	1071	156	6.88	0.22
		29.38	50%	9.35	5921	1733	275	6.31	0.33
		29.21	60%	14.61	6912	2418	427	5.67	0.45
		29.00	70%	21.22	7848	3117	615	5.07	0.58
		28.70	80%	31.00	8882	4142	890	4.66	0.74
		28.36	90%	42.06	9755	5062	1193	4.24	0.92
		27.93	100%	55.98	10613	6048	1563	3.87	1.11
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV500	T-HOBBY Cine1508	29.68	10%	0.45	740	18	13	1.35	0.08	48℃ (Ambient temperature: 25℃)
		29.66	20%	1.83	2365	428	54	7.89	0.14
		29.56	30%	4.79	3473	1063	142	7.51	0.29
		29.41	40%	9.22	4368	1759	271	6.48	0.45
		29.17	50%	17.53	5437	2806	511	5.49	0.71
		28.86	60%	27.58	6261	3715	796	4.67	0.95
		28.51	70%	39.71	7013	4857	1132	4.29	1.20
		28.00	80%	56.15	7736	6008	1572	3.82	1.50
		27.42	90%	74.82	8344	7052	2051	3.44	1.73
		26.66	100%	99.47	8939	8166	2651	3.08	2.06
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV500	T-HOBBY Cine1312	29.68	10%	0.35	1281	30	10	2.91	0.07	42℃ (Ambient temperature: 25℃)
		29.67	20%	1.62	2389	315	48	6.55	0.12
		29.57	30%	4.18	3512	794	124	6.43	0.25
		29.44	40%	8.32	4447	1334	245	5.44	0.41
		29.24	50%	15.30	5537	2160	447	4.83	0.62
		28.99	60%	23.92	6409	2938	693	4.24	0.85
		28.65	70%	34.54	7222	3722	990	3.76	1.06
		28.21	80%	49.11	8021	4608	1385	3.33	1.32
		27.69	90%	66.32	8739	5420	1837	2.95	1.52
		27.07	100%	86.93	9378	6345	2353	2.70	1.83
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV500	T-HOBBY Cine1510	29.61	10%	0.47	633	18	14	1.28	0.09	58℃ (Ambient temperature: 25℃)
		29.58	20%	2.24	2305	536	66	8.11	0.18
		29.44	30%	6.07	3370	1271	179	7.11	0.39
		29.29	40%	11.50	4182	2024	337	6.01	0.60
		28.97	50%	21.79	5172	3131	631	4.96	0.93
		28.60	60%	34.27	5959	4186	980	4.27	1.21
		28.12	70%	49.80	6644	5301	1400	3.79	1.54
		27.54	80%	69.05	7266	6333	1902	3.33	1.85
		26.91	90%	90.06	7770	7245	2423	2.99	2.13
		26.04	100%	117.88	8227	8146	3070	2.65	2.42
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV500	T-HOBBY P20*6	24.04	10%	0.48	481	2	12	0.17	0.08	42℃ (Ambient temperature: 25℃)
		24.00	20%	1.56	1929	386	37	10.35	0.11
		23.94	30%	3.94	2787	935	94	9.92	0.23
		23.81	40%	8.37	3645	1717	199	8.62	0.40
		23.62	50%	14.11	4338	2487	333	7.46	0.59
		23.32	60%	24.14	5141	3516	563	6.25	0.82
		22.99	70%	34.67	5789	4601	797	5.77	1.03
		22.61	80%	47.25	6342	5561	1068	5.21	1.24
		22.16	90%	62.13	6849	6536	1376	4.75	1.49
		21.57	100%	80.99	7347	7536	1747	4.31	1.76
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V5315 KV500	T-HOBBY P18x6.1	24.03	10%	0.43	561	2	10	0.19	0.08	39℃ (Ambient temperature: 25℃)
		24.02	20%	1.39	1960	293	33	8.75	0.10
		23.93	30%	3.69	2847	750	88	8.49	0.22
		23.84	40%	7.39	3709	1447	176	8.21	0.35
		23.68	50%	12.42	4465	2160	294	7.35	0.49
		23.41	60%	20.80	5302	3143	487	6.45	0.71
		23.12	70%	30.38	5964	4029	702	5.74	0.90
		22.76	80%	41.66	6560	4873	948	5.14	1.07
		22.34	90%	55.02	7126	5846	1229	4.76	1.29
		21.83	100%	71.99	7668	6869	1572	4.37	1.56
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

Analysis Chart

Packing List
