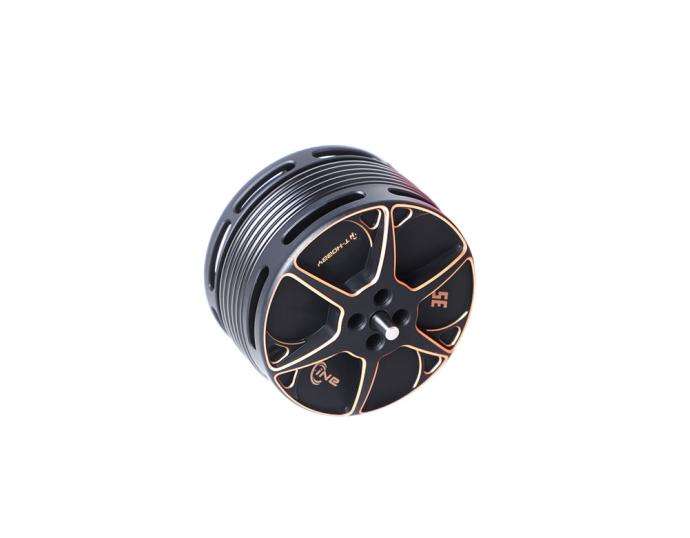

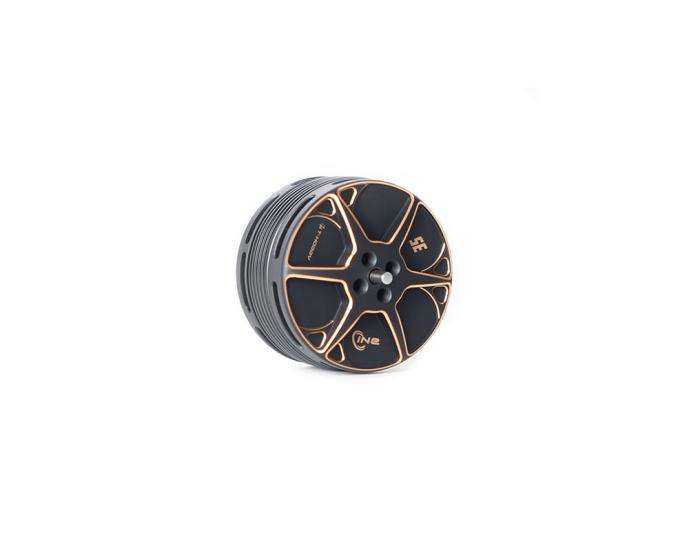

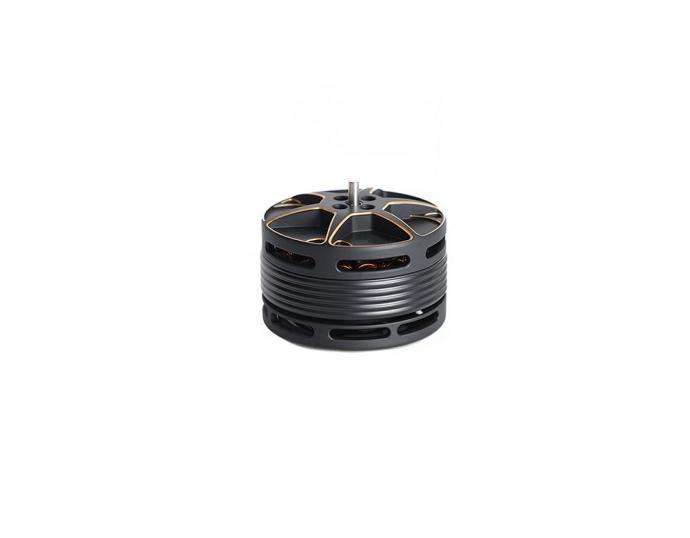

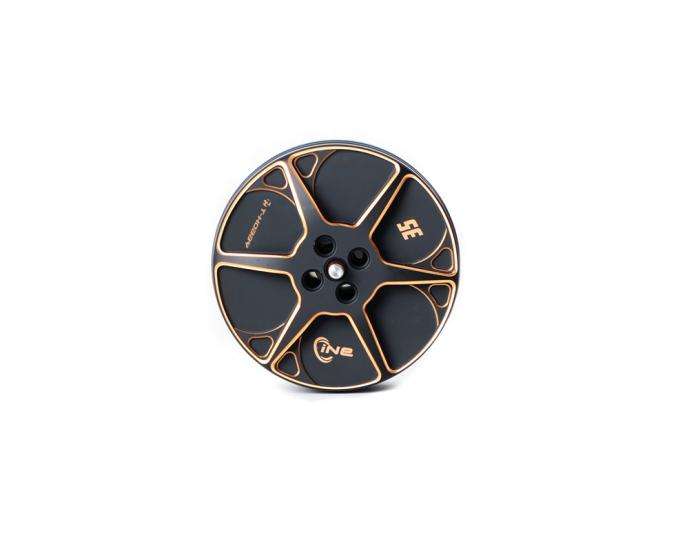

T-HOBBY Мотор Cine35 6S Cinewhoop для 3.5'' FPV-дрона T-Motor

2510.67 грн.

Код товара: lgr46

Доставка в течение 2 недель.

COMPREHENSIVE PROTECTION FOR SECURE FLIGHT

The integrated protective design effectively prevents sand, gravel, and dust from entering the motor during filming and take off/landing operations. The iron core undergoes electrophoretic coating treatment and has passed 72-hour salt spray test certification, ensuring reliable performance in moisture, dusty, and corrosive environments.

CORROSION
RESISTANT

SAND
RESISTANT

DUST
RESISTANT

ALL-ENVIRONMENT
RELIABILITY

MASTERY OF COMPACT SPACE

With high responsiveness enabling flexible control in confined spaces and dense obstacle environments, it easily enhances high-speed close-range shots.It maintains strong output and efficiency even when carrying payloads up to 60g (like naked GOPRO), achieving a single-flight duration of 3-6 minutes.

MULTI-FRAME COMPATIBLE BASE DESIGN

The non-protruding shaft screw configuration ensures compatibility with various frame types, allowing the motor to demonstrate exceptional performance across different application scenarios and frame configurations.

RECOMMENDED

CINE35

F7 45A AIO

Technical Drawing

Specification

Type	Cine35	Motor Dimension	Φ24.69*20.7mm
Magnet	Nickel platedarc magnet	Coil insulation test	200V withstand voltage test
Waterproof anddustproof class	IP45	Configuration	12N14P
Dynamic balancerequirements standards	≤5mg	Bearings	Imported 683ZZ
Shaft Diameter	1.5mm	Lead	24AWG*150mm
Screw Diameter	Φ12-M2-4	Prop Adapter Shaft Thread	Φ5-M2-4
Packing Size	656555mm	Packing Weight	30g (1pcs)/135g (4pcs)

Tech Specs
Recommended Voltage	6S	Idle Current(10V)	0.8A
Max Power(1s)	316W	Internal Resistance	140mΩ
Rated Voltage (Lipo)	24V	Peak Current(1s)	18A
Max Thrust	858g	Weight (incl.cable)	19.6g

Recommended
Motor	Cine35 6S	Frame Type	Cinewhoop X4
Prop	HQ T90-3	Lipo Cells	6S
ESC	F7 45A AIO 6S	Recommended takeoff weight range	Within 800g
FC	F7 45A AIO 7S	Max Takeoff Weight	1200g
Test Data:	1、1350mah 6s battery (216g), load weight 160g, AUW 680g, flight time 10 minutes. 2、1350mah 6s battery (216g), without payload, AUW 520g, flight time 15 minutes. 3、3000mah 6s battery (330g), without payload, AUW 634g, flight time 28 minutes.
Note: Recommend BL32 ESC settings: Startup power: 50%, Timing: AUTO, PWM frequency: 32-BYRPM, Demag compensation: low, for best efficiency and flight time experience (improper settings may cause desync)

Test Data

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
Cine35 6s	HQ T90-3	24.04	10%	0.12	5029	15	3	5.33	0.00
		24.04	20%	0.50	9851	60	12	5.01	0.01	93 (Ambient temperature: 25℃)
		24.03	30%	1.22	14051	126	29	4.30	0.01
		24.01	40%	2.46	18111	215	59	3.65	0.02
		23.98	50%	4.28	21895	320	103	3.11	0.03
		23.95	60%	6.64	25472	432	159	2.72	0.04
		23.90	70%	9.81	28802	554	235	2.36	0.06
		23.86	80%	13.11	31503	665	313	2.13	0.07
		23.80	90%	16.97	33848	763	404	1.89	0.08
		23.73	100%	21.38	36002	868	507	1.71	0.09
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine35 6s	HQ T90-3 (With Oddity frame)	24.02	10%	0.11	5169	15	3	5.42	0.00
		24.01	20%	0.48	10016	61	12	5.28	0.01	87 (Ambient temperature: 25℃)
		24.00	30%	1.19	14280	131	28	4.61	0.01
		23.97	40%	2.34	18379	219	56	3.90	0.02
		23.92	50%	4.04	22221	325	97	3.37	0.03
		23.87	60%	6.18	25819	436	148	2.95	0.04
		23.79	70%	9.02	29104	558	215	2.60	0.05
		23.71	80%	11.90	31839	668	282	2.37	0.06
		23.62	90%	15.41	34161	768	364	2.11	0.07
		23.53	100%	19.05	36317	867	448	1.94	0.08
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine35 6s	GF D90-3	24.04	10%	0.14	4874	14	3	4.40	0.00
		24.04	20%	0.53	9579	60	13	4.74	0.01	95 (Ambient temperature: 25℃)
		24.02	30%	1.27	13997	126	31	4.14	0.01
		24.01	40%	2.48	18114	213	60	3.57	0.02
		23.98	50%	4.21	21988	315	101	3.12	0.03
		23.95	60%	6.49	25697	425	155	2.74	0.04
		23.91	70%	9.41	29206	546	225	2.43	0.05
		23.87	80%	12.39	32197	652	296	2.21	0.06
		23.82	90%	15.96	34924	756	380	1.99	0.07
		23.75	100%	20.03	37527	863	476	1.81	0.08
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine35 6s	GF D90-3 (With Oddity frame)	24.02	10%	0.11	5172	14	3	5.23	0.00
		24.01	20%	0.48	10028	62	11	5.41	0.01	89 (Ambient temperature: 25℃)
		24.00	30%	1.15	14347	129	28	4.68	0.01
		23.97	40%	2.23	18534	218	54	4.07	0.02
		23.93	50%	3.77	22529	320	90	3.55	0.03
		23.88	60%	5.72	26394	433	137	3.17	0.04
		23.82	70%	8.15	30096	555	194	2.86	0.05
		23.75	80%	10.59	33205	663	252	2.63	0.05
		23.67	90%	13.52	36289	775	320	2.42	0.06
		23.59	100%	16.69	39162	883	394	2.24	0.07
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine35 6S	GF DT90-5	24.04	10%	0.12	4732	18	3	6.08	0.00
		24.03	20%	0.56	9216	68	13	5.08	0.01	152 (Ambient temperature: 25℃)
		24.02	30%	1.50	13395	148	36	4.09	0.02
		24.00	40%	3.03	17247	243	73	3.35	0.03
		23.96	50%	5.28	20735	355	127	2.80	0.04
		23.92	60%	8.20	23731	474	196	2.42	0.06
		23.87	70%	11.87	26572	592	283	2.09	0.07
		23.82	80%	15.88	28763	694	378	1.84	0.08
		23.76	90%	19.76	30529	776	470	1.65	0.09
		23.69	100%	24.32	31728	843	576	1.46	0.09
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine35 6s	GF DT90-5 (With Oddity frame)	24.02	10%	0.12	4908	18	3	5.98	0.00
		24.01	20%	0.53	9468	67	13	5.33	0.01	148 (Ambient temperature: 25℃)
		23.99	30%	1.39	13752	147	33	4.41	0.02
		23.95	40%	2.78	17653	244	67	3.66	0.03
		23.90	50%	4.77	21231	355	114	3.12	0.04
		23.84	60%	7.28	24502	472	173	2.72	0.05
		23.76	70%	10.32	27472	587	245	2.39	0.06
		23.67	80%	13.56	29922	687	321	2.14	0.07
		23.58	90%	17.00	31940	780	401	1.95	0.08
		23.48	100%	20.89	33454	851	490	1.74	0.08
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

Analysis Chart

Packing List
