T-MOTOR Lightweight and Foldable Air Gear 355 Instructor / DIY Drone Kit

6623.80 грн.

Рассрочка online

Нашли дешевле?
Получите цену ниже!

Код товара: lgr88
Версия для печати Задать вопрос о товаре

Поделиться:

Доставка в течение 2 недель.

Airgear 355 Combo Set: Ultimate Power Solution for Drone Instructors & DIY Builders

Your First Choice for Training and DIY Drone Kits

Designed for educators, trainers, and hobbyists, the Airgear 355 Combo Set combines lightweight engineering with robust performance. Perfect for multi-rotor UAVs, this kit delivers 475g hover thrust and 1233g max thrust, ensuring stability and power for training drones or custom builds.

Key Features of the Airgear 355 Combo Set

1. Lightweight, Foldable Design
● 16% Weight Reduction – Enhances agility and flight time for training drones.
● Folding Propulsion System – Compact storage and easy transport for DIY projects.
2. Optimized Efficiency & Power
● 5% Efficiency Increase – Longer flight durations with reduced energy consumption.
● High-Strength Propellers – Durable blades withstand rigorous training sessions.

Versatile Multi-Rotor Compatibility

Recommended Configurations:
● Quadcopter: 1.6–2kg max takeoff weight
● Hexacopter: 2.4–3kg max takeoff weight
● Octocopter (non-coaxial): 3.2–4kg max takeoff weight
● Coaxial Setup Note: Account for a 25% thrust loss in dual-motor configurations.

Why the Airgear 355 Combo Set Stands Out

Ideal for Drone Instructors
- Reliable Training Tool – Stable hover performance ensures safe, repeatable practice.
- Durable Build – High-strength materials handle frequent use in classrooms or workshops.
Perfect for DIY Drone Enthusiasts

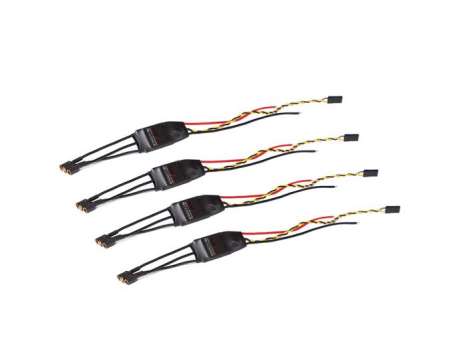

- Plug-and-Play Kit – Includes AIR 2213 KV1000 motor, AIR 20A ESC, and 3-4S voltage compatibility.
- Easy Maintenance – Foldable design and Loctite-ready propeller mounts simplify upgrades.

Applications: Where the Airgear 355 Excels

- Drone Training Programs – Consistent power for student pilots.
- Custom UAV Builds – Lightweight yet powerful for FPV racing or aerial photography.
- Educational Kits – Hands-on learning for STEM projects.

Why Choose Airgear 355?

- Balanced Performance – Power and efficiency tailored for training and DIY needs.
- Future-Ready Design – Compatible with evolving UAV technologies and configurations.

Upgrade your drone training or DIY project today! Explore the Airgear 355 Combo Set for unmatched reliability and performance.

Airgear 355 Combo Set Multi-Rotor UAV Power

light convenient and folding propulsion system

recommendations

robust and durable

force diagram



Technical Drawing


Specification
AIR2213-Specifications
KV 1000 Rated Voltage(Lipo) 3S-4S(4.2V/PC)/ 12.6V-16V
Idle Current(10V) 0.5A Internal Resistance 130±10mΩ
Peak Current(180s) 15A Weight (Incl. Cable) 52±2g
Max Power (180S) 238W Package Weight /
AIR 20A-Specifications
Size(L x W x H) 53x22x7mm Rated Voltage(Lipo) 3-4s
Con.Current 20A BEC /
Peak Current(10s) 30A Weight (Incl. Cable) 21g
Banana Plug 3.5mm Throttle Signal Frequency 50Hz-600Hz
MF9545-Specifications
Plastic Propeller MF9545 working Temp -10℃ ~40℃
Weight (Single Propeller) 3.36g Storage Temp 10℃ ~35℃
Material Nylon+Glass fiber Storage Humidity 65±20%RH
Surface Treatment Matte Technology Optimum RPM 6000-7000RPM/min
Propeller Type Polymer Propeller Thrust Limitation 1.5kg
Test Data
Type Propeller Throttle Voltage
(V)
Thrust
(g)
Torque
(N*m)
Current
(A)
RPM Power
(W)
Efficiency
(g/W)
Operating
Temperature
(℃)
AIR2213-KV1000 MF9545 30% 16 179 0.02 1.01 3419 16 11.04 47℃
35% 16 238 0.03 1.41 3890 23 10.54
40% 16 301 0.04 1.91 4378 31 9.84
45% 16 357 0.05 2.46 4795 39 9.04
50% 16 431 0.06 3.16 5256 51 8.49
55% 16 517 0.07 4.05 5731 65 7.96
60% 16 604 0.08 5.04 6186 81 7.48
65% 16 691 0.09 6.13 6603 98 7.04
70% 16 778 0.10 7.30 6997 117 6.66
75% 16 857 0.11 8.46 7346 135 6.33
80% 16 940 0.12 9.76 7681 156 6.02
85% 16 1020 0.13 11.13 7998 178 5.74
90% 16 1099 0.14 12.58 8292 200 5.48
95% 16 1180 0.15 14.13 8585 225 5.24
100% 16 1233 0.16 15.17 8768 241 5.11
Note: Motor temperature is motor surface temperature @100% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
