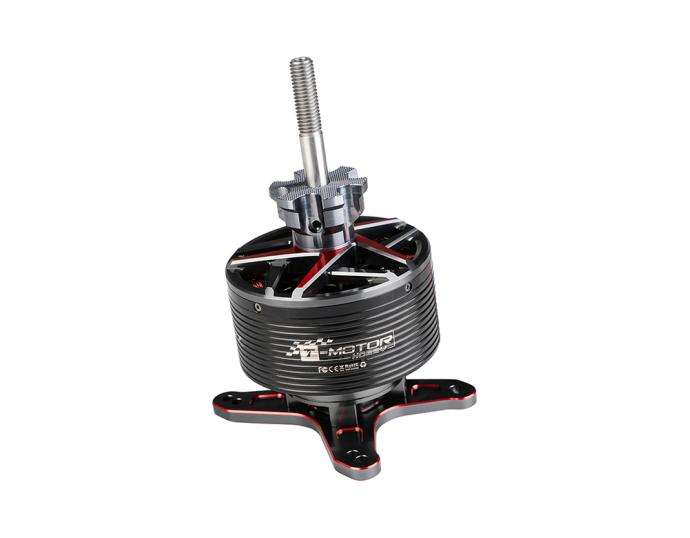

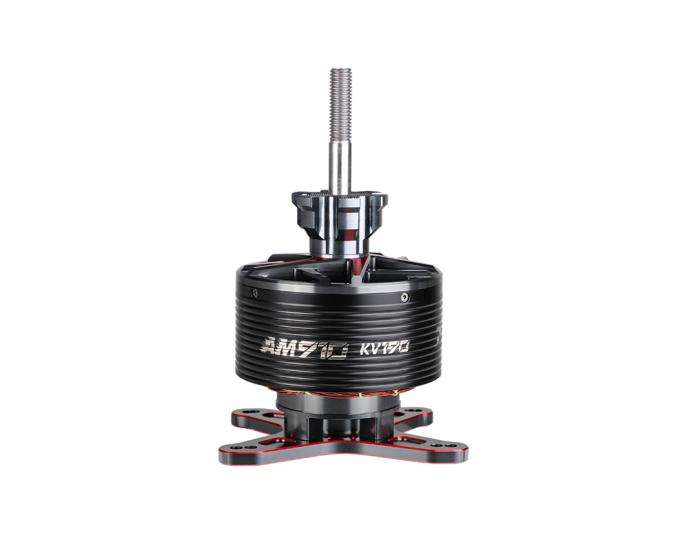

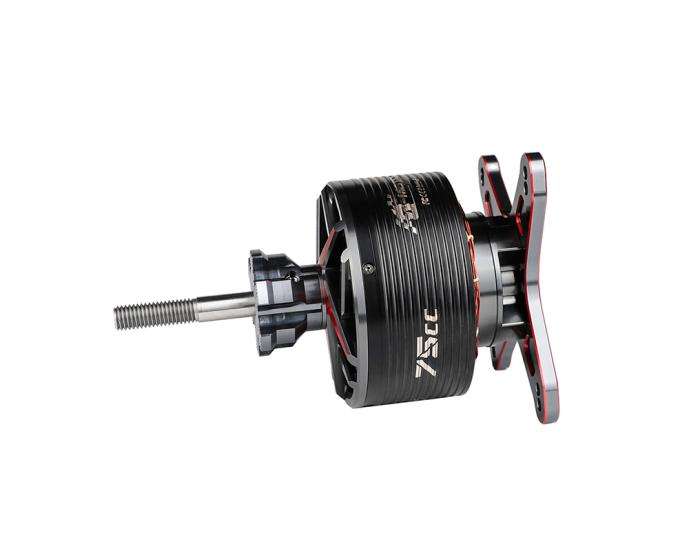

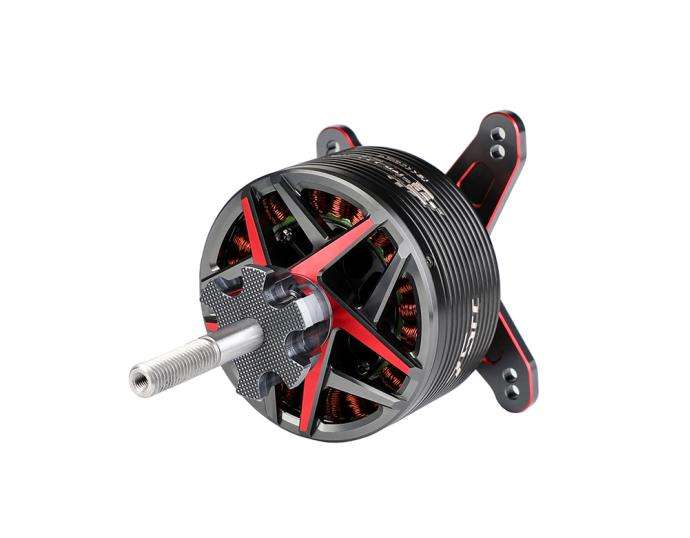

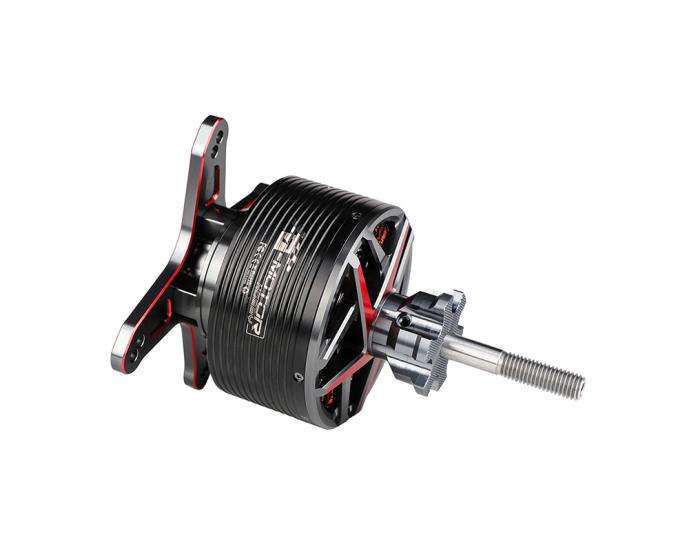

T-Motor AM910 KV190 Мощный бесколлекторный двигатель для 3D самолетов 90"-96"

33056.05 грн.

Купить

Рассрочка online

Нашли дешевле?
Получите цену ниже!

Код товара: lgr91

Доставка в течение 2 недель.

AM910 IS
DESIGNED FOR
90"-96" 3D
PLANES

Break free from traditional
constraints, so you will release
from your heavy planes and feel
lightweight and agile instantly

NON-DESTRUCTIVE
REPLACEMENT FOR
CONVENIENT INSTALLATION

Fixed with the same mounting plate as the
gas engine for quick installation

THE WORLD’S TOPPILOTS HAVE
REPEATEDLYCALIBRATED
CTHE POWERCURVE AND HAND FEEL

Enabling rapid control over delicate 3D flights

HOW FAST ARE
YOUR HANDS?
HOW ACCURATE
ARE YOUR FINGERS?

AM910’s zero-latency and precise
tracking allows you to show off
your skills easily

EQUIPPED WITH THE
AMZ 24*10 CARBON FIBER
PROPELLER

Instantly releasing22.4kg of continuous thrust High response, high burst,let you show off your skills easily

QUICK INSTALLATION
COMFORTABLE ADAPTION

Technical Drawing

Specification

Test Item	KV190	Weight (Incl. Cable)	1025g
Motor Dimensions	Φ90*156.5mm	Internal Resistance	9mΩ
Lead	160mm	Configuration	24N28P
Shaft Diameter	10mm	RatedVoltage(Lipo)	10-12S
Idle Current(10V)	7.5A	Peak Current(180s)	75A
Max. Power(180s)	4788W	Recomended ESC/Propeller	AM216A/AMZ24*10

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AM910 KV190	T24*10	30%	50.06	16.31	816.70	3539	1.40	4658	5.70	/
		35%	49.96	20.81	1039.36	3890	1.70	5678	5.46
		40%	49.84	25.41	1266.56	4195	1.99	6662	5.26
		45%	49.74	29.66	1475.25	4441	2.24	7517	5.10
		50%	49.60	35.61	1766.16	4746	2.58	8654	4.90
		55%	49.47	41.52	2054.04	5020	2.90	9740	4.74
		60%	49.35	48.63	2400.19	5304	3.28	11009	4.59
		65%	49.24	56.83	2798.34	5594	3.69	12358	4.42
		70%	49.07	67.07	3291.04	5917	4.18	13978	4.25
		75%	48.82	78.74	3843.61	6231	4.71	15704	4.09
		80%	48.54	91.64	4447.93	6534	5.25	17440	3.92
		85%	48.18	106.44	5128.56	6828	5.85	19283	3.76
		90%	47.84	120.95	5785.89	7079	6.40	20815	3.60
		95%	47.35	138.65	6565.12	7343	7.01	21554	3.28
		100%	46.96	156.64	7355.27	7580	7.61	22448	3.05
Note: Motor temperature is motor surface temperature @100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM910 KV190	HK25*10	30%	50.75	16.91	858.00	3262	1.60	4985	5.81	/
		35%	50.67	21.63	1095.83	3591	1.93	6064	5.53
		40%	50.58	26.80	1355.40	3906	2.27	7194	5.31
		45%	50.47	32.29	1629.51	4203	2.62	8335	5.12
		50%	50.37	38.53	1940.91	4520	3.00	9564	4.93
		55%	50.26	46.28	2325.84	4829	3.43	10990	4.73
		60%	50.13	55.33	2773.44	5166	3.93	12553	4.53
		65%	49.98	66.03	3300.33	5517	4.48	14348	4.35
		70%	49.78	79.12	3938.16	5862	5.10	16286	4.14
		75%	49.63	92.88	4609.21	6188	5.72	18184	3.95
		80%	49.38	108.58	5361.78	6486	6.36	20154	3.76
		85%	49.12	125.51	6164.65	6785	7.04	22033	3.57
		90%	48.93	143.32	7012.60	7053	7.75	23703	3.38
		95%	48.64	164.60	8005.98	7330	8.49	24817	3.10
		100%	48.51	185.35	8990.53	7459	9.17	25922	2.88
Note: Motor temperature is motor surface temperature @100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List

Производитель:

Ligpower
