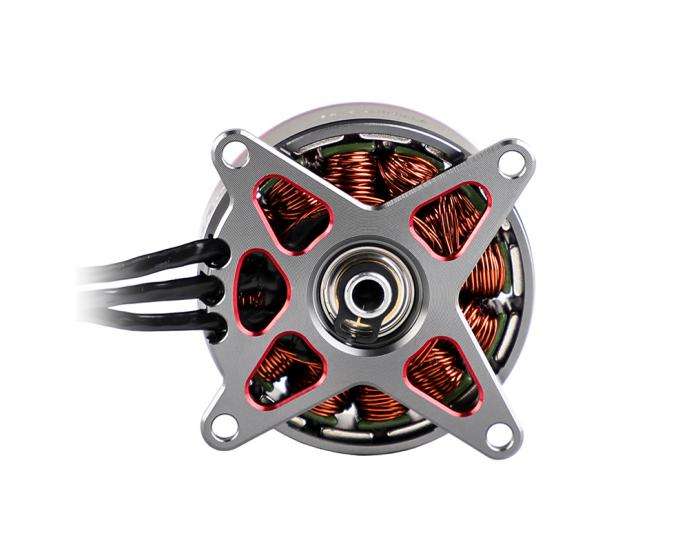

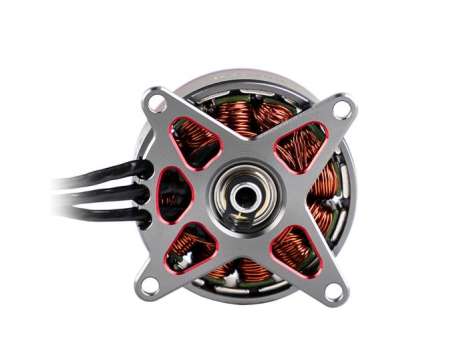

T-HOBBY Бесколлекторный двигатель для F3P самолетов AM60 V2 1550KV/1880KV/2200KV T-Motor

2185.41 грн.

Купить

Рассрочка online

Нашли дешевле?
Получите цену ниже!

Код товара: lgr92

Доставка в течение 2 недель.

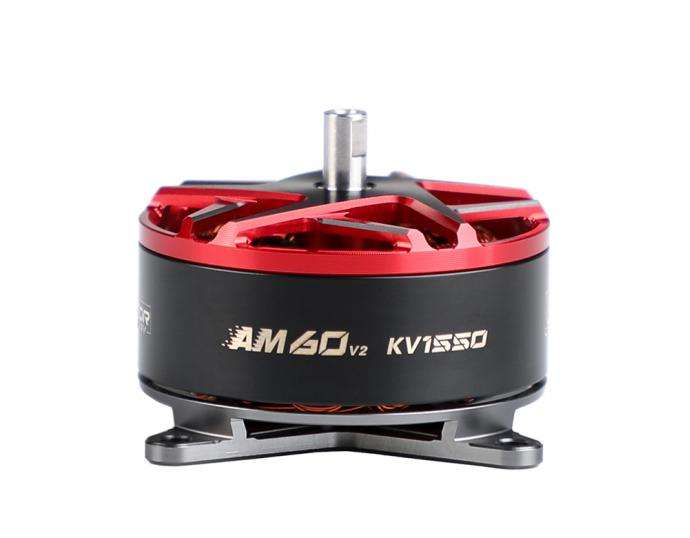

О моторе для F3P самолетов T-HOBBY AM60 V2

T-HOBBY AM60 V2 создан для EPP самолетов весом 300-600 г, идеально подходит как для полетов в помещениях, так и на открытом воздухе.

Вы можете свободно переключаться между 3D и 4D режимами полета. При весе всего 32.2 г мотор развивает максимальную тягу до 1356 г.

Особенности AM60 V2:

1. Вес 32.2 г, развивает максимальную тягу 1356 г.

2. Потрясающее соотношение тяги к весу 42x, специально разработан для EPP моделей.

3. Продолжая фирменный дизайн серии AM в форме пентаграммы, прочность конструкции увеличена на 15%, а прочность при реверсивной (двунаправленной) тяге — на 11%.

Комплектация включает:

1x Мотор T-HOBBY AM60 V2

1x Набор крепежа

Рекомендуемые комплектующие:

Пропеллер FS8040 Fixed Wing

Регулятор скорости 3D/4D AM16A ESC

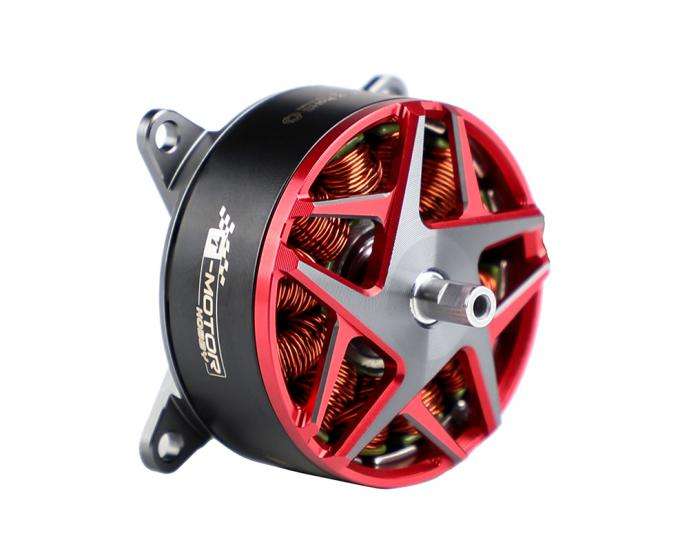

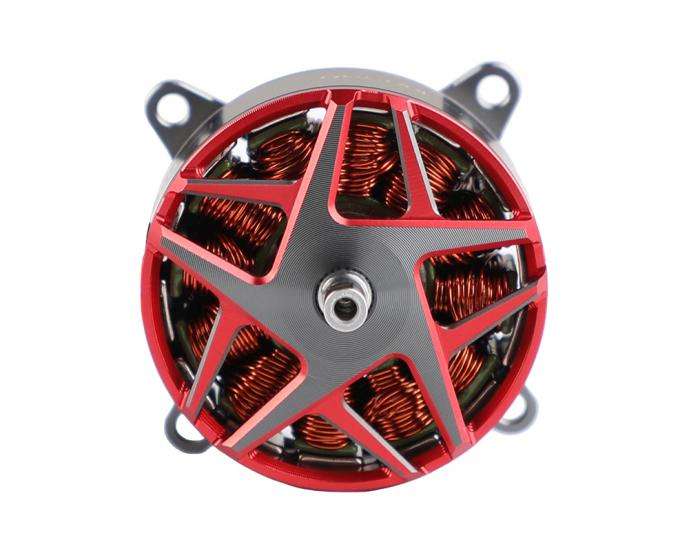

STRONGER IMPACT RESISTANCE

CONTINUATION OF THE AM FAMILY-STYLE
CUTOUT DESIGN TO INCREASE STRENGTH

CONTINUATION OF THE AM
FAMILY-STYLE CUTOUT DESIGN TO
INCREASE STRENGTH

INCREASED THE OVERALL
SHELL STRENGTH

➨%

INCREASED THE BIDIRECTIONAL
THRUST STRENGTH

➨%

100N impact simulation by CAE
Torque:(Per item:0.2 N.m); Force 2:(Per item:100N)

INDOOR AND OUTDOOR FLIGHT AS YOU LIKEINDOOR AND OUTDOOR
FLIGHT AS YOU LIKE

The AM60 V2 was created to meet a variety of flight requirement.
A wide range of mounting options and applications.

3D4DIndoorOutdoor

HGHT BURST AND
POWER SAVING

Amazing 42x power thrust
Specifically developed for air combat

battery

power saving

32.2g

Weight

1356g

Maximum thrust

Technical Drawing


Specification

Test Item	KV1550	Weight (Incl. Cable)	23.7g
Motor Dimensions	Φ28*22.1mm	Internal Resistance	135mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN:4 OUT:3	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	1A	Peak Current(60s)	19A
Max. Power(60s)	189w

Test Item	KV1880	Weight (Incl. Cable)	32.8g
Motor Dimensions	Φ28*22.1mm	Internal Resistance	54mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN:4 OUT:3	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	1.5A	Peak Current(60s)	17A
Max. Power(60s)	214W

Test Item	KV2200	Weight (Incl. Cable)	33g
Motor Dimensions	Φ28*22.1mm	Internal Resistance	40mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN:4 OUT:3	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	1.9A	Peak Current(60s)	28A
Max. Power(60s)	352.8W

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AM60 V2 KV1550	T8044	30%	8.21	0.67	5.52	3289	0.01	58	10.48	ordinary temperatures
		35%	8.21	0.87	7.16	3695	0.01	74	10.39
		40%	8.21	1.11	9.07	4092	0.01	93	10.25
		45%	8.20	1.41	11.58	4528	0.01	116	9.99
		50%	8.19	1.86	15.25	5052	0.02	146	9.58
		55%	8.19	2.38	19.52	5550	0.02	179	9.19
		60%	8.18	3.03	24.77	6056	0.03	217	8.77
		65%	8.16	3.74	30.53	6519	0.03	256	8.40
		70%	8.16	4.54	37.02	6978	0.04	296	8.01
		75%	8.14	5.42	44.11	7392	0.04	339	7.68
		80%	8.13	6.35	51.63	7802	0.05	379	7.34
		85%	8.11	7.44	60.36	8215	0.05	425	7.04
		90%	8.10	8.59	69.59	8600	0.06	470	6.76
		95%	8.08	9.83	79.38	8978	0.06	515	6.49
		100%	8.06	11.30	91.04	9363	0.07	566	6.21
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM60 V2 KV1550	T8044	30%	12.62	1.08	7.69	4673	0.02	125	9.16	ordinary temperatures
		35%	12.61	1.51	11.65	5323	0.02	166	8.76
		40%	12.60	2.14	17.57	6081	0.03	222	8.21
		45%	12.59	2.92	24.98	6788	0.04	283	7.69
		50%	12.57	3.85	33.78	7458	0.04	350	7.24
		55%	12.56	4.92	43.84	8100	0.05	419	6.78
		60%	12.54	6.14	55.49	8708	0.06	492	6.39
		65%	12.52	7.59	68.76	9310	0.07	570	6.00
		70%	12.50	9.05	82.12	9862	0.08	645	5.70
		75%	12.48	10.62	96.21	10380	0.09	718	5.42
		80%	12.45	12.56	112.94	10900	0.10	803	5.14
		85%	12.42	14.59	130.47	11383	0.11	889	4.91
		90%	12.40	16.50	146.57	11790	0.12	964	4.71
		95%	12.36	18.63	163.59	12218	0.13	1036	4.50
		100%	12.31	21.05	181.60	12616	0.14	1116	4.31
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM60 V2 KV1550	T9048	30%	8.22	0.72	5.93	2847	0.01	69	11.55	ordinary temperatures
		35%	8.22	1.00	8.18	3289	0.01	93	11.33
		40%	8.21	1.42	11.67	3794	0.02	127	10.91
		45%	8.20	1.93	15.86	4284	0.02	163	10.28
		50%	8.19	2.58	21.10	4771	0.03	205	9.70
		55%	8.18	3.35	27.41	5235	0.03	250	9.11
		60%	8.17	4.27	34.83	5695	0.04	300	8.62
		65%	8.16	5.22	42.53	6102	0.05	346	8.15
		70%	8.14	6.27	50.99	6492	0.05	394	7.74
		75%	8.12	7.44	60.44	6868	0.06	444	7.35
		80%	8.10	8.74	70.85	7221	0.07	497	7.01
		85%	8.08	10.07	81.41	7545	0.07	547	6.72
		90%	8.06	11.64	93.87	7888	0.08	601	6.41
		95%	8.04	13.27	106.66	8194	0.09	654	6.13
		100%	8.02	15.00	120.25	8495	0.10	707	5.88
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM60 V2 KV1550	T9048	30%	12.59	1.32	16.67	4260	0.02	160	9.59	ordinary temperatures
		35%	12.59	2.03	25.59	5007	0.03	225	8.78
		40%	12.57	2.92	36.68	5693	0.04	297	8.09
		45%	12.56	4.01	50.34	6351	0.05	375	7.44
		50%	12.54	5.24	65.72	6937	0.06	455	6.92
		55%	12.52	6.63	82.95	7489	0.07	534	6.44
		60%	12.50	8.25	103.12	8020	0.08	620	6.01
		65%	12.47	9.94	124.03	8487	0.09	704	5.67
		70%	12.45	11.81	147.00	8946	0.11	790	5.37
		75%	12.42	13.96	173.30	9387	0.12	882	5.09
		80%	12.39	16.03	198.58	9771	0.13	960	4.84
		85%	12.35	18.35	226.57	10146	0.14	1040	4.59
		90%	12.30	20.97	257.80	10516	0.15	1129	4.38
		95%	12.25	23.56	288.68	10847	0.16	1204	4.17
		100%	12.21	26.23	320.40	11143	0.17	1275	3.98
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM60 V2 KV1880	T9048	30%	8.20	1.14	9.33	3377	0.01	96	10.25	ordinary temperatures
		35%	8.19	1.68	13.73	3963	0.02	134	9.76
		40%	8.19	2.39	19.57	4537	0.02	179	9.14
		45%	8.17	3.35	27.34	5123	0.03	232	8.50
		50%	8.16	4.47	36.41	5664	0.04	289	7.95
		55%	8.13	5.74	46.69	6163	0.05	349	7.48
		60%	8.12	7.13	57.88	6612	0.06	407	7.04
		65%	8.10	8.70	70.40	7042	0.06	468	6.65
		70%	8.07	10.43	84.18	7436	0.07	531	6.31
		75%	8.05	12.23	98.36	7802	0.08	588	5.98
		80%	8.02	14.18	113.73	8162	0.09	647	5.69
		85%	7.99	16.35	130.58	8488	0.10	710	5.44
		90%	7.96	18.57	147.73	8806	0.10	768	5.20
		95%	7.92	20.76	164.52	9099	0.11	818	4.98
		100%	7.89	23.46	184.98	9398	0.12	877	4.74
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM60 V2 KV1880	T8044	30%	12.60	1.80	13.21	5530	0.02	182	8.05	ordinary temperatures
		35%	12.59	2.67	21.01	6407	0.03	249	7.41
		40%	12.57	3.77	30.76	7240	0.04	324	6.84
		45%	12.56	5.11	42.35	8018	0.05	406	6.32
		50%	12.53	6.68	56.22	8768	0.06	493	5.89
		55%	12.50	8.66	72.93	9510	0.07	591	5.45
		60%	12.48	10.71	90.01	10155	0.08	684	5.12
		65%	12.44	12.93	107.93	10744	0.10	777	4.83
		70%	12.41	15.50	127.96	11329	0.11	876	4.56
		75%	12.36	18.43	149.09	11859	0.12	977	4.29
		80%	12.31	21.03	167.63	12315	0.13	1057	4.08
		85%	12.26	23.93	186.46	12734	0.14	1140	3.89
		90%	12.22	26.88	204.80	13122	0.15	1218	3.71
		95%	12.17	29.90	222.39	13489	0.16	1292	3.55
		100%	12.13	33.01	237.64	13785	0.16	1357	3.39
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM60 V2 KV1880	T8041	30%	12.59	1.73	21.76	5681	0.02	179	8.21
		35%	12.58	2.47	31.08	6573	0.03	239	7.68	ordinary temperatures
		40%	12.56	3.45	43.30	7463	0.04	309	7.14
		45%	12.55	4.59	57.62	8304	0.04	383	6.65
		50%	12.53	5.94	74.38	9098	0.05	460	6.18
		55%	12.51	7.62	95.31	9923	0.06	547	5.74
		60%	12.48	9.40	117.37	10656	0.07	632	5.39
		65%	12.45	11.40	141.93	11343	0.08	719	5.06
		70%	12.42	13.72	170.37	12033	0.09	809	4.75
		75%	12.39	15.97	197.80	12575	0.10	892	4.51
		80%	12.35	18.37	226.73	13125	0.11	974	4.30
		85%	12.29	20.90	256.86	13618	0.12	1052	4.10
		90%	12.25	23.61	289.17	14102	0.13	1126	3.90
		95%	12.21	26.26	320.67	14516	0.14	1197	3.73
		100%	12.17	29.09	354.14	14940	0.15	1267	3.58
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM60 V2 KV2200	T8044	30%	8.39	1.65	13.81	4549	0.01	112	8.12
		35%	8.37	2.19	18.33	5110	0.02	144	7.85	ordinary temperatures
		40%	8.35	2.93	24.50	5735	0.02	183	7.48
		45%	8.33	3.95	32.86	6395	0.03	232	7.05
		50%	8.29	5.12	42.47	7005	0.04	284	6.69
		55%	8.26	6.47	53.43	7570	0.04	339	6.34
		60%	8.22	7.93	65.24	8096	0.05	392	6.00
		65%	8.18	9.59	78.46	8601	0.06	447	5.70
		70%	8.13	11.47	93.27	9065	0.06	506	5.43
		75%	8.08	13.43	108.48	9472	0.07	559	5.16
		80%	8.02	15.73	126.16	9892	0.08	618	4.90
		85%	7.96	18.01	143.36	10267	0.08	672	4.69
		90%	7.90	20.32	160.51	10601	0.09	723	4.50
		95%	7.84	22.73	178.12	10933	0.09	771	4.33
		100%	7.76	25.32	196.47	11213	0.10	822	4.18
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM60 V2 KV2200	T8044	30%	12.56	2.82	35.42	6379	0.03	232	6.54
		35%	12.52	4.13	51.71	7317	0.04	312	6.04	ordinary temperatures
		40%	12.48	5.71	71.21	8157	0.05	398	5.58
		45%	12.43	7.56	93.94	8925	0.06	484	5.15
		50%	12.36	9.88	122.11	9688	0.07	585	4.79
		55%	12.28	12.23	150.17	10325	0.08	675	4.50
		60%	12.21	14.95	182.47	10938	0.10	770	4.22
		65%	12.12	18.26	221.31	11531	0.11	872	3.94
		70%	12.03	21.73	261.40	12094	0.12	966	3.70
		75%	11.94	25.15	300.34	12505	0.13	1046	3.48
		80%	11.85	28.76	340.73	12893	0.14	1122	3.29
		85%	11.76	32.18	378.48	13221	0.15	1198	3.17
		90%	11.66	35.85	418.12	13431	0.15	1264	3.02
		95%	11.59	38.71	448.52	13815	0.16	1282	2.86
		100%	11.49	42.40	487.21	14042	0.16	1325	2.72
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM60 V2 KV2200	T9048	30%	8.38	1.89	15.88	3922	0.02	137	8.65
		35%	8.36	2.79	23.34	4583	0.03	189	8.09	ordinary temperatures
		40	8.33	3.95	32.91	5211	0.03	248	7.53
		45%	8.29	5.39	44.71	5802	0.04	312	6.98
		50%	8.25	6.99	57.69	6326	0.05	375	6.51
		55%	8.20	8.77	71.97	6810	0.06	438	6.09
		60%	8.15	10.70	87.20	7253	0.07	500	5.73
		65%	8.10	12.81	103.70	7638	0.08	560	5.40
		70%	8.04	15.03	120.84	8008	0.08	618	5.12
		75%	7.98	17.30	138.05	8324	0.09	673	4.87
		80%	7.92	19.71	156.11	8620	0.10	724	4.64
		85%	7.86	22.11	173.72	8881	0.10	771	4.44
		90%	7.77	25.10	194.92	9171	0.11	825	4.23
		95%	7.69	27.80	213.70	9375	0.12	871	4.08
		100%	7.60	30.60	232.71	9583	0.12	917	3.94
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List
