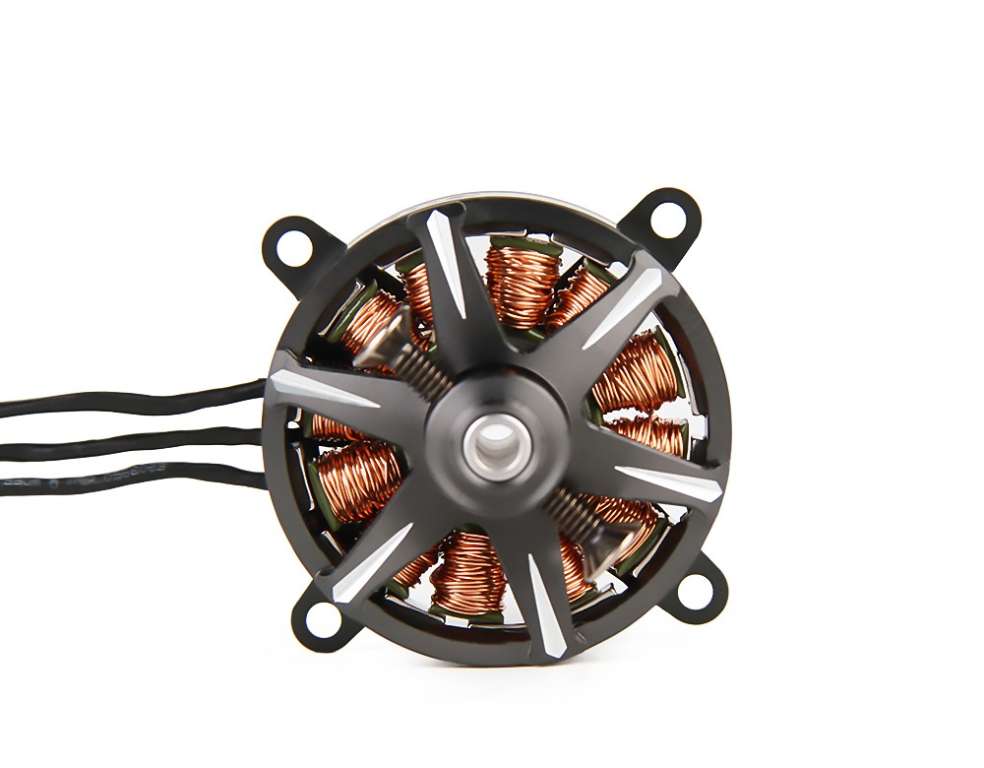

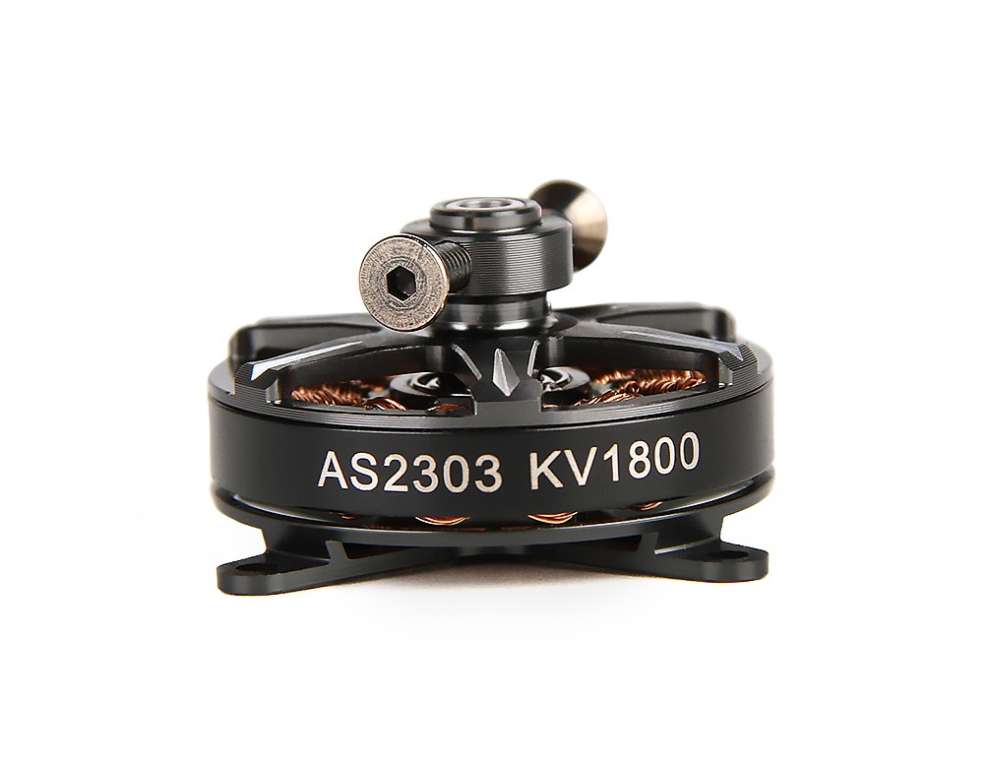

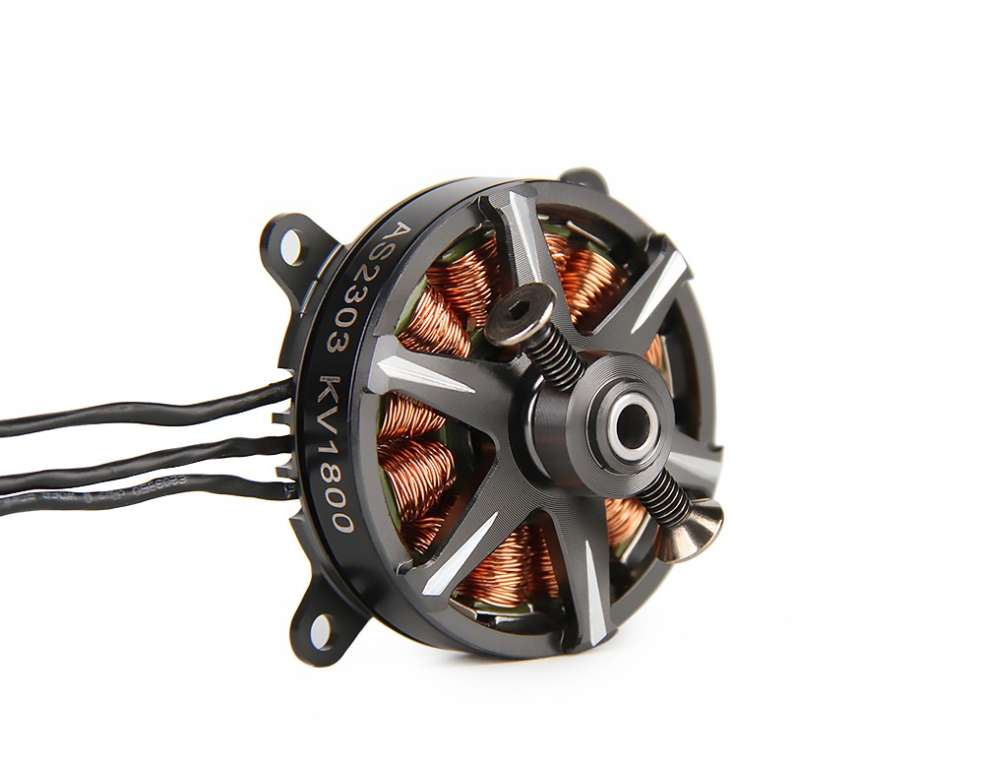

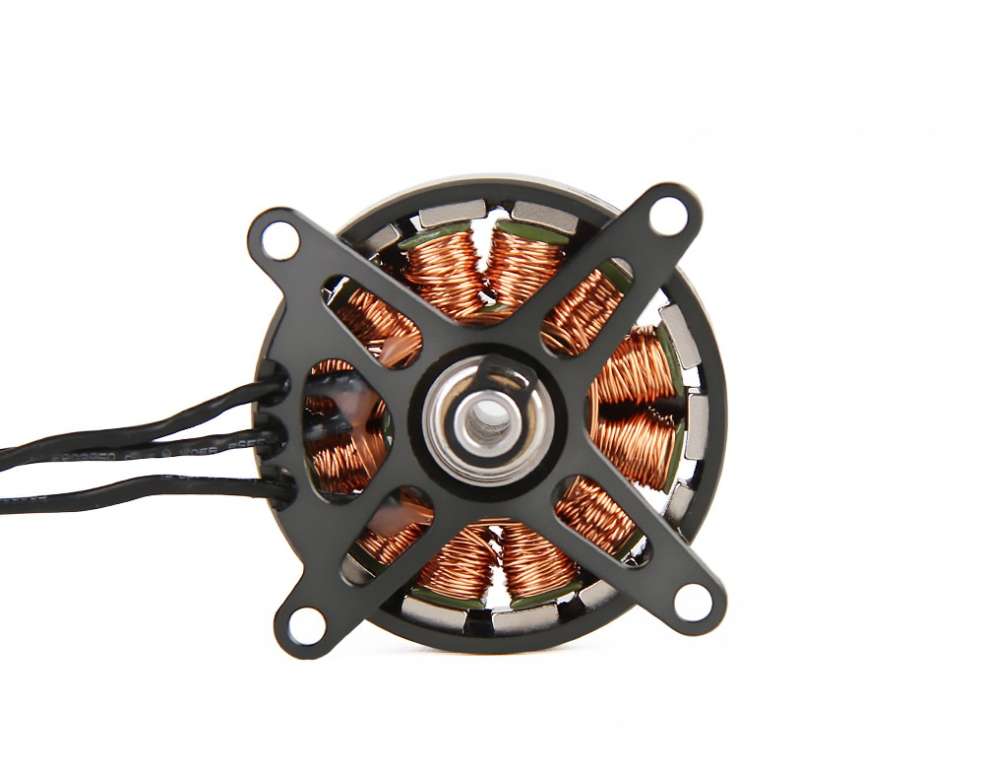

T-HOBBY Бесколлекторный двигатель с коротким валом AS2303 2-3S для комнатных пилотажных самолетов F3P T-Motor

990.36 грн.

Код товара: lgr94

Доставка в течение 2 недель.

О моторе T-HOBBY AS2303 2-3S с коротким валом для комнатных F3P самолетов

AS2303 — это мотор весом всего 17 г, который подходит для комнатных самолетов F3P весом 150–320 г и поддерживает аккумуляторы 2-3S.

Рекомендуется использовать в связке с регулятором T-HOBBY AM16A ESC и пропеллерами SF8/9''.

Особенности AS2303:

1. Легкий и гибкий в управлении

2. Надежный и приятный в эксплуатации

3. Точный и плавный

4. Разработан для комнатных моделей весом от 150 до 320 г

5. Для F3P, 3D, 4D и других пилотажных самолетов

Комплектация включает:

1x Мотор T-HOBBY AS2303

1x Набор комплектующих

Рекомендуемые комплектующие:

Обновляется

Technical Drawing

Specification

Test Item	KV1500 Short Shaft	Weight (Incl. Cable)	17g
Motor Dimensions	Short Shaft Φ28*16.5mm	Internal Resistance	251mΩ
Lead	Enameled Wire 40mm	Configuration	12N14P
Shaft Diameter	IN：4mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	0.3A	Peak Current(180s)	10A
Max Power (180S)	108W	Recommendation	20A+8040/9050/1060

Test Item	KV1800 Short Shaft	Weight (Incl. Cable)	17g
Motor Dimensions	Short Shaft Φ28*16.5mm	Internal Resistance	236mΩ
Lead	Enameled Wire40mm	Configuration	12N14P
Shaft Diameter	IN：4mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	0.5A	Peak Current(180s)	10A
Max Power (180S)	67W	Recommendation	20-25A+8040/9050/1060

Test Item	KV2300 Short Shaft	Weight (Incl. Cable)	17g
Motor Dimensions	Short Shaft Φ28*16.5mm	Internal Resistance	122mΩ
Lead	Enameled Wire40mm	Configuration	12N14P
Shaft Diameter	IN：4mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	0.75A	Peak Current(180s)	25A
Max Power (180S)	62W	Recommendation	30A+7035/8040/9050

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AS2303 Short Shaft KV1500	GW 8040	40%	11.47	1.17	13.43	5665	0.015	131	9.78	68 (Ambient Temperature: /)
		45%	11.47	1.53	17.55	5966	0.017	156	8.89
		50%	11.46	2.07	23.72	6205	0.020	192	8.11
		55%	11.45	2.70	30.91	6718	0.024	230	7.45
		60%	11.44	3.40	38.91	7186	0.028	267	6.85
		65%	11.42	4.09	46.70	7610	0.032	297	6.35
		70%	11.41	4.91	56.04	8068	0.036	334	5.96
		75%	11.43	5.91	67.51	8577	0.040	373	5.52
		80%	11.70	7.02	82.11	9042	0.046	420	5.11
		90%	11.72	9.13	106.99	9666	0.053	485	4.53
		100%	11.73	9.20	107.98	9617	0.052	481	4.45
	GWS 9050	40%	7.48	0.73	5.45	3217	0.011	83	15.17	57 (Ambient Temperature: /)
		45%	7.46	1.08	8.04	3541	0.014	101	12.59
		50%	7.46	1.46	10.87	3871	0.017	125	11.48
		55%	7.45	1.96	14.61	4210	0.019	147	10.07
		60%	7.44	2.56	19.03	4518	0.023	171	8.97
		65%	7.47	3.21	24.02	4834	0.025	195	8.12
		70%	7.73	4.04	31.26	5211	0.030	233	7.44
		75%	7.79	4.83	37.58	5522	0.033	261	6.96
		80%	7.78	5.67	44.08	5739	0.036	287	6.51
		90%	7.81	7.46	58.25	6221	0.044	339	5.83
		100%	7.78	7.55	58.77	6234	0.043	338	5.75
	GWS 1060	40%	7.47	0.94	7.04	2554	0.014	92	13.00	69 (Ambient Temperature: /)
		45%	7.46	1.37	10.23	2844	0.016	104	10.21
		50%	7.45	1.91	14.27	3151	0.021	136	9.52
		55%	7.44	2.56	19.04	3412	0.025	159	8.38
		60%	7.52	3.18	23.92	3710	0.029	186	7.79
		65%	7.74	4.20	32.50	3978	0.034	221	6.81
		70%	7.75	5.00	38.80	4215	0.038	244	6.30
		75%	7.77	6.00	46.59	4444	0.043	279	5.98
		80%	7.80	6.90	53.79	4609	0.046	302	5.61
		90%	7.77	8.68	67.46	4919	0.053	334	4.95
		100%	7.75	8.64	67.02	4873	0.051	329	4.90
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AS2303 Short Shaft KV1800	GW 8040	40%	7.68	1.04	7.99	4342	0.011	94	11.79	67 (Ambient Temperature: /)
		45%	7.58	1.28	9.74	4629	0.013	110	11.29
		50%	7.51	1.64	12.35	4974	0.015	125	10.09
		55%	7.57	2.15	16.27	5409	0.018	147	9.06
		60%	7.51	2.66	19.99	5784	0.020	170	8.51
		65%	7.49	3.25	24.35	6153	0.023	196	8.05
		70%	7.46	3.92	29.22	6524	0.026	223	7.62
		75%	7.43	4.71	35.02	6936	0.029	251	7.17
		80%	7.39	5.46	40.34	7244	0.032	273	6.78
		90%	7.28	7.10	51.66	7835	0.037	320	6.19
		100%	7.23	7.26	52.52	7880	0.037	320	6.09
	GWS 9050	40%	7.60	1.19	9.03	3454	0.014	97	10.73	56 (Ambient Temperature: /)
		45%	7.58	1.65	12.49	3784	0.017	119	9.51
		50%	7.60	2.21	16.82	4140	0.020	145	8.61
		55%	7.59	2.96	22.42	4494	0.024	175	7.80
		60%	7.51	3.67	27.58	4783	0.027	199	7.22
		65%	7.44	4.43	32.95	5076	0.030	224	6.79
		70%	7.40	5.33	39.45	5320	0.034	249	6.31
		75%	7.33	6.21	45.48	5574	0.037	274	6.03
		80%	7.26	7.09	51.46	5776	0.040	295	5.73
		90%	7.13	9.00	64.15	6130	0.045	336	5.24
		100%	7.15	9.17	65.59	6158	0.045	334	5.10
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AS2303 Short Shaft KV2300	GW 7035	40%	7.52	1.64	12.30	7064	0.011	100	8.17	74 (Ambient Temperature: /)
		45%	7.54	2.06	15.56	7611	0.013	119	7.61
		50%	7.51	2.45	18.43	8135	0.014	134	7.29
		55%	7.46	2.84	21.17	8504	0.016	151	7.13
		60%	7.47	3.23	24.10	8873	0.017	167	6.93
		65%	7.48	3.77	28.21	9382	0.019	189	6.69
		70%	7.43	4.41	32.77	9869	0.021	212	6.47
		75%	7.40	5.28	39.09	10479	0.024	243	6.21
		80%	7.33	6.09	44.60	11032	0.026	268	6.01
		90%	7.19	8.10	58.25	12023	0.031	325	5.58
		100%	7.18	8.40	60.32	12186	0.032	331	5.49
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List

Производитель:

Ligpower
