T-HOBBY Бесколлекторный двигатель с коротким валом AS2304 2-3S для комнатных самолетов F3P T-Motor

1056.60 грн.

Код товара: lgr95

Доставка в течение 2 недель.

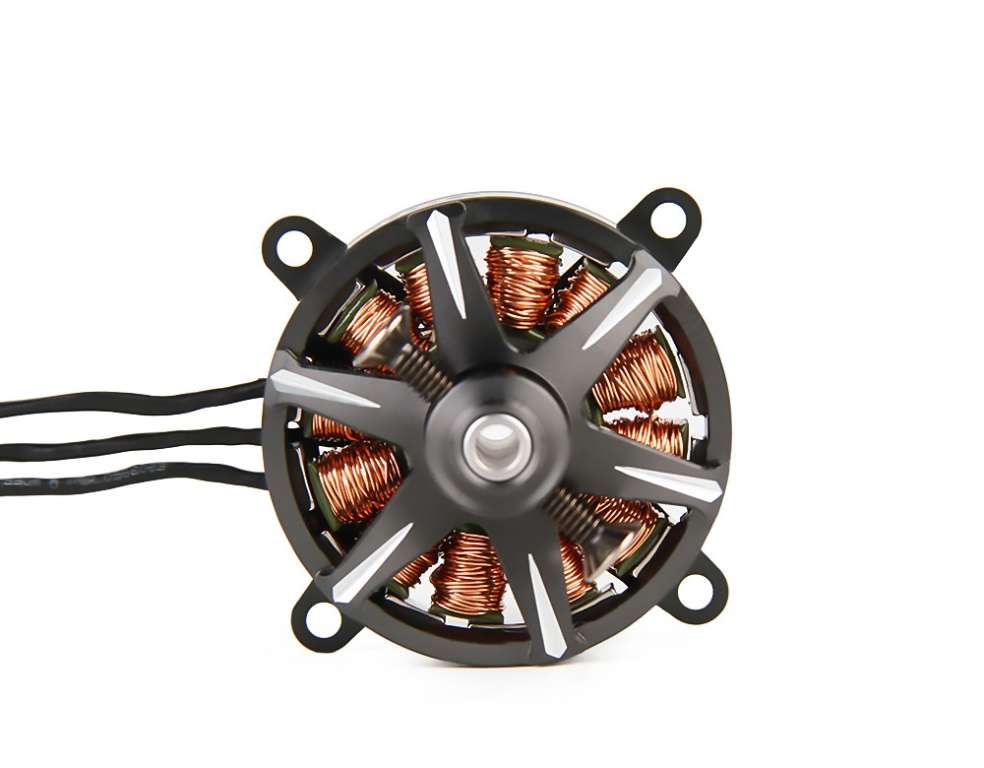

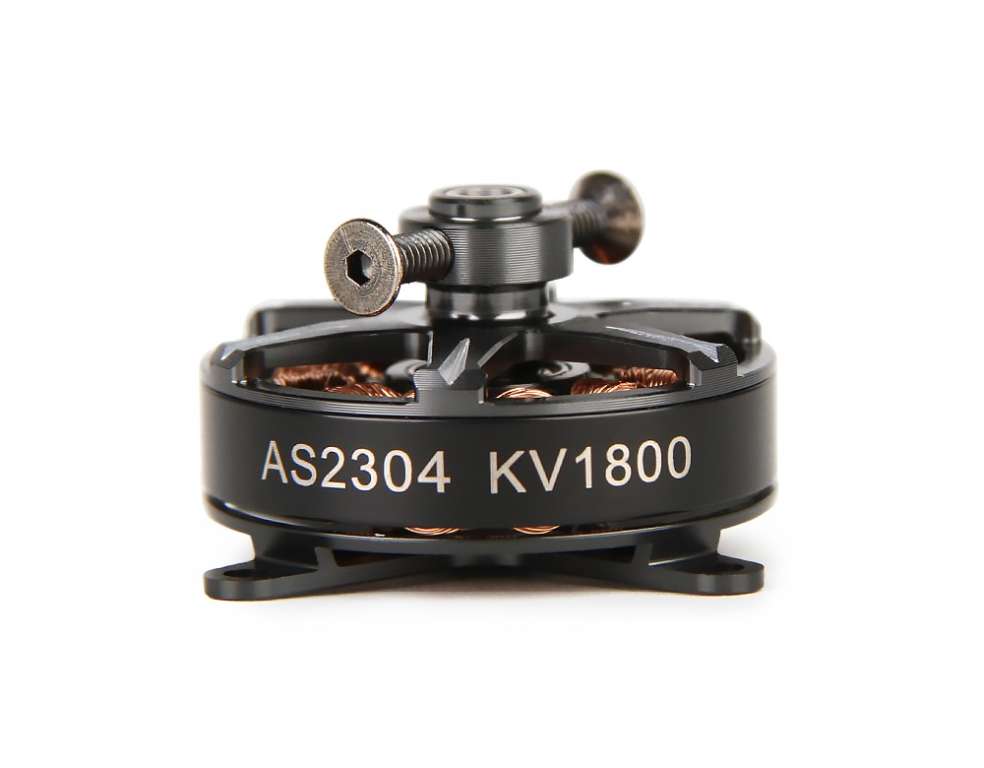

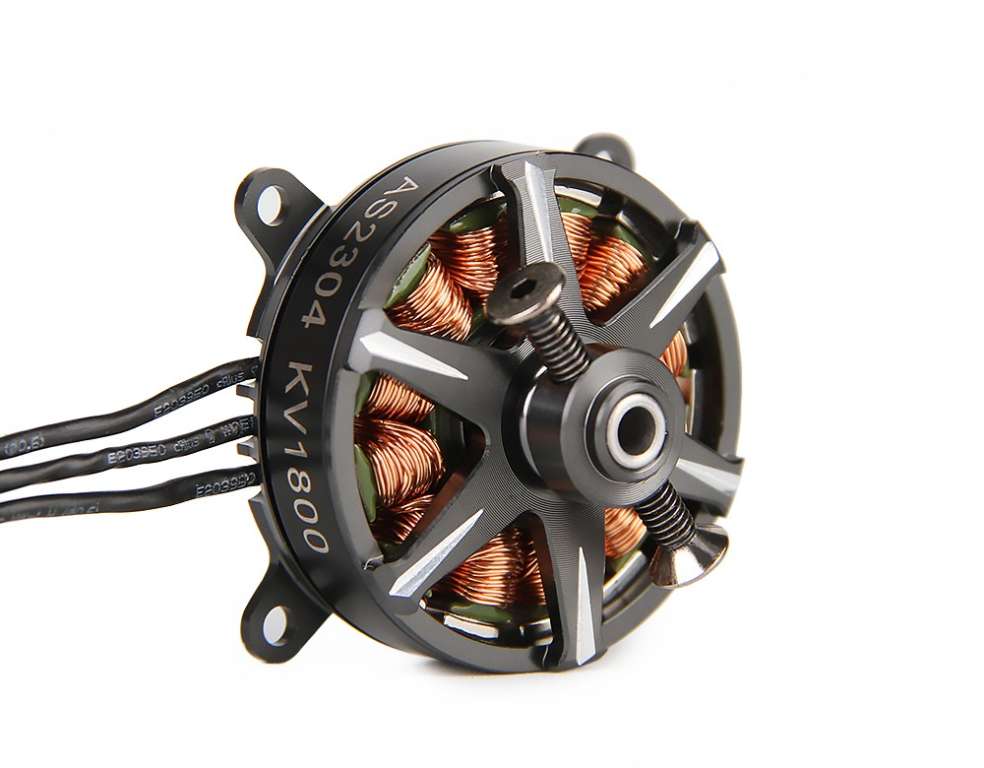

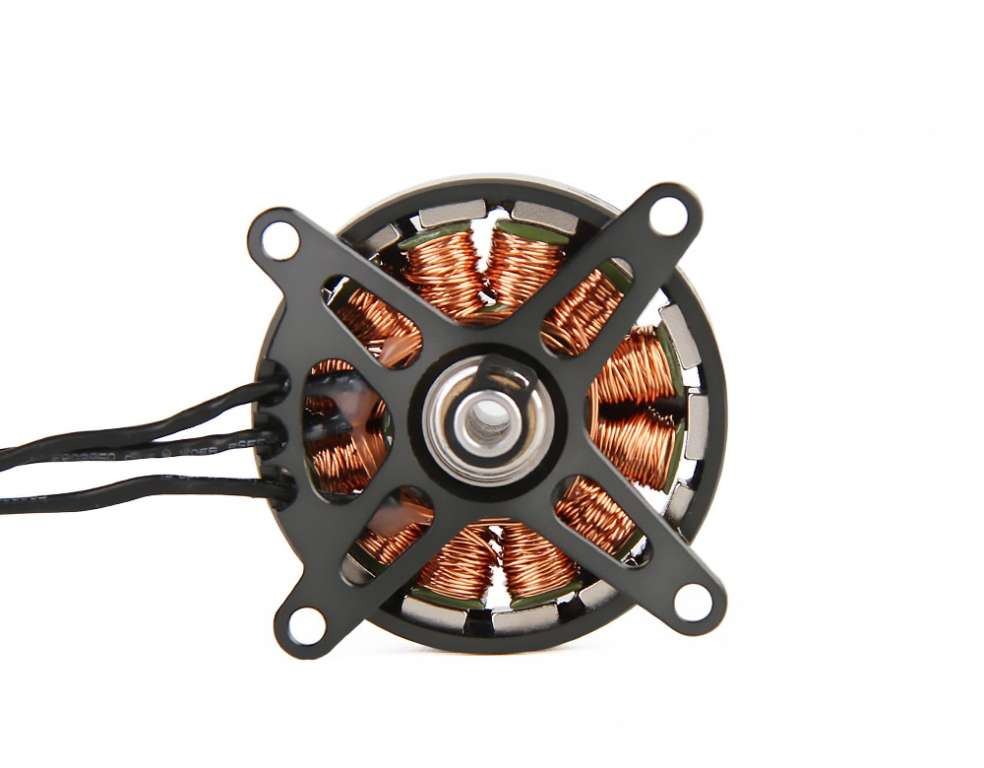

О моторе T-HOBBY AS2304 2-3S с коротким валом для комнатных самолетов

AS2304 — это мотор весом 20 г, который подходит для комнатных самолетов F3P весом 150–320 г и поддерживает аккумуляторы 2-3S.

Особенности AS2304:

• Разработан для комнатных моделей весом от 150 до 320 г

• Для F3P, 3D, 4D и других пилотажных самолетов

Комплектация включает:

1x Мотор T-HOBBY AS2304

1x Набор комплектующих

Рекомендуемые комплектующие:

Обновляется

Technical Drawing

Specification

Test Item	KV1500 Short Shaft	Weight (Incl. Cable)	20g
Motor Dimensions	Short Shaft Φ28*16.5mm	Internal Resistance	236mΩ
Lead	Enameled Wire 40mm	Configuration	12N14P
Shaft Diameter	IN：4mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	0.35A	Peak Current(180s)	9A
Max Power (180S)	72W	Recommendation	20A+8040/9050/1060

Test Item	KV1800 Short Shaft	Weight (Incl. Cable)	20g
Motor Dimensions	Short Shaft Φ28*16.5mm	Internal Resistance	138mΩ
Lead	Enameled Wire 40mm	Configuration	12N14P
Shaft Diameter	IN：4mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	0.5A	Peak Current(180s)	16A
Max Power (180S)	168W	Recommendation	20-25A+7035/8040/9050

Test Item	KV2300 Short Shaft	Weight (Incl. Cable)	20g
Motor Dimensions	Short Shaft Φ28*16.5mm	Internal Resistance	88mΩ
Lead	Enameled Wire 40mm	Configuration	12N14P
Shaft Diameter	IN：4mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	0.75A	Peak Current(180s)	16A
Max Power (180S)	108W	Recommendation	30A+7035/8040/9050

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AS2304 Short Shaft KV1500	GWS 7035	40%	11.91	1.25	14.95	7980	0.014	134	8.99	68 (Ambient Temperature: /)
		45%	11.90	1.55	18.41	8518	0.016	152	8.28
		50%	11.88	1.82	21.63	9018	0.017	171	7.91
		55%	11.86	2.11	25.02	9427	0.019	192	7.68
		60%	11.84	2.40	28.42	9762	0.021	210	7.40
		65%	11.82	2.74	32.40	10203	0.023	232	7.15
		70%	11.80	3.18	37.56	10740	0.025	257	6.85
		75%	11.76	3.71	43.59	11346	0.028	289	6.63
		80%	11.71	4.32	50.66	11931	0.031	322	6.35
		90%	11.61	5.84	67.81	13098	0.037	396	5.85
		100%	11.59	6.08	70.44	13304	0.038	407	5.78
	GWS 8040	40%	7.94	0.90	7.17	4454	0.012	97	13.50	54 (Ambient Temperature: /)
		45%	7.93	1.15	9.13	4762	0.014	113	12.33
		50%	7.92	1.44	11.43	5080	0.016	127	11.10
		55%	7.90	1.76	13.87	5395	0.018	145	10.42
		60%	7.88	2.15	16.94	5729	0.020	167	9.85
		65%	7.86	2.63	20.64	6141	0.023	190	9.19
		70%	7.83	3.20	25.06	6541	0.026	219	8.74
		75%	7.80	3.77	29.44	6932	0.029	243	8.25
		80%	7.77	4.41	34.30	7290	0.032	269	7.83
		90%	7.69	5.91	45.42	7939	0.038	325	7.15
		100%	7.66	6.23	47.78	8087	0.039	336	7.04
	GWS 9050	40%	7.92	1.05	8.29	3535	0.015	102	12.33	68 (Ambient Temperature: /)
		45%	7.90	1.41	11.12	3843	0.018	125	11.22
		50%	7.87	1.83	14.45	4148	0.021	149	10.29
		55%	7.84	2.37	18.59	4492	0.024	173	9.31
		60%	7.81	3.01	23.51	4815	0.029	203	8.65
		65%	7.77	3.70	28.75	5123	0.033	232	8.06
		70%	7.72	4.51	34.82	5445	0.037	263	7.56
		75%	7.67	5.38	41.24	5727	0.041	294	7.13
		80%	7.62	6.17	46.96	5988	0.044	322	6.86
		90%	7.42	7.89	58.57	6402	0.050	369	6.30
		100%	7.40	8.10	59.95	6428	0.051	374	6.23
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AS2304 Short Shaft KV1800	GWS 8040	40%	11.83	2.63	31.06	6952	0.027	229	7.37	65 (Ambient Temperature: /)
		45%	11.77	3.32	39.04	7492	0.031	267	6.83
		50%	11.63	4.14	48.18	7692	0.035	307	6.37
		55%	11.50	5.11	58.71	8177	0.040	351	5.98
		60%	11.42	6.20	70.83	8739	0.046	399	5.63
		65%	11.31	7.39	83.55	9222	0.051	445	5.33
		70%	11.19	8.72	97.51	9655	0.056	494	5.06
		75%	11.07	10.14	112.28	10075	0.061	539	4.80
		80%	11.01	11.67	128.43	10451	0.066	582	4.53
		90%	10.85	14.88	161.49	11082	0.076	665	4.12
		100%	10.93	15.22	166.27	11128	0.077	665	4.00
	GWS 9050	40%	7.87	1.83	14.43	4059	0.019	136	9.41	56 (Ambient Temperature: /)
		45%	7.83	2.37	18.54	4407	0.022	162	8.74
		50%	7.78	3.07	23.87	4757	0.026	195	8.17
		55%	7.72	3.93	30.34	5114	0.031	229	7.54
		60%	7.65	4.89	37.38	5470	0.036	264	7.06
		65%	7.57	5.95	45.05	5795	0.041	300	6.66
		70%	7.50	6.99	52.38	6105	0.045	333	6.36
		75%	7.42	8.22	60.99	6394	0.050	370	6.06
		80%	7.34	9.41	69.04	6658	0.053	399	5.77
		90%	7.10	11.91	84.55	7061	0.060	450	5.32
		100%	7.04	11.96	84.15	7049	0.059	447	5.31
	GWS 1060	40%	7.83	2.13	16.66	3264	0.023	146	8.78	68 (Ambient Temperature: /)
		45%	7.77	3.00	23.29	3608	0.028	178	7.64
		50%	7.72	3.69	28.48	3935	0.033	212	7.45
		55%	7.47	4.68	34.92	4143	0.038	241	6.89
		60%	7.34	5.74	42.12	4402	0.042	271	6.44
		65%	7.36	7.01	51.56	4684	0.047	306	5.93
		70%	7.28	8.28	60.26	4901	0.053	336	5.58
		75%	7.20	9.59	69.02	5111	0.057	364	5.27
		80%	7.11	10.92	77.63	5277	0.062	390	5.02
		90%	6.93	13.70	94.90	5574	0.068	436	4.60
		100%	6.90	13.73	94.77	5549	0.067	429	4.53
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AS2304 Short Shaft KV2300	GWS 8040	40%	7.53	2.66	20.01	5602	0.019	158	7.88	87 (Ambient Temperature: /)
		45%	7.61	3.32	25.28	6123	0.023	188	7.42
		50%	7.55	3.97	30.00	6513	0.026	216	7.19
		55%	7.23	4.62	33.39	6762	0.029	237	7.08
		60%	7.14	5.55	39.62	7184	0.032	265	6.68
		65%	7.05	6.51	45.90	7589	0.036	298	6.49
		70%	6.98	7.71	53.82	8017	0.039	333	6.18
		75%	7.03	9.19	64.60	8512	0.044	374	5.79
		80%	7.11	10.98	78.02	9021	0.050	425	5.44
		90%	7.09	14.64	103.86	9817	0.059	507	4.88
		100%	7.08	15.20	107.63	9899	0.060	513	4.77
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List

Производитель:

Ligpower
