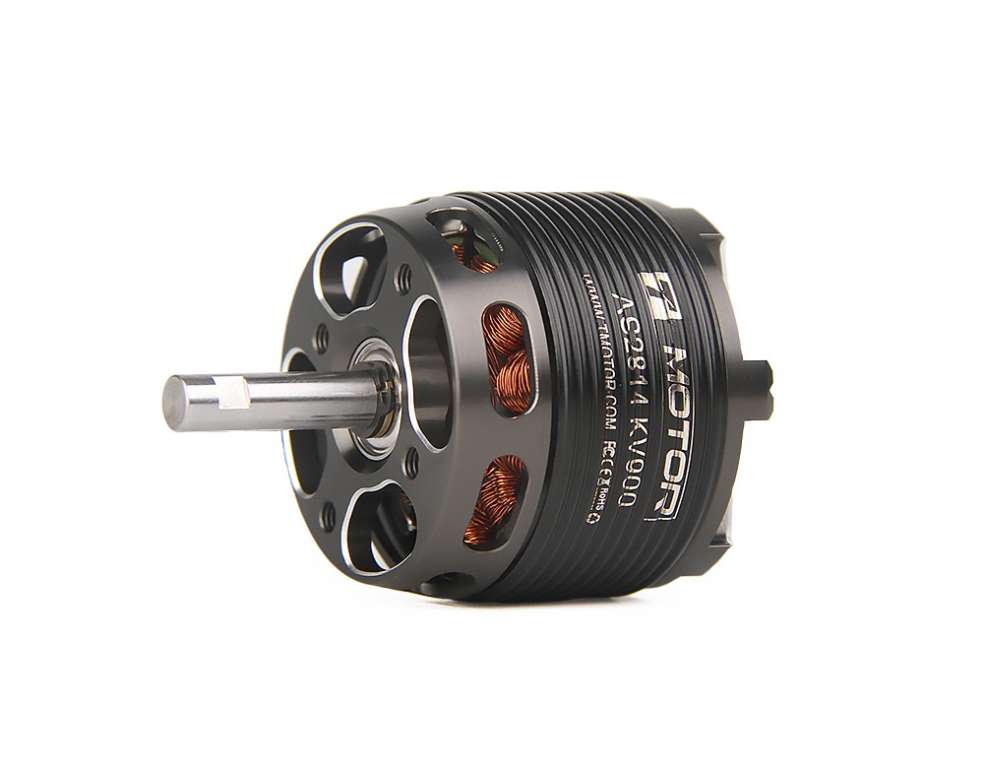

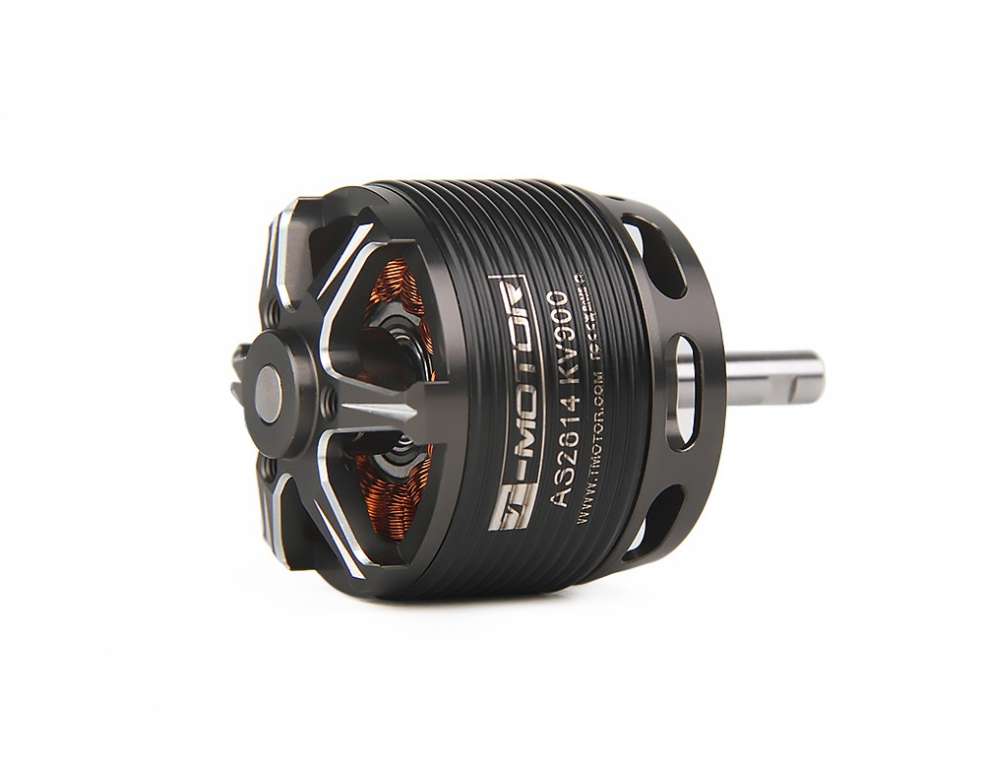

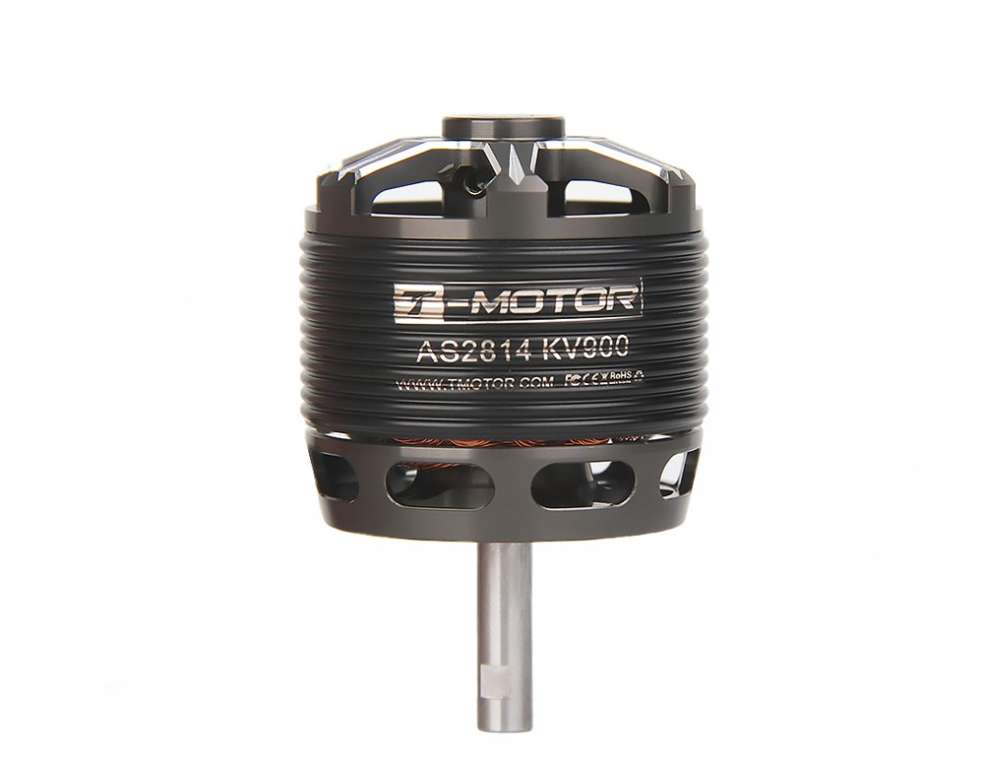

T-HOBBY Бесколлекторный двигатель с длинным валом AS2814 2-4S для 3D и F3A RC Airplane T-Motor

2251.65 грн.

Код товара: lgr100

Доставка в течение 2 недель.

О моторе T-HOBBY AS2814 2-4S с длинным валом для 3D и F3A RC моделей

AS2814 — это мотор, специально разработанный для уличных моделей 20-30E классов 3D и F3A. Вес мотора составляет 110 г. Он поддерживает аккумуляторы 3-4S и развивает максимальную тягу до 2209 г.

Рекомендуется использовать в связке с регулятором T-HOBBY AT55A ESC и пропеллерами T-HOBBY 12*6 / 13*6.5 дюймов.

Особенности AS2814:

1. Высокая эффективность и энергосбережение: позволяет увеличить выходную мощность при сохранении низкого энергопотребления.

2. Мотор проходит строгие испытания и контроль качества для обеспечения долговечности и надежности в различных условиях эксплуатации.

3. Вес с проводами составляет около 110 г, что снижает общую массу и улучшает полетные характеристики и грузоподъемность.

4. Совместим с другими деталями для авиамоделей, удобен в установке, обслуживании и замене.

Комплектация включает:

1x Мотор T-HOBBY AS2814

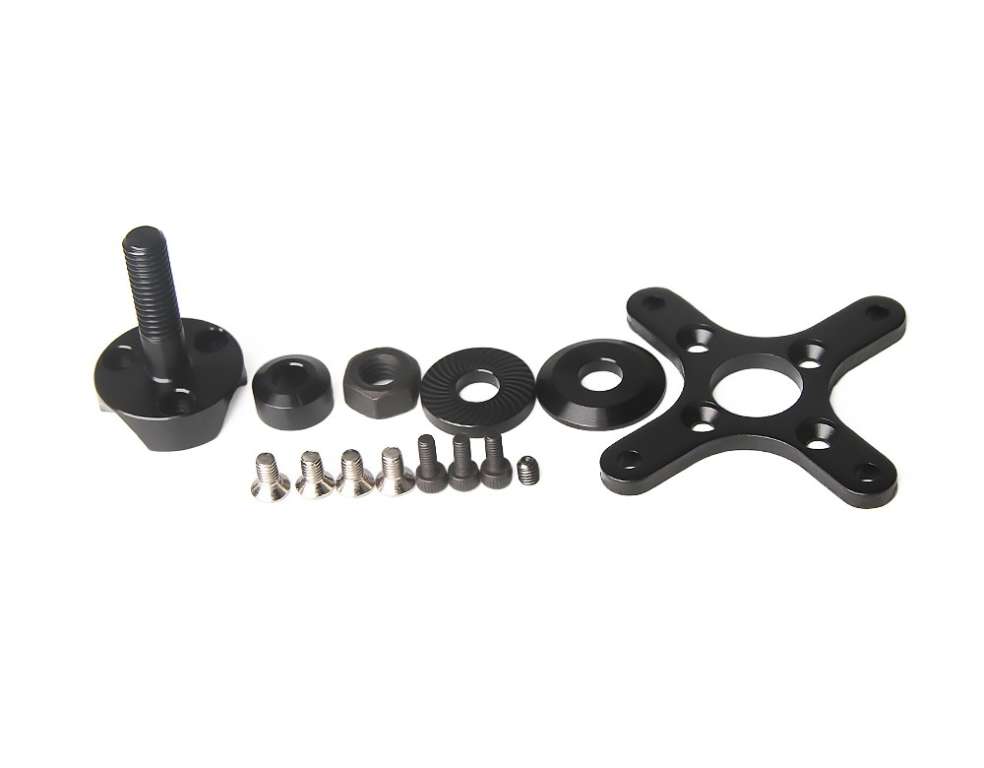

1x Набор комплектующих

Рекомендуемые комплектующие:

Обновляется

Technical Drawing


Specification

Test Item	Long Shaft KV900	Weight (Incl. Cable)	110g
Motor Dimensions	Φ36.2*54.5mm	Internal Resistance	43.5mΩ
Lead	Enameled Wire 100mm	Configuration	12N14P
Shaft Diameter	IN：5mm OUT：5mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	1.35A	Peak Current(180s)	37A
Max Power (180S)	553W	Recommendation	/

Test Item	Long Shaft KV1050	Weight (Incl. Cable)	112g
Motor Dimensions	Φ36.2*54.5mm	Internal Resistance	34.6mΩ
Lead	Enameled Wire 100mm	Configuration	12N14P
Shaft Diameter	IN：5mm OUT：5mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	1.35A	Peak Current(180s)	49A
Max Power (180S)	718W	Recommendation	/

Test Item	Long Shaft KV1200	Weight (Incl. Cable)	112g
Motor Dimensions	Φ36.2*54.5mm	Internal Resistance	25.2mΩ
Lead	Enameled Wire 100mm	Configuration	12N14P
Shaft Diameter	IN：5mm OUT：5mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	2.21A	Peak Current(180s)	61A
Max Power (180S)	885W	Recommendation	/

Test Item	Long Shaft KV2000	Weight (Incl. Cable)	116g
Motor Dimensions	Φ36.2*54.5mm	Internal Resistance	11mΩ
Lead	Enameled Wire 100mm	Configuration	12N14P
Shaft Diameter	IN：5mm OUT：5mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	4.5A	Peak Current(180s)	42A
Max Power (180S)	441W	Recommendation	/

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AS2814 Long Shaft KV900	APC 10*5.5	40%	15.89	7.13	113.25	6653	0.114	696	6.14	83 (Ambient Temperature: /)
		45%	15.86	8.35	132.43	7015	0.129	780	5.89
		50%	15.83	9.70	153.52	7373	0.144	874	5.69
		55%	15.80	10.88	171.89	7660	0.157	949	5.52
		60%	15.77	12.54	197.71	7997	0.174	1052	5.32
		65%	15.73	14.52	228.35	8391	0.196	1165	5.10
		70%	15.68	16.47	258.28	8762	0.215	1284	4.97
		75%	15.61	19.34	301.94	9224	0.239	1424	4.72
		80%	15.54	22.28	346.32	9703	0.262	1558	4.50
		90%	15.37	29.93	459.95	10530	0.320	1882	4.09
		100%	15.30	32.72	500.58	10763	0.341	1989	3.97
	APC 11*5.5	40%	15.89	7.35	116.83	6422	0.125	753	6.44	93 (Ambient Temperature: /)
		45%	15.86	8.66	137.43	6774	0.141	850	6.19
		50%	15.82	10.10	159.86	7151	0.157	945	5.91
		55%	15.79	11.64	183.84	7496	0.173	1039	5.65
		60%	15.74	13.45	211.72	7817	0.195	1109	5.24
		65%	15.68	16.24	254.67	8188	0.229	1213	4.76
		70%	15.63	18.60	290.72	8585	0.252	1396	4.80
		75%	15.56	21.56	335.42	9015	0.278	1592	4.74
		80%	15.48	25.08	388.07	9464	0.306	1766	4.55
		90%	15.28	33.34	509.61	10233	0.370	2103	4.13
		100%	15.21	36.34	552.95	10448	0.389	2209	3.99
	APC 12*6	40%	11.88	5.35	63.50	4549	0.092	523	8.24	69 (Ambient Temperature: /)
		45%	11.86	6.35	75.24	4866	0.103	596	7.92
		50%	11.83	7.44	88.00	5152	0.116	667	7.57
		55%	11.81	8.52	100.64	5425	0.127	738	7.34
		60%	11.78	9.72	114.57	5692	0.138	804	7.02
		65%	11.74	11.59	136.03	6042	0.159	918	6.75
		70%	11.68	13.97	163.22	6395	0.183	1060	6.49
		75%	11.63	16.19	188.28	6730	0.203	1172	6.23
		80%	11.57	18.79	217.53	7064	0.225	1296	5.96
		90%	11.43	25.03	286.06	7682	0.274	1557	5.44
		100%	11.37	27.44	312.15	7887	0.293	1656	5.31
	APC 13*6.5	40%	11.87	5.70	67.72	4127	0.106	561	8.28	82 (Ambient Temperature: /)
		45%	11.85	6.73	79.74	4399	0.118	634	7.95
		50%	11.82	7.98	94.38	4690	0.134	714	7.57
		55%	11.78	9.77	115.14	5014	0.155	834	7.25
		60%	11.73	11.86	139.12	5369	0.179	959	6.89
		65%	11.68	14.31	167.12	5713	0.205	1101	6.59
		70%	11.61	17.19	199.57	6046	0.232	1245	6.24
		75%	11.55	19.99	230.78	6339	0.257	1376	5.96
		80%	11.47	23.05	264.46	6643	0.281	1499	5.67
		90%	11.31	30.26	342.33	7173	0.335	1781	5.20
		100%	11.25	33.08	372.13	7347	0.354	1885	5.06
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AS2814 Long Shaft KV1050	APC 10*5.5	40%	15.79	9.66	152.52	7248	0.136	827	5.42	92 (Ambient Temperature: /)
		45%	15.76	11.48	180.90	7657	0.157	944	5.22
		50%	15.71	13.20	207.28	8033	0.172	1042	5.03
		55%	15.66	15.24	238.67	8345	0.195	1165	4.88
		60%	15.61	17.61	274.98	8747	0.216	1288	4.68
		65%	15.55	20.21	314.22	9142	0.237	1423	4.53
		70%	15.48	23.37	361.77	9605	0.263	1570	4.34
		75%	15.39	27.38	421.30	10064	0.297	1752	4.16
		80%	15.29	31.67	484.19	10506	0.326	1917	3.96
		90%	15.06	41.60	626.63	11362	0.385	2251	3.59
		100%	15.02	43.68	655.87	11446	0.399	2320	3.54
	APC 11*5.5	40%	15.77	9.94	156.76	6967	0.150	899	5.73	79 (Ambient Temperature: /)
		45%	15.72	11.83	185.92	7367	0.171	1019	5.48
		50%	15.68	13.73	215.24	7756	0.190	1108	5.15
		55%	15.62	16.37	255.58	8053	0.226	1174	4.59
		60%	15.56	19.09	296.92	8544	0.249	1359	4.58
		65%	15.49	22.02	341.14	8950	0.275	1542	4.52
		70%	15.40	25.78	397.04	9389	0.307	1742	4.39
		75%	15.31	29.80	456.05	9824	0.338	1907	4.18
		80%	15.19	34.88	529.96	10235	0.377	2106	3.97
		90%	14.94	46.36	692.40	10917	0.450	2454	3.54
		100%	14.89	48.22	718.16	11014	0.457	2474	3.44
	APC 12*6	40%	11.86	7.18	85.10	4968	0.108	616	7.24	71 (Ambient Temperature: /)
		45%	11.82	8.53	100.80	5308	0.123	701	6.96
		50%	11.79	9.88	116.43	5612	0.136	773	6.64
		55%	11.75	11.39	133.89	5880	0.152	871	6.51
		60%	11.71	13.45	157.51	6190	0.172	982	6.23
		65%	11.65	16.06	187.02	6545	0.196	1113	5.95
		70%	11.58	18.95	219.48	6932	0.220	1249	5.69
		75%	11.52	21.80	251.12	7273	0.242	1368	5.45
		80%	11.44	25.11	287.30	7617	0.268	1512	5.26
		90%	11.26	33.10	372.82	8217	0.325	1808	4.85
		100%	11.19	36.14	404.45	8443	0.344	1902	4.70
	APC 13*6.5	40%	11.84	7.50	88.82	4448	0.124	655	7.37	85 (Ambient Temperature: /)
		45%	11.81	9.04	106.73	4764	0.142	751	7.04
		50%	11.77	10.86	127.88	5105	0.162	859	6.72
		55%	11.71	13.39	156.73	5480	0.186	999	6.37
		60%	11.65	16.15	188.18	5843	0.213	1142	6.07
		65%	11.57	19.48	225.36	6186	0.243	1300	5.77
		70%	11.49	22.98	263.98	6524	0.271	1444	5.47
		75%	11.41	26.55	302.81	6809	0.299	1595	5.27
		80%	11.31	30.66	346.80	7101	0.328	1752	5.05
		90%	11.11	39.68	440.88	7625	0.388	2049	4.65
		100%	11.03	43.27	477.24	7746	0.410	2149	4.50
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AS2814 Long Shaft KV1200	APC 9*6	40%	15.75	11.65	183.57	8564	0.143	813	4.43	67 (Ambient Temperature: /)
		45%	15.72	13.66	214.74	9057	0.161	912	4.25
		50%	15.67	15.80	247.56	9540	0.177	1000	4.04
		55%	15.61	17.98	280.71	9920	0.194	1095	3.90
		60%	15.57	19.99	311.22	10256	0.213	1192	3.83
		65%	15.51	22.53	349.45	10675	0.233	1296	3.71
		70%	15.44	25.57	394.73	11135	0.256	1406	3.56
		75%	15.34	29.71	455.79	11680	0.286	1543	3.39
		80%	15.24	34.35	523.32	12192	0.314	1673	3.20
		90%	14.98	45.75	685.48	13130	0.383	1941	2.83
		100%	14.88	50.25	747.73	13436	0.405	2013	2.69
	APC 10*5.5	40%	15.73	12.59	197.98	7826	0.162	977	4.94	56 (Ambient Temperature: /)
		45%	15.68	15.06	236.11	8247	0.186	1116	4.73
		50%	15.61	17.78	277.52	8701	0.211	1253	4.51
		55%	15.56	20.61	320.61	9139	0.232	1381	4.31
		60%	15.47	24.03	371.71	9575	0.258	1532	4.12
		65%	15.39	27.41	421.86	9939	0.287	1685	3.99
		70%	15.28	32.08	490.17	10429	0.323	1880	3.84
		75%	15.17	36.95	560.55	10897	0.353	2057	3.67
		80%	15.05	42.23	635.73	11361	0.387	2241	3.52
		90%	14.76	55.60	820.51	12117	0.456	2583	3.15
		100%	14.64	60.43	884.95	12329	0.482	2683	3.03
	APC 10*5.5	40%	11.81	8.81	103.99	6344	0.104	624	6.00	67 (Ambient Temperature: /)
		45%	11.77	10.35	121.85	6700	0.117	706	5.79
		50%	11.74	11.97	140.54	7046	0.136	802	5.71
		55%	11.70	13.69	160.16	7362	0.151	888	5.54
		60%	11.66	15.40	179.50	7657	0.166	969	5.40
		65%	11.61	17.65	204.87	7992	0.185	1071	5.23
		70%	11.55	20.15	232.85	8355	0.202	1177	5.05
		75%	11.48	23.36	268.13	8751	0.226	1314	4.90
		80%	11.40	26.87	306.24	9187	0.247	1443	4.71
		90%	11.21	35.51	397.99	9963	0.298	1725	4.33
		100%	11.13	38.89	432.91	10206	0.316	1829	4.23
	APC 11*5.5	40%	11.80	9.02	106.49	6134	0.114	682	6.40	56 (Ambient Temperature: /)
		45%	11.76	10.62	124.89	6492	0.128	764	6.12
		50%	11.72	12.39	145.29	6829	0.144	853	5.87
		55%	11.68	14.16	165.50	7139	0.157	941	5.68
		60%	11.63	16.26	189.17	7458	0.174	1039	5.49
		65%	11.57	19.14	221.39	7853	0.200	1129	5.10
		70%	11.50	22.40	257.49	8145	0.225	1215	4.72
		75%	11.42	25.63	292.72	8588	0.248	1379	4.71
		80%	11.34	29.38	333.07	8983	0.271	1549	4.65
		90%	11.14	38.41	427.67	9704	0.322	1858	4.34
		100%	11.04	42.49	469.21	9924	0.342	1980	4.22
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AS2814 Long Shaft KV2000	APC 9*6	40%	11.11	12.42	138.00	14745	0.054	435	3.15	67 (Ambient Temperature: /)
		45%	11.03	13.52	149.04	15339	0.058	474	3.18
		50%	10.92	14.70	160.63	15815	0.062	505	3.15
		55%	10.84	15.77	170.94	16229	0.066	537	3.14
		60%	10.78	16.52	177.99	16544	0.068	563	3.16
		65%	10.72	17.31	185.55	16882	0.071	587	3.16
		70%	10.68	17.91	191.20	17234	0.073	625	3.27
		75%	10.66	18.58	198.12	17483	0.076	645	3.26
		80%	10.60	18.92	200.50	17671	0.077	652	3.25
		90%	10.45	20.77	217.00	18250	0.083	707	3.26
		100%	10.35	22.48	232.81	18840	0.088	744	3.20
	APC 10*5.5	40%	10.79	16.08	173.52	11994	0.089	644	3.71	56 (Ambient Temperature: /)
		45%	10.64	18.05	192.01	12482	0.096	703	3.66
		50%	10.56	20.11	212.31	12968	0.105	757	3.56
		55%	10.45	21.99	229.76	13337	0.113	808	3.52
		60%	10.34	23.84	246.61	13696	0.119	857	3.48
		65%	10.25	25.48	261.07	14009	0.127	902	3.45
		70%	10.16	26.99	274.13	14237	0.132	939	3.43
		75%	10.07	28.40	286.02	14477	0.137	975	3.41
		80%	10.00	29.78	297.91	14716	0.143	1009	3.39
		90%	9.86	37.06	365.30	15858	0.170	1182	3.24
		100%	9.87	41.63	410.77	16442	0.186	1279	3.11
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
