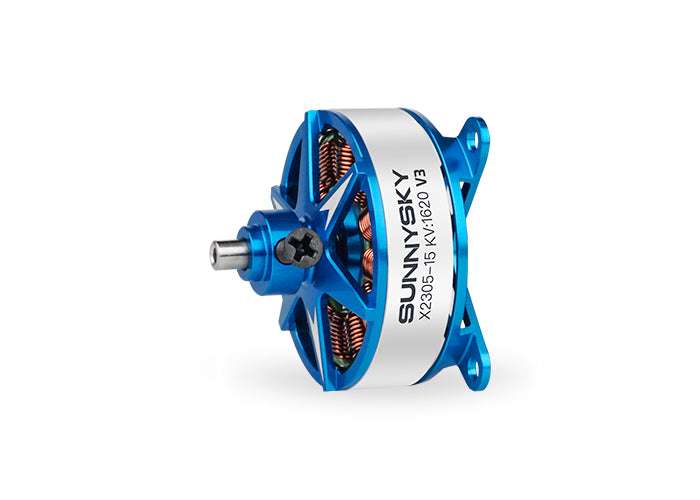

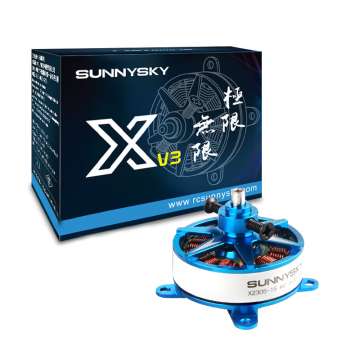

SunnySky X Series V3 X2305 V3 — бесколлекторные моторы для дронов

1138.61 грн.
Купить

Рассрочка online

Нашли дешевле?
Получите цену ниже!

Код товара: sun61
Версия для печати Задать вопрос о товаре

Поделиться:

Доставка в течение 2–3 недель.

[TABS]OVERVIEW

KV1450

Test data of this motor for 3S LiPo can be downloaded by clicking this link.



No.of Stator Slots

12 Rotor Diameter 28mm
No.of Rotor Poles 14 Shaft Diameter 3mm
Motor Kv 1450 Body Length(Without Shaft) 20.5mm
No-load current 0.5A/10V Body Length 23.6mm
Motor Resistance 120mΩ Max Lipo Cell 2-3S
Max Continuous Current 20A/30s ESC 10-20A
Max Continuous Power 168W Recommended Prop(inch) GWS8043/GWS9047/GWS9050/GWS1047
Weight 25g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GWS8043 7.4 0.4 50 2.96 16.89 2890 60℃ 10min
1 100 7.40 13.51 4000
1.4 125 10.36 12.07 4357
1.8 150 13.32 11.26 4749
2.3 175 17.02 10.28 5129
2.8 200 20.72 9.65 5570
3.9 250 28.86 8.66 6169
5.3 300 39.22 7.65 6694
6.6 350 48.84 7.17 7113
8.7 415 64.38 6.45 7730
8.4 0.4 50 3.36 14.88 2860
0.9 100 7.56 13.23 3928
1.2 125 10.08 12.40 4380
1.6 150 13.44 11.16 4729
2 175 16.80 10.42 5111
2.4 200 20.16 9.92 5489
3.4 250 28.56 8.75 6142
4.6 300 38.64 7.76 6605
5.9 350 49.56 7.06 7108
7.3 400 61.32 6.52 7615
8.9 450 74.76 6.02 8079
10.6 512 89.04 5.75 8557
GWS8060 7.4 0.4 50 2.96 16.89 2650 60℃ 10min
1 100 7.40 13.51 3460
1.5 125 11.10 11.26 3912
2 150 14.80 10.14 4335
2.6 175 19.24 9.10 4656
3.1 200 22.94 8.72 5070
4.4 250 32.56 7.68 5600
6 300 44.40 6.76 6100
7.9 350 58.46 5.99 6569
11.1 430 82.14 5.23 7200
8.4 0.3 50 2.52 19.84 2650
0.9 100 7.56 13.23 3459
1.3 125 10.92 11.45 3820
1.7 150 14.28 10.50 4357
2.2 175 18.48 9.47 4654
2.8 200 23.52 8.50 5021
4 250 33.60 7.44 5595
5.4 300 45.36 6.61 6049
7.1 350 59.64 5.87 6601
8.8 400 73.92 5.41 7024
11 450 92.40 4.87 7442
13.1 500 110.04 4.54 7680
GWS9047 7.4 0.3 50 2.22 22.52 2200 70℃ 10min
0.9 100 6.66 15.02 3079
1.3 125 9.62 12.99 3389
1.7 150 12.58 11.92 3738
2.1 175 15.54 11.26 3976
2.6 200 19.24 10.40 4302
3.8 250 28.12 8.89 4790
5 300 37.00 8.11 5240
6.4 350 47.36 7.39 5658
7.9 400 58.46 6.84 5977
9.6 450 71.04 6.33 6393
12 526 88.80 5.92 6910
8.4 0.3 50 2.52 19.84 2300
0.8 100 6.72 14.88 3069
1.1 125 9.24 13.53 3359
1.5 150 12.60 11.90 3740
1.8 175 15.12 11.57 3972
2.2 200 18.48 10.82 4270
3.3 250 27.72 9.02 4788
4.4 300 36.96 8.12 5199
5.6 350 47.04 7.44 5567
6.9 400 57.96 6.90 6021
8.6 450 72.24 6.23 6372
10.2 500 85.68 5.84 6766
13.8 621 115.92 5.36 7455
GWS9050 7.4 0.3 50 2.22 22.52 2450 65℃ 10min
0.9 100 6.66 15.02 3380
1.2 125 8.88 14.08 3741
1.6 150 11.84 12.67 4062
2 175 14.80 11.82 4375
2.5 200 18.50 10.81 4666
3.7 250 27.38 9.13 5279
5 300 37.00 8.11 5635
6 350 44.40 7.88 6104
7.4 400 54.76 7.30 6559
9 450 66.60 6.76 6905
10.7 505 79.18 6.38 7263
8.4 0.3 50 2.52 19.84 2525
0.8 100 6.72 14.88 3445
1.1 125 9.24 13.53 3778
1.4 150 11.76 12.76 4143
1.8 175 15.12 11.57 4383
2.2 200 18.48 10.82 4720
3.1 250 26.04 9.60 5278
4.2 300 35.28 8.50 5726
5.2 350 43.68 8.01 6070
6.6 400 55.44 7.22 6533
7.9 450 66.36 6.78 6912
9.5 500 79.80 6.27 7319
12.8 618 107.52 5.75 7934
GWS1047 7.4 0.3 50 2.22 22.52 1827 95℃ 3min
0.7 100 5.18 19.31 2504
1.1 125 8.14 15.36 2772
1.6 150 11.84 12.67 3018
1.9 175 14.06 12.45 3239
2.5 200 18.50 10.81 3432
3.6 250 26.64 9.38 3839
5 300 37.00 8.11 4119
6.5 350 48.10 7.28 4473
8.4 400 62.16 6.44 4753
10.5 450 77.70 5.79 5055
13 500 96.20 5.20 5317
15.6 586 115.44 5.08 5570
8.4 0.2 50 1.68 29.76 1813
0.7 100 5.88 17.01 2503
1 125 8.40 14.88 2750
1.4 150 11.76 12.76 3020
1.8 175 15.12 11.57 3232
2.2 200 18.48 10.82 3455
3.1 250 26.04 9.60 3885
4.4 300 36.96 8.12 4197
5.8 350 48.72 7.18 4530
7.4 400 62.16 6.44 4749
9.3 450 78.12 5.76 5019
11.4 500 95.76 5.22 5297
16.1 600 135.24 4.44 5792
18.7 680 157.08 4.33 6163



KV1620
No.of Stator Slots 12 Rotor Diameter 28mm
No.of Rotor Poles 14 Shaft Diameter 3mm
Motor Kv 1620 Body Length(Without Shaft) 20.5mm
No-load current 0.6A/10V Body Length 23.6mm
Motor Resistance 85mΩ Max Lipo Cell 2-3S
Max Continuous Current 23A/30s ESC 15-20A
Max Continuous Power 235W Recommended Prop(inch) GWS9050/GWS8043/GWS9047/GWS8060
Weight 25g

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GWS8043 7.4 0.4 50 2.96 16.89 2855 81℃ 10min
1 100 7.40 13.51 3914
1.4 125 10.36 12.07 4338
1.8 150 13.32 11.26 4775
2.3 175 17.02 10.28 5148
2.8 200 20.72 9.65 5542
3.9 250 28.86 8.66 6116
5.2 300 38.48 7.80 6685
6.7 350 49.58 7.06 7312
8.1 400 59.94 6.67 7550
9.8 450 72.52 6.21 8052
11.5 505 85.10 5.93 8457
8.4 0.4 50 3.36 14.88 2865
0.8 100 6.72 14.88 3924
1.2 125 10.08 12.40 4350
1.6 150 13.44 11.16 4780
2 175 16.80 10.42 5200
2.5 200 21.00 9.52 5542
3.5 250 29.40 8.50 6116
4.7 300 39.48 7.60 6695
5.8 350 48.72 7.18 7320
7.3 400 61.32 6.52 7560
8.8 450 73.92 6.09 8069
10.4 500 87.36 5.72 8455
14 612 117.60 5.20 9170
GWS8060 7.4 0.4 50 2.96 16.89 2473 76℃ 10min
1.1 100 8.14 12.29 3619
1.5 125 11.10 11.26 3989
2 150 14.80 10.14 4380
2.6 175 19.24 9.10 4700
3.2 200 23.68 8.45 5036
4.6 250 34.04 7.34 5690
6.2 300 45.88 6.54 6088
7.9 350 58.46 5.99 6667
10.1 400 74.74 5.35 7053
14.1 494 104.34 4.73 7739
8.4 0.4 50 3.36 14.88 2470
0.9 100 7.56 13.23 3620
1.3 125 10.92 11.45 4000
1.8 150 15.12 9.92 4370
2.3 175 19.32 9.06 4710
2.8 200 23.52 8.50 5026
4 250 33.60 7.44 5700
5.5 300 46.20 6.49 6100
6.9 350 57.96 6.04 6666
8.9 400 74.76 5.35 7000
10.9 450 91.56 4.91 7400
17.2 550 144.48 3.81 8111
GWS9047 7.4 0.3 50 2.22 22.52 2392 89℃ 10min
0.9 100 6.66 15.02 3178
1.2 125 8.88 14.08 3539
1.7 150 12.58 11.92 3870
2.1 175 15.54 11.26 4200
2.6 200 19.24 10.40 4450
3.7 250 27.38 9.13 4886
4.9 300 36.26 8.27 5306
6.4 350 47.36 7.39 5700
7.9 400 58.46 6.84 6050
9.6 450 71.04 6.33 6480
11.4 500 84.36 5.93 6645
15.6 620 115.44 5.37 7403
8.4 0.3 50 2.52 19.84 2380
0.8 100 6.72 14.88 3180
1.2 125 10.08 12.40 3536
1.5 150 12.60 11.90 3870
1.9 175 15.96 10.96 4210
2.3 200 19.32 10.35 4450
3.3 250 27.72 9.02 4890
4.4 300 36.96 8.12 5306
5.7 350 47.88 7.31 5700
7 400 58.80 6.80 6080
8.5 450 71.40 6.30 6370
10.2 500 85.68 5.84 6790
14 600 117.60 5.10 7284
18.1 720 152.04 4.74 7900
GWS9050 7.4 0.4 50 2.96 16.89 2502 89℃ 10min
0.9 100 6.66 15.02 3438
1.2 125 8.88 14.08 3844
1.7 150 12.58 11.92 4077
2.1 175 15.54 11.26 4478
2.6 200 19.24 10.40 4743
3.6 250 26.64 9.38 5207
4.9 300 36.26 8.27 5690
6.2 350 45.88 7.63 6185
7.7 400 56.98 7.02 6529
9.2 450 68.08 6.61 7016
11 500 81.40 6.14 7327
13.7 580 101.38 5.72 7838
8.4 0.3 50 2.52 19.84 2447
0.7 100 5.88 17.01 3450
1.1 125 9.24 13.53 3844
1.4 150 11.76 12.76 4087
1.8 175 15.12 11.57 4480
2.2 200 18.48 10.82 4800
3.1 250 26.04 9.60 5210
4.2 300 35.28 8.50 5600
5.4 350 45.36 7.72 6120
6.7 400 56.28 7.11 6529
8 450 67.20 6.70 6988
9.6 500 80.64 6.20 7348
13.1 600 110.04 5.45 7987
16.5 705 138.60 5.09 8510
GWS1047 7.4 0.3 50 2.22 22.52 1890 100℃ 1min
0.8 100 5.92 16.89 2450
1.1 125 8.14 15.36 2790
1.6 150 11.84 12.67 3050
2 175 14.80 11.82 3300
2.5 200 18.50 10.81 3500
3.6 250 26.64 9.38 3950
5 300 37.00 8.11 4120
6.6 350 48.84 7.17 4600
8.3 400 61.42 6.51 4784
10.3 450 76.22 5.90 5120
12.5 500 92.50 5.41 5260
18.2 600 134.68 4.46 5720
20.2 659 149.48 4.41 5950
8.4 0.2 50 1.68 29.76 1889
0.7 100 5.88 17.01 2446
1 125 8.40 14.88 2777
1.3 150 10.92 13.74 3033
1.8 175 15.12 11.57 3290
2.2 200 18.48 10.82 3496
3.2 250 26.88 9.30 3930
4.3 300 36.12 8.31 4120
5.7 350 47.88 7.31 4596
7.2 400 60.48 6.61 4764
9.2 450 77.28 5.82 5106
11.3 500 94.92 5.27 5266
Производитель: SunnySky
