T-HOBBY P2207 V3 5" Freestyle FPV Motor KV1750/KV1950/KV2080/KV2550 T-Motor

1583.25 грн.

Код товара: lgr21

Доставка в течение 2 недель.

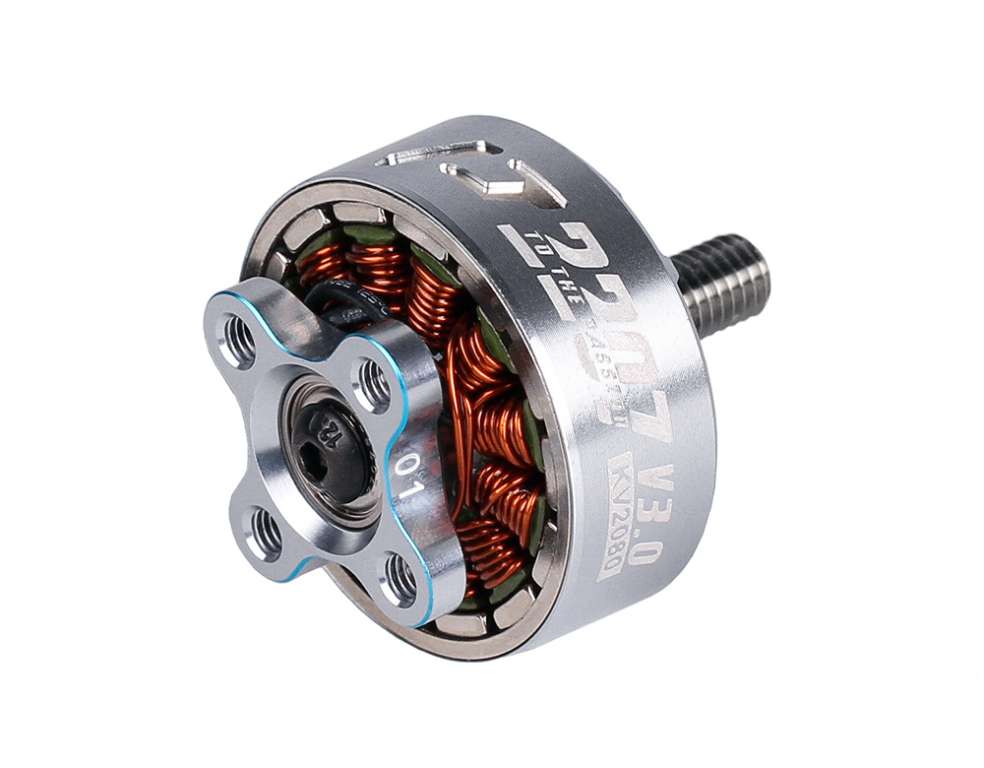

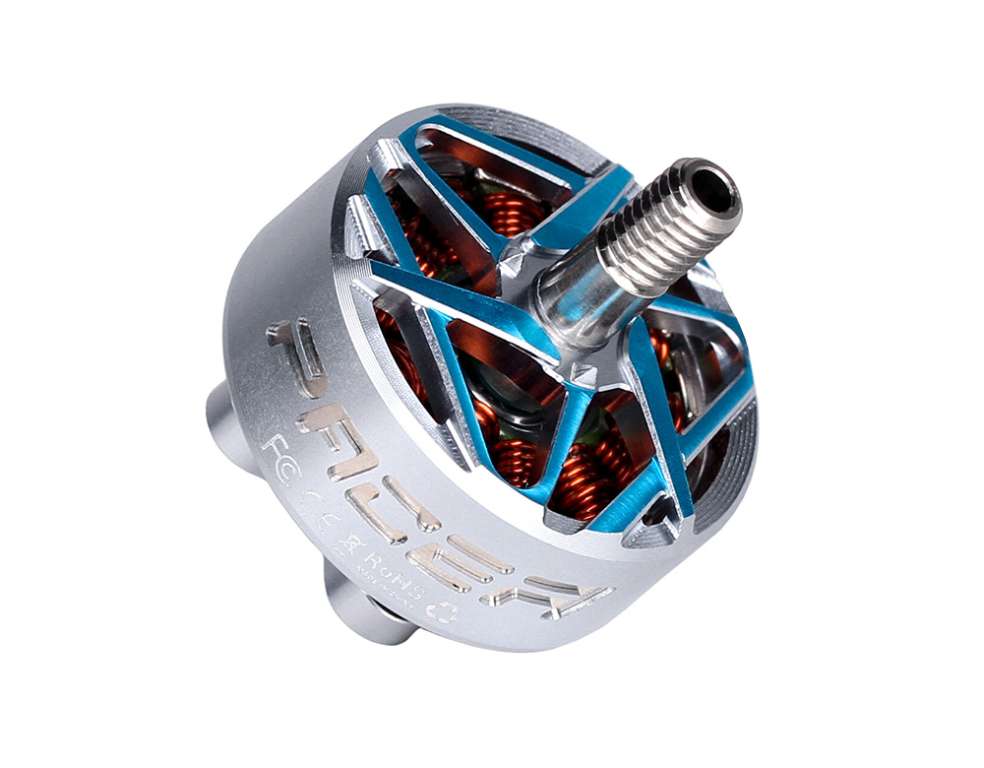

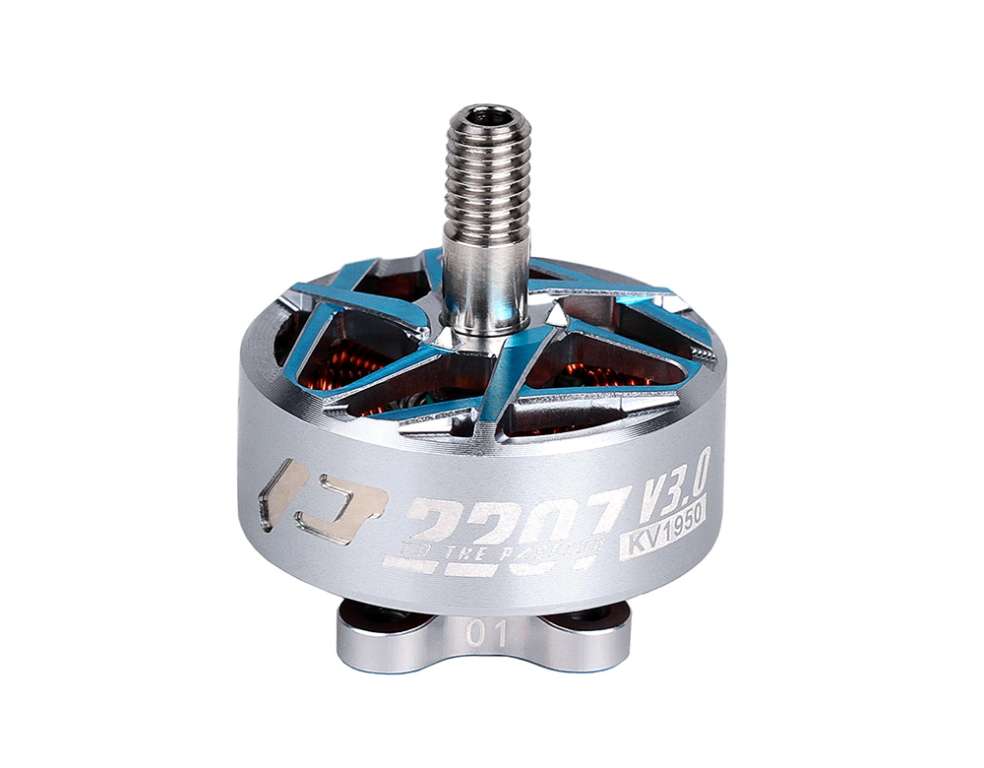

About T-HOBBY P2207 V3 5"Freestyle FPV Motor

The T-HOBBY PACER V3 P2207 Powerful Freestyle Motor has become one of the most popular motors in the market.

T-HOBBY has updated and upgraded their Pacer motor to V3! The 2207 version of the Pacer V3 has improved components and a unibell design to give your freestyle quadcopter extreme power.

This motor features a high throttle for precious control and is suitable when flying in bigger spaces!

P2207 V3 Hightlight:

The P2306 V3 brushless motor is suitable for 5" freestyle drone. 3 different KVs are suitable for different styles.

1750KV specially designed for flow style, more efficient. 1950KV is designed for acro style, precise and balance. For 4S we have 2550KV, satisfying the lightweight flight such as mind-bending.

The motor is silver unibell design, more durable for daily flights.

Packing List Includes:

1x T-HOBBY PACER V3 P2207 Powerful Freestyle Motor (1750KV, 1950KV, 2080KV or 2550KV)

1x Hardware Set

Matching Frame:

5 Inch

Matching Guide:

F55A PROⅡ 6S 4IN1

F7 flight controller / Pacer F7 flight controller

P49436 Propeller / T5143s Propeller

Technical Drawing

Specification

KV	KV1750	Configuration	12N14P
Shaft Diameter	4mm	Lead	20#150mm
Weight (Incl. Cable)	34.2g	Voltage	6S
Idle Current（10V）	1.2A	Max. Power（60s）	952W
Peak Current（60s）	38.4A

KV	KV1950	Configuration	12N14P
Shaft Diameter	4mm	Lead	20#150mm
Weight (Incl. Cable)	34.3g	Voltage	6S
Idle Current（10V）	1.35A	Max. Power（60s）	1085W
Peak Current（60s）	44A

KV	KV2080	Configuration	12N14P
Shaft Diameter	4mm	Lead	20#150mm
Weight (Incl. Cable)	34.1g	Voltage	6S
Idle Current（10V）	1.4A	Max. Power（60s）	1037W
Peak Current（60s）	44A

KV	KV2550	Configuration	12N14P
Shaft Diameter	4mm	Lead	20#150mm
Weight (Incl. Cable)	34.2g	Voltage	4S
Idle Current（10V）	2.25A	Max. Power（60s）	713W
Peak Current（60s）	43.6A

Test Data

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
T-HOBBY P49436-3	1750KV	20%	25.2	2.3	12566	229.5	57.2	4.01
		40%	25.2	7.6	19159	571.4	192.4	2.97
		60%	25.1	14.0	23193	853.4	352.6	2.42
		80%	25.0	23.0	28065	1283.6	574.7	2.23
		100%	24.8	37.9	32448	1696.9	940.1	1.80
	1950KV	20%	25.2	2.6	13110	259.3	66.0	3.93
		40%	25.2	9.2	19960	634.4	230.5	2.75
		60%	25.1	16.9	24042	928.1	423.9	2.19
		80%	24.9	28.1	28976	1378.8	700.4	1.97
		100%	24.8	43.8	33011	1760.1	1084.5	1.62
	2080KV	20%	23.0	2.5	12504	227.9	57.9	3.94
		40%	23.0	8.8	19131	581.0	201.1	2.89
		60%	22.9	16.1	23133	844.3	367.6	2.30
		80%	22.8	26.0	27794	1256.0	590.4	2.13
		100%	22.6	41.9	31901	1628.4	945.1	1.72
	2550KV	20%	16.8	2.9	11241	177.1	48.8	3.63
		40%	16.7	9.2	17463	466.6	153.5	3.04
		60%	16.6	16.5	21322	714.3	273.9	2.61
		80%	16.5	26.7	25214	1013.4	440.4	2.30
		100%	16.3	42.9	29349	1392.1	700.0	1.99
T-HOBBY T5143S-3	1750KV	20%	25.2	2.4	12280	223.8	59.7	3.75
		40%	25.2	7.7	18796	566.2	192.5	2.94
		60%	25.1	14.4	22865	849.7	361.6	2.35
		80%	25.0	23.5	27707	1285.7	586.8	2.19
		100%	24.8	38.4	31869	1677.2	952.8	1.76
	1950KV	20%	25.2	2.7	12850	249.8	67.3	3.71
		40%	25.2	9.3	19765	618.9	232.9	2.66
		60%	25.1	16.8	24072	928.4	421.9	2.20
		80%	24.9	28.3	29157	1376.3	704.3	1.95
		100%	24.7	45.1	33467	1815.3	1115.9	1.63
	2080KV	20%	24.0	2.7	12505	233.4	63.8	3.66
		40%	23.9	9.4	19243	592.1	224.8	2.63
		60%	23.8	17.5	23263	872.3	417.3	2.09
		80%	23.7	28.0	28086	1320.6	665.0	1.99
		100%	23.5	44.0	31754	1668.3	1036.2	1.61
	2550KV	20%	16.8	3.0	11071	176.1	49.7	3.54
		40%	16.7	9.3	17098	470.2	156.0	3.01
		60%	16.6	16.7	21031	696.3	277.9	2.51
		80%	16.5	27.4	24871	1026.7	453.2	2.27
		100%	16.3	43.7	28944	1372.5	713.0	1.93

Analysis Chart

Packing List
