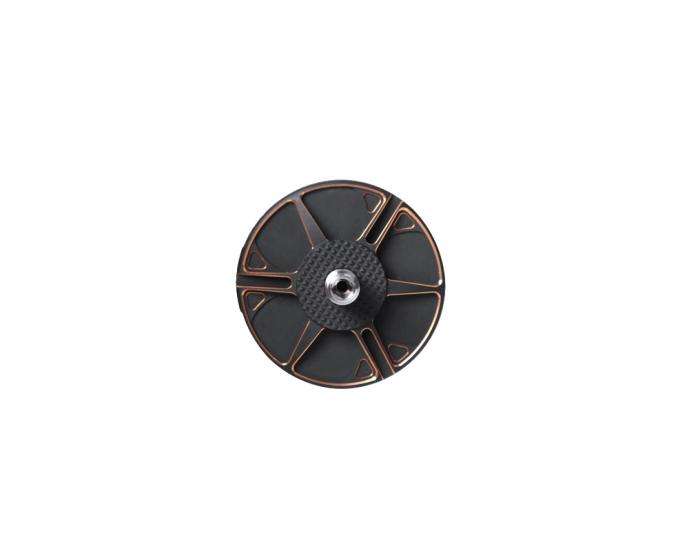

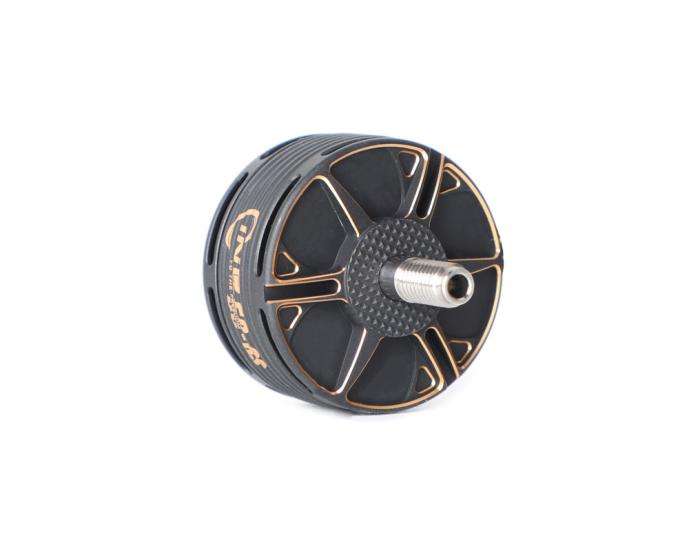

T-HOBBY Мотор Cine 60 6S для 6'' X4 синематик FPV-дрона T-Motor

3703.07 грн.

Код товара: lgr47

Доставка в течение 2 недель.

COMPREHENSIVE PROTECTION FOR SECURE FLIGHT

The integrated protective design effectively prevents sand, gravel, and dust from entering the motor during filming and take off/landing operations. The iron core undergoes electrophoretic coating treatment and has passed 72-hour salt spray test certification, ensuring reliable performance in moisture, dusty, and corrosive environments.

CORROSION
RESISTANT

SAND
RESISTANT

DUST
RESISTANT

ALL-ENVIRONMENT
RELIABILITY

MEETS TO MULTIPLE FILMING STYLES

Suitable for 6" cinematic drone. It handles extended flights with high throttle without issues like thrust loss and desync. Allowing the drone to handle chasing fixedwing, chasing cars or flying over the mountain with ease.

ULTRA POWER, FEARLESS HIGH-SPEED FLIGHT

The maximum thrust of the Cine60 is over 1.5kg. Excellent heat dissipation design, maintains power even with high-pitch props, suitable for multiple 6" propellers. Matches 5" drone handling performance under GOPRO loads, making your cinematic shots smoother.

DOUBLE FLIGHT TIME SINGLE-TAKE SHOT READY

Unique electromagnetic design, compared to a 5-inch cinematic drone, it offers double the flight time (1550mAh 6s battery, AUW 850g, flight time 12 mins), reducing battery load while ensuring smooth filming efficiency. Perfect for extended single-take shots, empowering creators to focus on filming.

RECOMMENDED

CINE60

F7 PRO

F55A PROIII

Technical Drawing

Specification

Type	Cine60	Motor Dimension	Φ30.9*34.03mm
Magnet	Nickel platedarc magnet	Coil insulation test	200V withstandvoltage test
Waterproof and dustproof class	IP45	Configuration	12N14P
Dynamic balancerequirements standards	≤5mg	Bearings	Imported 684ZZ
Shaft Diameter	1.5mm	Lead	24AWG*180mm
Screw Diameter	Φ16-M2-4	Prop Adapter Shaft Thread	M5*12.5mm
Packing Size	656555mm	Packing Weight	70g

Tech Specs
Recommended Voltage	6S	Idle Current(10V)	0.96A
Max Power(1s)	782W	Internal Resistance	84mΩ
Rated Voltage (Lipo)	24V	Peak Current(1s)	34A
Max Thrust	1789g	Weight (incl.cable)	39.1g

Recommended
Motor	Cine60 6S	Frame Type	X4
Prop	T6143-3（6-inch Tri-bladepropeller, pitch 3.0-4.5）	Lipo Cells	6S
ESC	F7 PRO	Recommended takeoff weight range	Within 1000g
FC	F55A PROⅢ	Max Takeoff Weight	2000g
Test Data:	1、2200mah 6s battery (310g), load weight 160g, AUW 900g, flight time 16 minutes. 2、1550mah 6s battery (260g), load weight 160g, AUW 850g, flight time 12 minutes. 3、5000mah 6s battery (420g), load weight 160g, AUW 1100g, flight time 34 minutes. 4、5000mah 6s battery (420g), without payload, AUW 940g, flight time 40 minutes. 5、1550mah 6s battery (260g), without payload, AUW 690g, flight time 16 minutes.
Note: Recommend BL32 ESC settings: Startup power: 50%, Timing: AUTO, PWM frequency: 16-BYRPM, Demag compensation: low, for best efficiency and flight time experience (improper settings may cause desync)

Test Data

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
Cine60 6S	T-HOBBY T6143-3	24.02	10%	0.22	3715	29	5	5.50	0.00
		24.01	20%	0.84	7037	117	20	5.85	0.02	138 (Ambient temperature: 25℃)
		23.99	30%	2.03	9894	252	49	5.18	0.03
		23.96	40%	3.94	12535	417	94	4.42	0.05
		23.91	50%	6.80	15190	641	163	3.94	0.08
		23.84	60%	10.45	17539	872	249	3.50	0.10
		23.76	70%	14.96	19404	1094	355	3.08	0.13
		23.65	80%	20.28	21311	1341	480	2.80	0.16
		23.54	90%	26.48	22955	1574	623	2.53	0.18
		23.42	100%	33.40	24354	1789	782	2.29	0.21
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine60 6S	HQ 633	24.03	10%	0.20	3733	23	5	4.77	0.00
		24.02	20%	0.73	7161	95	18	5.44	0.01	96 (Ambient temperature: 25℃)
		24.00	30%	1.74	10243	207	42	4.98	0.03
		23.97	40%	3.32	13040	353	80	4.43	0.04
		23.93	50%	5.69	15815	542	136	3.98	0.06
		23.87	60%	8.88	18261	751	212	3.54	0.08
		23.80	70%	12.78	20433	967	304	3.18	0.11
		23.70	80%	17.70	22515	1208	419	2.88	0.14
		23.60	90%	23.51	24275	1473	555	2.66	0.16
		23.48	100%	29.89	25905	1710	702	2.44	0.19
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine60 6S	HQ 6*4.3-2	24.03	10%	0.21	3736	27	5	5.28	0.00
		24.02	20%	0.75	7117	108	18	5.99	0.01	91 (Ambient temperature: 25℃)
		24.00	30%	1.82	10150	233	44	5.32	0.03
		23.97	40%	3.45	12946	388	83	4.69	0.04
		23.92	50%	5.88	15734	607	141	4.31	0.06
		23.87	60%	9.09	18190	825	217	3.80	0.09
		23.80	70%	12.99	20368	1046	309	3.38	0.11
		23.70	80%	17.89	22447	1291	424	3.04	0.14
		23.59	90%	23.70	24260	1528	559	2.73	0.16
		23.48	100%	30.09	25854	1761	706	2.49	0.19
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

Analysis Chart

Packing List
